COB LED Down Light – DF Series

  • ADC12 aluminum alloy
  • Power: 9W/15W/24W/35W/40W
  • Beam angle: 24°/60°
  • IP54 dust and water protection grade
  • Triple anti-dazzle design
  • Dimmable:0-10V, DALI
  • Microwave sensor: for option
  • 5 years warranty for full body
  • Product Detail

COB LED Down Light - DF Series

The DF Serie COB LED Down light use of high-quality ADC12 aluminum alloy, the whole car aluminum process, durable, exquisite structure, a variety of high-quality light control accessories, to ensure the light efficiency, triple deep anti-glare design to create a more comfortable light environment.

9W,15W,24W,35W,45W for option, different reflector colors, optical accessories changes to get professional lighting effect. Multiple sizes seceletion to cover 2m-10m height space.

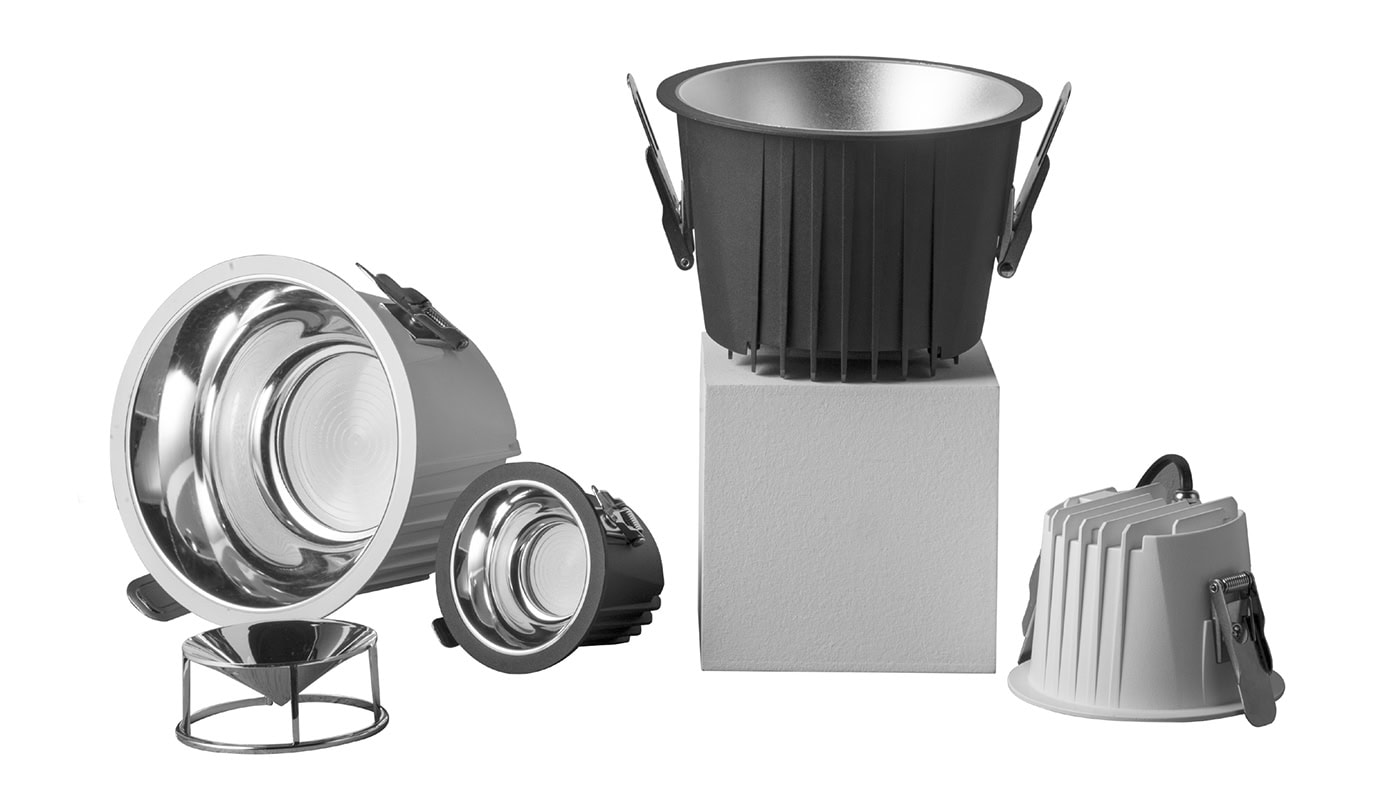

anti glare down lights

IP54 dust and water Protection Grade

Effectively prevent foreign objects, moisture, water intrusion, to ensure that the lamp can also be used normally in harsh environments.

  • Built-in fully sealed protective cover
  • Anti-drag moisture-proof screw structure
  • Zero tolerance accessories

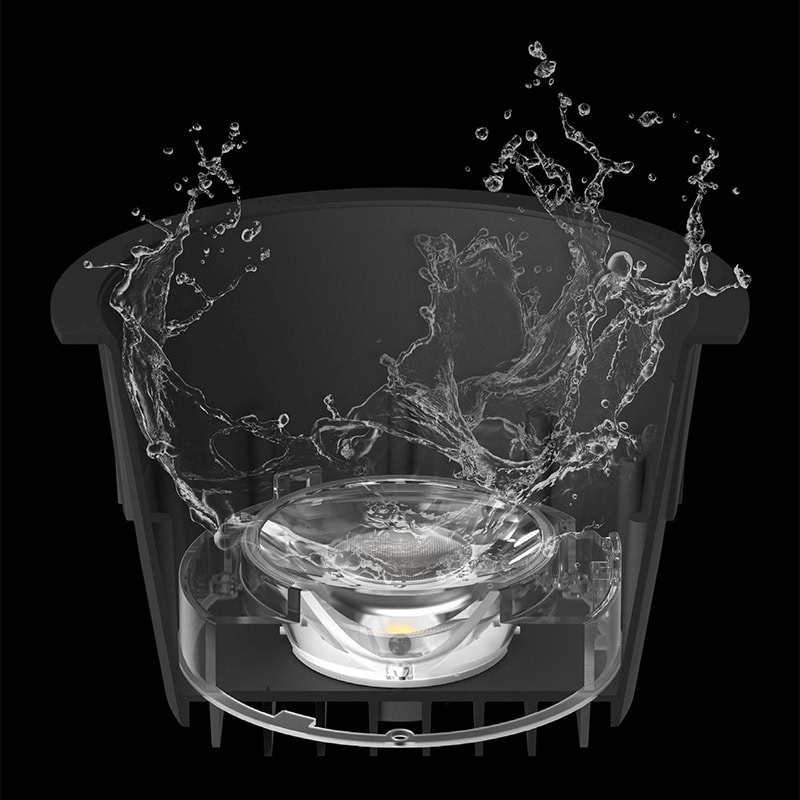

IP65 down light lens

Triple anti-dazzle Down Light

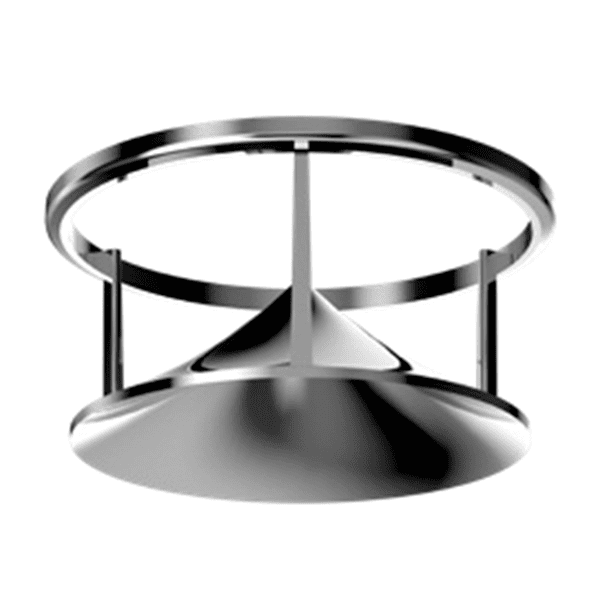

down light Triple reflector
Triple reflector

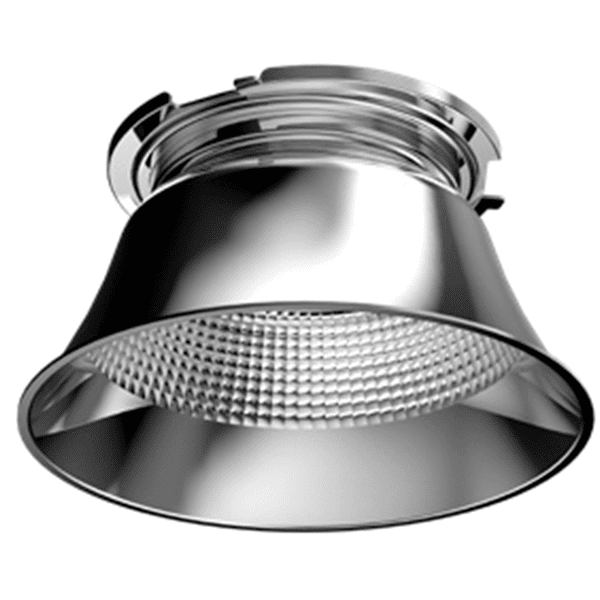

Triple reflector of down light
Triple reflector cup

Standard comfort, greatly reduce the generation of glare and improve user comfort experience.

The combination of the triple reflection cup and the reflector, the emitted light through the transparent cup,

After the reflector finally refracts into the reflective cup, the light can reach a high of URG ≤ 16.

The light from the light source to the refraction will go through three reflections

Different Reflectors for option of LED Down Light

Different reflective cups create different light effects, Easily match any scene needs.

Premium colors and textures add charm to your space

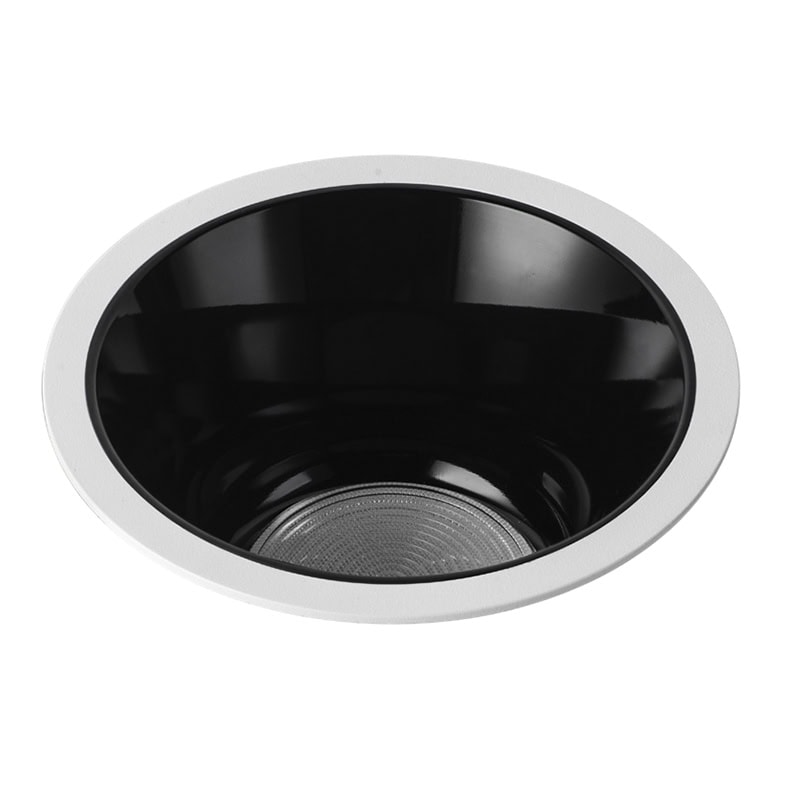

COB LED downlight Black reflector

Black

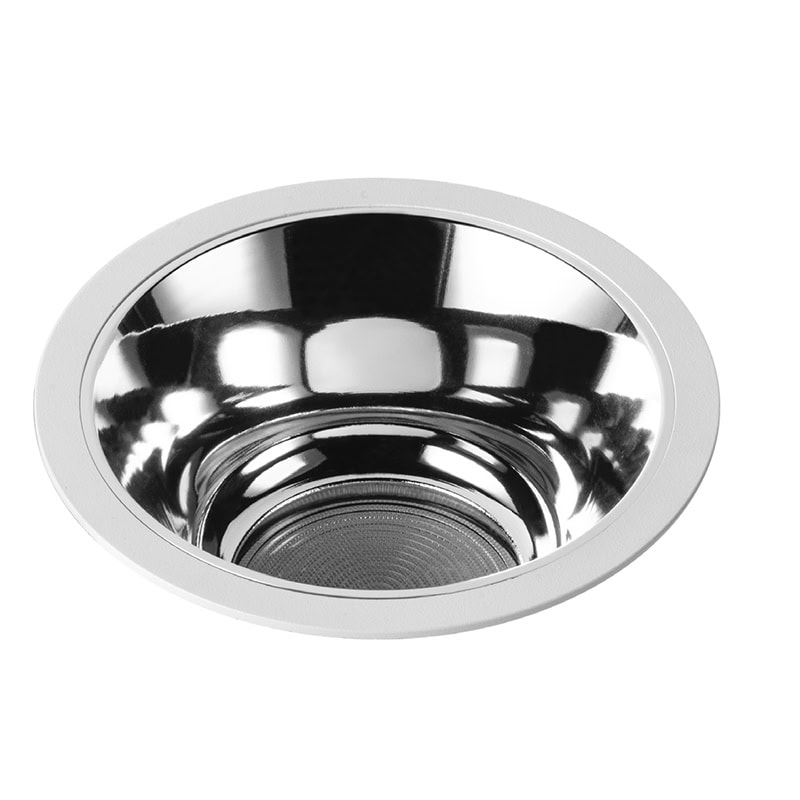

COB LED downlight silver lustre Reflector

Sliver lustre

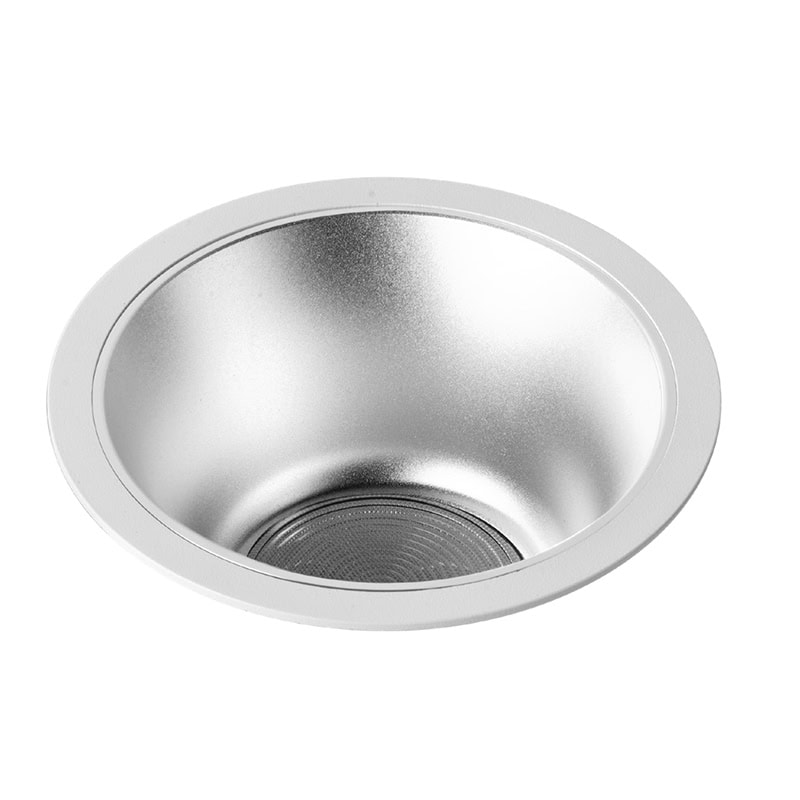

cob led down light Sand-blasted silver

Sand-blasted silver

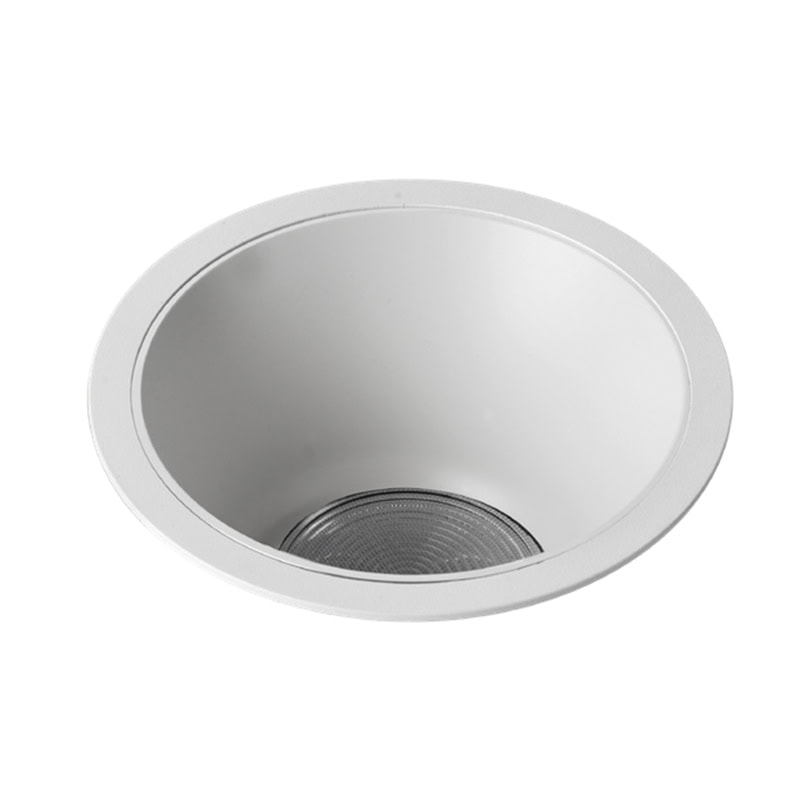

cob led down light white reflector

White

Expand the COB LED Down light surface ring

COB LED Downlights all products can match the expanded face ring accessories, accessories suitable for large-caliber downlight replacement solutions,

Differernt with the conventional hole size, we use perfect coverage of large openings,

No need to re-open the hole, can be adapted to new lamps.

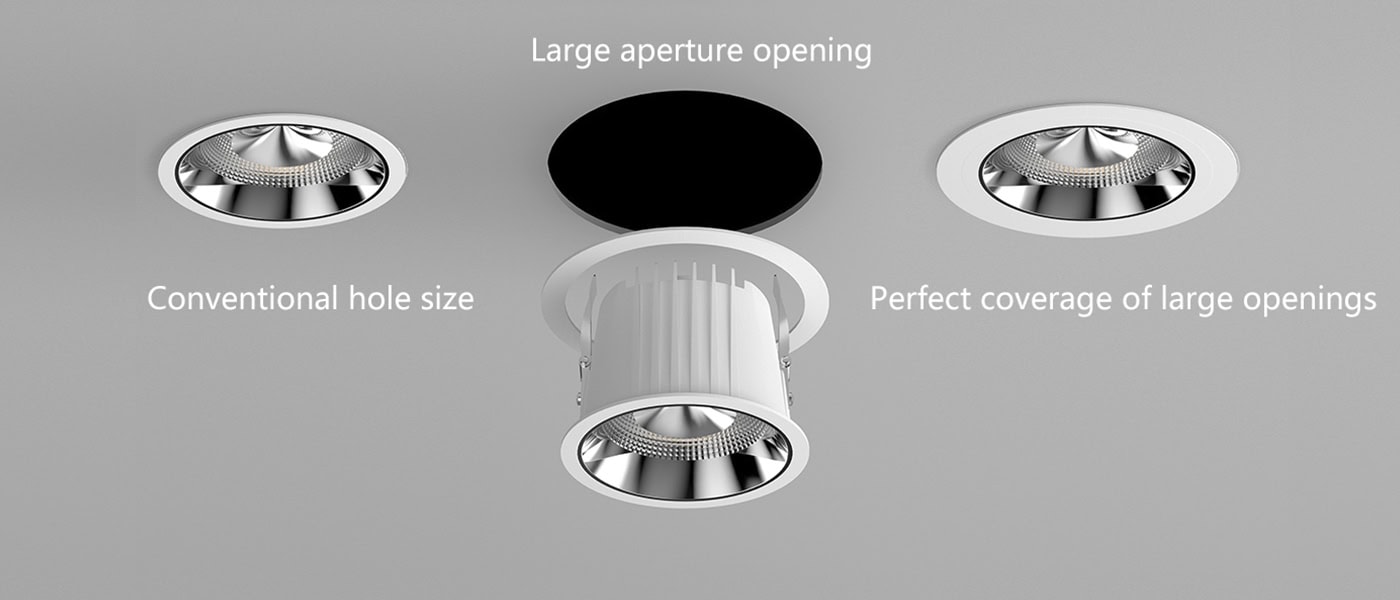

expand-surface-ring-of-down-lights

Optical accessories for option

Accessories can change the lighting characteristics produced by individual lamps to achieve highly professional lighting effects.

Four different optical accessories to choose from: high penetration lens, triple anti-glare, diffuser plate and cellular mesh.

You can choose the right accessories according to the lighting effect you need.

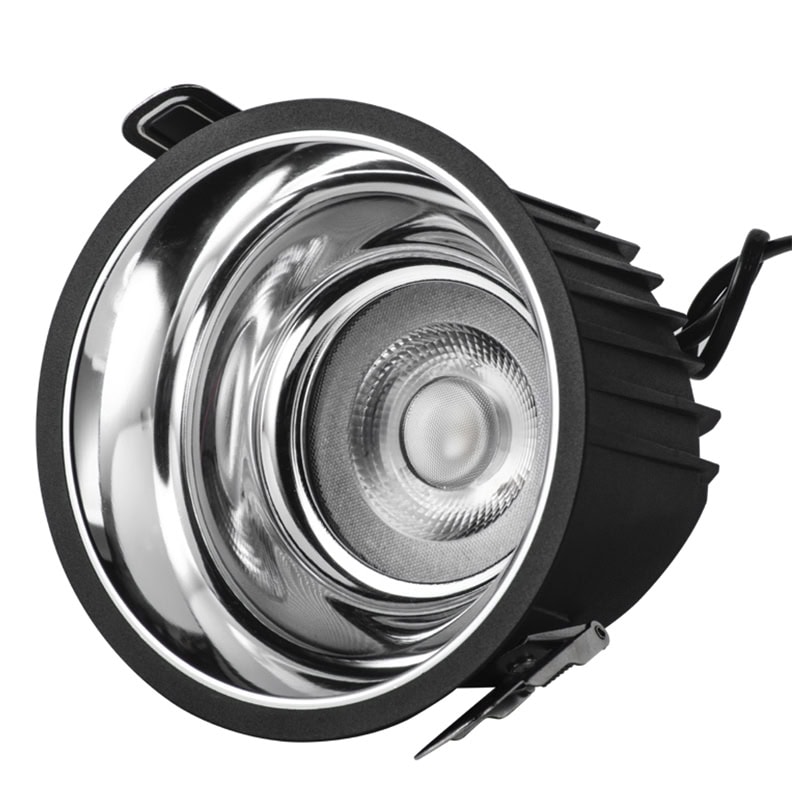

LED downlight high penetration lens

High penetration lens

Adopt imported high permeability,

makes mirror is clean and bright.

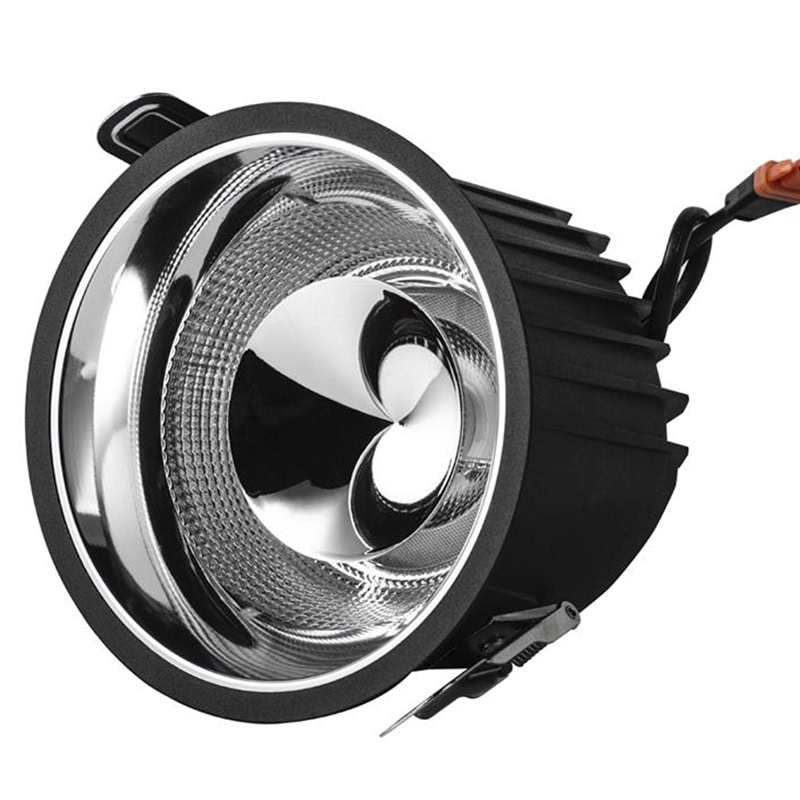

cob led down light triple anti-glare

Triple anti-glare

Specially equipped with triple reflector lamp UGR ≤ 16 Efficient anti-glare.

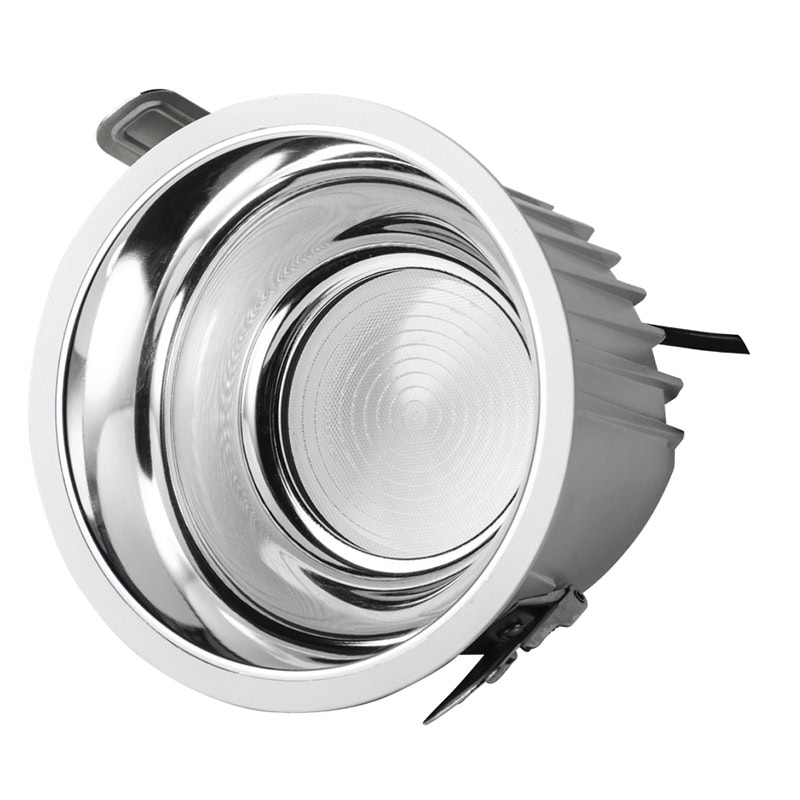

led down light diffuser plate

Diffuser plate

Equipped with high diffusion soft light plate. The line is softer and more comfortable.

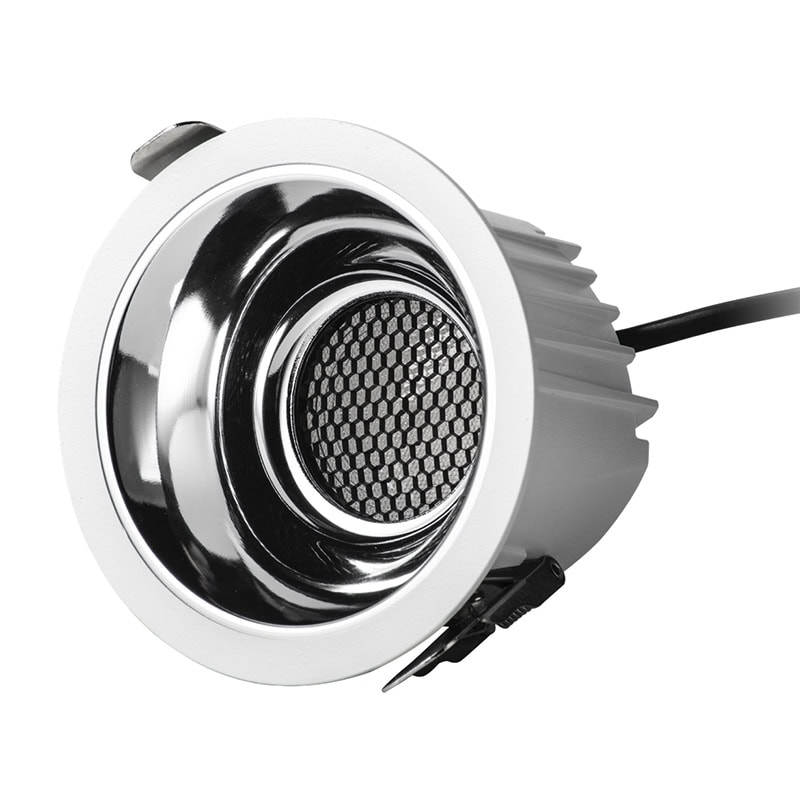

led down light cellular mesh

Cellular mesh

The anti-glare effect is greatly improved. Cellular mesh matches all mirror reflectors/sand masks /White cover/Triple reflector cover

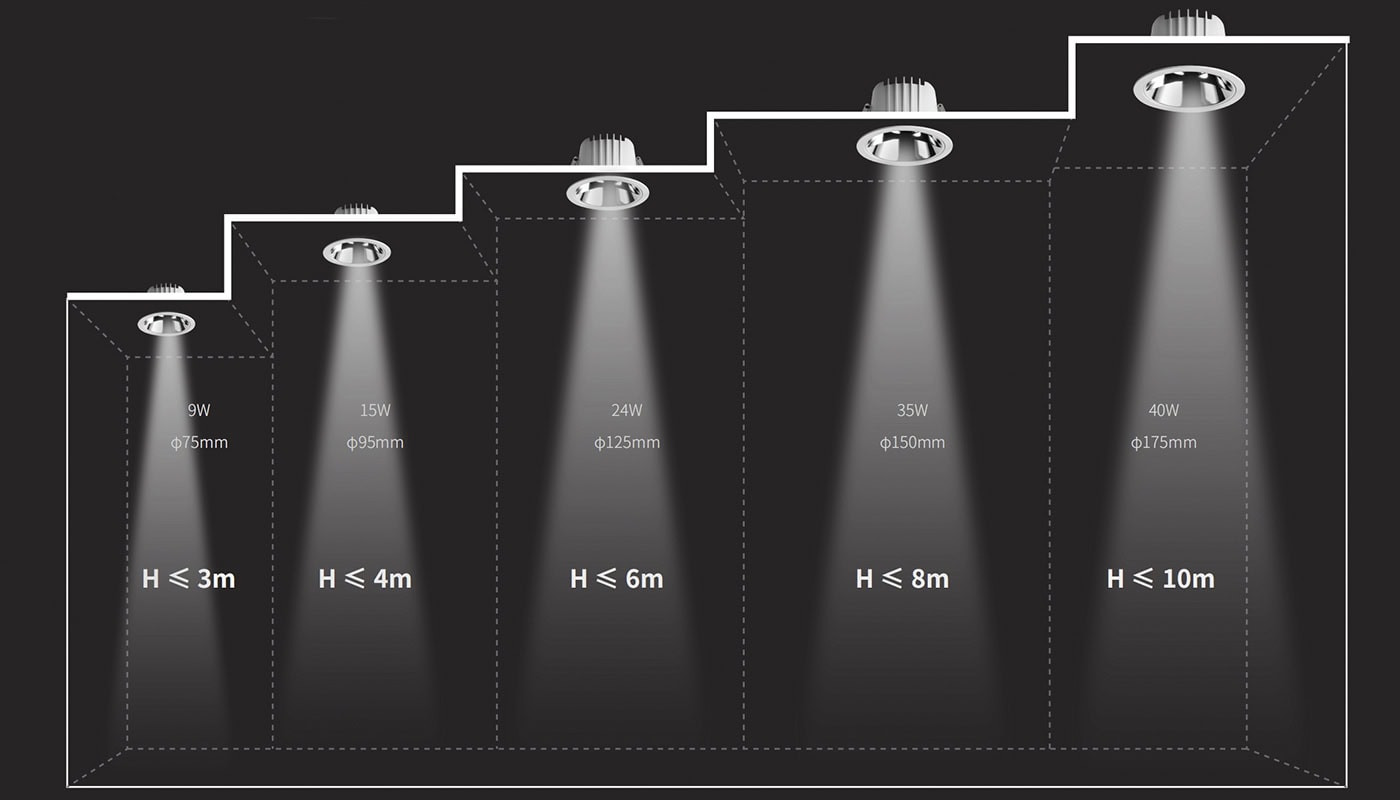

Multiple sizes selection of COB LED Down Light

9W/15W/24W/35W/40W output power to choose from,

Suitable for indoor space below 2~10 meters high.

COB downlight led multiple sizes selection

COB LED Down Light Datasheet

Model No. GS-DF-9W GS-DF-15W GS-DF-24W GS-DF-30W GS-DF-40W
Power
9W
15W
24W
30W
45W
Beam angle
24°/60°
Light efficiency
90lm/W
Voltage
AC200-240V
LEDs
Citizen COB
PF
>0.95
LED Lifespan
>50000 Hours
IP
IP54
CRI
>90
CCT
3000K/4000K/5000K/5700K/6500K
Accessories
High penetration lens/triple anti-glare/diffuser plate/cellular mesh
Size
Φ87*65
Φ110*75
Φ135*95
Φ160*110
Φ186*120
Cut out
Φ75
Φ95
Φ125
Φ150
Φ175
