RGB neon light 16x16mm DC24V 18W/M DMX512

RGB Neon Light Features

RGB Neon light characterized by its uniform and stable light output, the lamp features an Ip67 waterproof design that ensures stable operation in a variety of harsh environments.

It supports DC24V power supply, the maximum power per meter can reach 18W/M Max, and provides a rich choice of color temperature, including 2400K, 2700K, 3000K, 4000K, 5000K und 5700K, to meet the lighting needs of different scenes. Its surface is designed with neon vapor silica gel and has a beam Angle of 120 Grad, which can widely illuminate the surrounding environment.

Zusätzlich, the lamps and lanterns is support by DMX512 protocol for dimming, achieve flexible lighting control. In terms of material, it uses high-reliability vapor phase silica gel to ensure the durability and stability of the product. Excellent performance for both outdoor and indoor use, with a 2-year warranty for outdoor use and a 5-year warranty for indoor use.

Physical Specication Of RGBW Neon Light

Top view RGBW neon light, bending direction of its installation follows specific graphical guidance to ensure that the lighting effect is as intended.

The specific size of the neon is 16x16mm, which allows it to be flexibly installed in a variety of application scenarios, whether it is a compact space or a place requiring detailed layout.

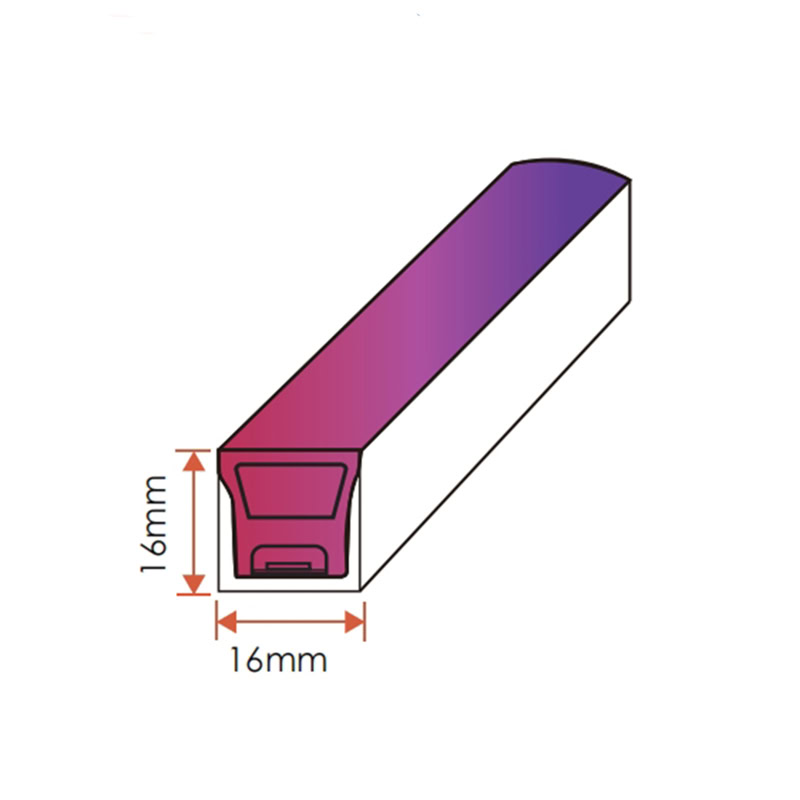

Light profile 16x16mm

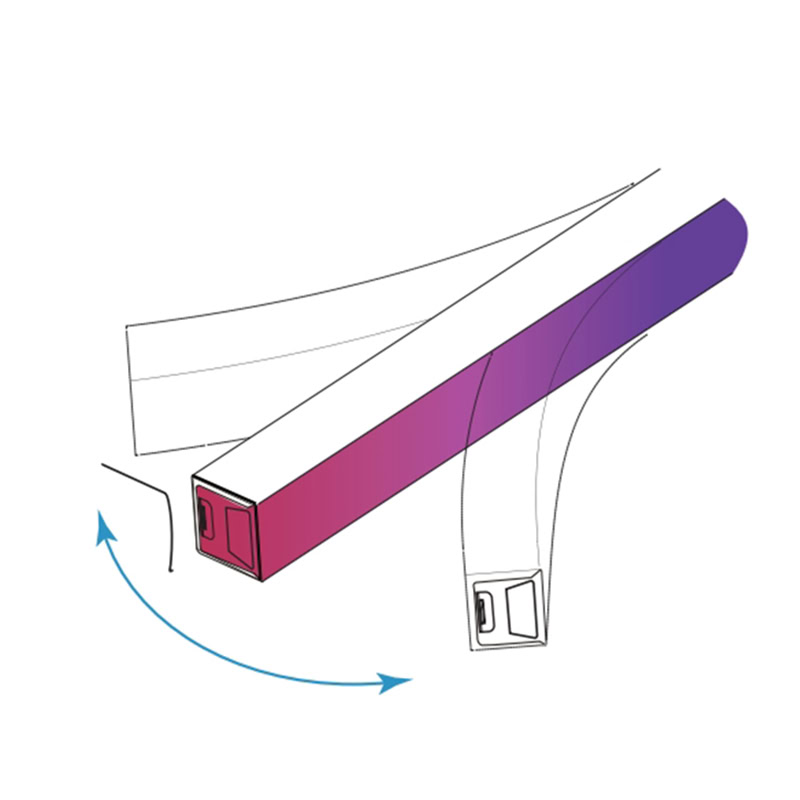

Bending direction

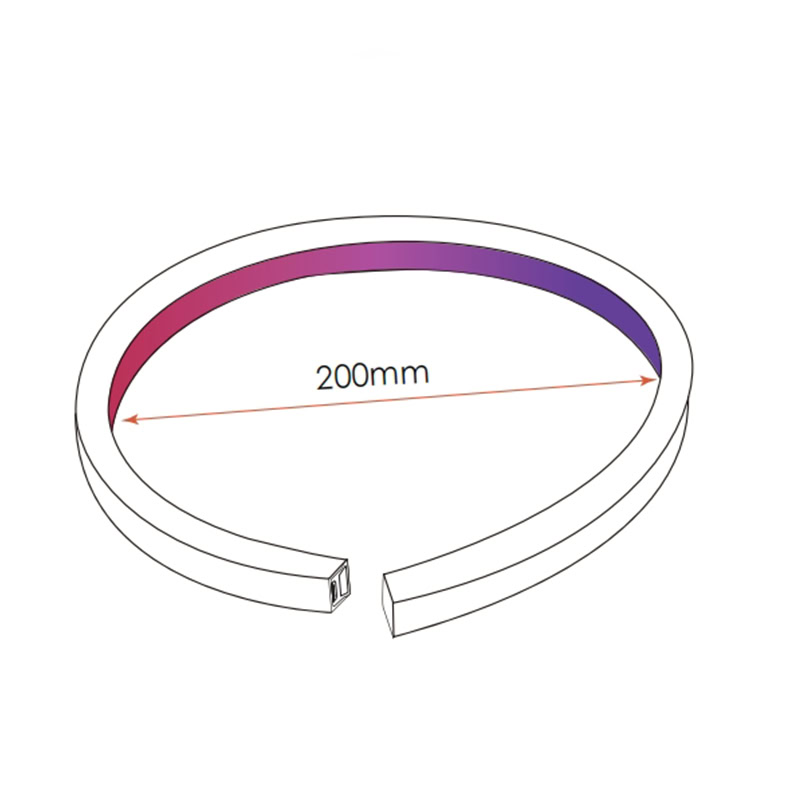

Bending diameter

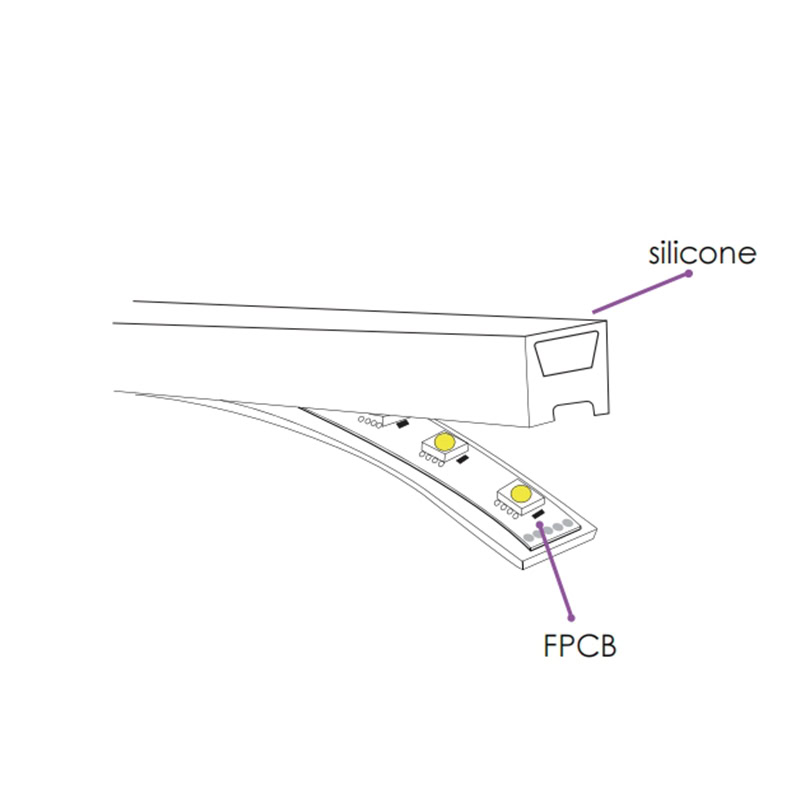

Light structure

IP67 waterproof grade of LED RGBW Neon Light

IP67 RGBW neon light ensure that the electronic components and wiring inside the lamp strip are completely isolated from the external environment through the use of a sealed design.

This usually involves the edge and interface parts of the lamp strip, using special sealing materials or techniques to prevent the intrusion of moisture and dust.

On the exterior of neon lights, one or more layers of waterproof coating are usually applied. These coatings have excellent water resistance and effectively prevent moisture from penetrating the interior of the lamp strip.

Gleichzeitig, these coatings also have good wear resistance and corrosion resistance, which can extend the service life of neon lights.

Single/RGB/RGBW Colors Options For LED RGBW Neon Light

Thanks to RGBW technology, where the colours are combined inside the polyurethane resin layer, the individual RGBW LEDs are always high performance.

The white at 3000K and the three RGB colours (red, greenand blue) are combined in a single diode.

This solution guarantees the best colour blend and results in an infinite variety of chromatic shades, as well as the possibility of obtaining shades of white without the influence of the RGB colours.

Compared to traditional lighting methods, RGBW neon lights consume relatively little energy to achieve the desired brightness and color effects.

Thanks to the addition of a white LED chip, RGBW neon can provide brighter light when high brightness lighting is required to meet different brightness requirements.

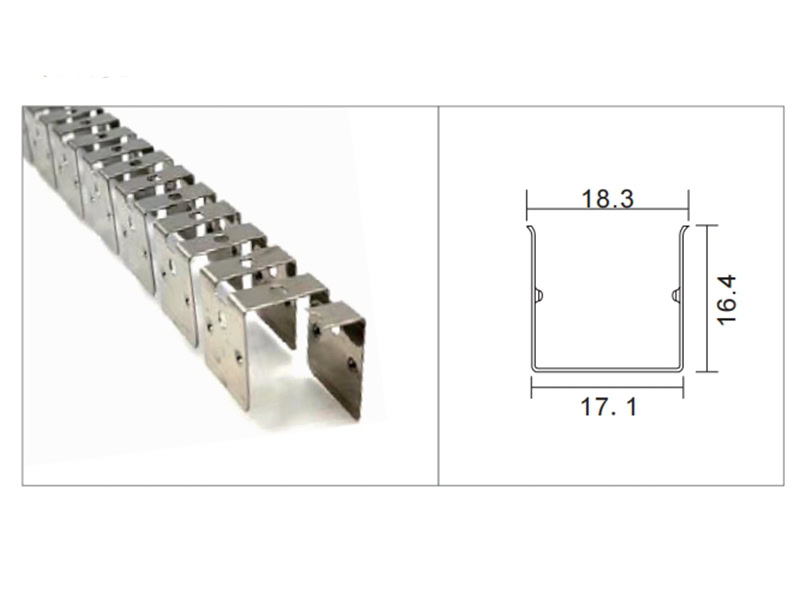

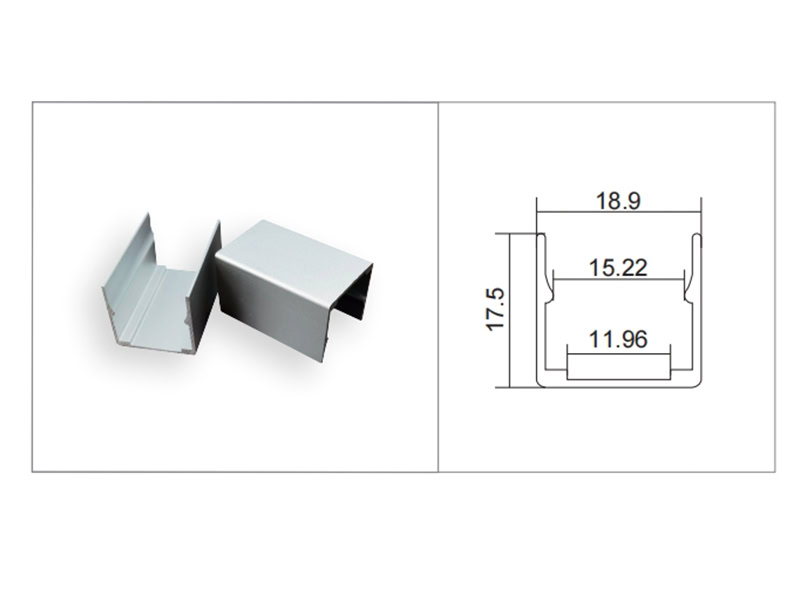

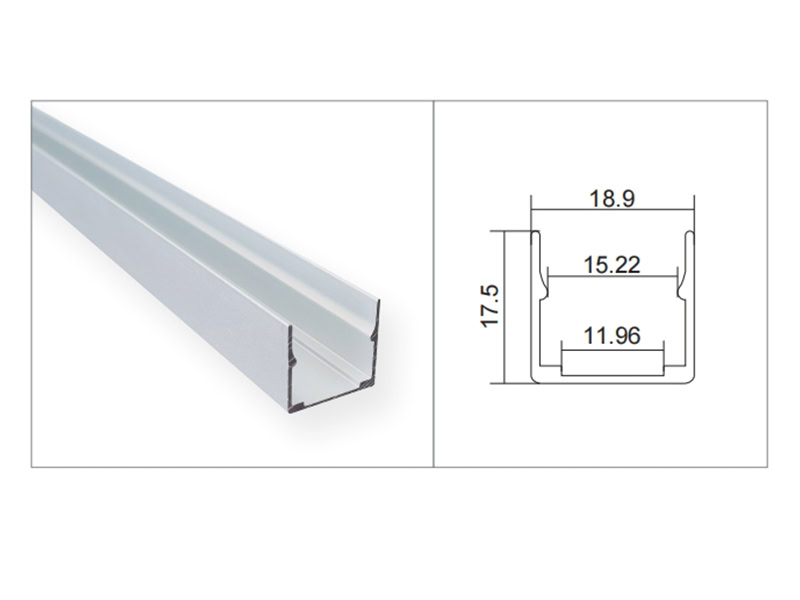

Mounting Channels Of RGBW Neon Light

We have three moungting channels for option: aluminum clips or alloy, stainless steel material slots.

You can choose the installation method that suits your required environment.

Länge:30mm/PCS

Material:Aluminum clip

Länge:1-3mm/PCS

Material:Aluminiumlegierung

Länge:100m/Reel

Material:Stainless steel bending slot

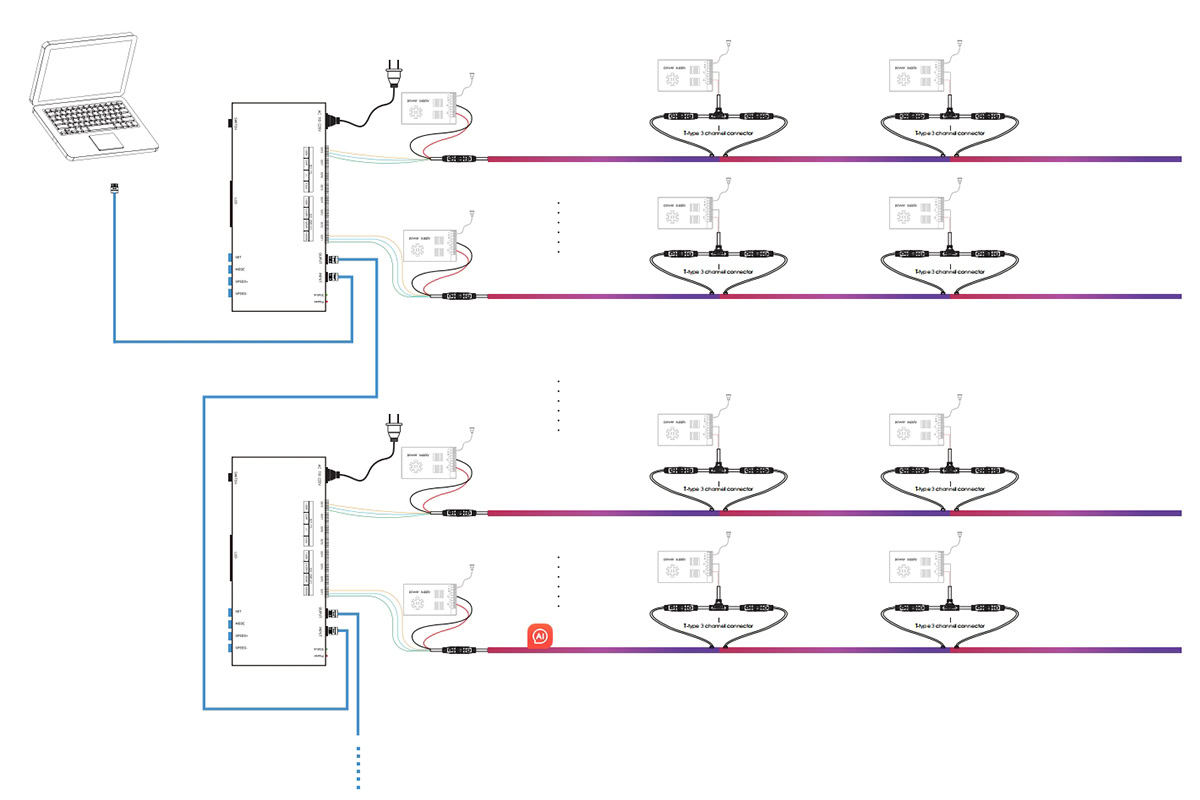

Connection Of RGBW Neon Light

Through programming and console Settings, you can create a variety of dynamic lighting effects, such as horse running, Wasser, flackern, gradient, usw., to meet different stage performance and decoration needs. The RGB Neon light support DMX512 controller. Easy lighting arrangement and adjustment in large performances or decorative scenes.

RGBW Neon Light Datasheet

Modell Nr.	GS-RN1616
Leistung	18W/M Max
Material	High reliability-Gas-Phase silicone
Abstrahlwinkel	120°
Stromspannung	DC24V
Ra	>90
LED-Lebensdauer	>50000 Std
IP	IP67
CRI	>80/90
Größe	16x16mm
Operating temp	-20℃-45℃
CCT	RGB/RGBW/DMX/2400K/2700K/3000K/4000K/5000K/5700K
Pixel	6 Pixels/M	8 Pixels/M	10 Pixels/M	12 Pixels/M
Cutting Length	166.67mm&14 LED	125mm&10 LED	100mm&7LED	83.33mm&7LED
Cutting Length	RGBW&84LEDs/M	RGBW&80LEDs/M	RGBW&70LEDs/M	RGBW&84LEDs/M

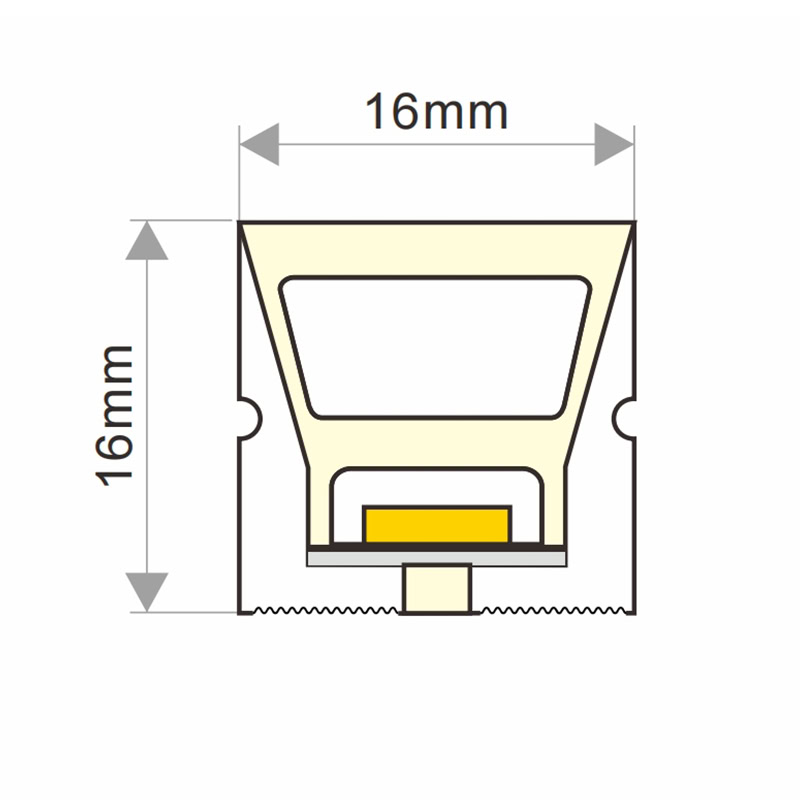

Sizes of 16x16 RGBW Neon light

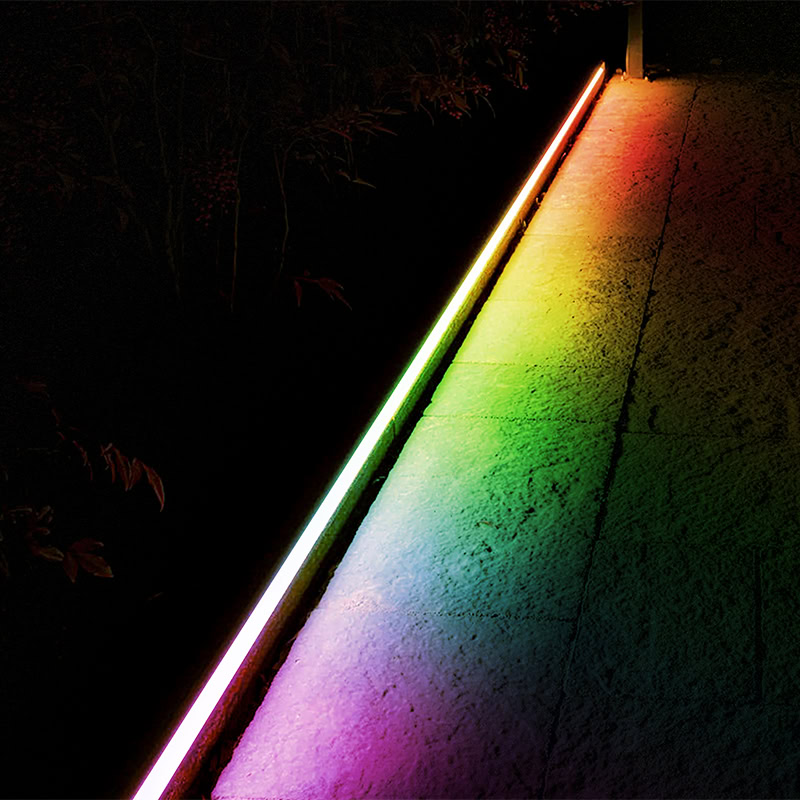

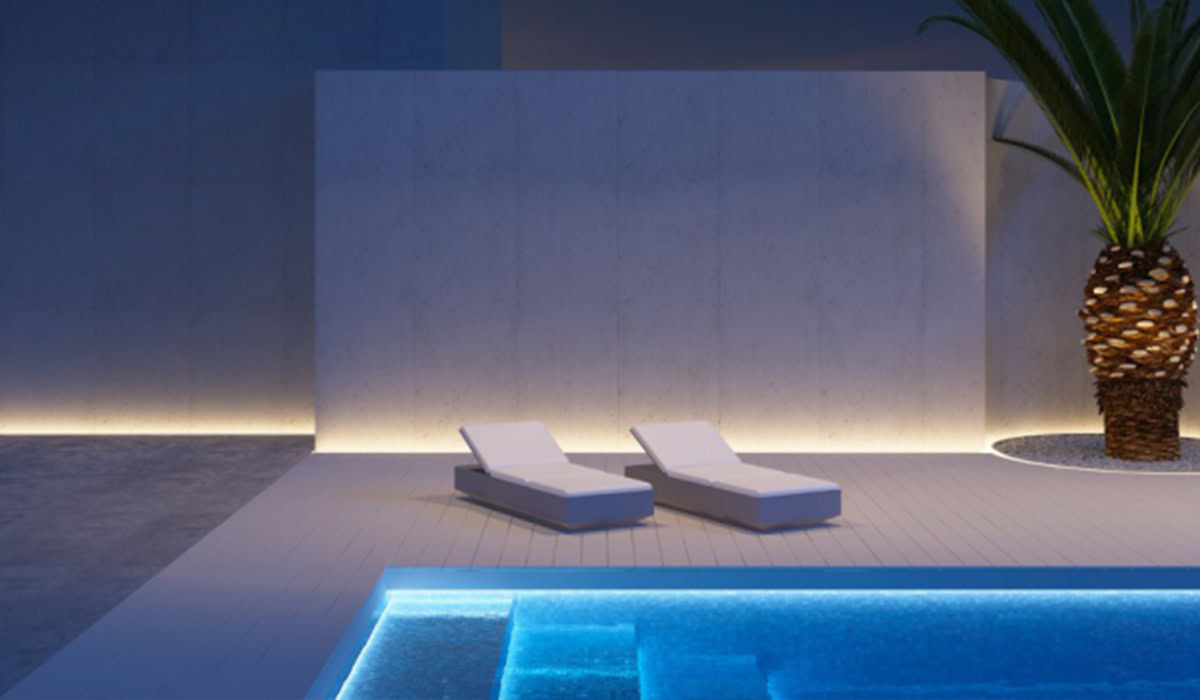

Application of LED RGBW Neon light

RGBW neon light can add a unique color and atmosphere to the home environment. Through the change and combination of colors, the characteristics and style of the building can be highlighted, and the ornamental value of the urban night scene can be enhanced

By adjusting different colors and brightness, you can create a warm, romantic, passionate and other atmosphere to meet the needs of different occasions such as family gatherings and parties.

Frequently Asked Questions About LED RGBW Neon Light

Die häufigsten Fragen und Antworten

Do RGBW neon lights consume electricity?

Compared with other types of lighting equipment, its energy efficiency ratio is usually higher, which can reduce energy consumption while ensuring brightness.

Can neon lights be customized?

Ja, neon lights can be customized according to the needs of customers, including shape, size, Farbe, Länge, CCT, effect, wattage and other aspects.

Flexible LED-Neonlichter

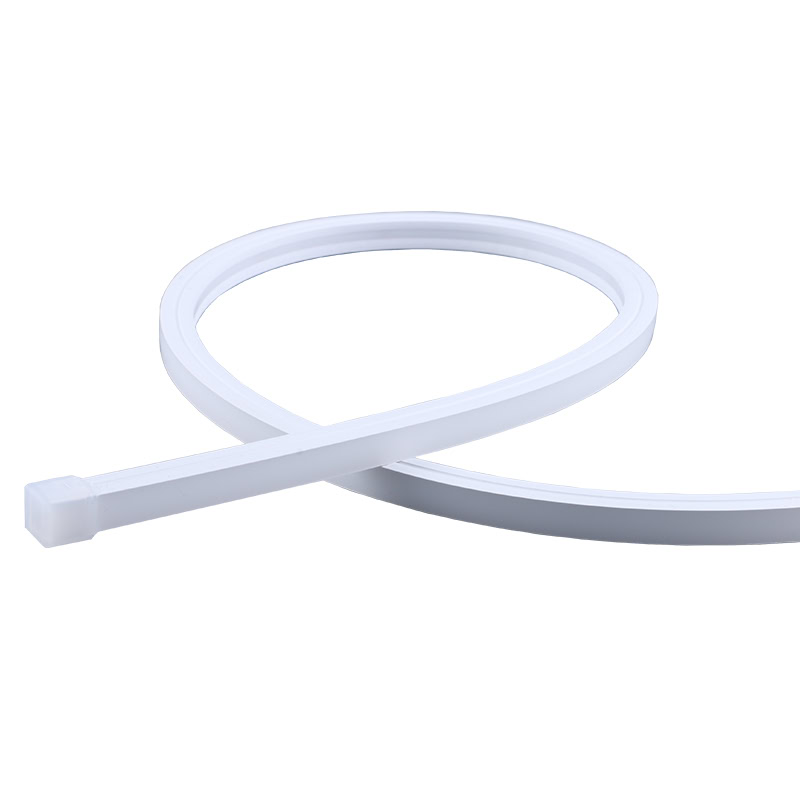

Top View RGBW Neon Light 16×16
