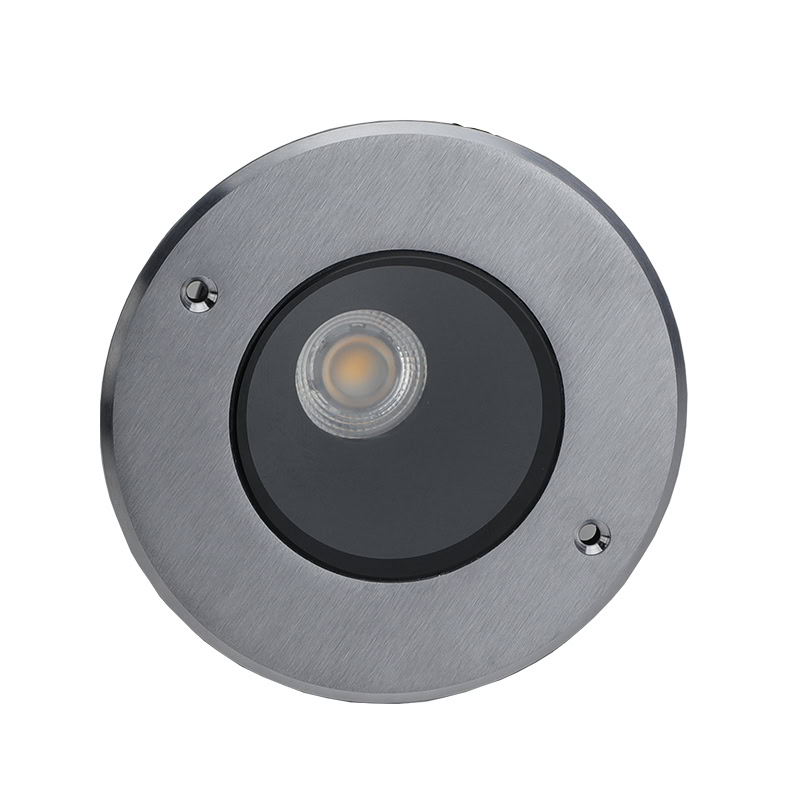

Underground Light With Reflector
Underground light with COB and reflective cup, With IP67 waterproof performance, it can easily cope with all kinds of wet environments. It supports AC220V voltage input, CRI up to more than 90, can truly restore the color of the object, bringing more natural and realistic visual effects.

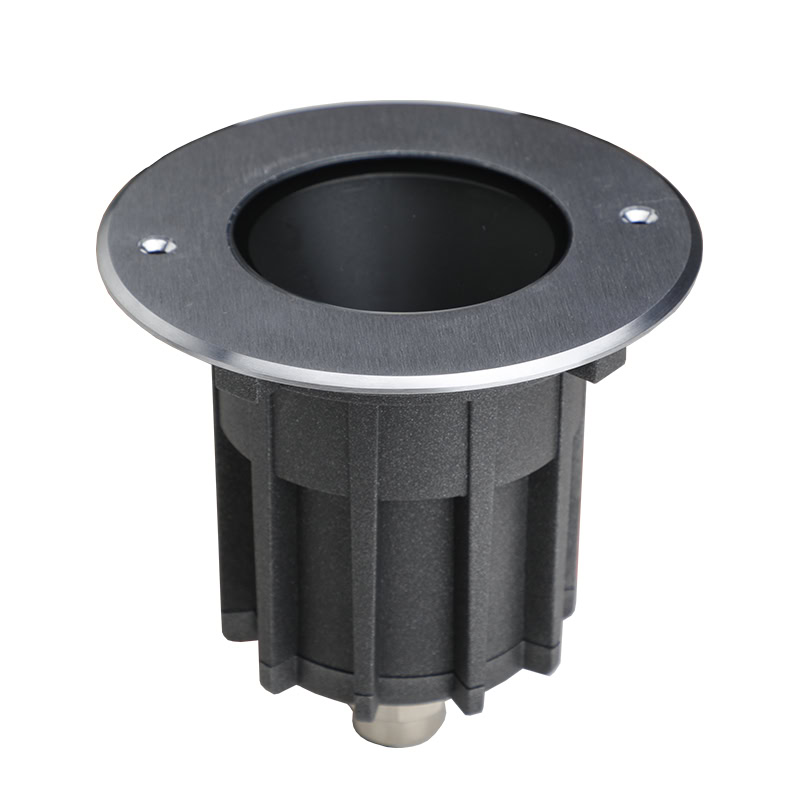

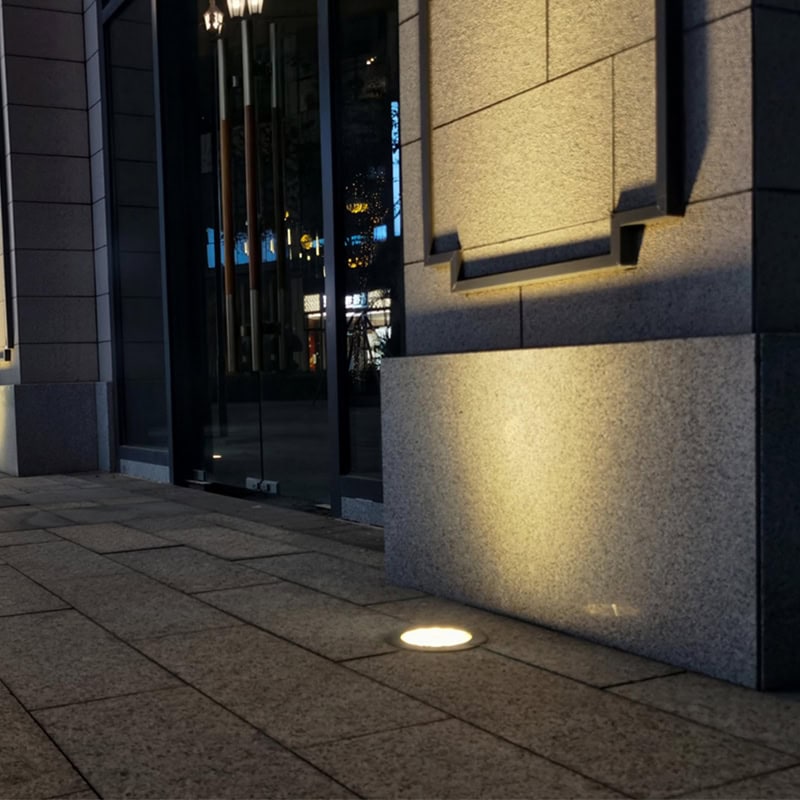

Reflective Cup of Underground Light
The reflection cup as an important part of this underground lamp, its performance is also excellent.
The use of high temperature and heat resistant PC raw materials, after precision optical treatment, to ensure the efficient reflection and uniform distribution of light.
The underground lamp is equipped with a high-quality PC reflective cup, which has excellent impact and heat resistance and can withstand extreme conditions of use.
The reflective cup is treated with high-precision injection optics to ensure uniform reflection of light and efficient utilization. The high reflectivity allows the light to be better focused on the target area, improving the overall lighting effect.

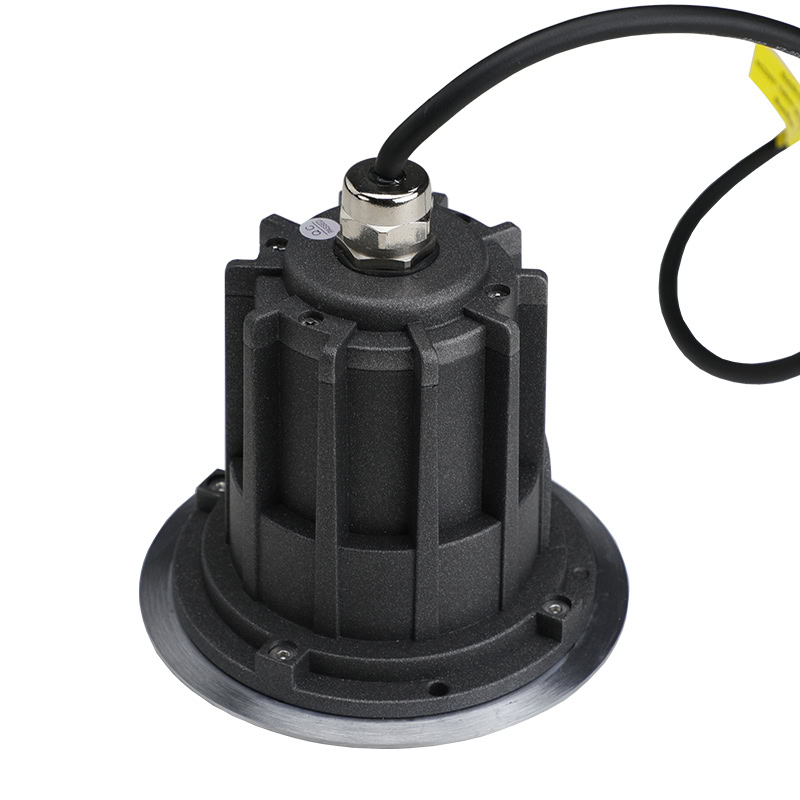

High density aluminum alloy housing used in COB Reflector Underground Light
The light uses high-density aviation grade aluminum alloy as the main material, which is known for its excellent strength, toughness and lightweight characteristics.
Its application in the manufacturing of lamps not only ensures the robustness and durability of lamps, but also greatly reduces the overall weight and is easy to install and transport.
What’s more, high-density aluminum alloys also have excellent thermal conductivity. This means that when the lamp works for a long time, the heat generated can be quickly dissipated through the aluminum alloy material, avoiding performance degradation or damage caused by overheating.
Stainless steel material screws used in reflector underground light
In addition to the choice of materials, this lamp also uses a variety of anti-rust and anti-corrosion technologies to ensure its stable operation in a variety of harsh environments.
Among them, the most critical is the application of stainless steel materials.
We choose high quality stainless steel material, after fine polishing treatment, not only more beautiful appearance, but also enhance its rust resistance.
The choice of fasteners also used 316 stainless steel material and this can ensure the light maintain a stable structure during long-term use.
underground light with reflector Triple waterproof design
In order to ensure that the underground lamps can still work stably in a variety of wet and watery environments,
we specially use a triple waterproof design to provide a full range of waterproof protection for the lamps. That the light can reach IP67 waterproof grade.
Light protection layer filled with glue
The protective layer of the lamp is meticulously crafted and filled with a high-quality, waterproof glue that adheres strictly to industry standards, achieving an impressive IP67 protection level. This rating signifies that the light possesses exceptional capabilities in terms of dust and water resistance.
The light can completely prevent dust from penetrating its interior, safeguarding all internal components from potential contamination and malfunction.
Firstly, it significantly enhances the tightness of the lamp’s structure, creating an impenetrable barrier that effectively seals out moisture and dust.
Secondly, this layer acts as a critical component in bolstering the lamp’s overall waterproof performance, providing an additional layer of protection that ensures it remains resilient and reliable in the most demanding environments.
Drive device waterproof treatment used stainless steel fasteners
We carefully added a specially designed waterproof ring to the drive unit and meticulously filled the wire connector with high-quality waterproof glue.
This effectively shield and protect the internal structure from any potential moisture erosion.
This innovative design not only significantly enhances the waterproof performance of the drive, ensuring that it remains resilient against water damage, but also guarantees its stable and reliable operation even in the most challenging wet environments
silicone ring and coated glass to prevent miosture and dust
Because of its excellent elasticity and recovery, the silicone ring can be tightly fitted between equipment or components to form an effective sealing barrier.
This sealing effect prevents moisture, dust and other contaminants from entering the inside of the device, thereby protecting the internal lamp beads from damage.
The coated glass surface is specially treated to form a smooth film that is not easily attached to contaminants. This film can effectively prevent dust, water droplets and other pollutants from accumulating on the surface of the glass, so as to keep the glass clean and transparent.
This dual-layer protection not only acts as a robust barrier against environmental elements but also further significantly improves the waterproof and dust-proof performance of the lamp, ensuring its longevity and reliable functionality even in harsh conditions.
Structure of LED reflector underground light
Custodia in lega di alluminio ad alta densità: Its application in COB asymmetric inground light, ne garantisce la robustezza e la durata, riduce notevolmente il peso ed è facile da installare e trasportare.
316 acciaio inossidabile: Utilizziamo acciaio inossidabile di alta qualità per realizzare anelli e viti di superficie, dopo il processo di lucidatura mediante ossidazione anodica fine, ha un'eccellente resistenza alla corrosione.
Vetro temperato: la parte è accuratamente costruita con vetro temperato impermeabile e antideflagrante, durezza estremamente elevata e elevata trasmissione della luce superiore a 90%.

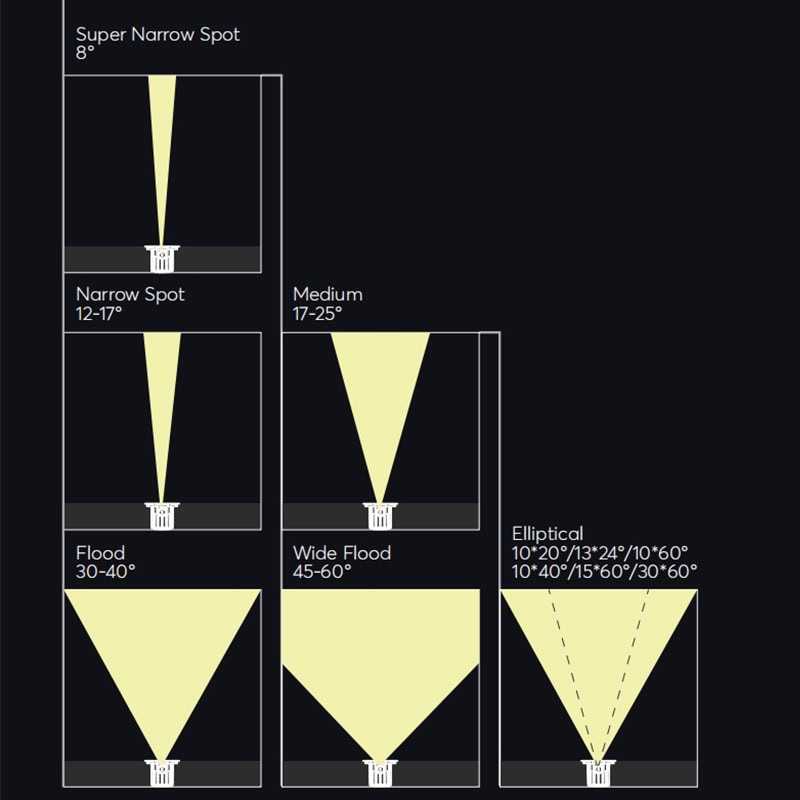

various beam angles Selected
The light can choose from a versatile range of beam angles, including 15°, 24°, 36°, 45°, and 60°, to cater to diverse lighting needs.
From a narrow spot effect, which provides a focused and intense illumination, to a medium spread, offering a balanced light distribution, and further to a flood effect that covers a broader area, as well as a wide flood effect for maximum coverage,.
You can select the most suitable angle for your specific requirement, ensuring optimal lighting for any situation.
Controllo DMX512 RGB/RGBW opzionale
We provide RGB/RGBW DMX512 control for option to underground light with reflector.
Il sistema DMX512 può controllare gli effetti di cambio colore, stroboscopico, e modelli dinamici per le performance.
You can create synchronized color schemes on building exteriors and landmarks. Migliora l'atmosfera con le luci a testa mobile, lavare le luci, ed effetti.
Compatibile con vari tipi di illuminazione, dalle semplici luci RGB alle complesse teste mobili.
VDE rubber Wire of reflector underground light
The light used VDE rubber wire, rubber material has excellent insulation properties, which can effectively prevent current leakage and ensure the safety of wire use.
Rubber wire has strong wear resistance and can maintain stable performance in harsh environments; Allo stesso tempo, it also has oil and weather resistance, can adapt to a variety of complex environments.
Standard copper three-core wire, strong conductivity, high power, soft wire is not easy to break, professional stable current, super weather resistance using mainstream ground wire, live wire, zero wire three-wire design, lightning protection.
The wires have a certain softness and flexibility, easy to install and wire. Allo stesso tempo, the connector and connection part of the wire are also designed to be simple and easy to use, making maintenance and replacement more convenient.
COB Reflector Inground Light Datasheet
| Modello n. | GS-R135-15W | GS-R165-24W | GS-R182-36W |
|---|---|---|---|
|
Energia |
15W |
24W |
36W |
|
Materiale |
316 Acciaio inossidabile+alluminio |
||
|
Angolo del fascio |
15°/24°/36°/45°/60° |
||
|
Efficienza luminosa |
90lm/W |
||
|
Voltaggio |
CA 200-240 V |
||
|
LED |
PANNOCCHIA |
||
|
Colore del corpo chiaro |
Nero, Grigio, Colore personalizzato |
||
|
Marchio della sorgente luminosa |
CREE/OSRAM/CITTADINO |
||
|
PF |
>0.95 |
||
|
Durata della vita del LED |
>50000 Ore |
||
|
IP |
IP67 |
||
|
CRI |
>80/90 |
||
|
TDC |
RGB/RGBW/DMX/2700K/3000K/3500K/4000K |
||
|
Misurare |
Φ135*H128mm |
Φ165*H138mm |
Φ182*H150mm |
|
Dimensione del foro |
133mm |
161mm |
177mm |
|
Dimensioni del pacchetto |
140*140*192mm |
170*170*206mm |
187*187*218mm |

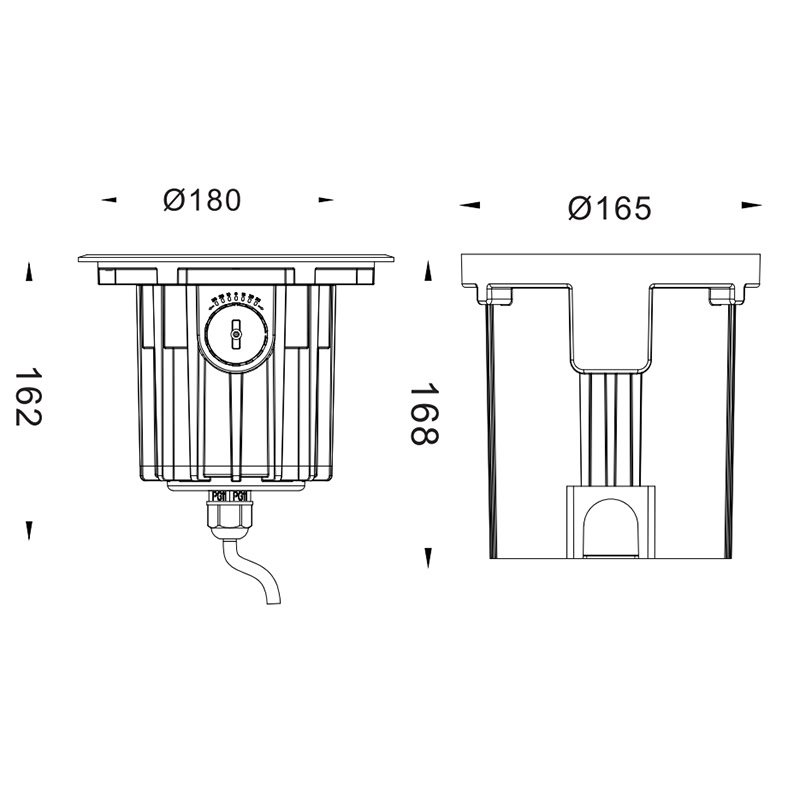

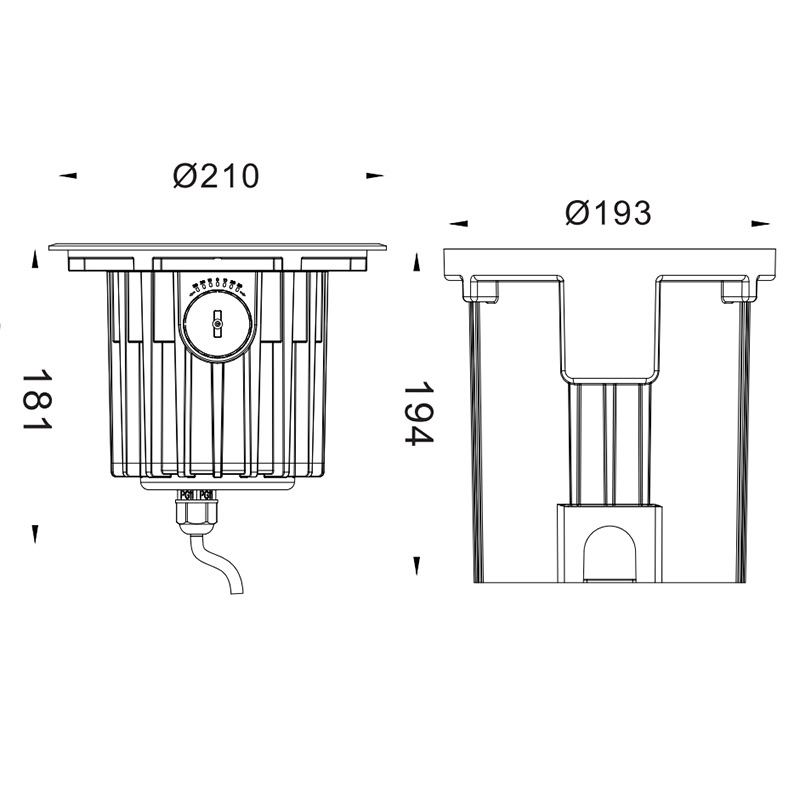

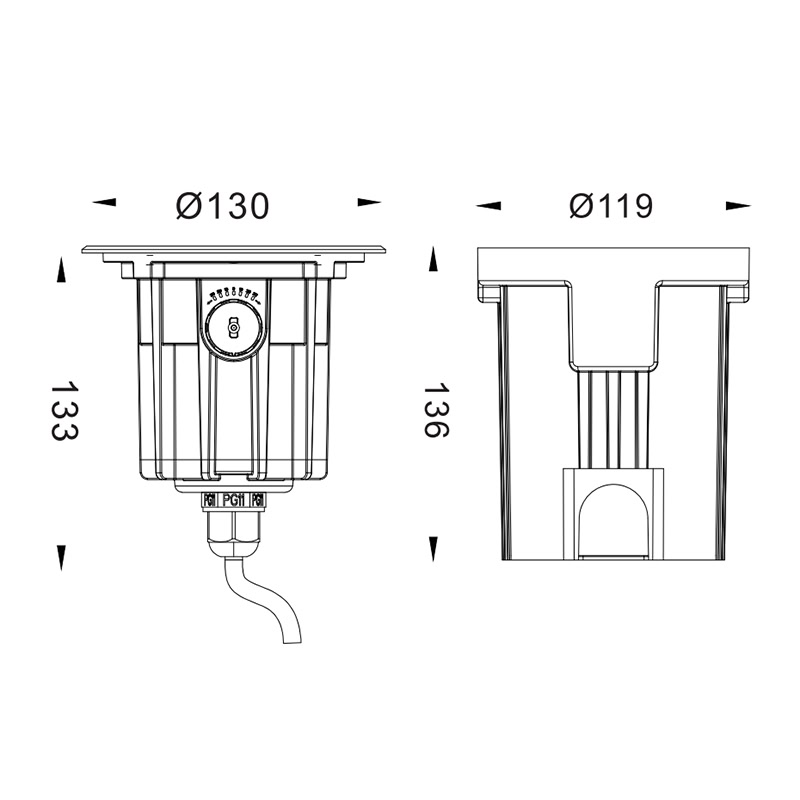

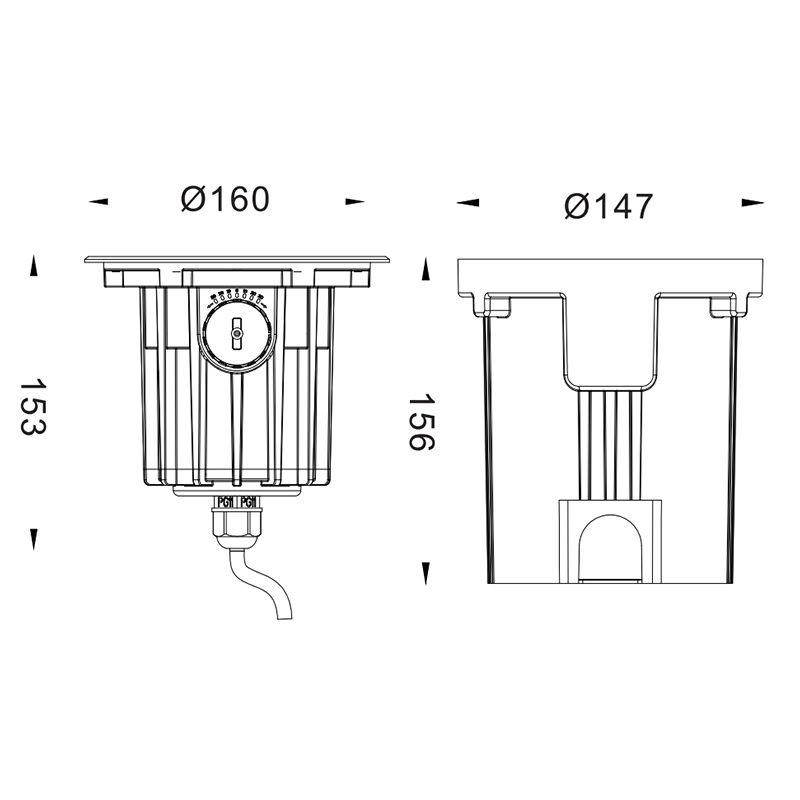

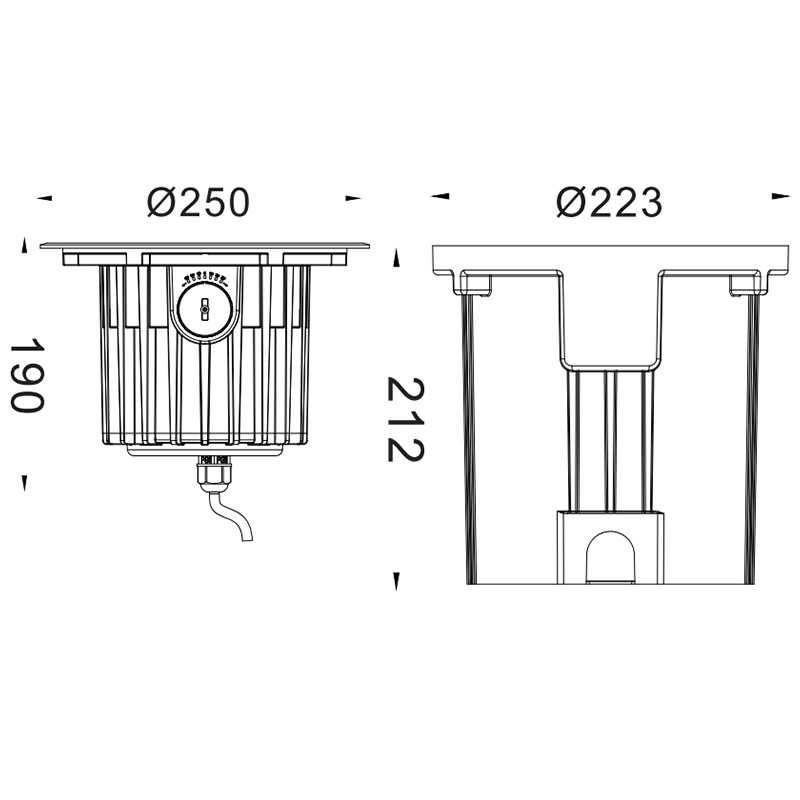

Sizes of asymmetric COB inground lights
GS-R135-15W
GS-R165-24W
GS-R182-36W

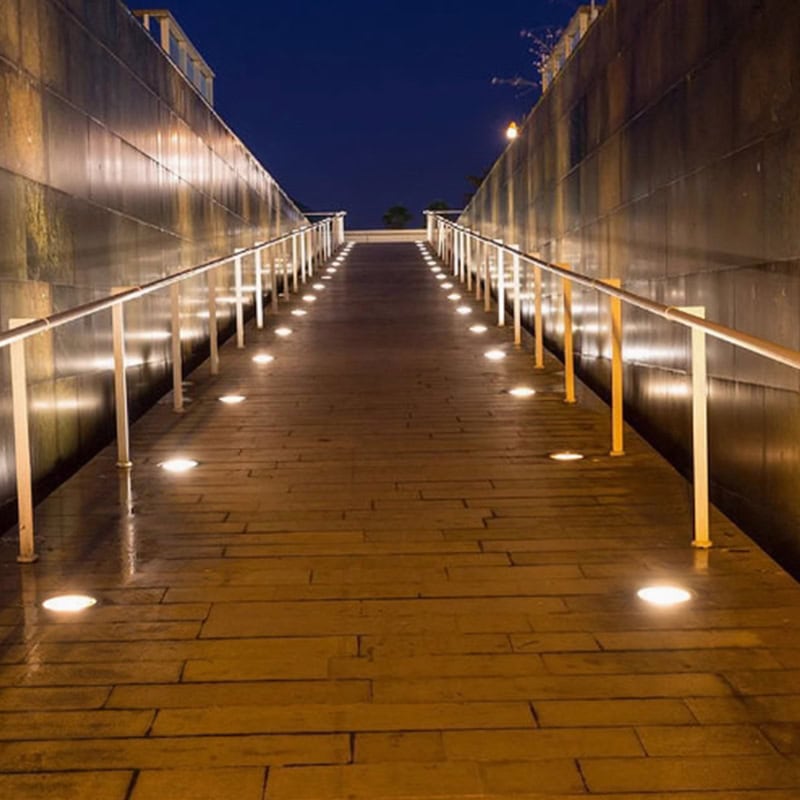

Application of COB reflector underground light
Building facade lighting: The light source with high CRI can restore the true color of the building and enhance the beauty of the building.
Lighting for art installations and exhibitions: The beam polarization design and high color rendering index enable it to illuminate art installations and exhibits, highlighting their detail and beauty.
Underwater lighting: Due to its IP67 protection rating, the lamp is also suitable for underwater lighting, such as swimming pools, fountains.
Frequently Asked Questions About COB Reflector Inground Light
Domande e risposte più frequenti
Quanti anni di garanzia hai fornito?
Possiamo fornire 5 anni di garanzia su tutto il corpo luce. E tutte le domande sulla luce, puoi chiederci aiuto, supporteremo il servizio post-vendita.
What effect of reflector?
The reflective cup is treated with high-precision injection optics to ensure uniform reflection of light and efficient utilization. The high reflectivity allows the light to be better focused on the target area, improving the overall lighting effect.
Where i can use COB reflector inground light?
Paesaggio del giardino, illuminazione esterna, illuminazione architettonica e altri campi. Possono essere utilizzati per enfatizzare elementi del paesaggio come gli alberi, sculture, aiuole, roads, marciapiedi, o parcheggi.
What power supply the COB inground light used?
Philips, Driver di sfarfallio gratuiti Meanwell o MOSO come opzione.
AC200-240V voltage.
