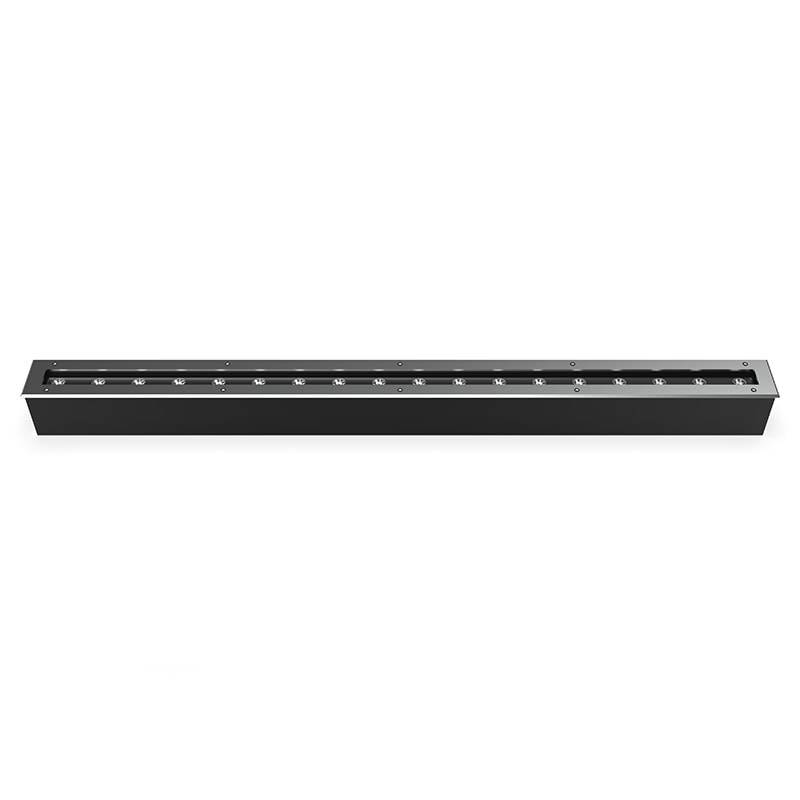

Linear LED Underground Light
LED underground light in the form of lines to cleverly integrate the light into the ground, this design is not only beautiful, but also can form a unique visual effect, enhance the sense of layer of space. Usually adopt LED light source, low power consumption and long service life, a construction can be used for many years, without paying a high electricity for lighting, landscaping.
Linear underground light is good waterproof and dustproof performance, can be in damp or dust more work environment, prolong service life. Provide a variety of color options, can be flexibly matched according to different occasions and needs, to meet the needs of personalized lighting.
Sealing waterproof design of linear led underground light to reach IP67
The protective layer of the light is filled with high-quality waterproof glue, which reaches the IP67 protection level.
This means that the light can completely prevent dust from entering, and can withstand water immersion for a certain period of time without being affected.
This layer of filler design not only enhances the tightness of the light, but also improves its overall waterproof performance.
Due to the excellent waterproof performance of linear led underground lights, they are widely used in various outdoor lighting scenes, such as garden landscape lighting, building facade lighting, スイミングプールの照明, fountain lighting and so on.
In these scenarios, lamps need to be exposed to wet or underwater environments for a long time, so waterproof performance is crucial.
Lens and anti-glare grid accessory of linear led underground light
The external PC lens of the light bead is optional, providing versatility in terms of design and functionality, and the soft light emitted is not only gentle on the eyes but also waterproof, effectively shielding the light bead from potential damage caused by moisture or water exposure.
PC lens has excellent impact resistance, heat resistance and cold resistance. The light transmittance is usually above 89%.

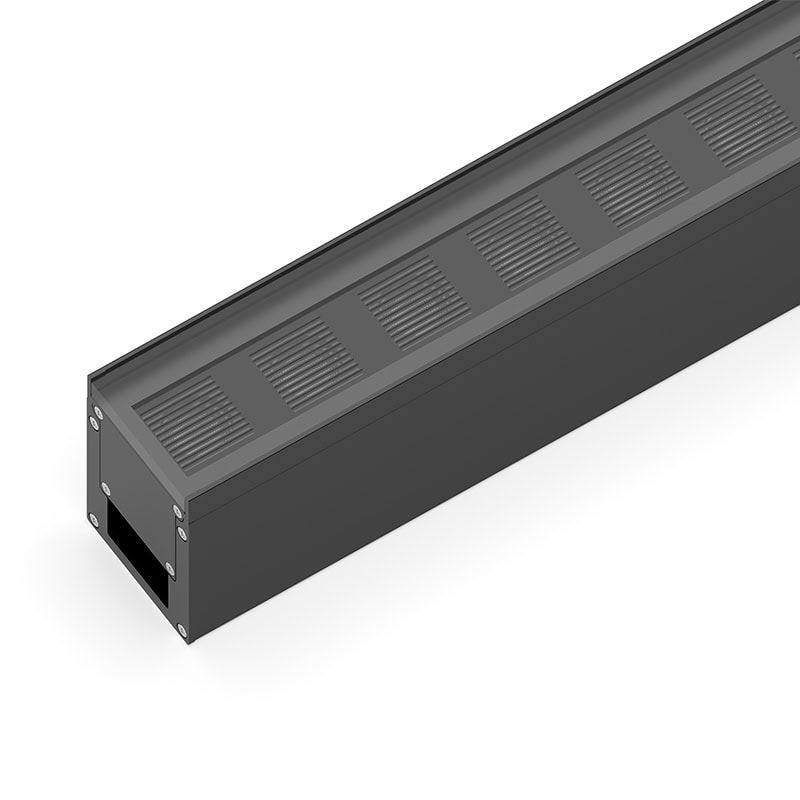

Anti-glare grid network can make the light more evenly distributed, avoid harsh or shaded areas, and improve the lighting comfort.
By adjusting the density and Angle of the grid reasonably, the directional propagation of light can be realized and unnecessary waste can be avoided. The grid also helps to reduce glare, make the line of sight clearer, improve work efficiency and quality of life.
Thickened tempered glass used in linear led underground light
Good Heat Dissipation Ability By Flow Channel Design Structure
The mask adopts high-quality tempered glass, which is not easy to break and has high light transmittance, abrasion resistance and scratch resistance, reducing light loss and protecting light beads.
Explosion-proof and excellent pressure resistance, do not worry about damage, can be trampled outdoors.
Through the flow channel design, the heat dissipation area of linear led underground light is increased by 80% compared with the traditional structure. 加えて, the heat conduction path is optimized, so that the heat dissipation speed is increased by 50%.
This helps to lower the operating temperature of the LED light source faster, reducing performance degradation and shortened life due to high temperatures.

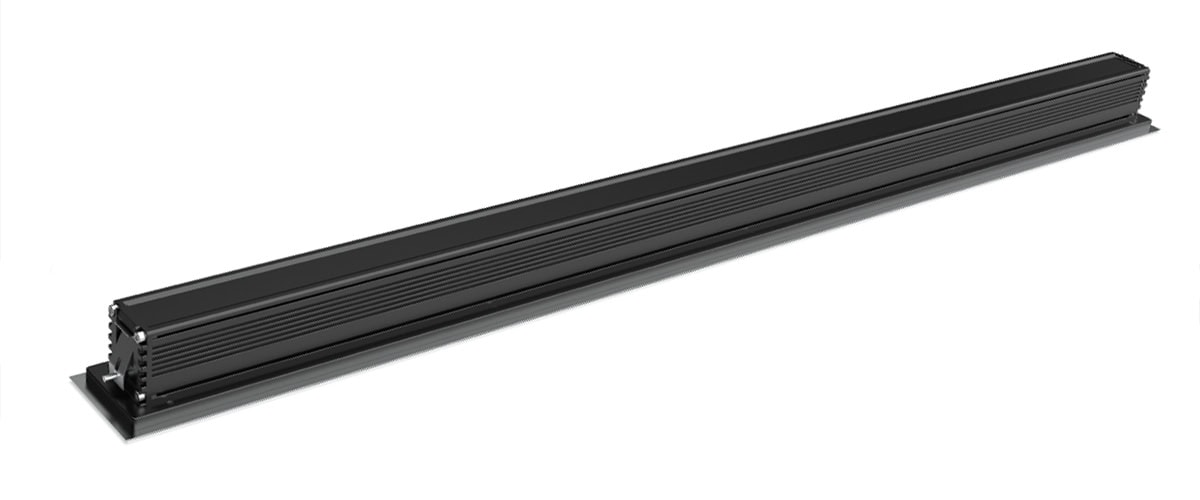

Die-cast aluminum material for light body
Good heat dissipation effect is a significant advantage of aluminum alloy materials. This material can effectively conduct and disperse heat, maintain the stable operation of the equipment, and avoid performance degradation or damage caused by overheating.
加えて, the integrated die-cast aluminum also has the characteristics of not easy to crack. Due to its dense internal structure and precision die-casting process, it is not easy to crack or deformation.
In terms of corrosion resistance and rust prevention, the integrated die-cast aluminum also performs well. The aluminum alloy itself has good corrosion resistance, and the integrated die-casting process further enhances the protective layer on its surface, making the product resistant to a variety of harsh environmental erosion, such as moisture, salt spray, 等, and it is not easy to rust for a long time.
同時に, the integrated die-cast aluminum also has the advantages of light weight and high strength. The density of aluminum alloy is much lower than that of traditional materials such as steel, but its strength is not inferior. Greatly reduce the weight of the equipment, improve the overall operating efficiency.
DMX/RGB/RGBW Options For LED Linear Light Underground
Single/RGB/RGBW/3000K/4000K/5000K/6000K for options, support DMX512 controllable an ideal product for outdoor building outline lighting.
Through the DMX controller, you can set the color gradient effect or jump effect of the light belt, creating a soft and hierarchical visual effect.
There are also water, horse running, chasing and other pattern light effects, these effects through the DMX512 protocol control, can create a unique visual effect, add to the atmosphere and vitality of the activity.

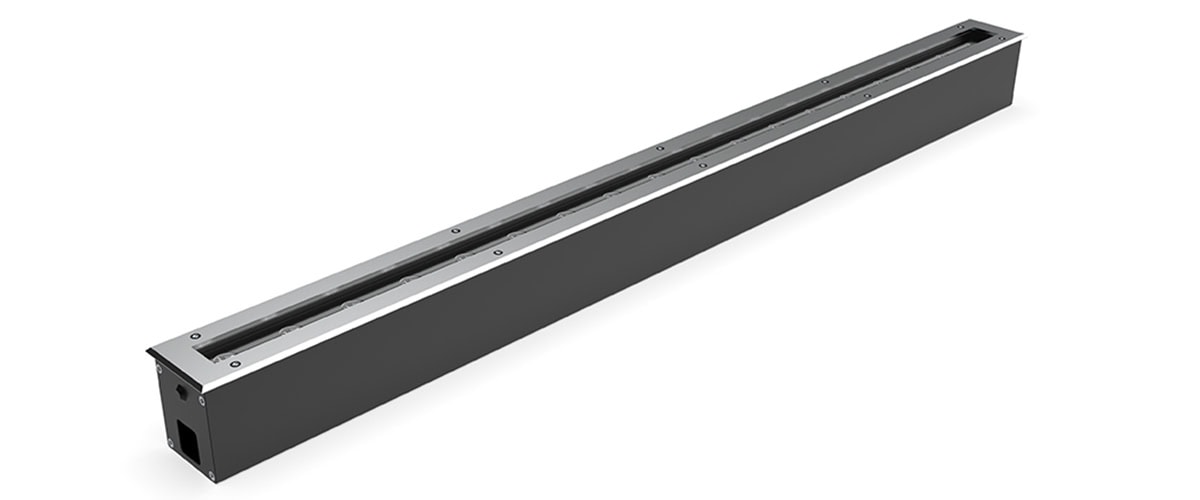

Embedded Part Combined With Linear Underground Light For Conveniently Installation
The linear led underground light is usually cleverly integrated with the ground or wall through the embedded part, which not only ensures the stability of the installation of the light, but also provides great convenience for the laying of the internal wire and later maintenance work.
The design of the embedded part takes into account the fit with the light body to ensure that the two can be tightly connected to avoid gaps or loosening.
As a key component connecting the light and the installation base, the embedded parts are strictly controlled in the design and installation process to ensure the smoothness and firmness of the light during use.
Linear Underground Light Datasheet
| モデル番号. | GS-L-18W | GS-L-24W | GS-L36W | GS-L-48W |
|---|---|---|---|---|
|
力 |
18W |
24W |
36W |
48W |
|
材料 |
316 ステンレス+アルミ |
|||
|
ビーム角 |
10°, 15°, 30°, 45°, 60°, 10×60°, 20×45°, 18+45°非対称 |
|||
|
光効率 |
90lm/W |
|||
|
電圧 |
AC200-240V |
|||
|
LED |
SMD |
|||
|
PF |
>0.95 |
|||
|
LEDの寿命 |
>50000 営業時間 |
|||
|
IP |
IP67 |
|||
|
CRI |
>80/90 |
|||
|
CCT |
RGB/RGBW/DMX/2700K/3000K/3500K/4000K |
|||
|
サイズ |
1030*75*H61mm |
|||
|
Embedded Part Size |
75*H84mm |
|||
|
保証 |
5 年 |
|||
|
光源ブランド |
OSRAM/CREE |
OSRAM/CREE |
OSRAM/CREE/3IN1/4IN1 |
OSRAM/CREE/3IN1/4IN1 |

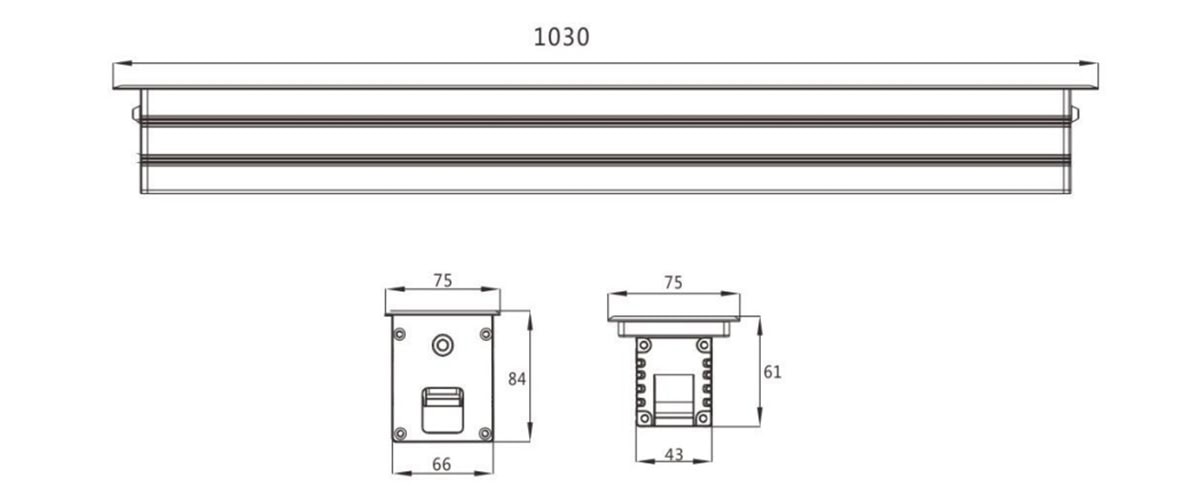

Sizes of Linear Underground Light
Embedded part and light body sizes

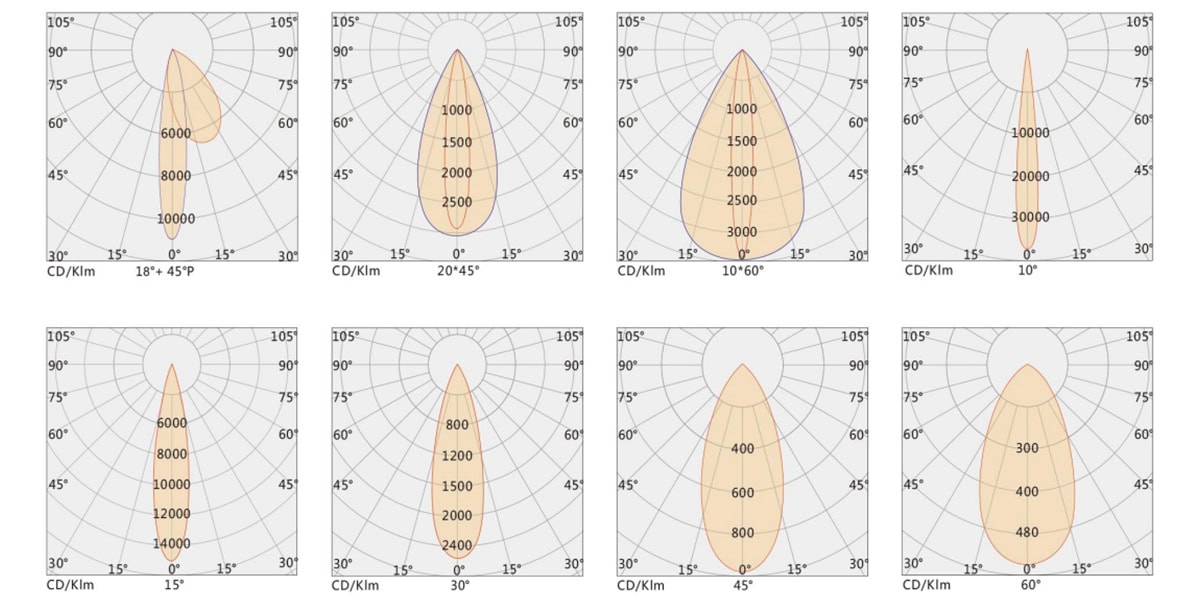

Linear LED Underground Light Beam Angles
Various beam angles for option, 10°, 15°, 30°, 45°, 60°, 10×60°, 20×45°, 18+45°非対称.
With optical lens equipped, the light can change beam angle based on your need.
Application of Linear Underground Light
They are widely used in various outdoor lighting scenes: Parks, squares, Scenic spots, Villa courtyard, 庭園, Forest landscape lighting, building facade lighting, スイミングプールの照明, fountain lighting, and plazas.
Such as building decoration lighting, sign lighting, signage, path and outline signs. The linear buried light can clearly illuminate the path and outline, and improve the safety of walking at night.
Atmosphere lighting: Linear underground lamp can create a unique atmosphere and visual effect through the change of lighting and color matching.
Frequently Asked Questions About Linear Underground Light
よくある質問と回答
What power supply the COB Linear Underground Light used?
フィリップス, Meanwell または MOSO フリー フリッカー ドライバー (オプション). 200-240V voltage.
What is Linear Underground Light?
It is linear shape and used in ground, IP67防水, dust proof. So it can be used in many places.
Can i set RGB effect to underground light?
はい, we can provide Single/RGB/RGBW, and also can use DMX512 control system support effect change.
How to install this light?
We will provide technical instruction for you , and after sending the product, we will help you with any problems.
