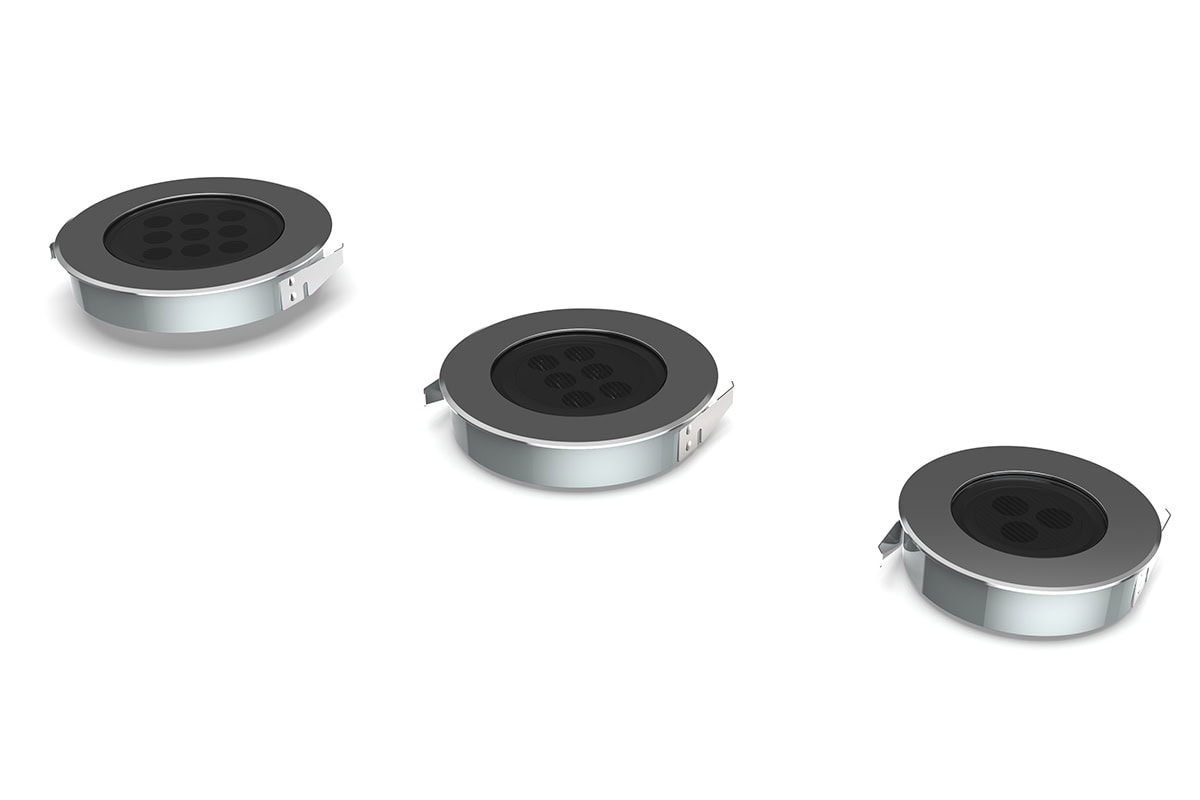

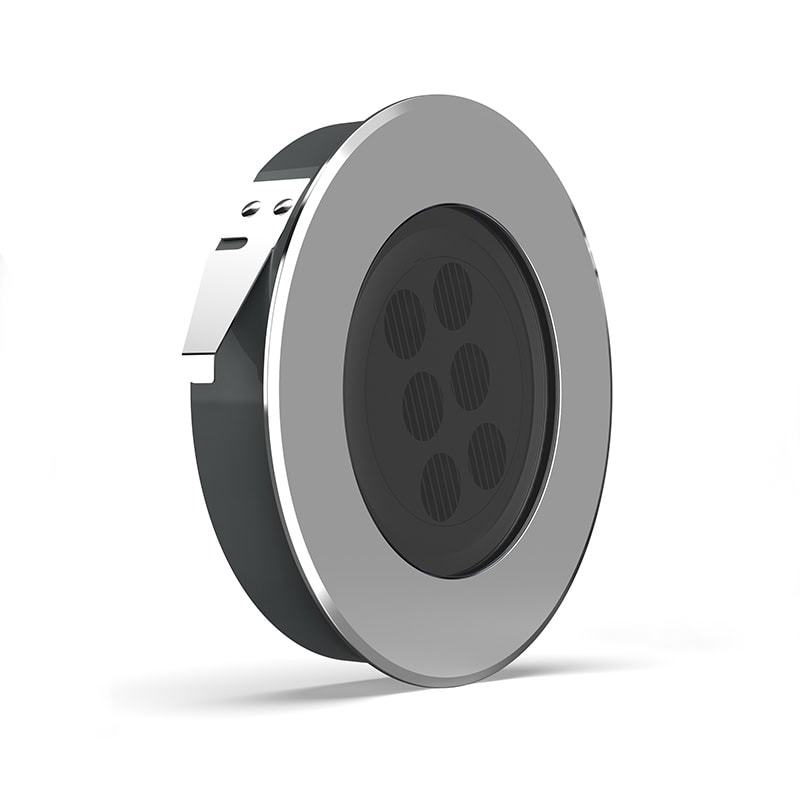

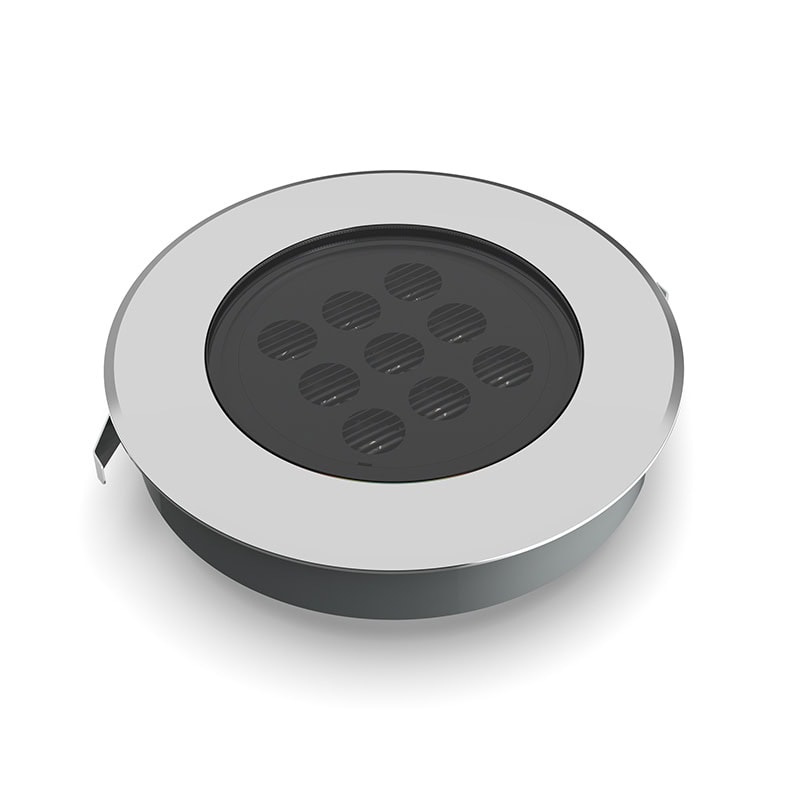

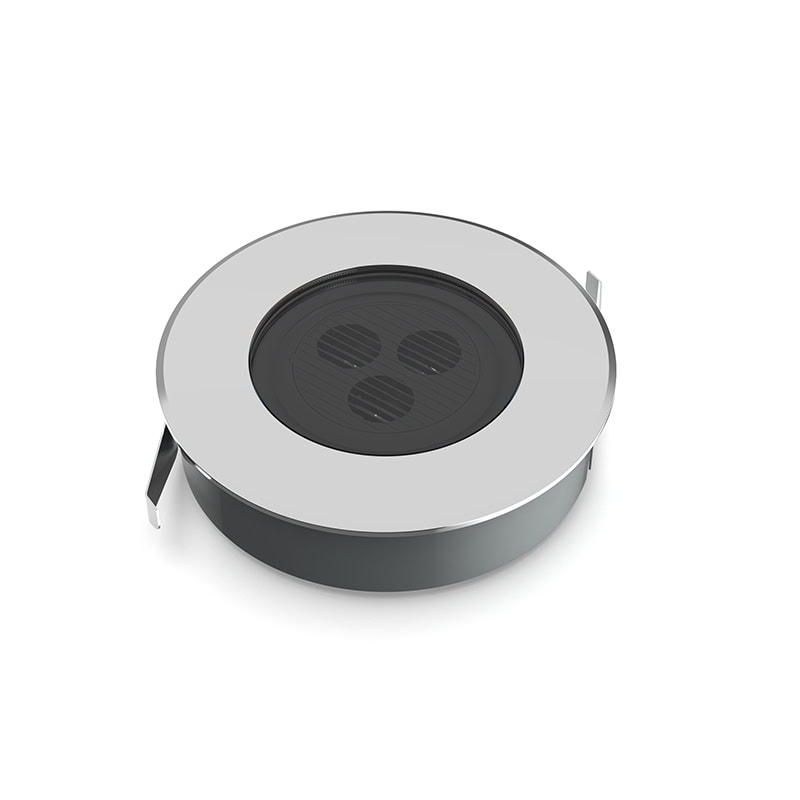

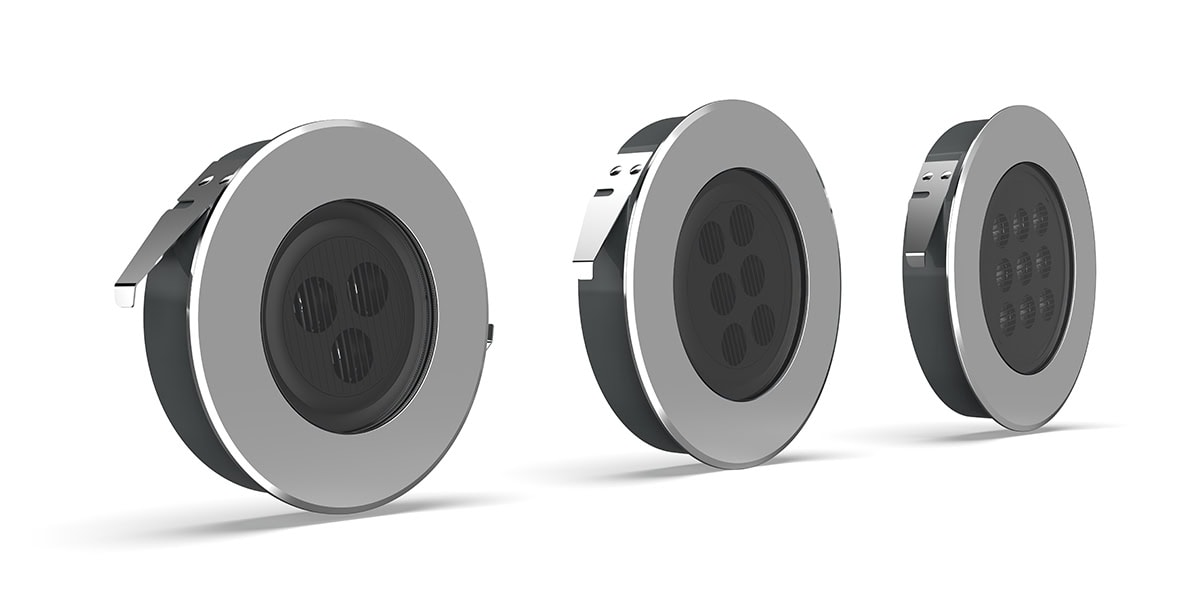

Slim In Ground Light
Slim in ground light stands out with its exquisite design with a height of only 39mm. This low shape makes it easy to install in all kinds of complex environments, whether it is a narrow space or an outdoor place with limited ground, it can be perfectly integrated, showing great environmental adaptability.
This slim in-ground light, specifically designed and born for outdoor applications, boasts an impressive light protection level that reaches IP67. This rating signifies its advanced waterproof and dustproof capabilities, ensuring that the light can withstand the harshest outdoor conditions with remarkable durability.
Comprehensive configuration upgrade

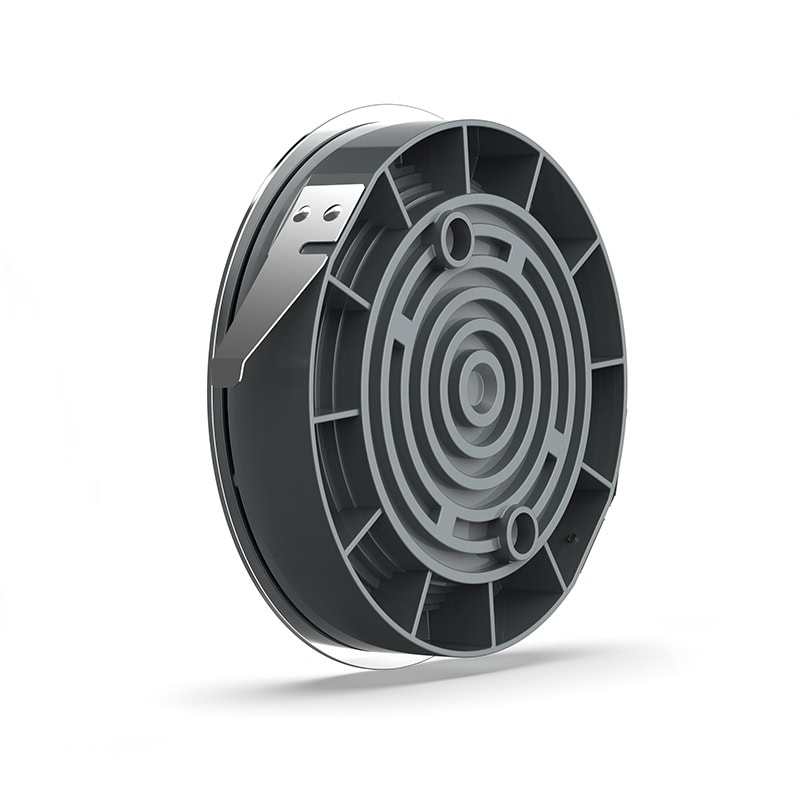

Die-cast aluminum: outdoor special, excellent heat dissipation effect. Integrated die-cast aluminum, not easy to crack, corrosion resistance, not easy to rust, 耐久性のある. Electroplating process was adopted to prevent corrosion and pollution.
Thickened tempered glass cover: high hardness, impact resistance, high light transmission to ensure uniform light transmission, anti-riot wear, not easy to scratch. It is also safe, efficient and practical outside.
Thickened 316 stainless steel surface ring: 316 stainless steel material, after anodic oxidation polishing, sandblasting treatment, no rust and no fading. Thickened 316 stainless steel cover screw, not afraid of rain.

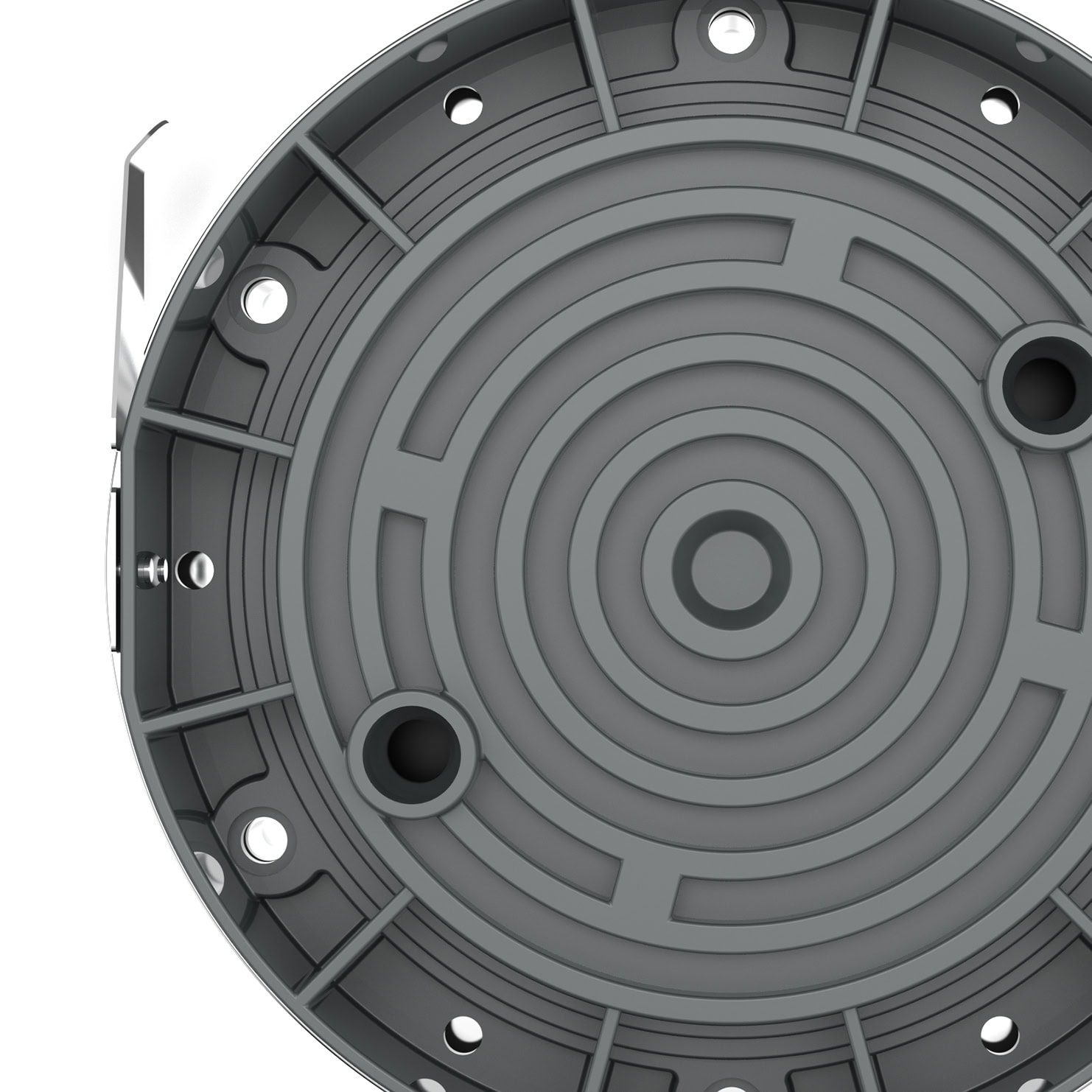

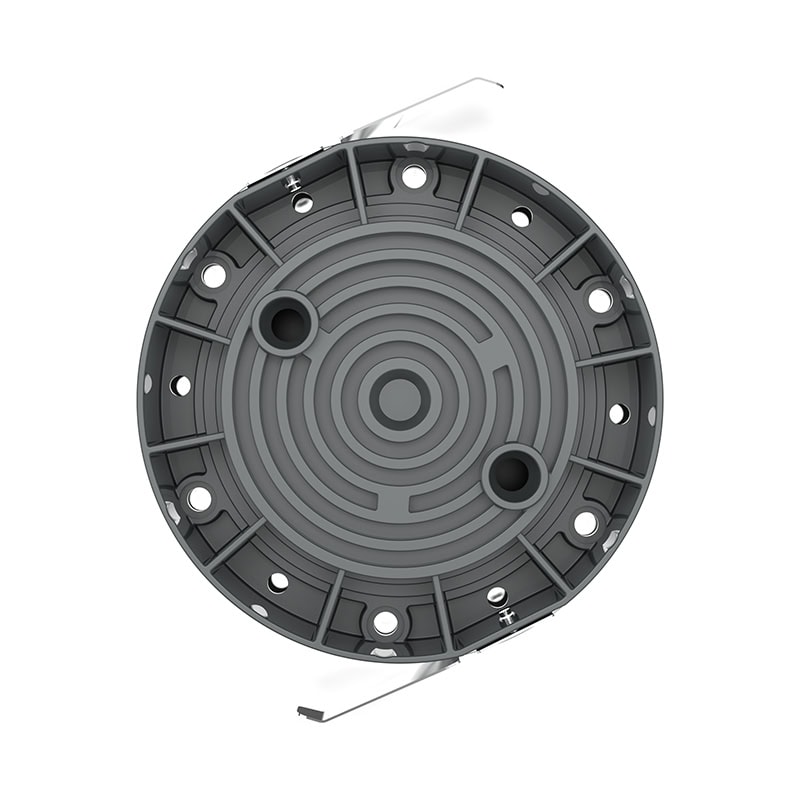

Die-casting aluminum

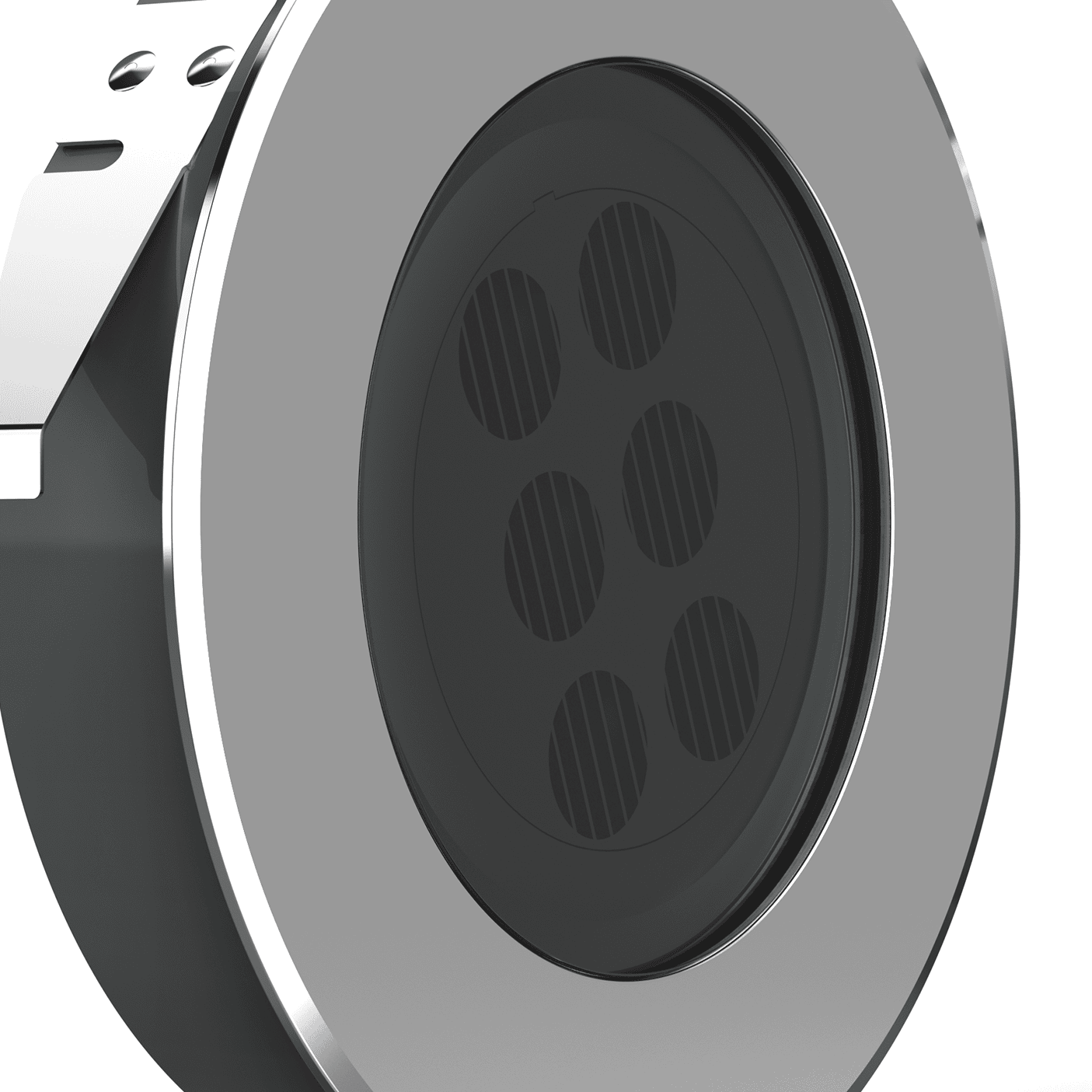

Thickened tempered glass
304 stainless steel face ring

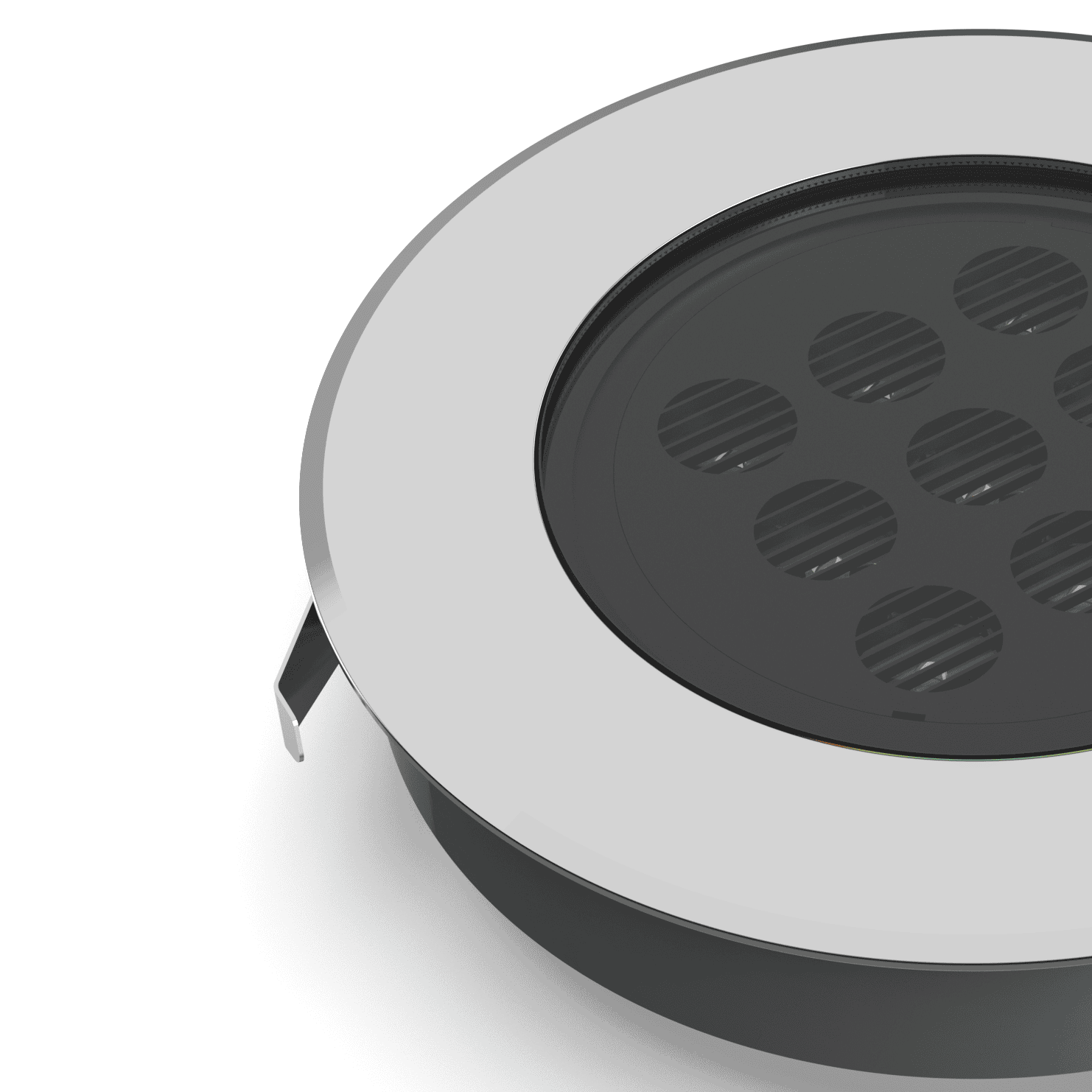

Slim in ground light special design
Its surface adopts the streamlined design without screws, this unique process not only improves the overall beauty, but also gives the product a simple and advanced visual feeling.
Exquisite and atmospheric appearance is unforgettable, whether it is a modern simple courtyard, or a classical elegant garden, can harmoniously blend with it, highlighting the extraordinary taste and style. It is truly applicable to various scenes and meets diverse decorative needs.
Its robust waterproof and dustproof features not only protect the internal components from damage but also contribute to maintaining a warm and inviting ambiance in your outdoor space. By effectively sealing out moisture and dirt, it ensures that the light continues to illuminate your environment.
With its sleek design and superior weather-resistance, this slim in-ground light is the perfect addition to any outdoor area, providing a blend of style, functionality, and long-lasting performance.

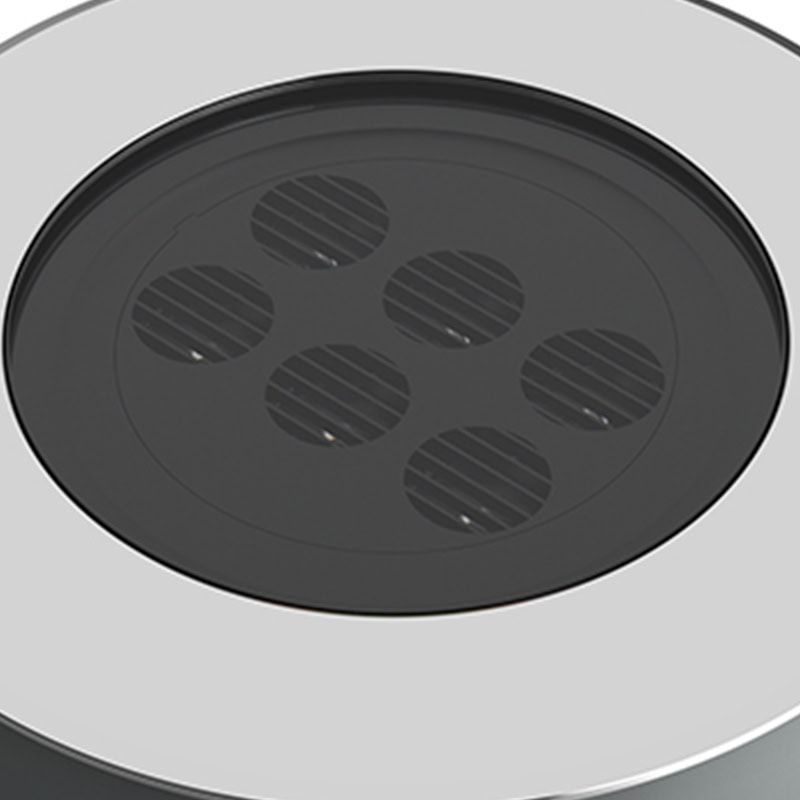

LED light source of slim in ground light
Outdoor ground lights used CREE/OSRAM light source, and light efficiency is up to 110lm/W , good quality and long life usage, energy saving, equipped with lens, uniform light transmission and texture.
CRIが終わった状態で 80/90, この光源により、ランプは屋外エリアの照明に最適な鮮明で鮮やかな光を生成します。.
The light source with high color rendering index can restore the true color of the building and enhance the beauty of the building.

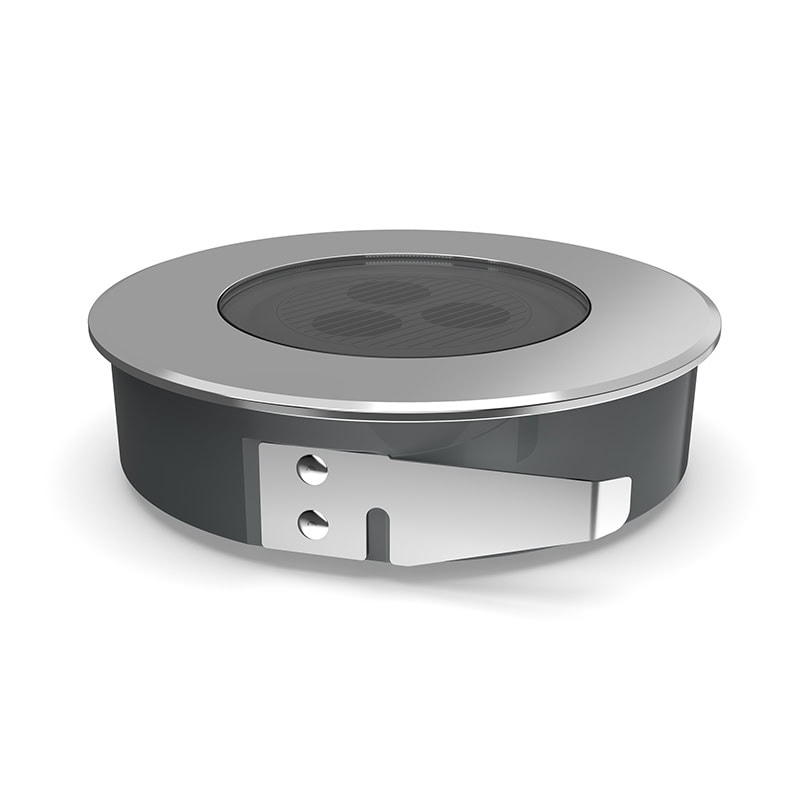

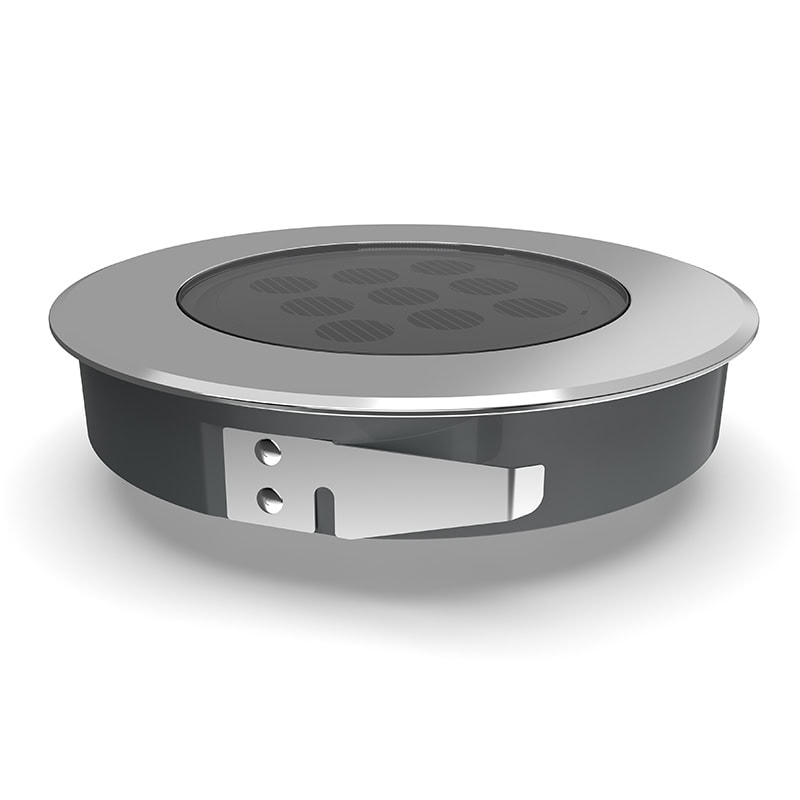

Stainless steel spring clip used for installation
It is worth mentioning that the Slim in ground light uses high-quality stainless steel spring blade as a fixed device.
This material not only has strong elasticity, can be tightly fitted to various surfaces during the installation process, to ensure stability and not fall off, but also durable, not easy to deform, even after a long time of wind and rain, it can still maintain good use.
The clamping installation method greatly simplifies the installation process, and can achieve quick and convenient deployment without cumbersome tool operations, saving valuable time and energy for users.

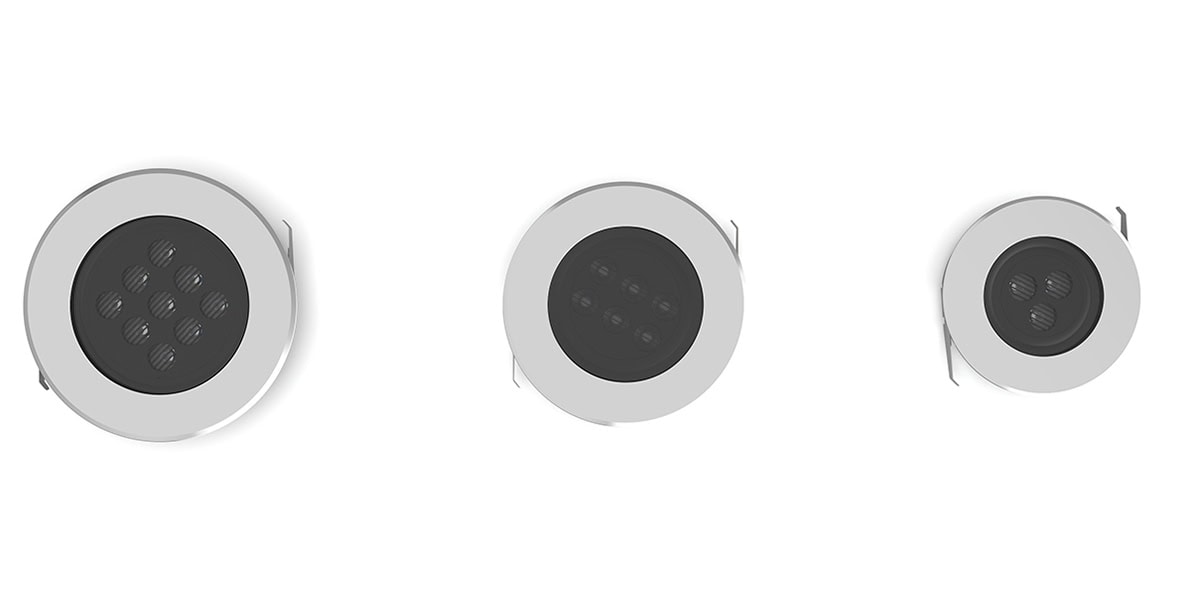

Customize options for LED inground light

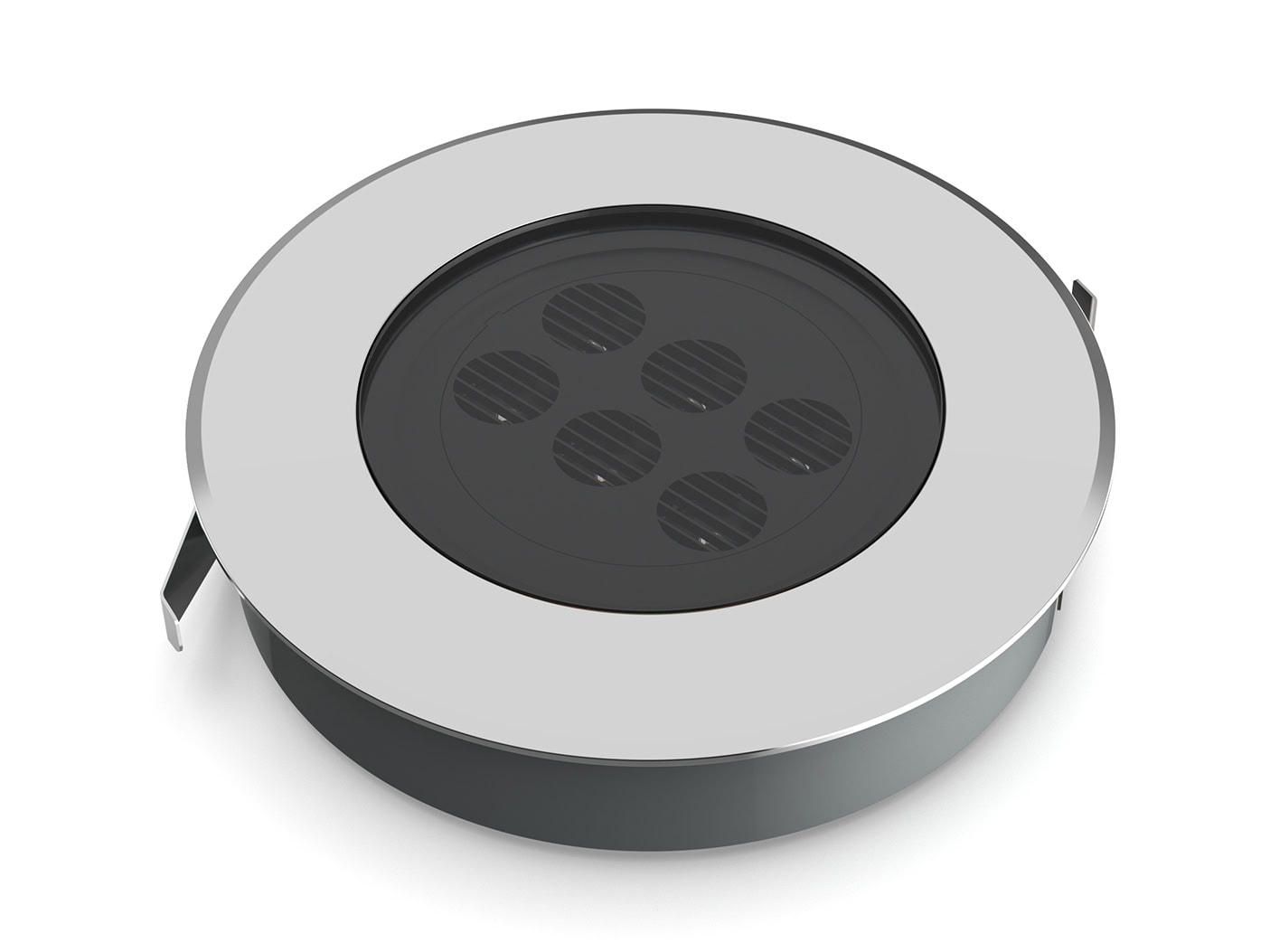

Wattage selected
When planning the outdoor patio lighting design, we carefully prepared a variety of wattage options 12W, 18W and 24W, designed to meet the diverse needs of different scenes for light intensity and coverage.
Villa steps and park walls:
The lamps provide soft and warm light without being too harsh using 12W wattage.
経路, garden areas, 公園, and driveways:
For areas that require more extensive lighting, 18W and 24W lamps are ideal.
Customized colors for option
モノクロ / RGB スリーインワン / RGBW 4 in 1 フルカラー コントロール, support DMX512 Control system for option.
Ensuring the light can create colorful lighting effects by adjusting different color proportions. 加えて, our products support the DMX512 control system, which enables more complex and fine lighting control.
Whether it is a stage performance, exhibition or commercial event, our lamps can bring you a stunning visual effect with excellent light color performance and flexible lighting control
Slim in ground Light Datasheet
| モデル番号. | GS-S130-12W | GS-S165-18W | GS-S182-24W |
|---|---|---|---|
|
力 |
12W |
18W |
24W |
|
材料 |
ステンレス+アルミ |
||
|
ビーム角 |
6°/8°/10°/12°/20°/24°/30°/40°/60°/15*40°/20*40°/25*45° |
||
|
光効率 |
90lm/W |
||
|
電圧 |
DC12V/24V |
||
|
LED |
SMD |
||
|
光源ブランド |
クリー/オスラム/シチズン |
||
|
PF |
>0.95 |
||
|
LEDの寿命 |
>50000 営業時間 |
||
|
IP |
IP67 |
||
|
CRI |
>80/90 |
||
|
CCT |
RGB/RGBW/DMX/2700K/3000K/3500K/4000K |
||
|
サイズ |
Φ135*H39 |
Φ165*H39 |
Φ182*H39 |
|
穴のサイズ |
130mm |
158mm |
173mm |
|
パッケージサイズ |
140*140*60mm |
170*170*60mm |
187*187*60mm |

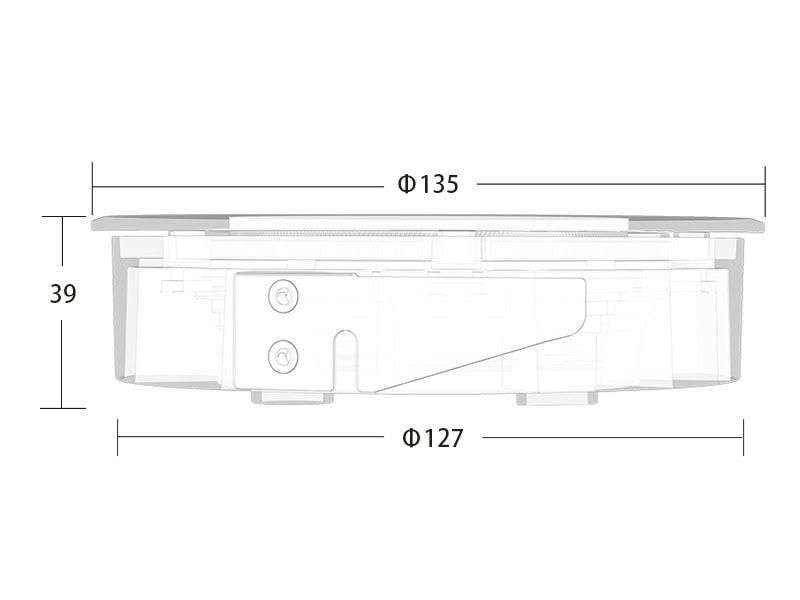

Size of inground slim lights
GS-S130-12W
GS-S165-18W
GS-S182-24W

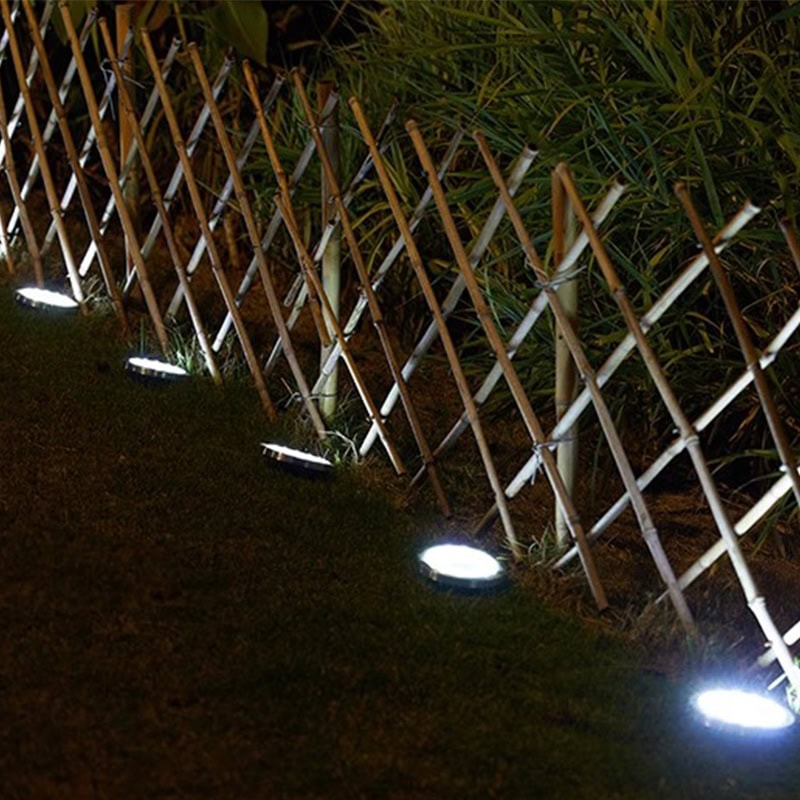

LED地中照明の応用

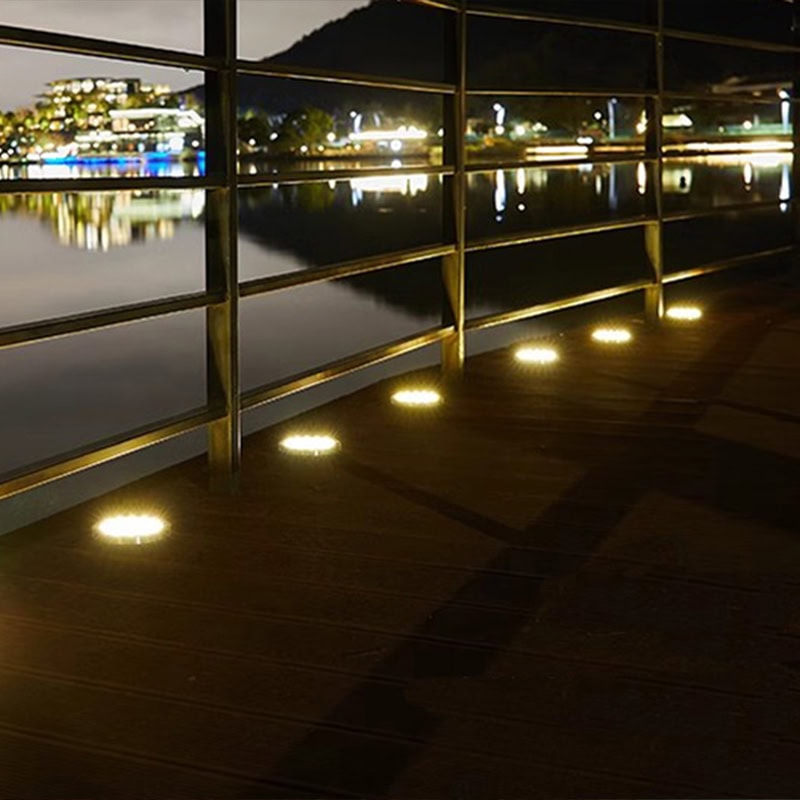

Villa steps and park walls: The lamps perfectly blending into the surrounding environment to create a quiet and elegant atmosphere.
経路, garden areas, 公園, and driveways: They provide a more powerful light output, ensuring that the entire area is fully illuminated, whether it’s pedestrians strolling, children playing or vehicles passing through, enjoying a bright and safe environment.
Up lighting for building exteriors, facades, columns, walls and monuments：This lighting method not only highlights the outline and details of the building, but also enhances the sense of hierarchy and three-dimensional space, making the building more solemn and mysterious at night
