Ceiling Linear Light – LO Series

제품

LED 실내 조명

LED 선형 조명

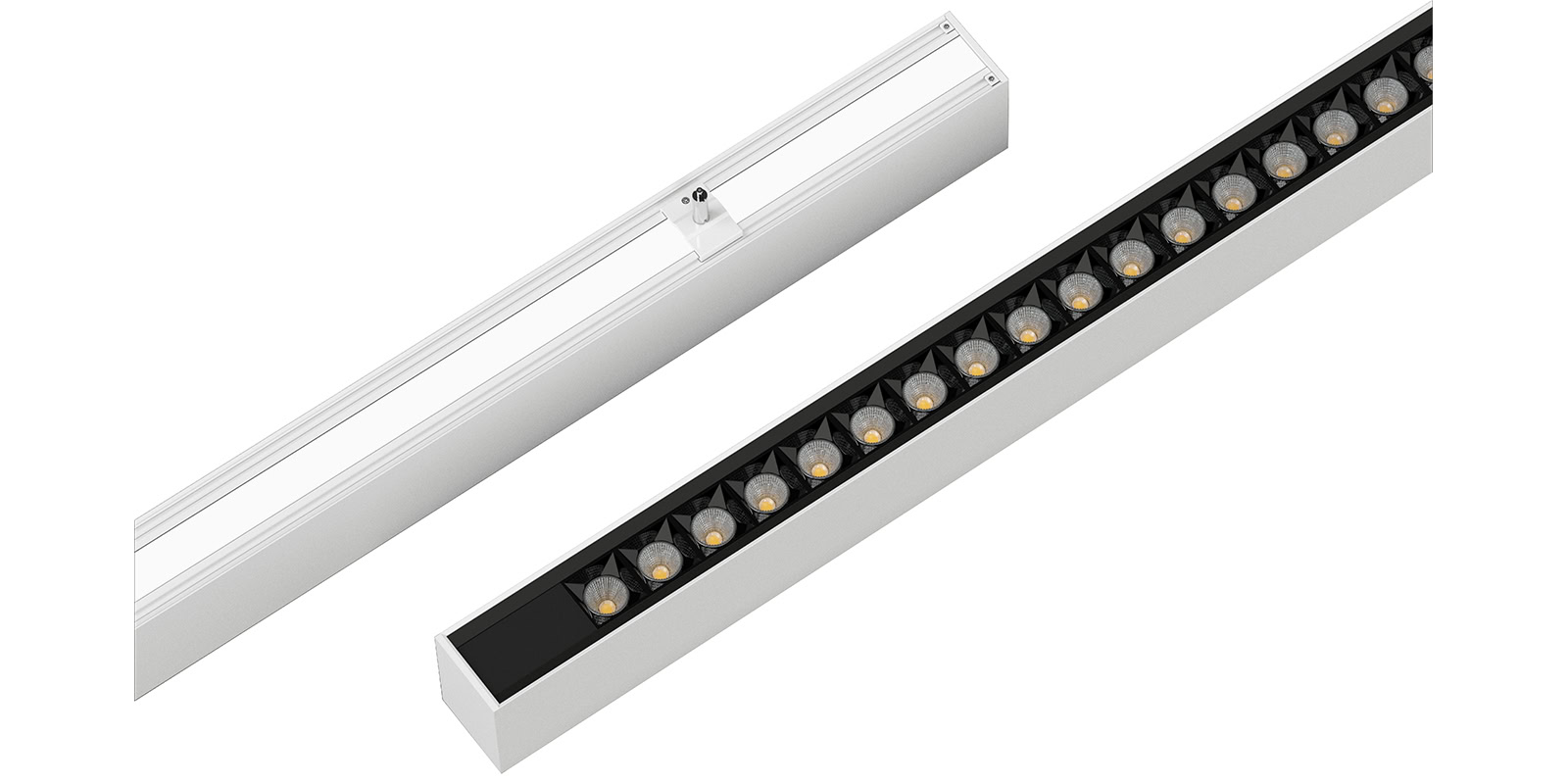

Ceiling Linear Light – LO Series

Ceiling Linear Light - LO Series

Ceiling linear light one housing can accommodate 6 optical components by replacing inner molds, precisely meeting diverse lighting needs.

The non – detachable inner mold allows for quick splicing installation. With integrated splicing parts, it not only reinforces the connection but also completely eliminates light leakage at joints.

특징:

-W60*H80*L1200/1500mm

-Up 15W, Down 30W

-IP20, CRI>90

-조명 효율: Up 975lm/W, Down 2640lm/W,2400루멘/와트, 1800루멘/와트, 2550루멘/와트

-Aluminum 6063+PC
-Standard /0-10V DlM/DALI dimmable

-OSRAM LEDs

-Tridonic/Philips/Osram 드라이버

-3000K/4000K/5000K/5700K

-Suspension mounted or surface mounted

-보증: 5연령

Ceiling Linear Indoor Lights Details

The Pendant linear lights featuring a minimalist, agile form with smooth lines and diverse color options—ivory white, purple blue, light brown, 등.

Available in spotlight (focused beam) and floodlight (broad, 부드러운 빛) 버전, paired with prism anti-glare technology for comfortable, glare-free illumination.

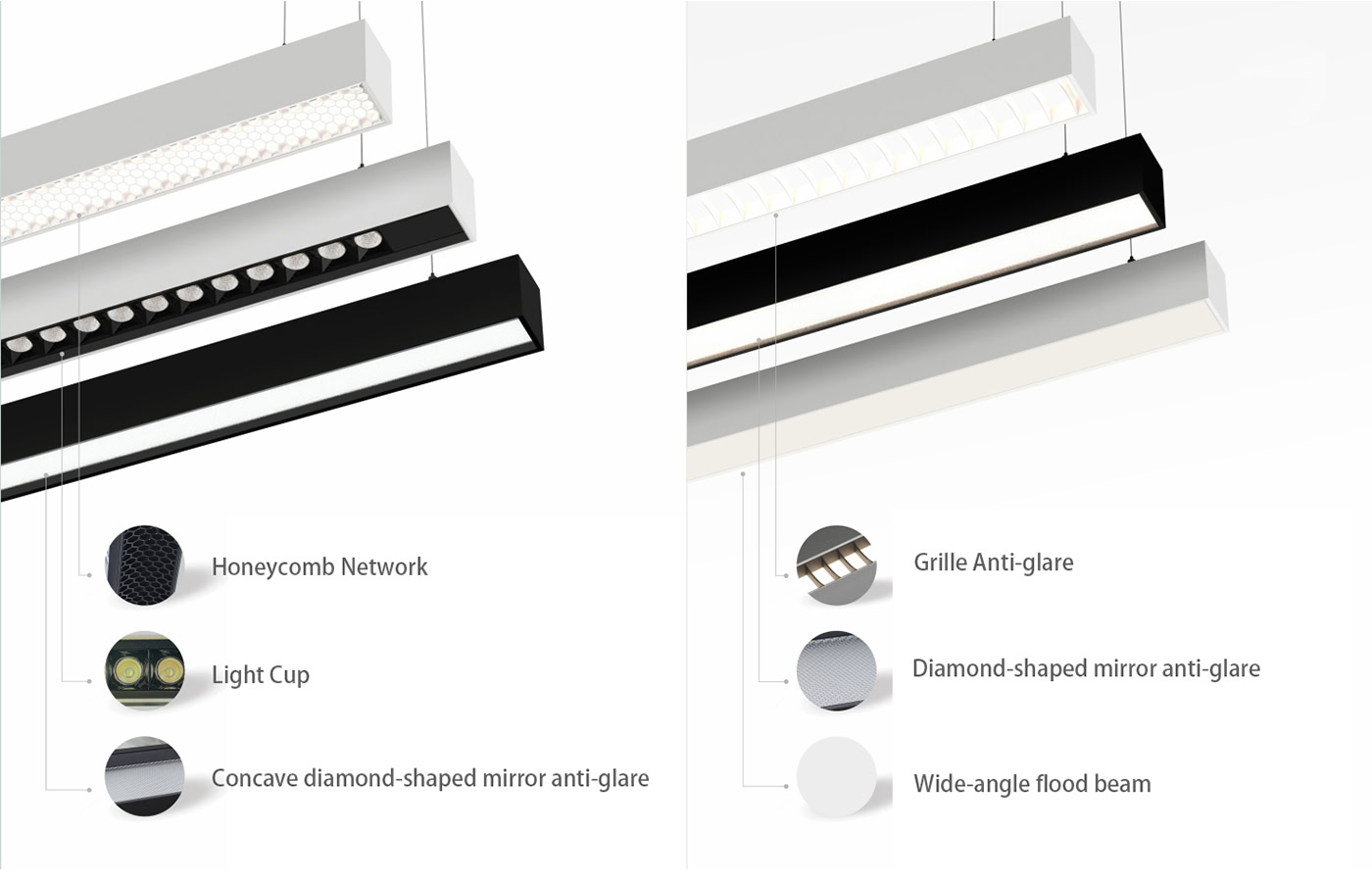

Optical Components For Ceiling Linear Lights Option

Focus and flood light free choice, prism anti-glare technology reshape comfortable light environment. Multi-scene adaptation, no glare strip light.
Our pendant linear lights, with professional anti-glare design, focus, and flood light free collocation, so it can make your space both bright and comfortable.

Wide-angle flood beam

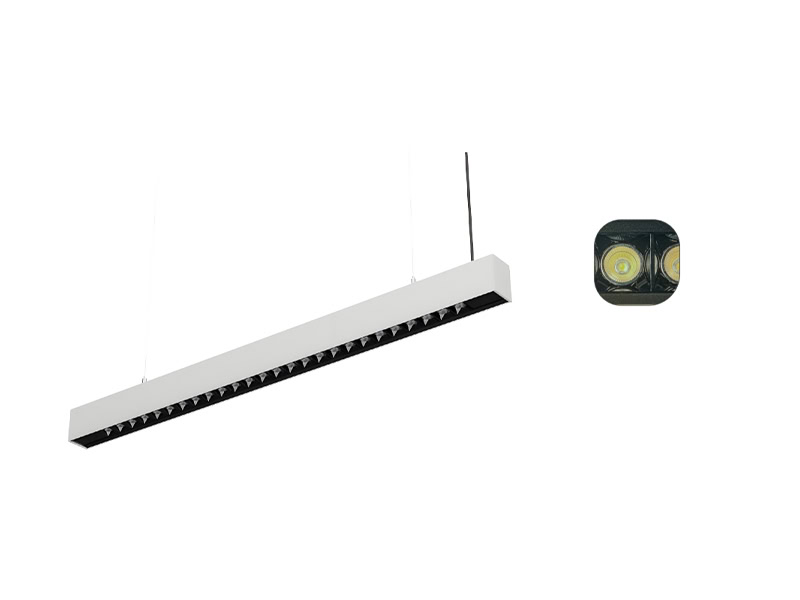

Light Cup

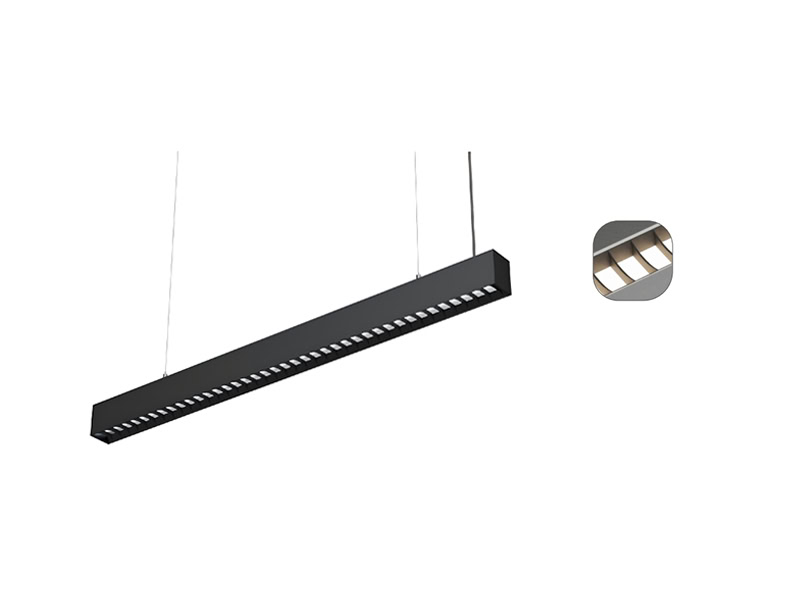

Grille anti-glare

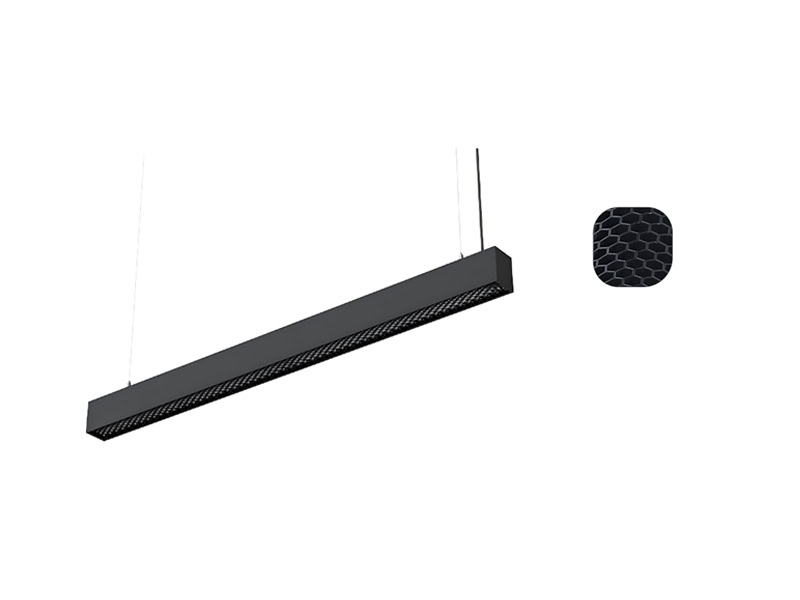

Honeycomb Network

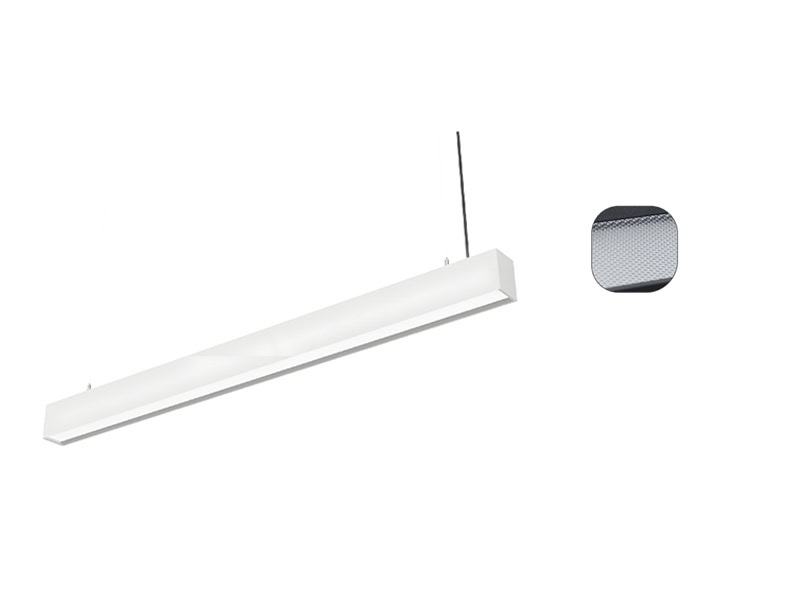

Diamond-shaped mirror anti-glare

Concave diamond-shaped mirror anti-glare

Quickly Assembled And Installed Spliced Parts

It can be quickly assembled and installed without disassembling the inner mold.
The overall spliced parts can make the lamp spliced more firmly, and the light-blocking rate at the spliced part can reach 90%

Ceiling Linear Lights With Replaceable Optical Accessories

Through replaceable optical accessories (such as light cups, anti-glare diamond-shaped mirrors, diffusion plates, honeycomb nets.),
there is no need to replace the entire lamp. Different effects can be achieved simply by switching the internal molds.

CNC Machining End LED Cover LED Linear Lights

The overall CNC machining of the end cover makes the four sides more smooth and textured.

The lower part is designed with a 2mm floating edge to prevent light leakage caused by thermal expansion and cold contraction of the mask. The overall light blocking at the fitting of the end cover and aluminum can reach 98%

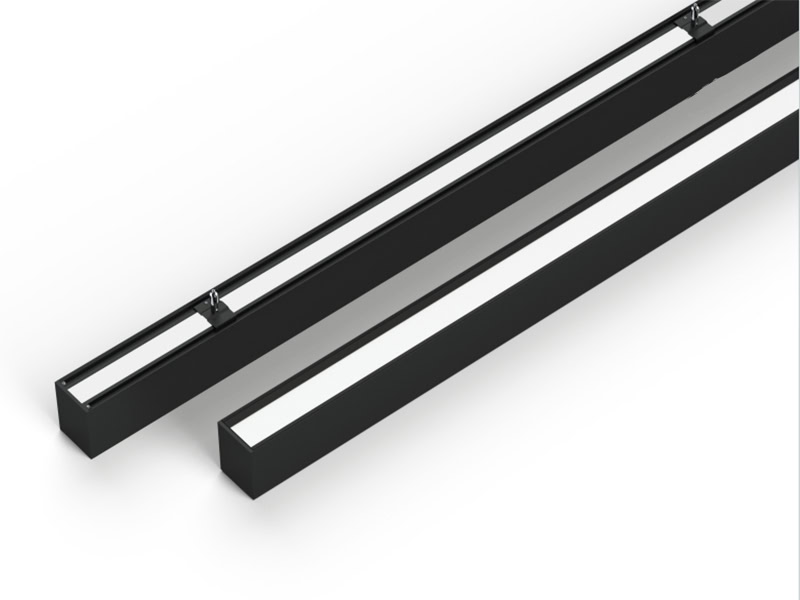

Up And Down Lighting Design

It emits light simultaneously from top to bottom, with double the luminous flux, making the space more transparent.Accessories can be stacked, with an upper light-emitting diffusion plate and a lower light-emitting honeycomb net, to create a layered light effect.
By replacing the internal mold, a single lamp can provide six optical solutions. Quick-disassembly structure, no professional tools are required for replacing parts

Ceiling Linear Lights Up And Down Beam Angles

Unique up and down light design to create three-dimensional lighting space.
The lower light illuminates the entire office area, and the upper light illuminates the suspended ceiling. Make the space more bright, make people feel more comfortable and relaxed, suitable for delicate office area use.

Datasheet Of Pendant Linear Lights

모델 번호.	GS-LO
힘	Up 15W, Down 30W
재료	Aluminium 6063 + PC
조명 효율	Up 975lm/W, Down 2640lm/W,2400루멘/와트, 1800루멘/와트, 2550루멘/와트
드라이버 브랜드	Eaglerise/Tridonic
전압	AC200-240V
LED	OSRAM
PF	>0.95
LED 수명	>50000 시간
IP	IP20
나	IK10
CRI	>90
CCT	3000K/4000K/5000K/5700K
크기	L1230/1530W60H80
보증	5 연령

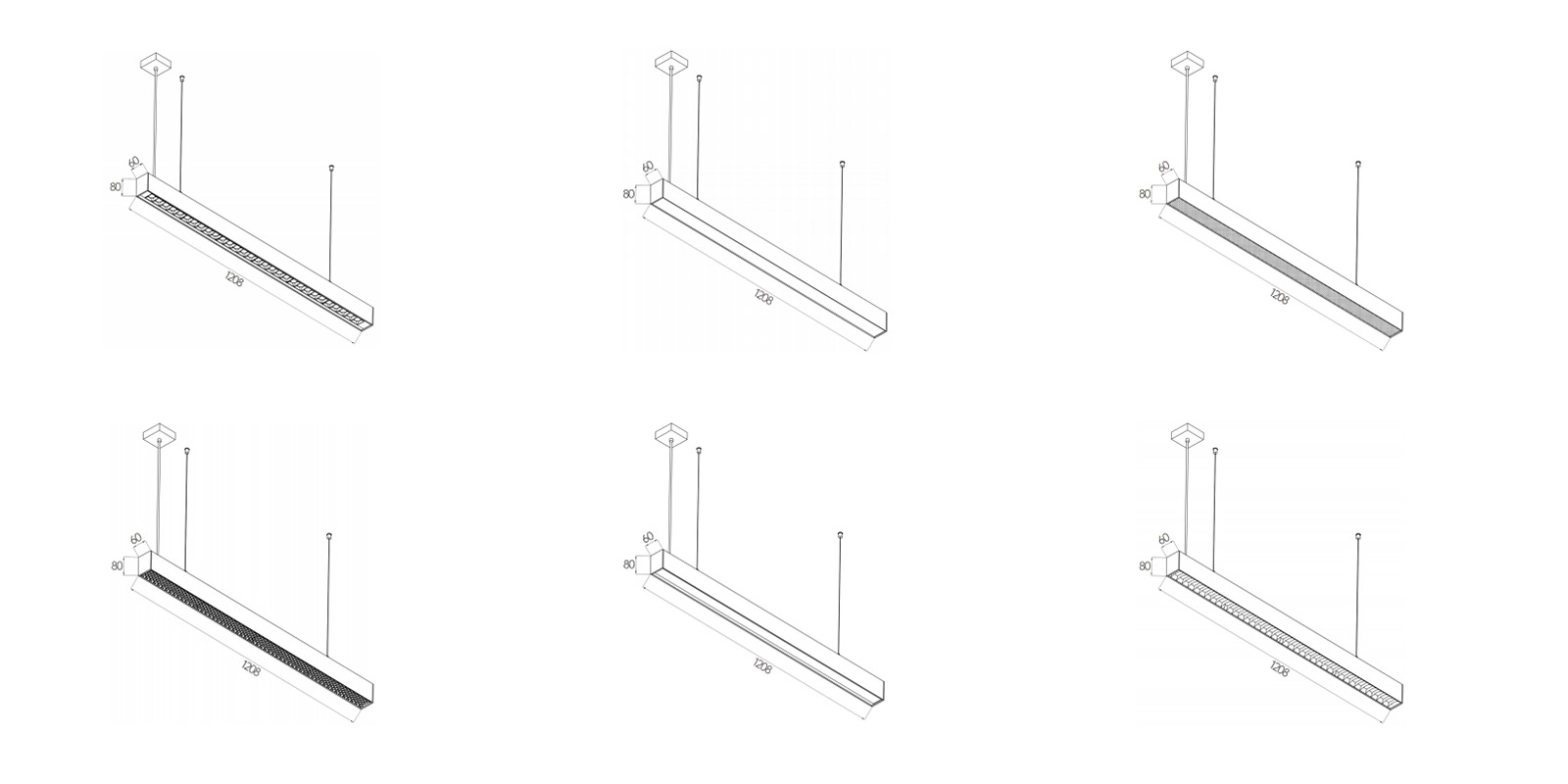

Sizes Of LED Ceiling Linear Lights

Modern LED Linear Lighting Solutions

Linear lights, with their flexible optical configuration and elegant minimalist design, have become the mainstream choice for modern indoor lighting.
Meet the lighting needs of all scenarios, from high-end retail and professional offices to art exhibitions and home decoration.

자주 묻는 질문

가장 자주 묻는 질문과 답변

몇 년 동안 보증을 제공했습니까??

우리는 제공할 수 있습니다 5 전체 라이트 본체에 대한 년 보증. 그리고 빛에 관한 질문은, 우리에게 도움을 요청할 수 있습니다.

What driver you used in ceiling linear light?

우리는 잘 알려진 브랜드를 사용합니다, 트리도닉, 필립스, 전원 공급 장치의 Osram, 안정적이고 안정적인 전력 출력을 보장합니다, 램프의 안전 및 서비스 수명을 보장합니다.

샘플을 얻을 수 있습니까??

예, we will provide customized samples for you, 조정이 있으면, 우리는 당신을 위해 만들 수 있습니다.

Do you offer after-sales service for your linear lights?

Professional after-sales service team will follow up your project, 제품 보증 포함, 기술 지원, 반품 서비스, 등., 귀하의 권리와 이익을 보호합니다.
