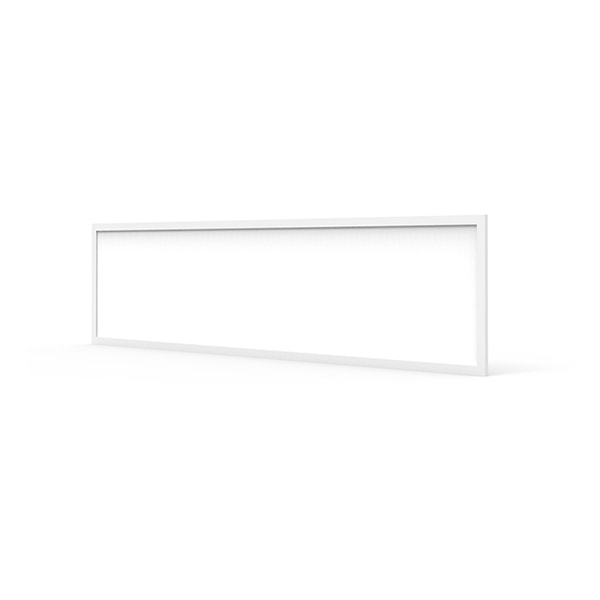

LED Flat Panel Light

LED Flat Panel light feature

GS LIGHT LED flat panel light Super slim design, High lumen output,high efficiency, energy saving up to 70%.

Using super bright SMD LED with high efficiency output.

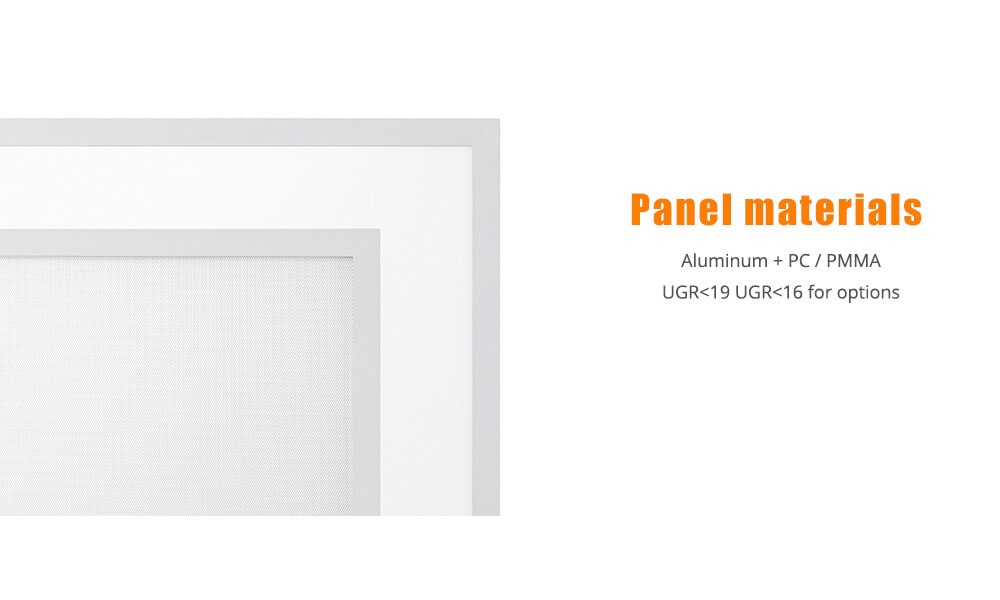

Using imported high transmittance optical PMMA materials without lead and mercury.

CE certificated, meet the requirements of UL SAA, VDE.
Lead free, eco-friendly, conform to the requirements of ROHS.

long lifespan, normal use can reach over 50,000hours.

Constant power consumption while input voltage in AC200-240V.

LED panel lights with CCT adjustable, 0-10V, TRIAC, DALI dimming as well as an emergency.

UGR<19 <16 or CRI90 available and optional.

Non- flicker, no noise, and offer UV shielding

The panel very easy to install and offer you various mounting options including recessed installation.

ceiling mounting, and suspended installation.

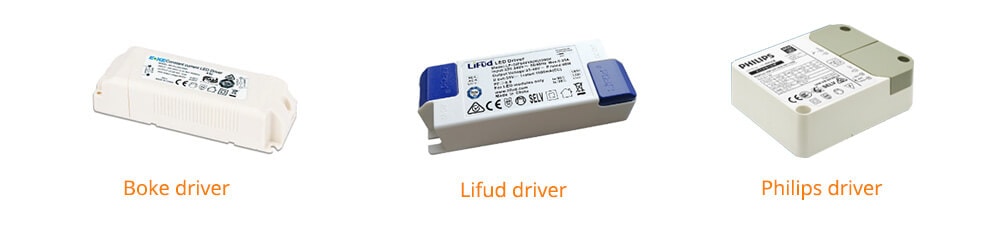

LED Flat Panel lights driver

Series power supply: 20W/36W/40W/50W/60W

Universal AC input / withstand 380VAC high voltage short-time shock.

Built-in active PFC function, Protection: SCP/OCP/OVP/OTP

Cooling by free air convection, Suitable for indoor LED lighting applications

5 years warranty, Flicker-free

Compliance to: TUV-CE、CB、SAA、RCM、CCC

LED Panel datasheet

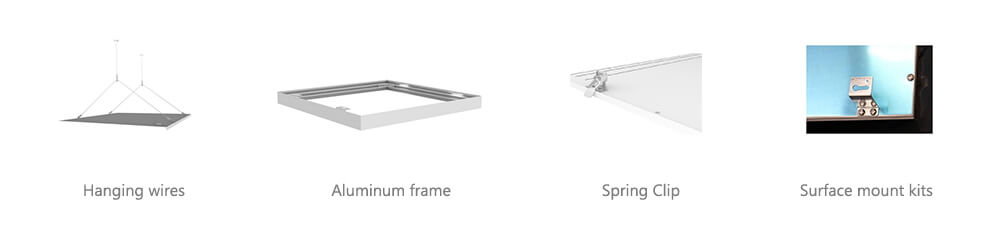

Mount Accessories

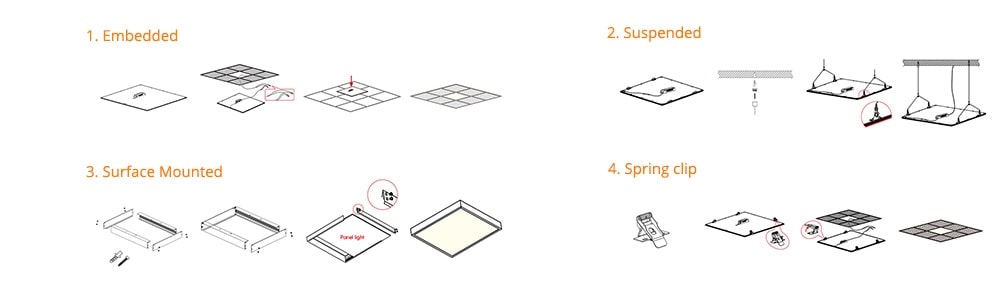

LED Panel Lights Installation

Open the package to get LED panel , power supply and accessories,

and then place the power supply on back plate of LED panel light with DC cable connected.

Insert the LED panel into the ceiling hole, connect the AC cable of power supply.

Align and fix the panel light on the ceiling grid, make sure its light emitting area underneath.

Usage by electrical turn on
