LED Panel Light 60×60

LED Panel 60×60 Product Benefits

GS LED Panel 60×60 is only 10mm in thickness, it is made of 6063 aluminum frame, acrylic light guide plate, PMMA diffusion plate, LED driver, back plate and SMD LEDs to deliver a smooth, flawless of illumination without visible bulbs or hot spots.

Get versatility in size and style with GS LED panel light, they are available in standard 300×300, 600×600, 1200×300 and 1200×600 sizes and are offered in recessed and surface mounted styles. Any other size and power can be Customized, gs light is sure to provide greater flexibility, brighter light and bigger savings!

Aluminum heat sink advantage: integration, a truly seamless profile, with elegant outlook, good heat dissipation and cheap price. All these features make it the most ideal model to make led panel light.

2×2 LED Panel Guide Plate with longer lifetime

PMMA is with excellent weather resistance, higher Surface Glossiness, and better high-temperature behavior. Silk print effect is excellent if you need to print your own logo and lamp parameters, PMMA is preferred.

PMMA board have good printability and sprayabilit, it can make ideal surface decorative effect process with appropriate print technology. Flame resistance.

GS LIGHT only use PMMA Light guide plate with micro structure made of non-yellowing material for long lifetime, which total lamp can offer 5 years warranty.

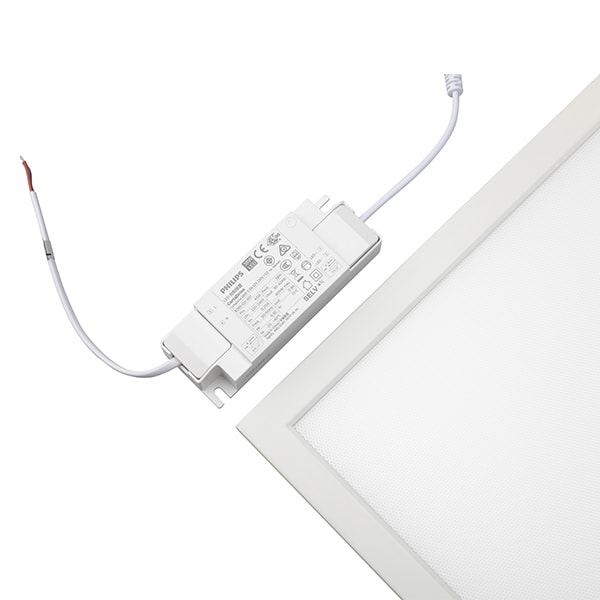

The LED Ceiling Panel Light 60×60 with Philips Flicker free driver

Driver plays a crucial role in the lifespan of led lighting, it’s very important that a driver is selected that is matched to the lamp and to be illuminated.
When selecting an LED driver, total LED power per function, this is the key to determining LED driver topology.

The ambient temperature of the electronic components, Supported diagnostics and safety compliance: such as thermal warning, thermal shutdown, open circuit, short, over-current protection, single LED failures, under voltage and overvoltage on the booster, LED temperature monitoring etc… These are important factors

For these reason, GS LIGHT only use Flicker Free driver, the brand from Philips and BOKE.

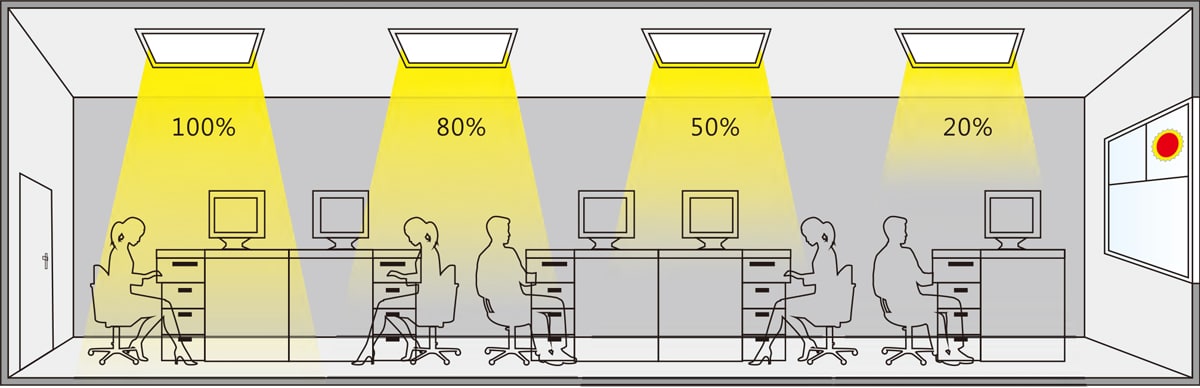

Intelligent Control of LED Light Panels

GS LIGHT can provide customers with more cost-effective lighting solutions, DALI, ZigBee, motion sensor, microwave sensor, daylight harvest sensor and other dimming methods like 0-10V and DALI dimmable can all be customized.

The LED Panel 60×60 Specification

Dimension(mm)	595x595x10
LED Type	SMD2835
Power Consumption	40w
Luminous efficiency	100lm/w 120lm/w 135lm/w
Input Voltage	AC220-240V
Heat sink	6063 aluminum + optical PMMA
Driver	Philips free flicker
CRI	>80
UGR	<22 / <19 / <16
Beam Angle	110°
Power Factor	>0.9
Working Voltage	DC36-42V
CCT	2800-3200K 4000-4500K 6000-6500K
Working Temperature	-40°C – + 55°C
Storage Temperature	-25°C – + 55°C
Installation	Embedded, Suspended, Surface mounted, Spring clip
IP Rating	IP20
Warranty	5 years

The LED Panel Light 60×60 Fitting

GS LIGHT provide you stainless steel hanging wire, Aluminum frame, Spring clips for your all kinds of various installation

Ceiling Light Panels Applications

The LED Panel 60×60 Suitable for office, meeting room, school, hospital, shopping mall, hallways, kitchens and doorways, indoor public places and home lighting etc.
