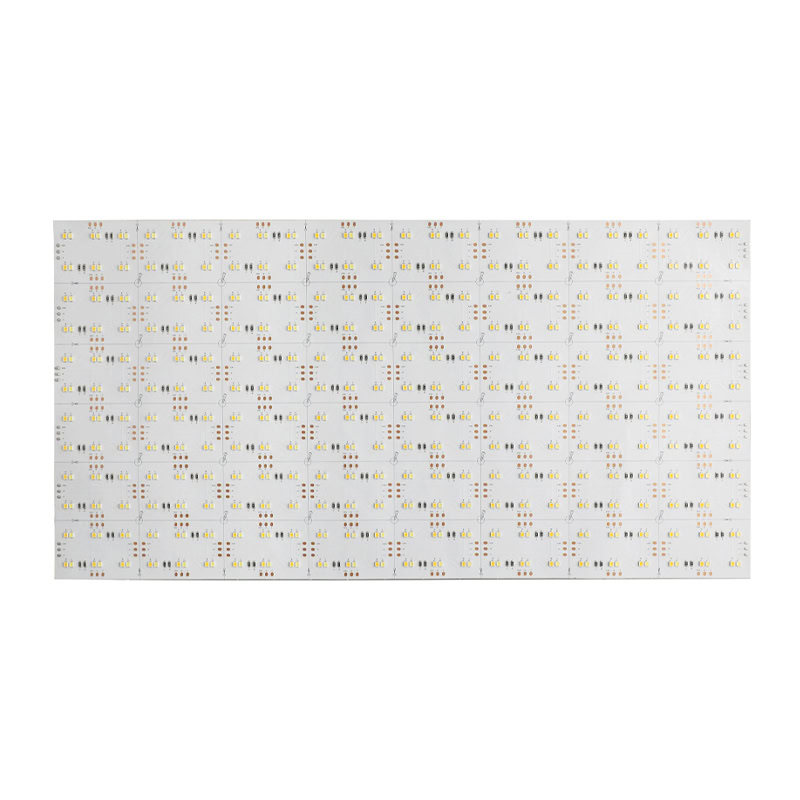

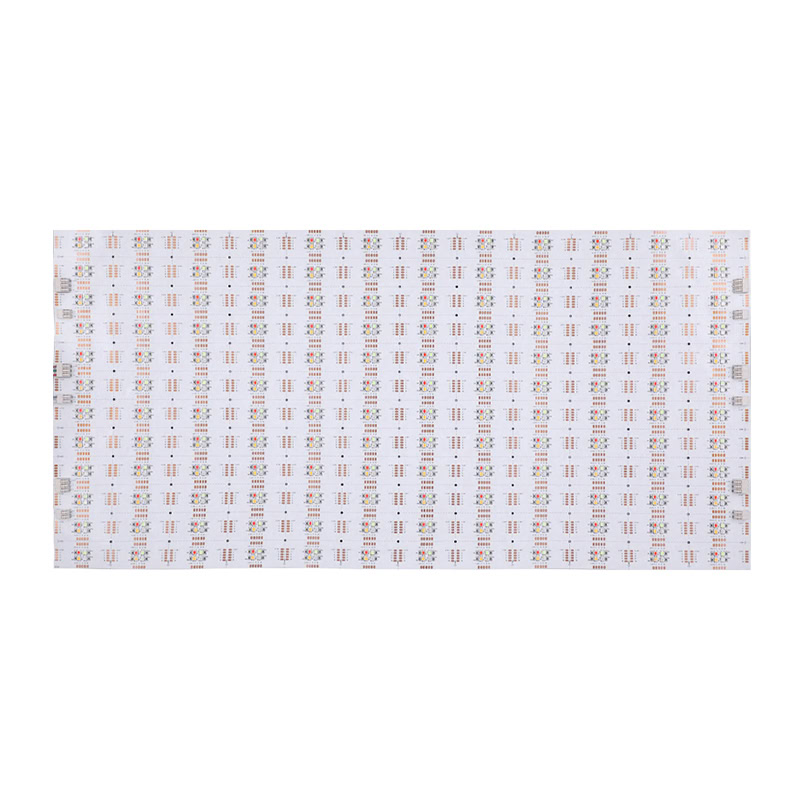

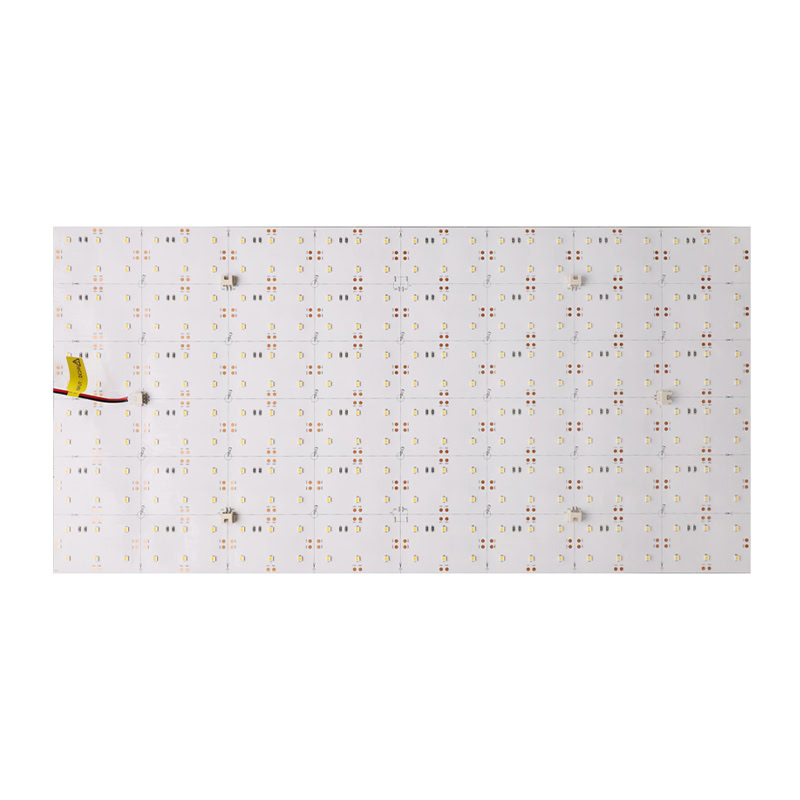

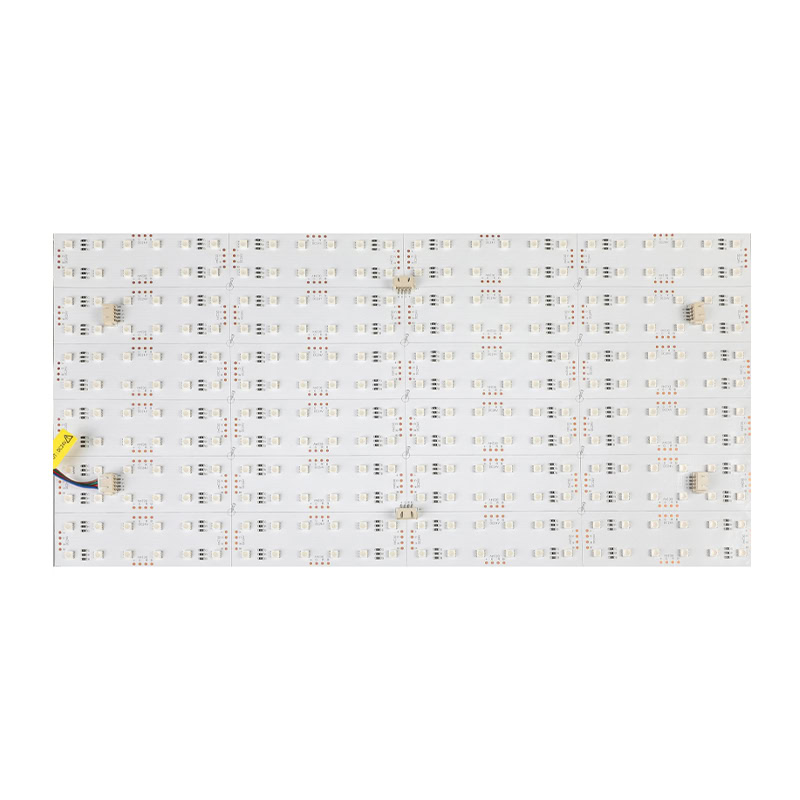

Flexible LED Panel Light Sheet Sign Backlight
Flexible LED panel redefines lighting flexibility with its ultra-thin design (6.5mm-8mm height) and lightweight structure, making it suitable for curved or irregular surfaces. It operates on 24V DC voltage, ensuring safe and energy-efficient performance.
The panel supports cutting lengths as small as 25.4mm×25.4mm, allowing customization for specific project requirements. With a wide operating temperature range of -20℃~45℃, it adapts to harsh environments. Whether for backlighting, accent lighting, or general illumination, this flexible LED panel offers seamless integration and superior light quality.
High Brightness Under Different CCT
It can maintain a stable output of luminous flux under different color temperatures, ensuring uniform and consistent light. With a wide-angle beam of approximately 120°, the light is soft and diffused, providing sufficient and unobstructed lighting coverage from near to far.
Dimension Of Flexible LED Panel Light
Flexible LED Panel Lights offer flexible cutting options with the following core dimension specifications:
- Cutting Length: L50.83W25.42mm & 3 LEDs/Unit Min, L160W80mm & 56 LEDs/Unit Min, L60W40mm & 12 LEDs/Unit Min, L24W24mm & 2 LEDs/Unit Min, L20W20mm & 1 LEDs/Unit Min, L120W40mm & 12 LEDs/Unit Min, L1524W50.8mm & 12 LEDs/Unit Min, L240W20mm & 12 LEDs/Unit Min, allowing precise customization for various installation sizes.
- LED Type & Density: SMD 2835 with configurations like 48 LED(Row)*12 Column=576PCS, 36 LED(Row)*12 Column=432PCS, 42 LED(Row)*12 Column=504PCS, 8 LED(Row)*4 Column=32PCS, 40 LED(Row)*10 Column=400PCS, 24 LED(Row)*12 Column=288PCS; SMD 5050RGB with 24 LED(Row)*12 Column=288PCS, 12 LED(Row)*24 Column=288PCS. Unit pieces equate to 80 LED/M, 60 LED/M, 84 LED/M, 16 LED/M, 200 LED/M, 50 LED/M, 96 LED/M, 100 LED/M, 50 LED/M based on min cutting rows, balancing brightness and flexibility.
- Overall Dimensions: L610×W305mm and L480×W240mm (Wago Female Connector optional). Total height with On-Board Wago Female Connector is 6.5mm or 8mm depending on the model.
- Mounting: All models come supplied with 3M adhesive to the underside for easy and secure installation.
Datasheet Of LED Flexible Panel Light
All Types of Flexible Light LED Lights
GS-24-0100
GS-24-0098
GS-24-0099
GS-24-0101
GS-24-0102
GS-24-0103
GS-24-0104
GS-24-0105
GS-24-0106
GS-24-0107
GS-24-0108
GS-24-0109
GS-24-0110
GS-24-0111
GS-24-21
Why Is GS LIGHT Among China’s Top 10 Flexible LED Strip Partners?
GS LIGHT LED Backlight Series delivers flexible, high-performance lighting solutions designed for seamless integration in commercial, residential, and decorative environments, with customizable features to meet varied installation needs.
- 120°/180° Beam Angle: Ensures wide, uniform light distribution for comprehensive coverage in different spaces.
- Multiple Cutting Options: Supports precise customization with cutting lengths ranging from L20×W20mm (1 LED/Unit) to L1524×W50.8mm (12 LEDs/Unit), adapting to irregular layouts and specific size requirements.
- 24V DC Voltage: Compatible with smart control systems (CASAMBI/WIFI/BLE Mesh/Zigbee/PWM/TRIAC/1-10V/DALI) for versatile operation in long-distance installations.
- 50,000 Hours Lifespan: Reliable performance with 3M adhesive mounting for secure, long-term installation.
- High Color Rendering: Ra>90 & R9>50 (or Ra>95 & R9>90) for true-to-life color reproduction, ideal for premium displays and high-end interiors.
120°/180° Beam
24V DC Compatibility
50,000+hours
Applications In Different Scenarios
LED Flexible Panel Lights are suitable for various scenarios requiring flexible and high-performance lighting, providing customized illumination solutions for different spaces:
- Commercial and decorative spaces: Used in shopping malls, specialty stores, and decorative settings, leveraging RGB/RGBW color options and smart control (CASAMBI/WIFI/BLE Mesh) to create dynamic lighting effects and enhance visual appeal.
- Residential and indoor environments: Applied in home interiors, kitchens, and corridors, with 3M adhesive mounting for easy installation and 120°/180° beam angles ensuring uniform light distribution.
- Display and premium settings: Ideal for high-end displays and interiors, featuring high color rendering (Ra>90 & R9>50) to accurately reproduce colors and highlight product details.
- Commercial long-run installations: Compatible with 24V DC voltage and multiple control systems, suitable for large-scale commercial spaces like offices and corridors requiring stable and customizable lighting.
LED Flexible Panel Lighting FAQs
These LED backlights operate on 24V DC, ensuring compatibility with various smart control systems and long-distance installations for stable performance.
Yes, the LED strips support flexible cutting with multiple options, such as L50.83×W25.42mm (3 LEDs/Unit) and L20×W20mm (1 LED/Unit), allowing precise customization for different installation sizes.
The LED backlights feature a 120° beam angle (some models offer 180°), providing wide and uniform light distribution for comprehensive coverage in various spaces.
Yes, they support multiple smart control protocols, including CASAMBI, WIFI, BLE Mesh, Zigbee, PWM, TRIAC, 1-10V, and DALI, enabling seamless integration with smart home or commercial automation systems.
The LED backlights offer high color rendering with Ra>90 & R9>50 (or Ra>95 & R9>90), ensuring true-to-life color reproduction for premium displays and high-end interiors.
These LED backlights have a lifespan of 50,000 hours, providing reliable, long-lasting performance for both residential and commercial applications.
All models come supplied with 3M adhesive on the underside, allowing easy and secure installation on various surfaces without additional tools.
Yes, select models offer RGB or RGBW color configurations, with power distribution such as 10W per color (R/G/B/W) for dynamic and customizable lighting effects.
The maximum load quantity varies by model, with options like 6 PCS (for 240W) or 8 PCS (for 240W), making them suitable for large-scale installations.
While primarily designed for indoor use, the durable construction and 3M adhesive mounting make them suitable for protected outdoor decorative applications, though specific waterproof ratings should be confirmed for harsh environments.
The LED backlights use SMD 2835 (and SMD 5050RGB for color models), with configurations like 576PCS (48 Row×12 Column) for high brightness and uniform illumination.
GS Light prioritizes quality with strict binning standards (Single Bin ERP & ANSI Norm), stable voltage compatibility, and long lifespan, making their LED backlights ideal for commercial projects requiring consistent performance.
