TL Series Led Tri-Proof Light

LED Tri-Proof light

Power: 30w/40w/50w/60w

Efficiency: 130lm 150lm/w for option

LEDs: SMD2835

CRI:>80

Input: AC100-277V

Driver brand: BOKE/Philips/Tridonic

Beam angle: 120°

Dimmable: 0-10V/DALI/Traic for options

Emergency: 60mins/90mins/180mins

Microwave Sensor: for option

IP Grade: IP66

  • Product Detail

LED Tri-proof Light products

LED Tri-proof light factory more than 10 years professional in manufacturing linear light fixtures.

LED tri proof light made by special protective materials. It is Waterproof, Dustproof , Corrosion-Proof , and Explosionproof , and protection rating is IP65.

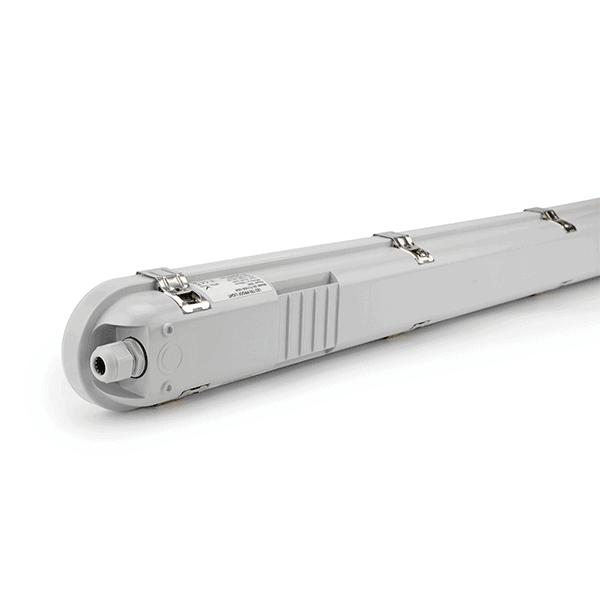

led tri proof light side

The front cover of the lamp is used of Fireproof PC material with 94 V2 perfect impact-resistance, good toughness.

Can be bent by 180 degree without crack, people can step on it , without any crack. And are good at corrosion-proof. The fireproof rating is V0.

The back cover of the lamp is used of the same Fireproof PC material as the front cover. Silicon rubber sealing frame , make sure perfect seal .

Exclusive quick-fit design batten light 40w 50w, Replaces 2x36W/72W fluorescent batten

Energy efficient – saves up to 60% compared to fluoro batten. Exclusive Quick-Fit design for faster installation

Unique two part batten with quick release connectorsFast installation and easy access for any future maintenance.

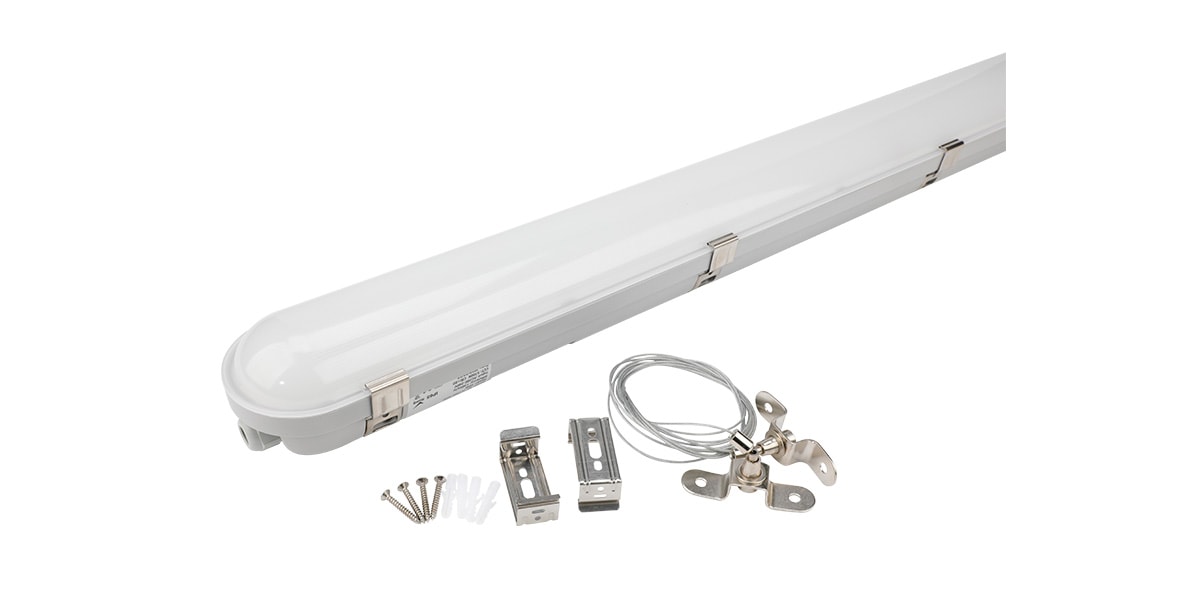

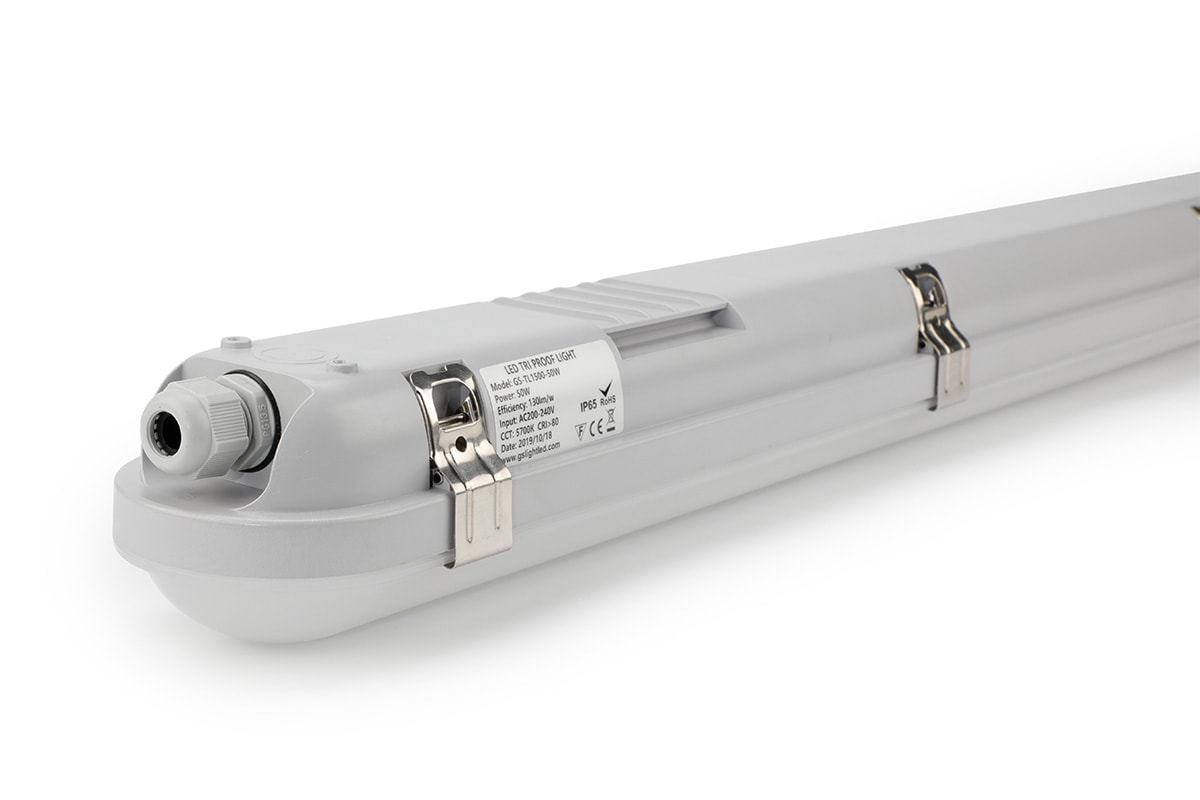

led tri proof light 1.2m 4ft

LED Tri-Proof Light factory use High efficiency SMD2835 and TUV driver

PC cover with transparent, strip, frosted for options, Transmittance: transparent 93%, strip 90%, frosted 83%.

130lm/w 150lm/w are available, TUV non flicker driver, is very high quality and cost performance, customer feedback is very good.

led tri-proof light

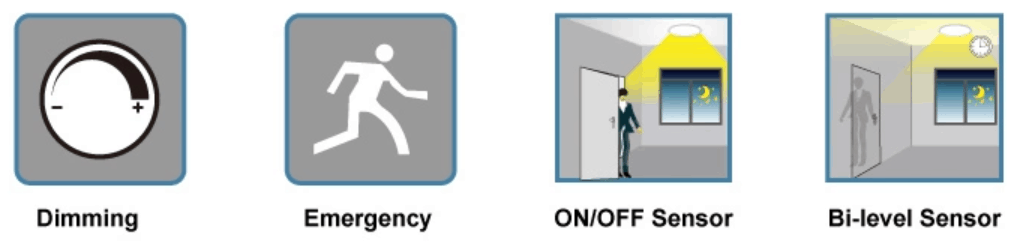

LED Batten Light available optional

Emergency pack up: 18650 lithium battery 1.5 or 3 hours emergency time

Microwave sensor dim 0%, 25% ,100%-25%-0%; Sensor range 0.5-10M, Sensing time 10s-5min

CE RoHS IP65 tri-proof 2ft 4ft 5ft 20w 40w 50w for parking lot, industrial, warehouse, hosiptal, School, tunnel, restroom, corridor, basement, food processing plant.

50,000 hours service life with 5 year warranty.

batten light

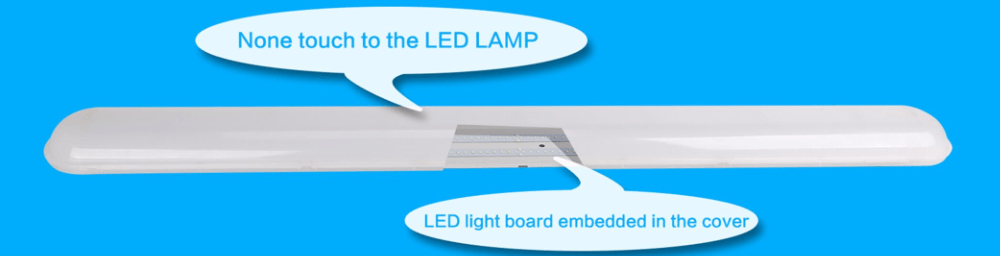

Touchless mode of LED Lamp

tri proof light

All in one

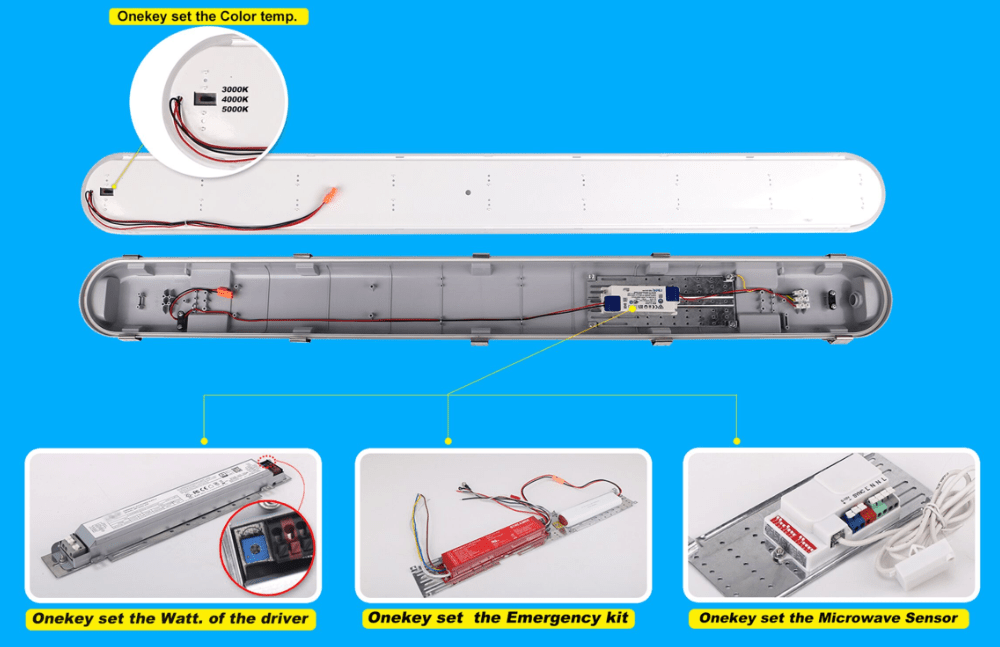

led batten light

LED Tri-proof Light

More than just a revolution in installation and maintainance

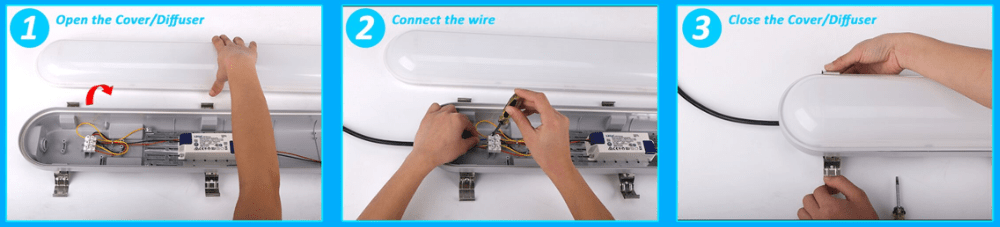

tri-proof light installation

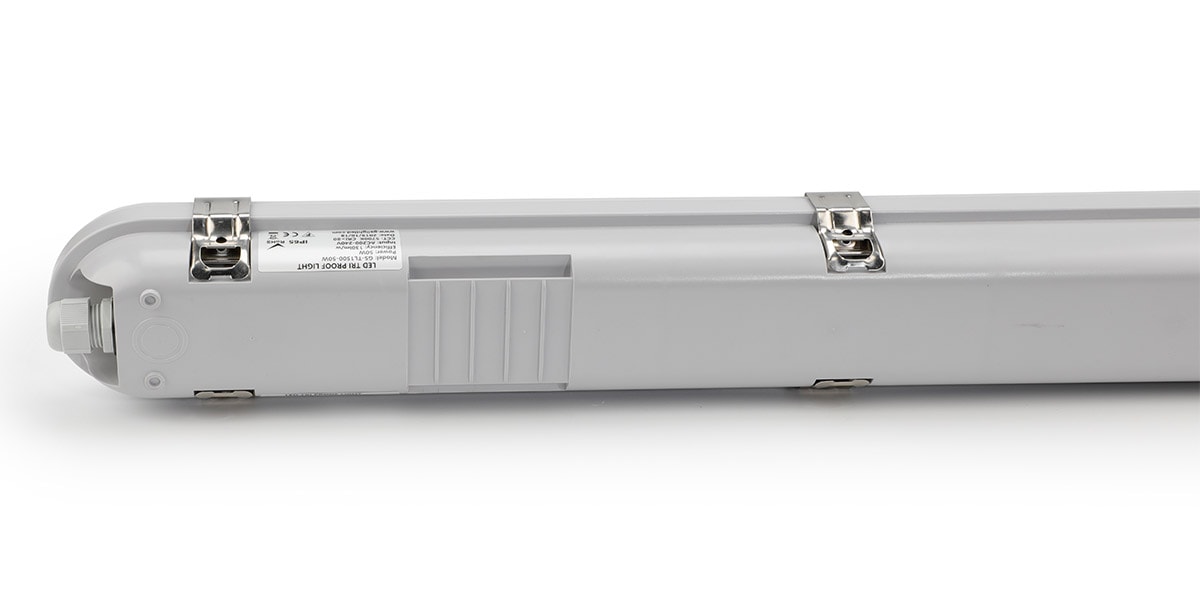

led tri proof light backside

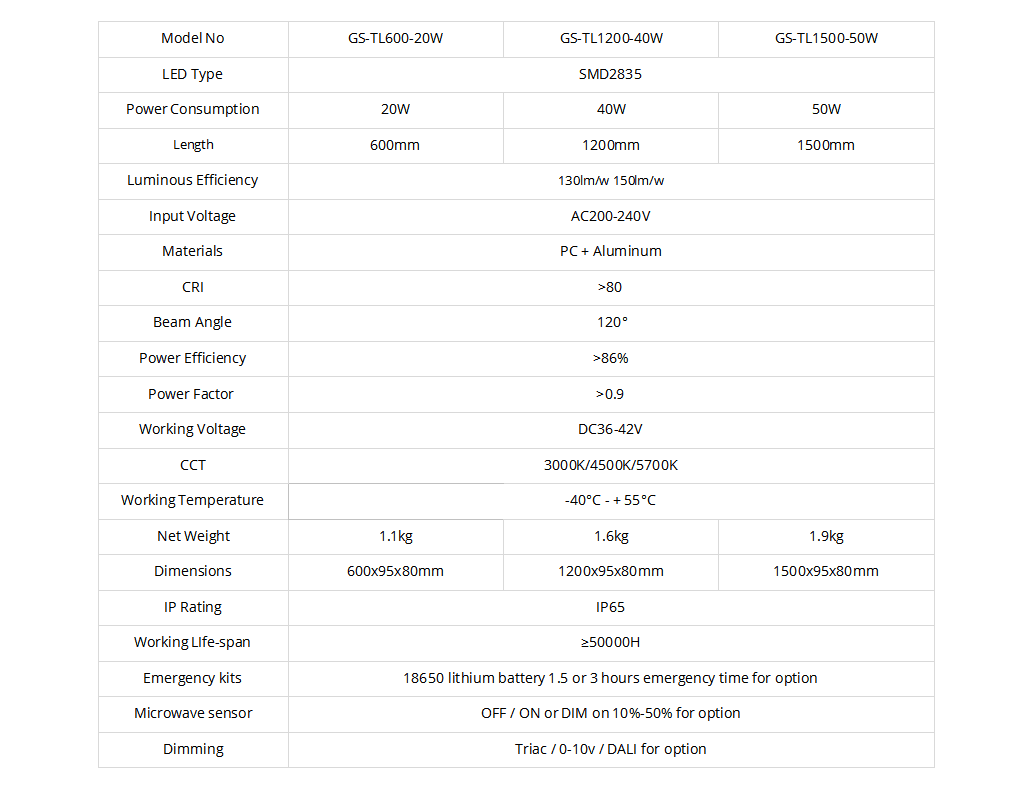

Tri proof Light Datasheet

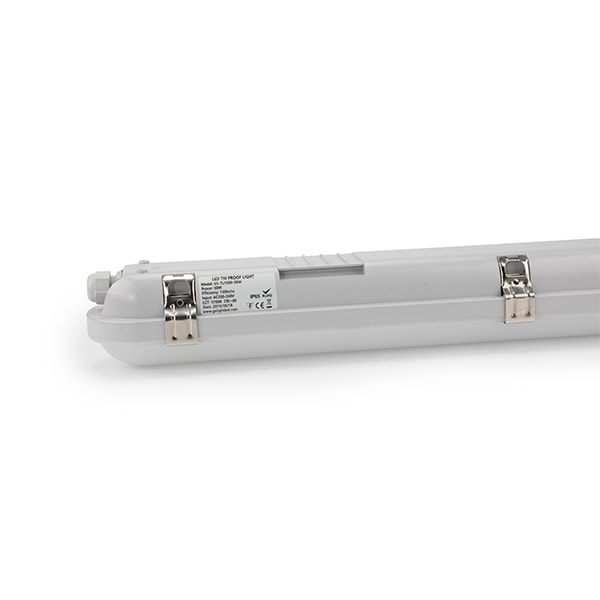

led tri proof light

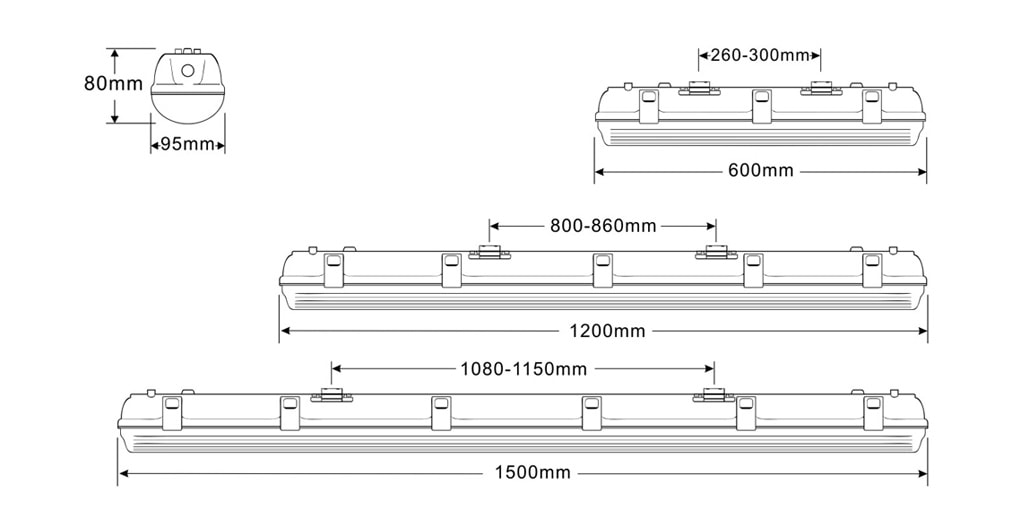

tri proof light size

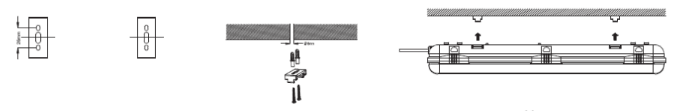

LED Tri proof Light Installation

a) Ceiling Mounted: Fix base section of the batten to the ceiling, Connect the AC power cable to the terminal block, either through the top or via the end cap.

ip65 led tri proof light

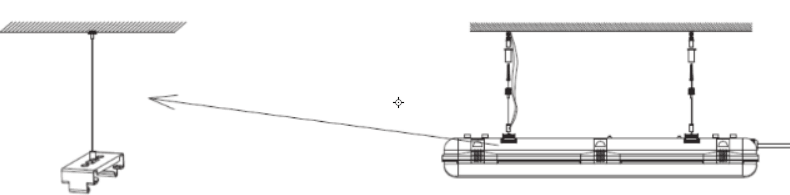

b) Hanging Installation: Connect the LED module to the base section with the two wire ropes to support the weight, Join the ends of the internal power cable together

Lock the two halves together, match diffused led module together with gear tray base and then lock the clips to secure the batten

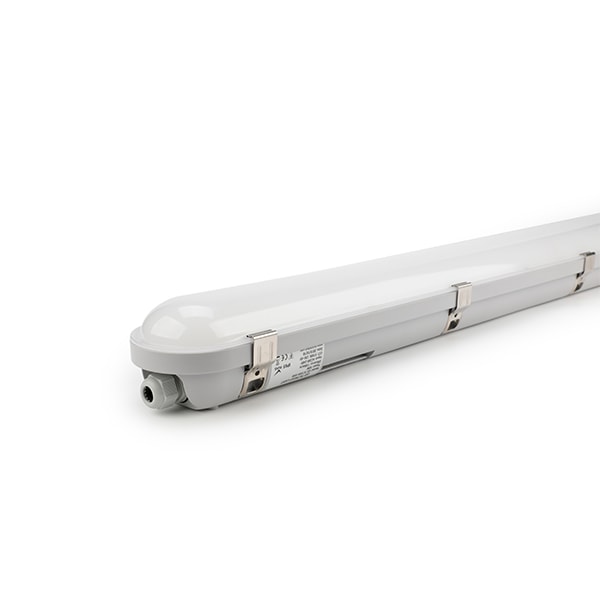

ip65 waterproof 1500mm tri proof light
