LED Tri Proof Light – TQ Series

Tri proof led light TQ series with 160lm/W, PC material.
Wireless control: microwave sensor, PIR sensor. Quick connector design, IP65.

bolt (1)

Wattage

25/35/45 W
brightness-up

Lighting Specifications

CRI>80, 120°
battery-eco

Light efficiency

160lm/W
circuit-voltmeter

Input Voltage

AC200-240V 50/60Hz
brightness (1)

Dimming Options

Standard /0-10V DlM/Triac Dim/DALI dimmable
battery-3

Emergency Function

Self-test emergency with LifePo4 battery optional
keyframes

Materials

PC material
bulb (2)

LED Type

CREE/OSRAM LEDs
shadow

LED Driver

Eaglerise/Tridonic drivers
cloud-rain

IP Rating

IP65
sparkles

Color Temperature

3000K / 4000K / 5000K / 5700K / 6000K / 6500K
clock-2

Lifespan

Ta40℃ L70> 54000 hours
replace

Warranty

5 Years

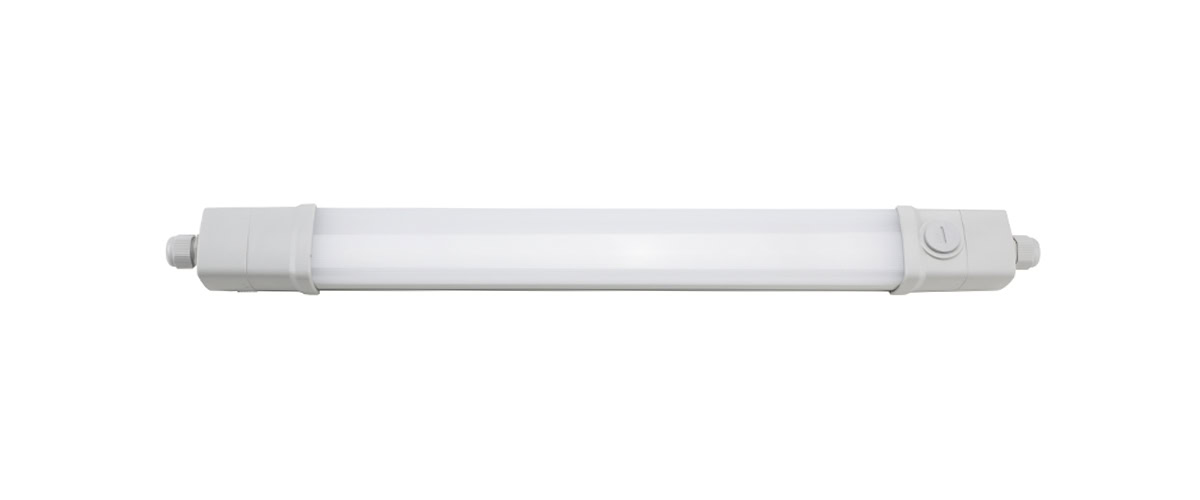

Tri Proof LED Lamp High Quality Material

Equipped with aluminum heat sinks, it has excellent heat dissipation performance, ensuring the stable operation of the lamp,
effectively extending its service life, and reducing the frequency of faults and replacements caused by heat dissipation issues.
tri proof led light IP65 structure

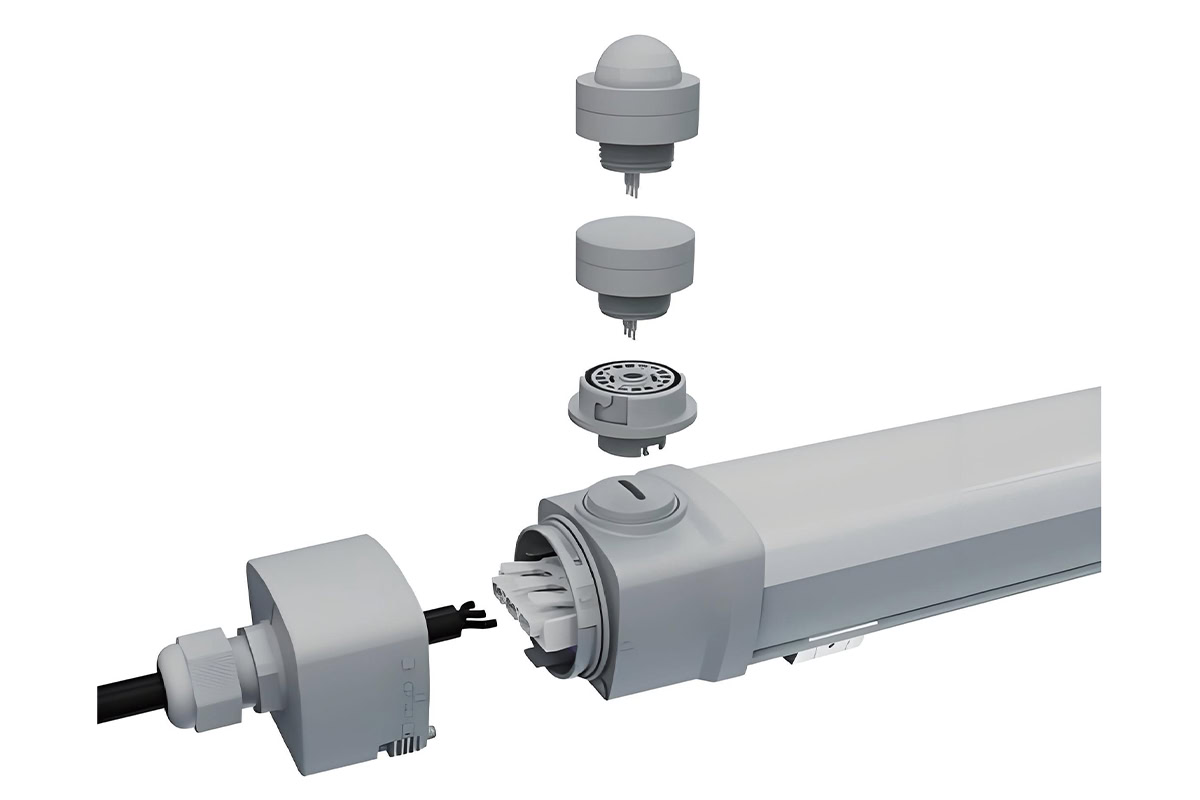

Sensors For Tri Proof LED Light

Supports wireless control of microwave sensors, PIR sensors and Zhaga sockets to achieve automatic sensing and intelligent dimming,
Users can adjust the brightness and switch status at will through smart devices to achieve automatic sensing and intelligent dimming, meeting the lighting needs of different scenarios, such as turning off the lights when people leave the office to save energy, and automatic lighting in corridors to ensure safety.
tri proof led light sensors
outdoor batten lamp emergency battery

Emergency Battery Optional

Optional lithium iron phosphate (LiFePO4) batteries are available,
featuring self-check and emergency response functions.

3 Kinds Of Ways Of Tri Proof LED Lights Installations

Tri proof lights have 3 ways of installation: surface mount, wall mount and suspend mount.

We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.
installation-ways-1536×576 (1)

Tri Proof LED Batten Light Sizes

tri proof led sizes

Sensors Function With Dimming Control

You can choose to set the daylight threshold at 25Lux and the stand by period to “5s/5mins/10mins/30mins”
And with dimming control, the light will dim to 100% when motion was detected.
outdoor led batten dimming function
led tri proof lights dimmable ways

Intelligent Dimming Control Tri Proof LED Lights

Support DALI, 0-10V dimming and wireless control, adapt to different customer needs, no need to replace hardware.

0-100% smooth brightness adjustment, no stroboscopic, protect human eye comfort. Automatic dimming + remote control, save electricity and reduce labor costs.

High Light Efficiency And 120° Beam Angle

The TF series is equipped with high-efficiency LED technology, with a luminous efficacy of up to 160lm/W.
It adopts a 120-degree large-angle lighting design, allowing a single lamp to cover a wider space and effectively reducing the number and cost of lamp installations.
linear batten light beam angle 120degree
tri proof led light

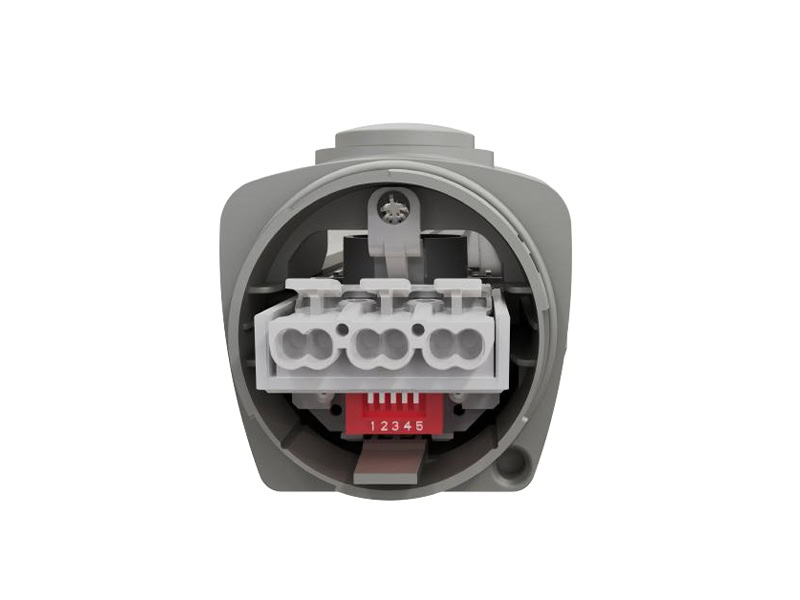

Special Toolless Convenience Design

Tool-Free Installation Design
Patented press-type mechanism enables effortless one-handed operation. Quick-connect/disconnect functionality reduces installation time by 70%
Secure snap-lock design ensures vibration-proof connections
Universal compatibility with standard junction boxes and conduits.
This revolutionary connection system combines installer-friendly design with professional-grade functionality, bridging the gap between simple installation and advanced lighting control capabilities.

Drivers Used In Tri Proof LED Lights

For the core components of lighting products, such as power supplies, well-known industry brands like Tridonic and Eaglerise are used.
From high efficiency and energy conservation to stable operation, from long-lasting durability to safety and reliability, every link demonstrates quality.
led tri proof lamp driver tridonic
led tri proof lamp driver

2 Kinds Of Ways Of Tri Proof LED Lights Installations

Tri proof lights have 2 ways of installation: surface mount and suspend mount.
We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.
tri proof led light installation methods

Datasheet Of Batten LED Light

Model No.
GS-TQ650-25W
GS-TQ1250-35W
GS-TQ1550-45W
Power
25W
35W
45W
Material
PC
Light efficiency
160lm/W
Driver Brand
Eaglerise/Tridonic
Voltage
AC200-240V
LEDs
SMD2835
PF
>0.95
LED Lifespan
Ta 40°C L70>54000 hours
IP
IP65
IK
IK10
CRI
>80
CCT
3000K/4000K/5000K/5700K/6000K/6500K
Size
650*58*62
1250*58*62
1550*58*62
Warranty
5 Years

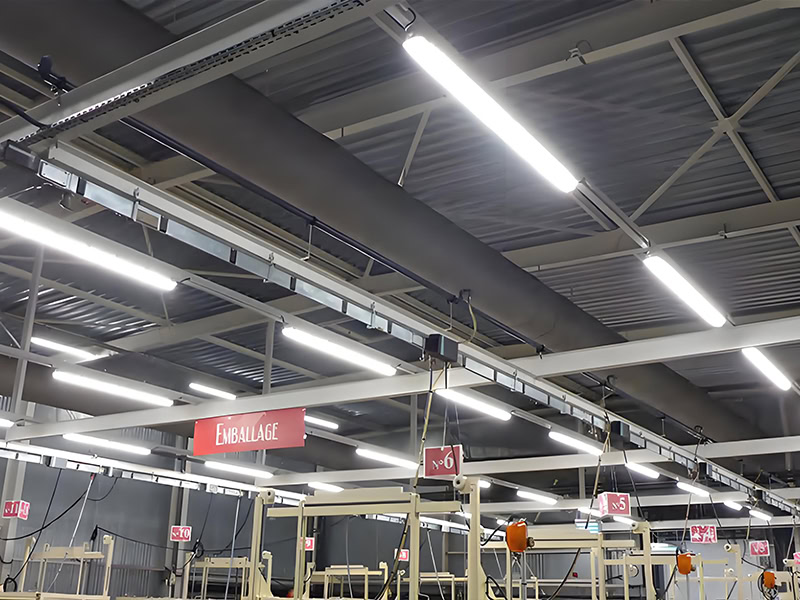

Applications In Different Scenarios

Developed for diverse application environments such as warehouses, factories, and logistics centers, the TQ series can stably play a role with its excellent performance,
whether it is for the lighting needs of large storage Spaces, equipment matching in factory workshops, or indication signs in logistics centers, making it your ideal choice.
application of tri proof led
application of tri proof led light

Related Products

LED Tri Proof Light - TB Series
LED Tri Proof Light – TB Series
LED Tri Proof Light - TW Series
LED Tri Proof Light – TW Series
led batten lights indoor lights
LED Batten Light - TL Series
gs-light-IP69k-LED-tri-proof-light-gs
IP69K LED Tri Proof Light

LED Tri Proof Light FAQs

The appropriate wattage depends on installation height, fixture spacing, and the required illumination level. Selecting the right wattage helps achieve balanced lighting performance and energy efficiency.

Yes. Their linear design makes them suitable for continuous layouts in corridors, warehouses, workshops, and parking facilities, creating a cleaner lighting appearance.

The sealed housing helps reduce the impact of dust, moisture, and airborne contaminants on internal electrical components, supporting long-term reliability.

COB LEDs combine multiple chips into a single light-emitting module, creating a more uniform light output and reducing visible light points.

Linear layouts often provide more consistent illumination and simplify fixture positioning across long spaces.

Even light distribution helps reduce strong contrast between bright and dark areas, creating a more comfortable visual environment.

Installation height, required illumination levels, and fixture output are key considerations when determining spacing.
