LED Lighting Manufacturer in China

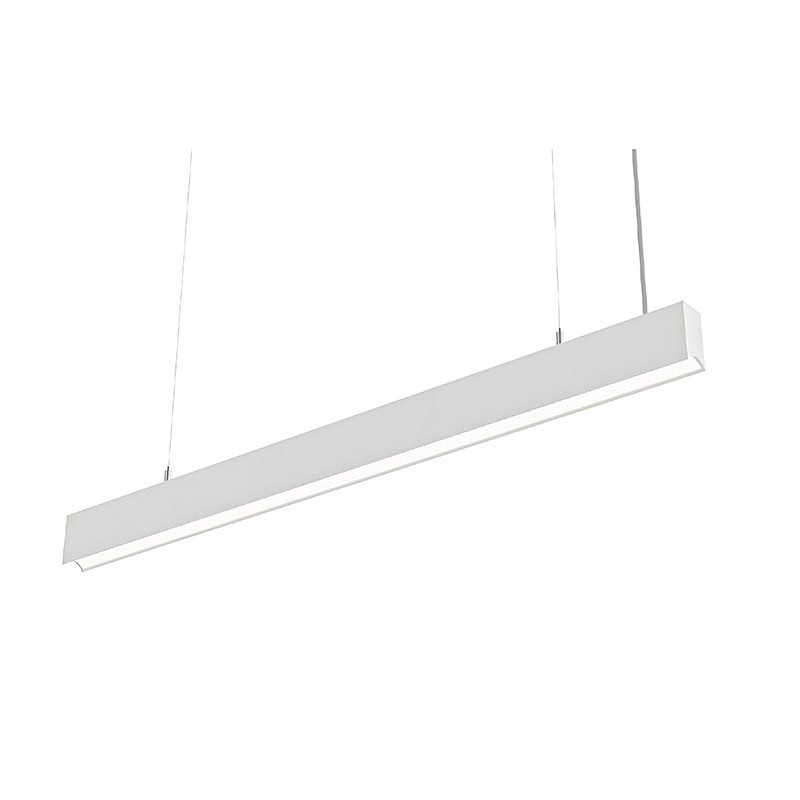

Linear Pendant Lighting L6 Series
LED linear pendant lighting is energy-efficient, low maintenance alternative to traditional linear fluorescent lamps in a variety of commercial lighting applications.
5 lighting performances are included in a single, extruded aluminium body, ambient lighting, directional lighting and accent lighting.
LED Linear light is GS LIGHT new design for industrial lighting, use Osram LEDs and Osram Free-Flicker driver, which is stable, long life and no UV & IR emission.
LM79 and LM80 compliant, Life time: 50000 hours with a lumen maintenance of 20%(LM80). Light line up to 40m*(131”) with one feed-in;without light gap

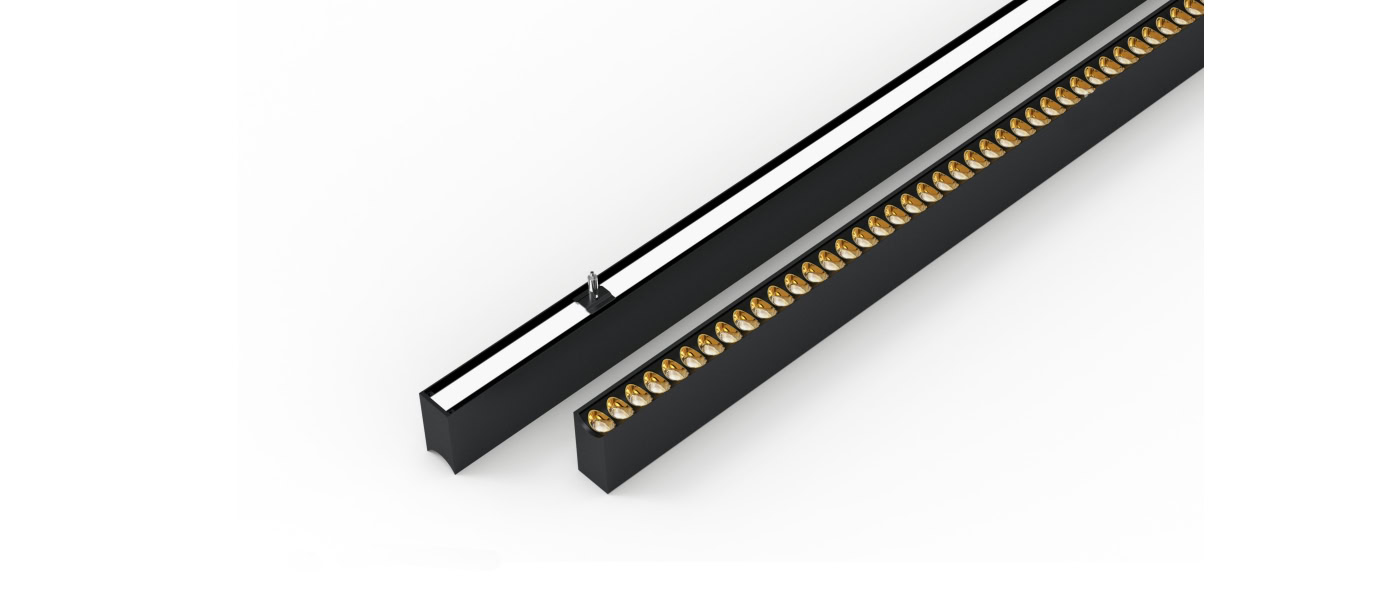

Directional LEDs put light where it’s needed without reflectors to greatly increase efficiency.
Extruded aluminum,powder coated(sand white and sand black and sand grey)
LED linear light use Extruded aluminum housing, PC reflector and opal PMMA lens with UGR<19<16<13

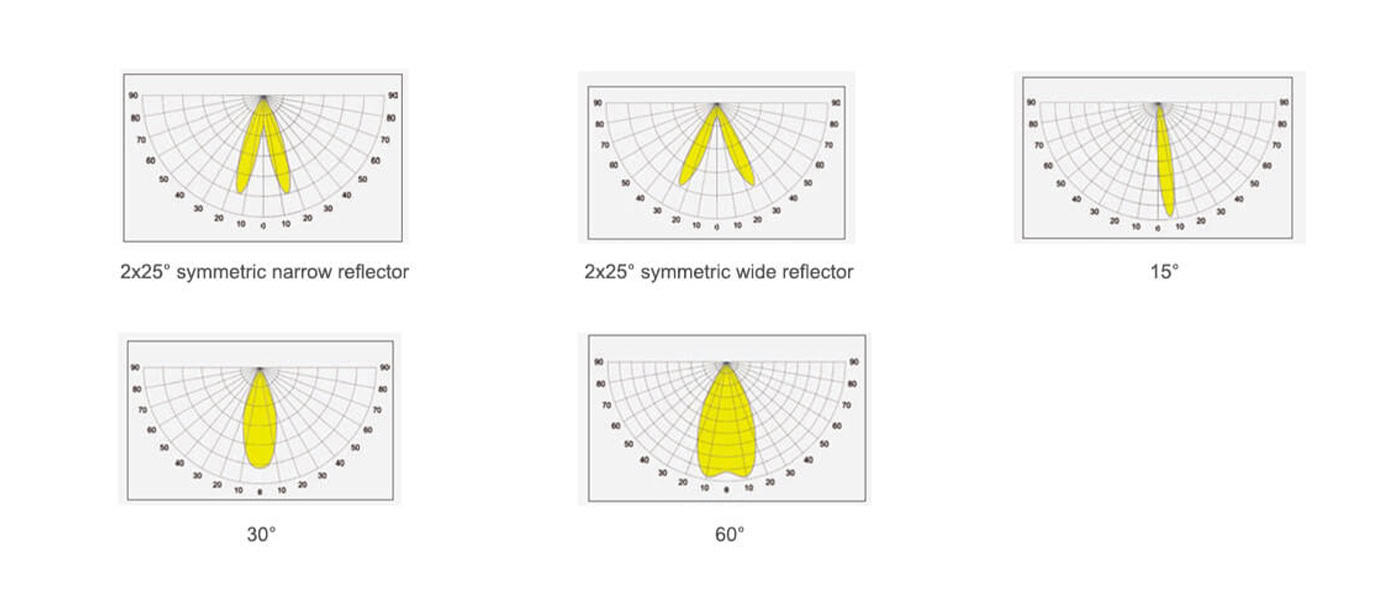

Linear Pendant Light Beam Angle
15° 30° 60° is symmetric reflector optic， wide and deep light distribution for precise and generous, illumination of areas up to a light point height of 5m/16.4’ 88% Optic efficiency
2×25°symmetric narrow reflector，2×25°symmetric wide reflector for options, Meet the needs of different customers.
Special light distribution allows the light distributed evenly on the rack and aisle. Thanks to the special design lens, which has an outstanding performance in anti-glare.
Very narrow, sym.light distribution for illuminating two vertical sufaces(wall shelf) with a homogeneous distribution of brightness without a visible lamp.
Multiple light distributions for different project needs, your eyes will feel more comfortable under such a pleasant working environment.
UGR<13<10, precise PC reflector and PMMA lens wall washer with 2*25° symmetric 88%Optic efficiency.
GS LIGHT Linear Pendant Lighting Datasheet
| Model No. | GS-LN |
|---|---|
|
Power |
Up 15W, Down 30W |
|
Material |
Aluminium 6063 + PC |
|
Light efficiency |
Up 900lm/W, Down2250lm/W, 2400lm/W |
|
Driver Brand |
Eaglerise/Tridonic |
|
Voltage |
AC200-240V |
|
LEDs |
OSRAM 3030 |
|
PF |
>0.95 |
|
LED Lifespan |
>50000 Hours |
|
IP |
IP20 |
|
IK |
IK10 |
|
CRI |
>90 |
|
CCT |
3000K/4000K/5000K/5700K |
|
Size |
L1065 / L1206/1530*W40*H78 |
|
Warranty |
5 Years |
Linear Pendant Lighting Applications

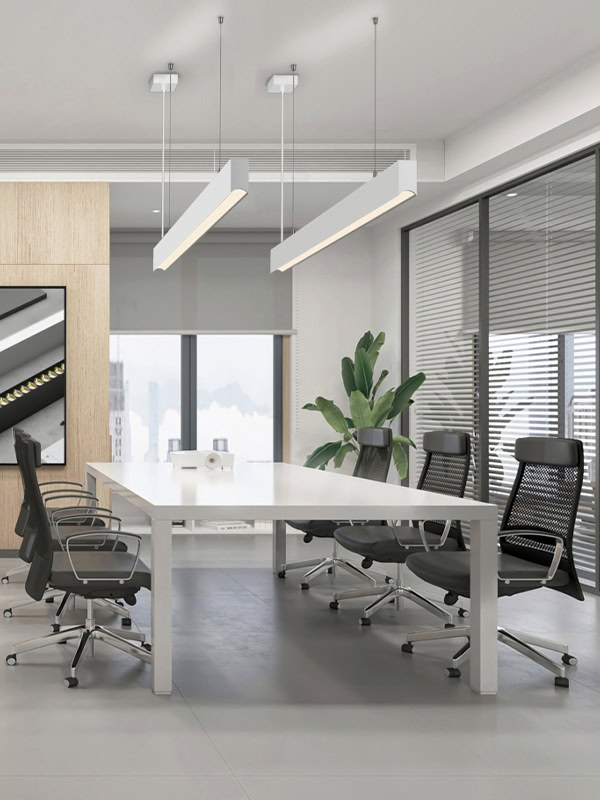

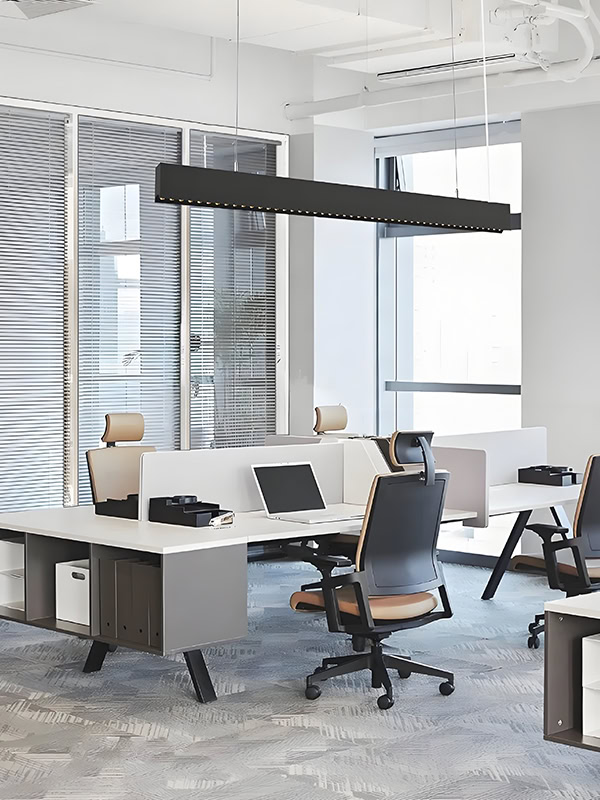

Linear pendant Lights widely for office, warehouse, shop, garages, classroom, subway station,
libraries, school, supermarket, hospitals, attic, basement, workshops, storage rooms, industrial workstations.

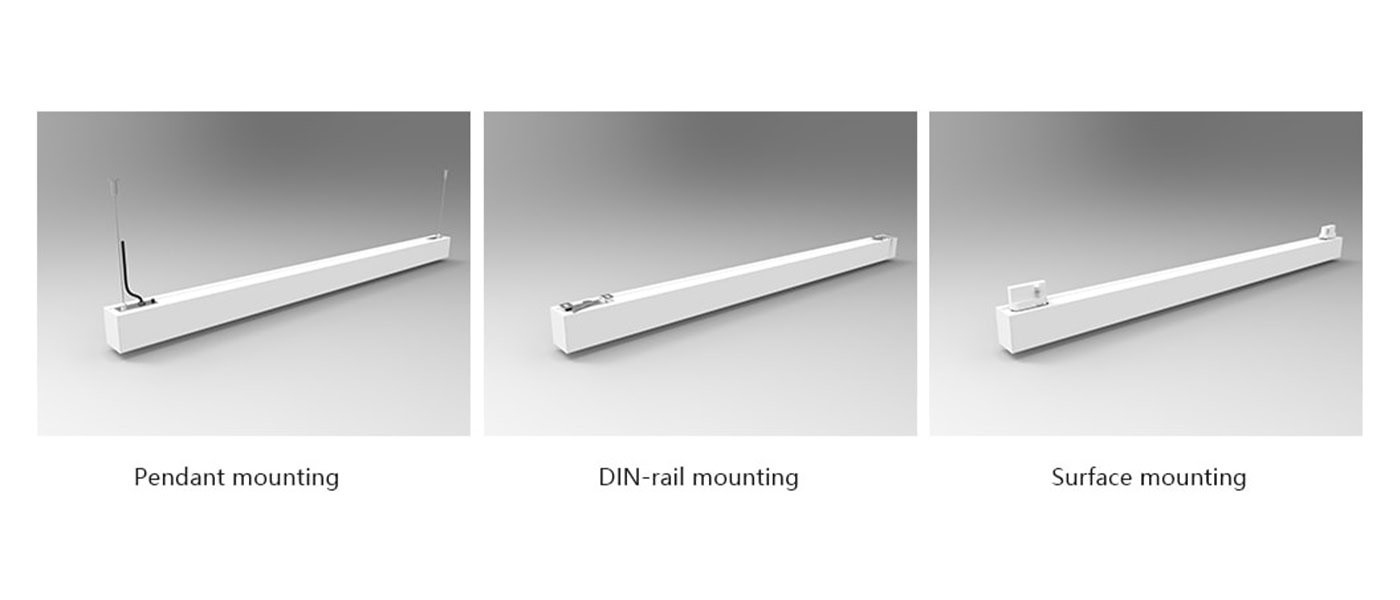

LED Linear Suspension Lighting Installation
Linear light free of choice pendant points throughout the entire length of the fixture Elegant and timeless design
Pre-installed accessories(e.g. pendant mounting set,surface mounting set, DIN-rail mounting)
