Top Post Light for Urban Lighting
This series is an LED lighting fixture tailor-made for urban lighting scenarios, integrating efficient optical technology with strong durability design. While ensuring lighting effects, it also features energy conservation, environmental protection and structural reliability, providing high-quality lighting experiences for urban Spaces.
Top Post Light Outstanding durability
The product features strong reliability and durability. With carefully selected components, materials and surface treatment processes, it can operate stably for a long time, effectively resisting corrosion, voltage surges and external impacts. Even in complex outdoor environments, it can maintain good performance for a long time, fundamentally extending the service life of the lamps.
Appearance Version and Style of Top Post Light
A variety of appearance versions are provided for selection, including the Transparent version and the Sanded finish version, and both types of versions have the style of "With Column" available for selection.
The transparent version allows light to pass through more directly, presenting a clear and bright light effect.
The matte version can create a soft and non-dazzling light effect.
The column-mounted style further enriches the flexibility of installation and visual matching. Different appearances can meet the aesthetic needs of various scenarios such as urban streets, parks, and commercial districts.
The transparent version allows light to pass through more directly, presenting a clear and bright light effect.
The matte version can create a soft and non-dazzling light effect.
The column-mounted style further enriches the flexibility of installation and visual matching. Different appearances can meet the aesthetic needs of various scenarios such as urban streets, parks, and commercial districts.
Transparent version
Sanded finish version
Transparent version With Column
Sanded finish version With Column
High-quality shell material
The use of die-cast aluminum as the shell material not only brings excellent structural strength to the lamp, ensuring the stable support of each component, but also can better cope with various physical influences in the outdoor environment, long-term guaranteeing the structural integrity and performance of the lamp, and enhancing the overall durability.
Excellent protective performance
With a protection grade of IP66, it features outstanding dust-proof and water-proof capabilities, effectively preventing dust from entering and water splashing. The impact protection reaches IK08, with excellent impact resistance. It can handle outdoor unexpected collisions and other situations, further enhancing the adaptability and service life of the lamp in complex environments.
Top Post Lights Datasheet
Model No.
GS-S1 Square Series
GS-S1C Square Series (With Column)
Power
30W/40W/50W
30W/60W/80W/100W
Materials
Die casting aluminum
Light efficiency
120lm/W
Beam angle
Class II
Voltage
90-295VAC
PF
>0.90
LED Lifespan
50000 hours
IP
IP66
Impact resistance
IK09
CCT
3000K,4500K,6000K
Working Temp
-25°C / +55°C
Mounting dameter
Φ76mm
Mounting Height
3-5m
Warranty
5 Years
Beam Angle Of Top Post Light
The FC lenses optical guide system is adopted, combined with the symmetrical light distribution design, to achieve uniform and reasonably ranged light distribution. The accompanying light distribution curve can clearly present the spatial distribution law of light, providing precise references for lighting planning in different scenarios. It not only meets the brightness requirements but also avoids light waste and glare problems.
Dimension Of Top Post Light
The top dimensions of the lamp are 460mm×460mm, and its height is 527.3mm. The regular square design is suitable for various installation scenarios and visual aesthetics.

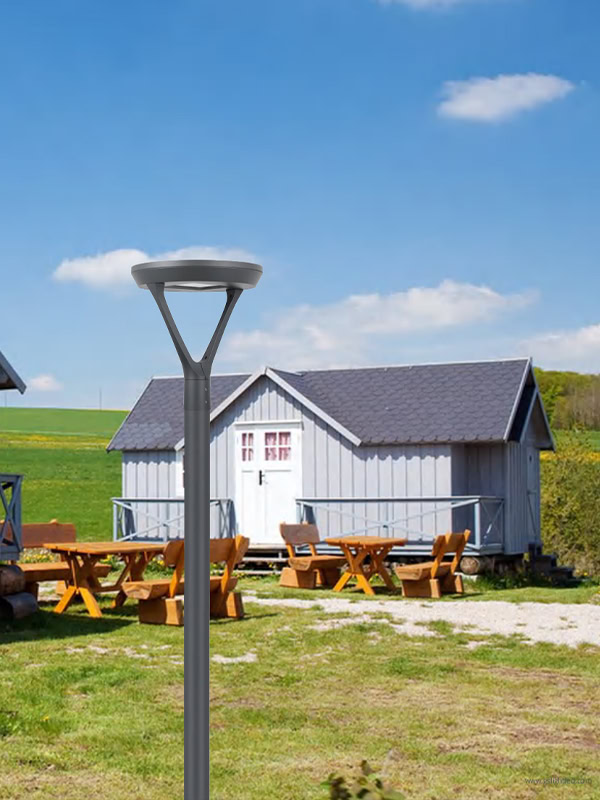

Applications In Different Scenarios
Suitable for a wide range of urban lighting scenarios: On urban streets, it provides clear and uniform lighting for pedestrians and vehicles, ensuring safe and comfortable passage at night. In park scenic areas, create a suitable lighting atmosphere to illuminate the trails and rest areas without spoiling the beauty of the natural landscape. In the square area, it meets the demand for large-scale and high-brightness lighting, facilitating the conduct of various activities. In addition, it can also be used in campuses, commercial streets and other places, providing reliable, efficient and scene-appropriate lighting support for different areas, enhancing environmental quality and safety.
Post Top Light FAQs
We supply transparent, sanded finish and two column-mounted styles, diverse appearances to match different city landscape styles.
Transparent type outputs bright direct light; sanded version delivers soft light to effectively reduce glare and light pollution.
It comes with standard Φ76mm mounting diameter, compatible with most existing lamp poles for both new build and renovation.
They are ideal for urban roads, parks, commercial plazas, campuses and pedestrian walkways with balanced brightness and ornamental look.
Its working temperature range covers -25℃ to +55℃, suitable for year-round use in tropical and cold climate regions.
Simple square appearance fits modern, minimalist and European urban landscapes without breaking the overall environmental harmony.
The lens adopts premium anti-UV raw material to slow yellowing and maintain stable light transmittance for years.
