Illuminate Your Landscape with Durable LED Inground Lights



The LED inground lights is square or round in shape, and is widely used in shopping malls, parking lots, green belts, parks, tourist attractions, residential areas, urban sculptures, walking streets, building steps and other places, mainly buried in the ground, used for decoration or indication lighting.

Durable and waterproof, with excellent heat dissipation performance, this material offers considerable flexibility in its applications.



What material used in LED inground lights?



Lights body

The LED buried lamp body is crafted from high-purity aluminum alloy, featuring a surface that has undergone electrostatic spray treatment and constant temperature curing for robust adhesion. Typically, it exhibits excellent waterproof and dust proof characteristics. It has good heat dissipation ability. The surface was painted and resistant to salt spray and corrosion.

Face ring

The face ring is meticulously crafted from 316 precision-cast stainless steel, ensuring robust resistance to corrosion and aging.

Silicone sealing ring

High-quality rubber or silicone gaskets are used to create a tight seal between the lens and housing, further ensuring water and dust resistance. Excellent waterproof performance, high temperature resistance, anti-aging.

Glasses

The 10mm high-strength tempered glass features exceptional lights transmittance and a wide lights radiation surface, along with a robust load-bearing capacity.

Screws

All robust screws are crafted from stainless steel, boasting a protective waterproof rating of IP67.

LED lights source

Equipped with a CREE or OSRAM LED lights source, it delivers exceptional lights color performance. Featuring high-permeability and flame-retardant optics, it includes an integrated anti-glare honeycomb network that effectively diminishes lights glare.

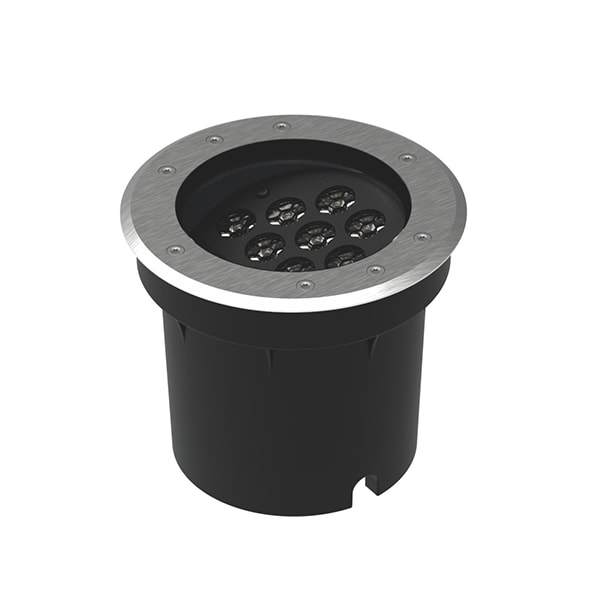

Certain series of our LED inground lighting products feature RGB or color-changing LED, providing enhanced dynamic lighting solutions, particularly suited for decorative and landscaping uses.

Lens

The lens may also be treated with anti-glare or UV-resistant coatings to reduce lights spillage and maintain brightness over time.

Embedded part

Optional plastic embedded parts for easy installation and maintenance.

Wire

Designed for underground use, the wiring is typically water-resistant and shielded to prevent damage from moisture or pests.

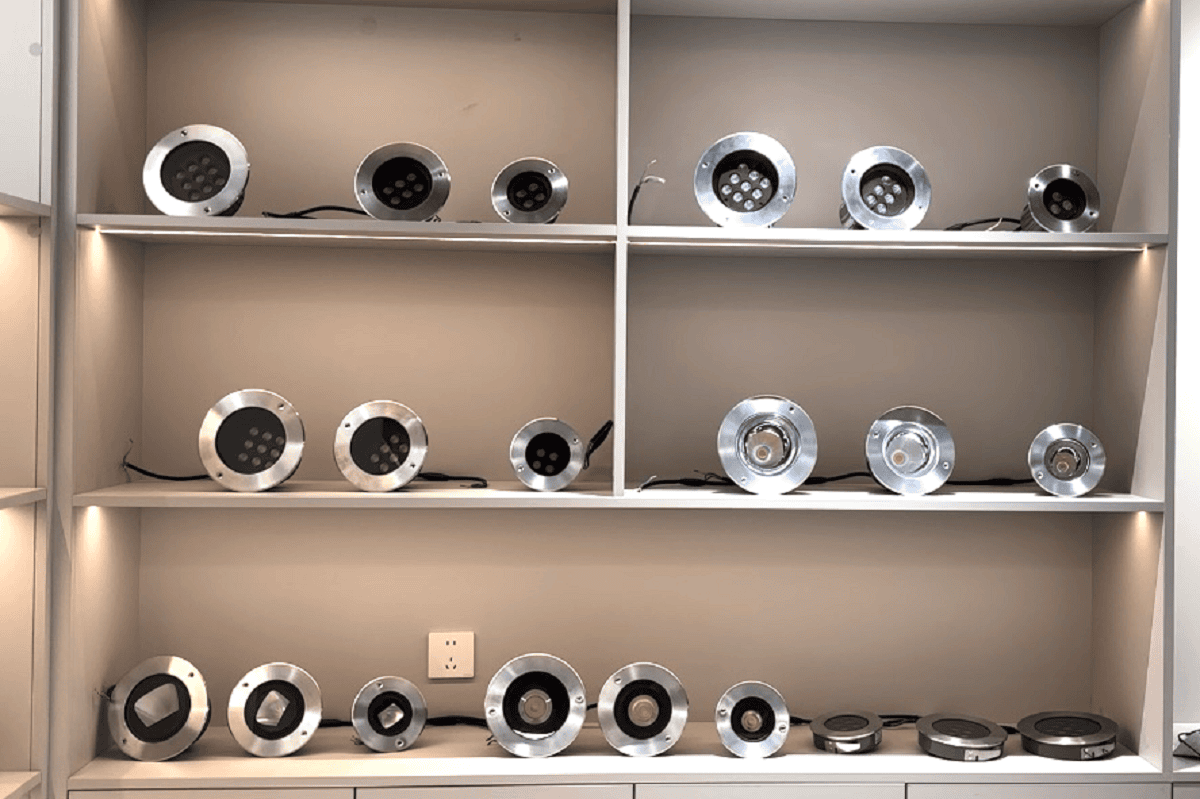

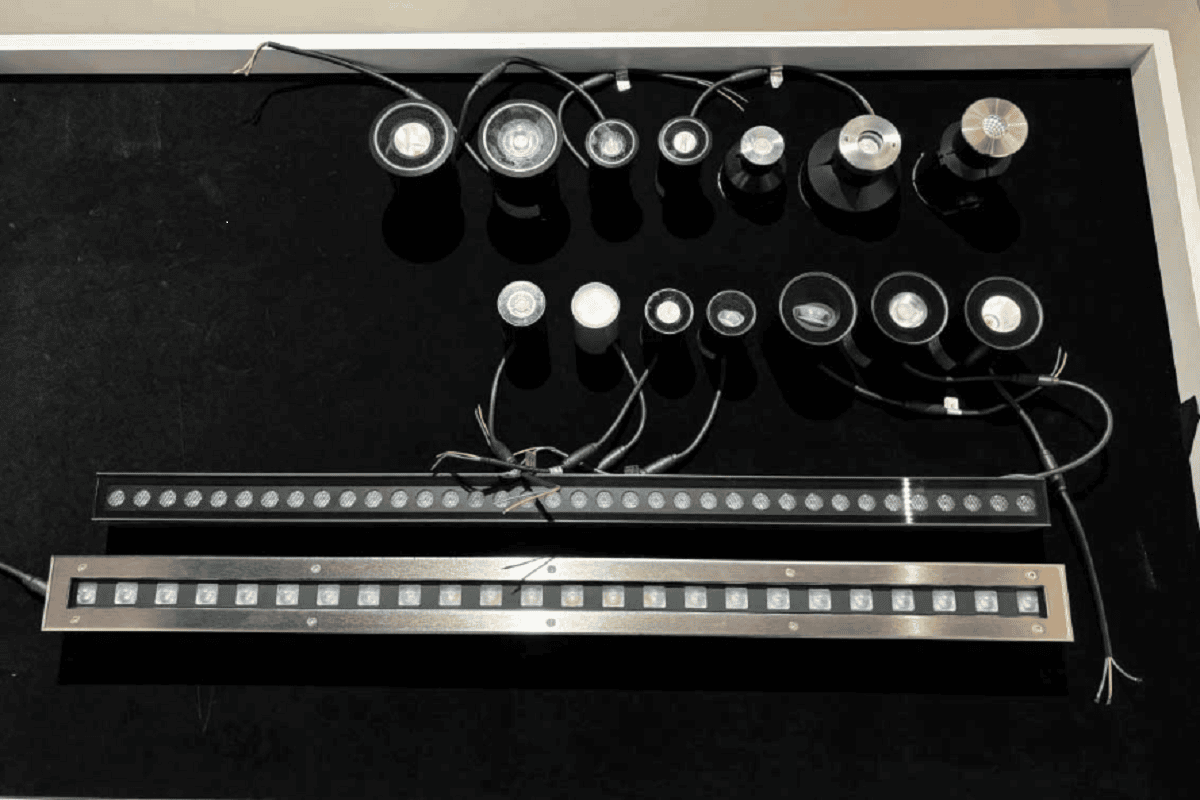

What series of inground lights GS lights have?



LED Inground Lights with frame



Round shape

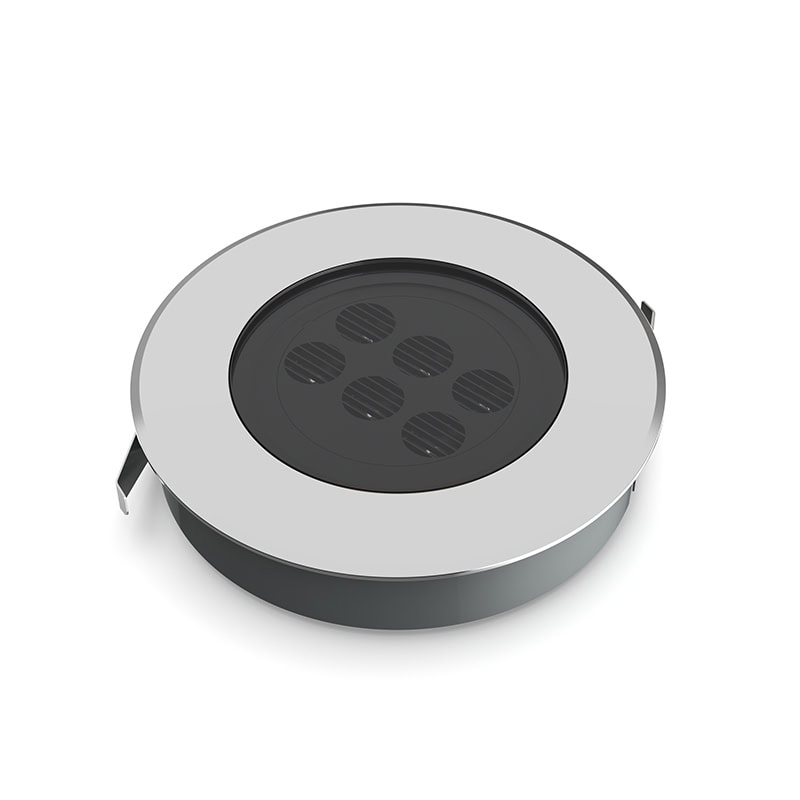

Super slim series: It can be used in many places, as the super slim thickness, good heat dissipation ability with easily installation.

Single LED series : Use CREE or OSRAM brand lights source and has long useful life, high lights efficiency up to 130lm/W.

Single COB lights source series: Using advanced COB technology, this inground lights delivers a bright, uniform beam with minimal lights scattering,The COB lights source produces superior color consistency and an even lights distribution, eliminating dark spots and creating a clean, seamless illumination.

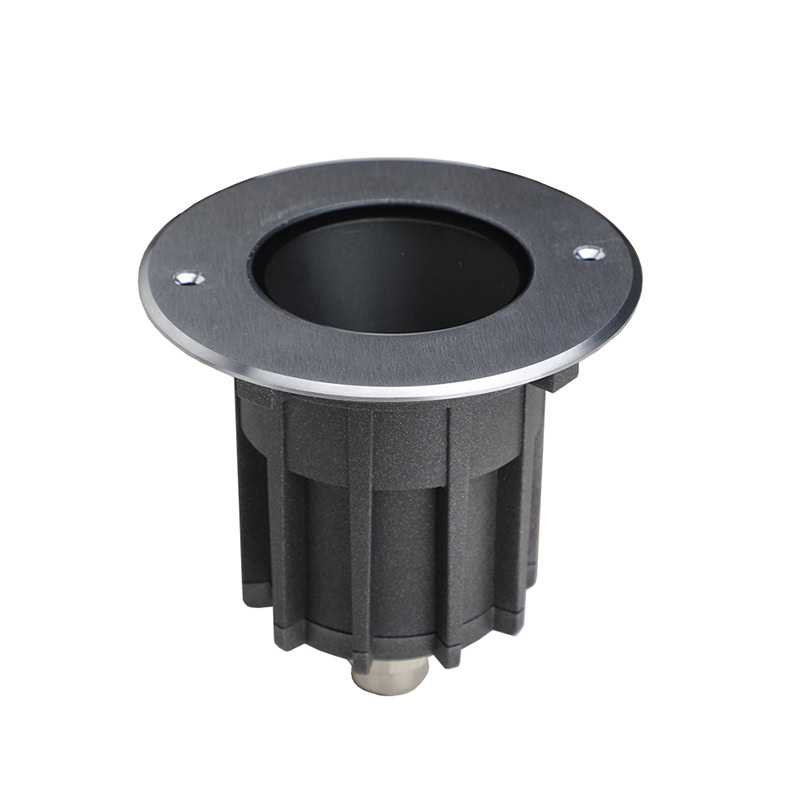

COB with reflection cup series: Delivering powerful, focused illumination.The reflective cup helps concentrate the lights, reducing spillover and creating a sharp, well-defined beam that is perfect for accentuating pathways, architectural elements, and landscape features.

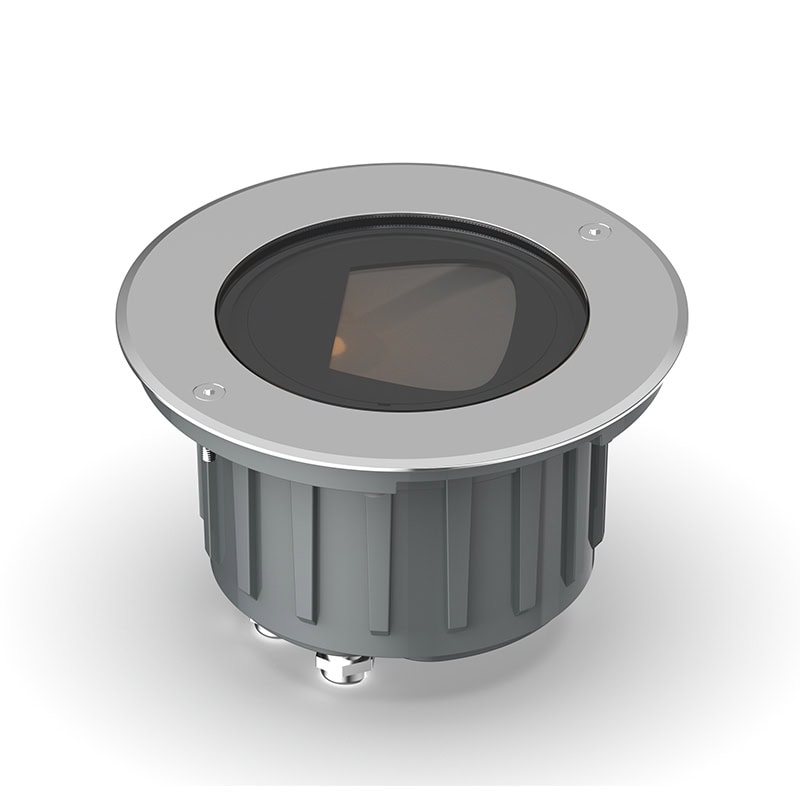

Polarized degree design series: This advanced design controls the angle and intensity of the lights, delivering uniform illumination while minimizing glare. The polarized lens technology directs lights more effectively, providing a smoother, more consistent brightness across surfaces, ideal for highlighting pathways, landscapes, and architectural elements.

Deep lights of anti-glare series: Its deep-set design reduces direct exposure to the LED, making it ideal for areas where eye comfort is essential, such as pathways, landscapes, and architectural highlights.

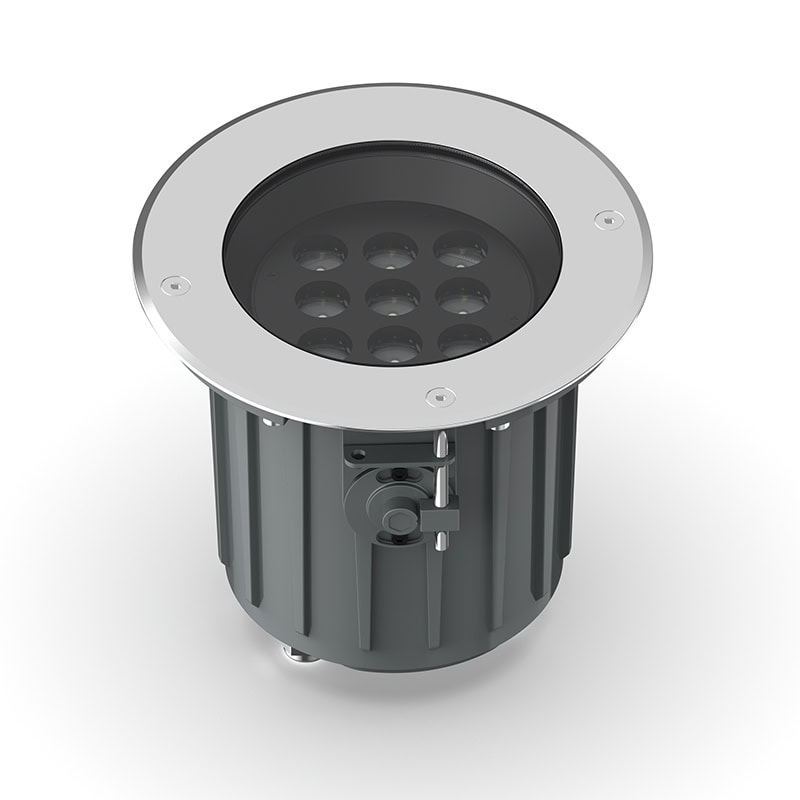

Adjustable beam angle inground lights : This series of lights can adjust the lights beam angle by adjusting the screw rotation angle.

Square shape

IP67 waterproof grade, and beam angle is 18+55°， with stainless steel frame. The honeycomb network for option, 240V.

Frameless LED Inground Lights



Round and Square shapes for option

Simple and atmospheric design, no trace after embedding in the ground compared with frame inground light, a variety of lenses to choose from, add a honeycomb network or fence to adjust the light to your desired effect.

Specification of our LED inground lights.

Input voltage: AC100-240V/DC24V

Wattage: 12W, 24W, 36W for option

lights efficiency: 110lm/w

Beam angles: 15° 30° 45° 60° 20×45° 10×60°

Dimming: 0-10V/Dali/DMX for option

CRI is greater than 80.

Control option: Monochrome / RGB three in one / RGBW four in one full color control, support DMX512 Control system

Power factor is greater than 0.95.

Working life-span is longer than 50000 hours and working temperature can work normally from -30 to +55℃.

Certification: CE/RoHS/SAA/IP65/IK10

Product feature of LED inground lights



Long useful life

LED lights sources boast an extended lifespan, with minimal risk of failure, thus requiring virtually no bulb replacements. This makes them ideal for construction projects, ensuring several years of uninterrupted use. lights source life of more than 50,000 hours, rich and gorgeous color, there are a variety of colors to choose from.

Low power

Low power consumption ensures minimal electricity costs, eliminating the need for high expenditures on lighting and beautification.

Waterproof, dust proof, pressure and corrosion resistant

Stainless steel and various other materials ensure durability and water resistance, coupled with superior heat dissipation capabilities. The protective rating achieves IP67, offering robust defense. Additionally, optional plastic components are available for simplified installation and maintenance procedures.

LED lights source

Standard low-power and high-power lights sources are suitable for creating effects such as red, yellow, blue, green, white, and colorful jumps, gradients, as well as procedures with external control.

Where to use LED inground lights?



Landscape lighting

Pathways, garden areas, parks, and driveways.

Adds elegance and sophistication by highlighting architectural and landscape features. Inground lighting can accentuate trees, shrubs, flowerbeds, and various other landscape elements. These fixtures produce upward-facing illumination, which enhances the depth and texture of gardens, particularly during nighttime hours. They can be strategically placed to illuminate particular plants or to cast shadows, thus achieving a layered and artistic aesthetic effect.

Architectural usage

Up lighting for building exteriors, facades, columns, walls and monuments.

Inground lights, strategically positioned at the base of walls, columns, or building facades, cast light upward, accentuating architectural features. This technique enhances the textures and lines in walls and buildings, resulting in a visually dynamic appearance that highlights the structure’s design and imparts a sense of sophistication to the exterior.

Commercial use

Shopping centers, hotel entrances, hotels, plazas and walkways.

Inground lighting in plazas, hotels, and public walkways not only increases visibility and safety but also enhances the aesthetic appeal of the landscape. These fixtures make public spaces more inviting and well-illuminated, often fulfilling both functional and decorative roles.

How to install an LED inground lights?

1. Excavate a pit marginally larger than the dimensions of the embedded components.
2. Thread the wire through the embedded component and fill the component with a water-based slurry.
3. Connect the wire and secure the lights fixture to the embedded component using the fixture screw.

FAQ about LED inground lights



1.Are these LED inground lights waterproof?

Indeed, our in-ground lighting fixtures are engineered to be waterproof and boast an IP67 rating or above. This guarantees their ability to endure rain, humidity, and even partial submersion.

2.Which material surfaces can it be installed on?

Inground lights can be installed on various surfaces, including soil, concrete, and pavers.

3.Are LED inground lights safe to walk on?

Certainly, inground lights are generally engineered to be pedestrian-friendly and capable of enduring foot traffic. In fact, some models are even rated to bear the weight of vehicles, rendering them appropriate for use in driveways.

4.Do i need to do much effort to maintain the LED Inground lights?

Not much, they just need minimal maintenance. But it is good to regular check the normally usage of lights after installation. Attention for dirt or debris buildup, and function correctly to prevent water pooling.

5.Can i adjust it after installation?

Some series of our inground lights can be adjusted the beam angle by yourself, you can change the direction of the lights after installation. However, other lights are fixed in position and you need to make sure the lighting layout before installation.

6.ODM service

We offer ODM/OEM services to cater to your needs, allowing you to customize your lighting products with a full range of parameters. Additionally, we can create a unique product exclusively for you, featuring your logo printed on the surface and packaged to your specifications.

7.Any damage when transmission?

The packaging box is constructed from H636H and H939H materials, which are renowned for their exceptional strength, ensuring the safety of your lights.
