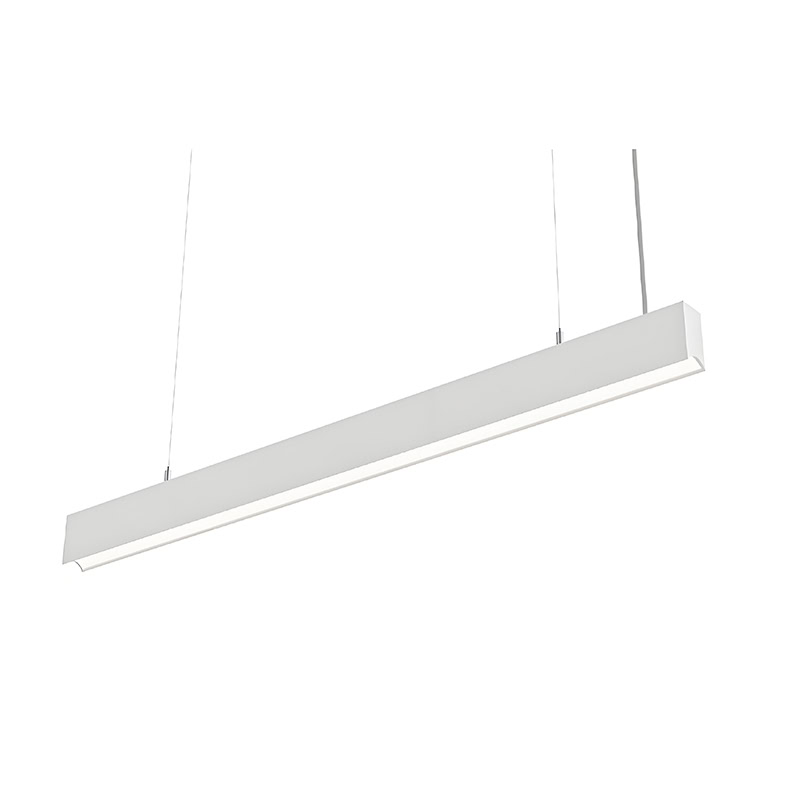

Linear Ceiling Light - LN Series

Linear ceiling light supports bending into circular or arc shapes, enabling combination into various forms to balance lighting functionality and indoor space decoration.

Up-and-down light degin, Downward light illuminates the entire office area, while upward light brightens the ceiling, enhancing spatial brightness and comfort—perfect for refined office zones.

Features:

-W40*H78*L1200/1500mm

-Up 15W, Down 30W

-IP20, CRI>90
-Up 80°, Down80°/ 80°x100°

-Light efficiency: Up 900lm/W, Down2250lm/W, 2400lm/W

-Aluminum 6063+PC
-Standard /0-10V DlM/DALI dimmable

-OSRAM LEDs

-TRIDONIC/PHILIPS/OSRAM drivers

-3000K/4000K/5000K/5700K

-Suspension mounted or surface mounted

-Warranty: 5Years

Linear Ceiling Lights Details

Linear ceiling lights body supports bending into circular or arc shapes, enabling combination into various forms to balance lighting functionality and indoor space decoration.

The lamp body’s light-emitting surface features an inner arc design, ensuring refracted light is uniform and soft. Moreover, the UGR (Unified Glare Rating) of the diffuser cover is maintained below 19

Optical Components For Linear Ceiling Lights Option

The spotlight version achieves a Unified Glare Rating (UGR) of <9, ideal for concentrated lighting in workstations or display areas—minimizing eye strain and ensuring precise illumination.

The diffuse version, with a diffuser cover, ensures UGR <19, perfect for soft, uniform ambient light in open offices or lounges—delivering comfortable, glare-free illumination for broader spaces.

Lens Cup

Diffusion Plate

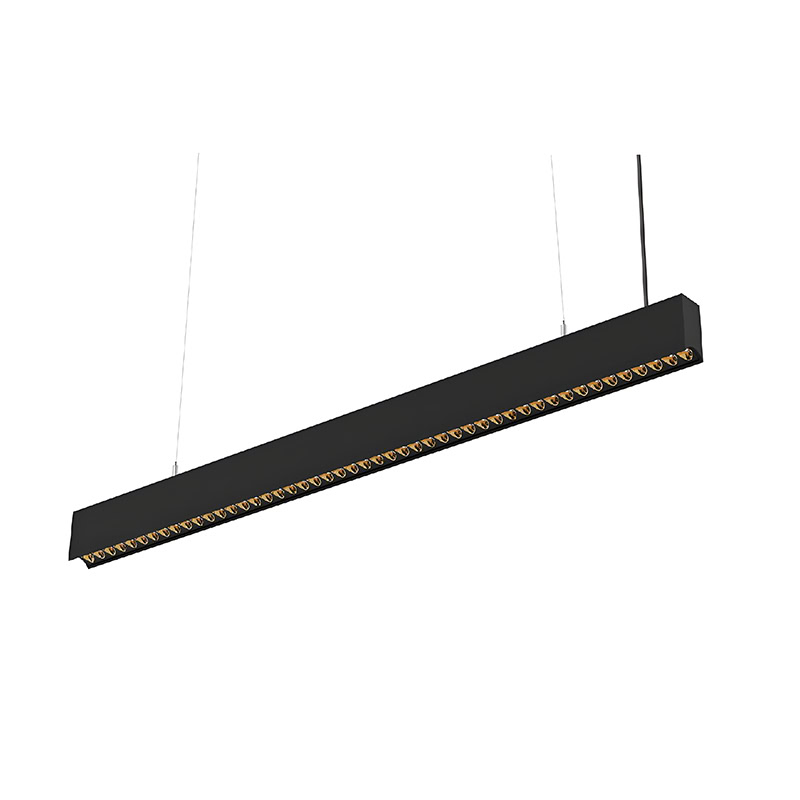

Upgrade Professional Light Cup UGR<9

Our latest lamp cup design creates a UGR<9 ultra low glare spotlight version, customized for demanding scenarios such as workstations and display areas.
While the light is accurately focused, it effectively inhibits glare interference, greatly reduces eye fatigue, provides a stable and comfortable lighting environment for fine work, commodity display and other tasks, and makes the visual experience clearer and the work efficiency better!

Inner Arc Design With UGR<19 Diffusion Mask

Our interior line lights are designed with an inner arc luminous surface, which makes the light more uniform and soft through optical refraction, effectively reducing glare.
With UGR<19 professional diffusion mask, further optimize visual comfort, especially suitable for places with high light quality requirements, such as office, education, high-end commercial space, etc.

Innovative Splicing Design To Support Needs

This series of modular line lights uses an innovative splicing design to support rapid installation of multiple units.
The product supports a variety of topologies such as linear, circular, and matrix, perfectly adapting to different spatial layout requirements such as open office areas and independent workstations.

Diversified Colors Option For Lens Cups

You can choose the color of the lamp cup, we offer aluminum, rose gold, pink, blue, bright black as a choice.
With super anti-glare function at the same time, it can achieve the effect of UGR<9, but also maintain the diversified choice of beauty.

Datasheet Of Linear Ceiling Lights

Model No.	GS-LN
Power	Up 15W, Down 30W
Material	Aluminium 6063 + PC
Light efficiency	Up 900lm/W, Down2250lm/W, 2400lm/W
Driver Brand	Eaglerise/Tridonic
Voltage	AC200-240V
LEDs	OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP20
IK	IK10
CRI	>90
CCT	3000K/4000K/5000K/5700K
Size	L1200/1500W40H78
Warranty	5 Years

Up And Down Lighting LED Linear Lights

Up and down light design to create three-dimensional lighting space. Suitable for use in sophisticated office areas.
The lower light illuminates the entire office area, and the upper light illuminates the suspended ceiling, making the space brighter and more comfortable and relaxed.

Sizes Of LED Linear Light

Modern Lighting Solutions Using Linear Ceiling Lights

Linear ceiling lights suitable for office lighting, commercial lighting, home lighting and other lighting areas
Simple, flexible and energy-saving characteristics, indoor line lights are widely used in a variety of scenes, meet the basic lighting needs, and also improve the sense of space design.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body. And any questions about the light, you can ask us for help.

What driver you used in linear ceiling light?

We use well-known brands, Tridonic, Philips, Osram of power supply, to ensure stable and reliable power output, to ensure the safety and service life of lamps.

Can i get a sample?

Yes, we will provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your linear lights?

Professional after-sales service team will follow up your project, including product warranty, technical support, return service, etc., to protect your rights and interests.
