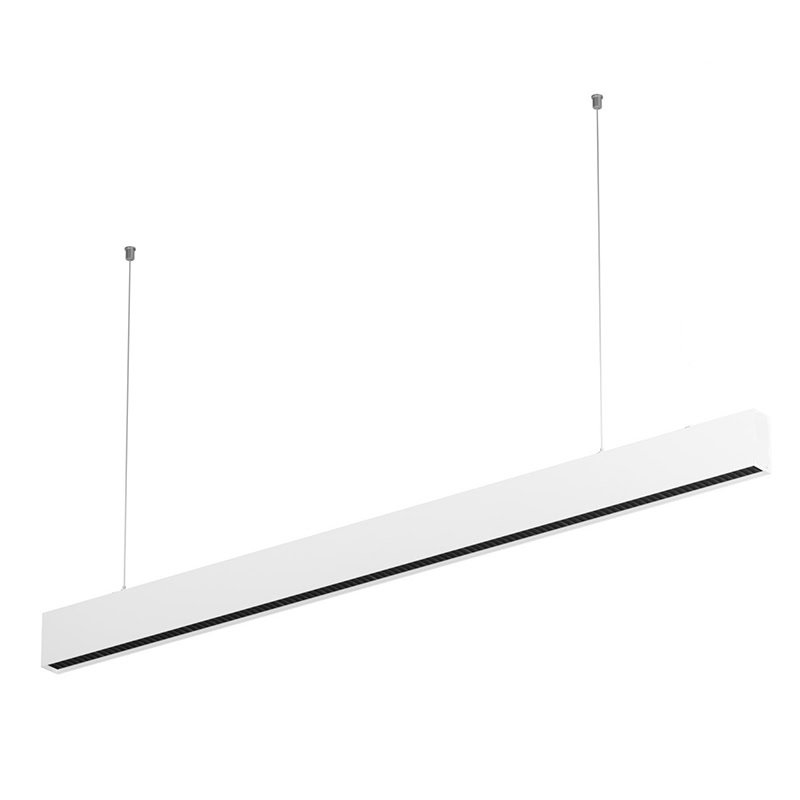

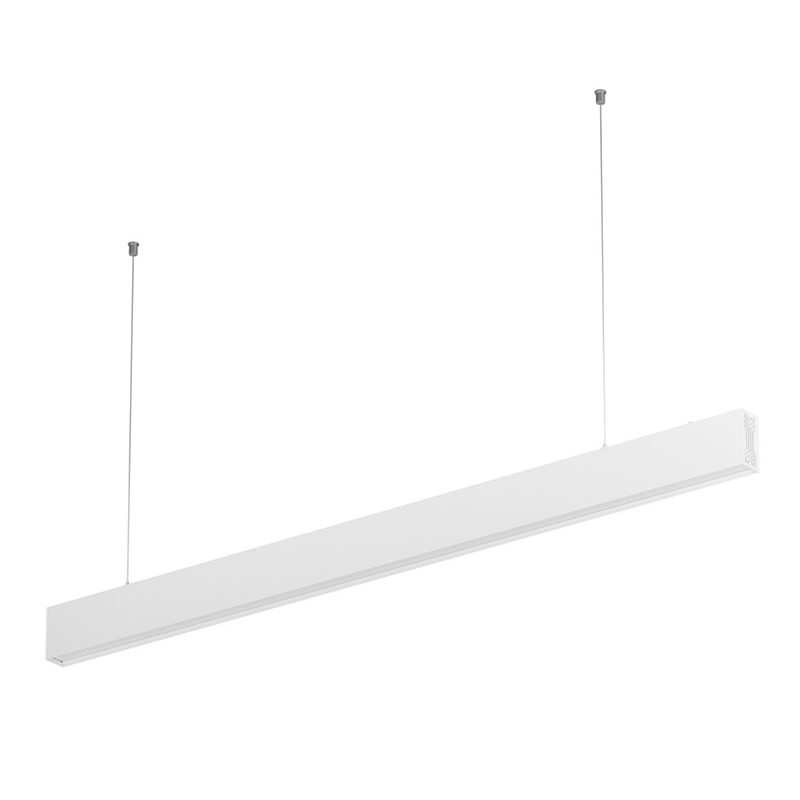

Linear Lamp - LP Series

Linear lamp have equipped the product with a rich variety of optical components, covering types such as honeycomb, diffuser plate, rhombic crystal, grille, and lamp cup.

Each type of component presents unique optical performance, offering differentiated light effect support for various lighting scenarios—comprehensively addressing diverse functional demands.

Features:

-W80*H38*L1200/1500mm

-Up 15W, Down 30W

-IP20, CRI>90
-Beam angle: Up 80°, Down40°/60°/90°

-Light efficiency: Up 900lm/W, Down 2400lm/W,2640lm/W, 2100lm/W, 2550lm/W, 2040lm/W

-Aluminum 6063+PC
-Standard /0-10V DlM/DALI dimmable

-OSRAM LEDs

-TRIDONIC/PHILIPS/OSRAM drivers

-3000K/4000K/5000K/5700K

-Suspension mounted or surface mounted

-Warranty: 5Years

Freely Combined Linear Lamp Optical Components

We have equipped the linear lamps with a rich array of optical components, including honeycomb grids, diffusion plates, rhombic crystals, grilles and hidden lamp cups, etc.
These optical components can be freely combined and quickly replaced, allowing the same type of lamp to easily meet the lighting needs of different scenarios such as commercial, office, and artistic Settings.

Optical Components For Linear Lamp Option

Honeycomb grids can effectively control glare. The diffusion plate makes the light uniform and soft. Rhombic crystals create unique light patterns;
The grille system precisely guides light. The hidden lamp cup provides a minimalist anti-glare effect. These optical components can be freely combined and quickly replaced

Wide-angle flood beam

Honeycomb Net

Grilled net

Diamond-shaped mirror anti-glare

Concave diamond-shaped mirror anti-glare

Structure Of Indoor LED Linear Lamp

CNC Machining End LED Cover LED Linear Lamps

The overall CNC machining of the end cover makes the four sides more smooth and textured.

The lower part is designed with a 2mm floating edge to prevent light leakage caused by thermal expansion and cold contraction of the mask. The overall light blocking at the fitting of the end cover and aluminum can reach 98%

A Flexible CCT Choice To Meet Different Scenes

Our indoor line lights offer a flexible color temperature choice of 3000K-6000K to meet the lighting needs of different scenes.
3000K warm light suitable for warm hotels, restaurants; 4000K natural light for office and retail space; 5000K-6000K cold white light is more suitable for modern homes, exhibition halls or industrial environments, ensuring the perfect combination of comfortable light effect and design beauty.

LED Linear Lights Up And Down Beam Angles

Unique up and down light design to create three-dimensional lighting space.
The lower light illuminates the entire office area, and the upper light illuminates the suspended ceiling. Make the space more bright, make people feel more comfortable and relaxed, suitable for delicate office area use.

Datasheet Of Linear Lamps

Model No.	GS-LP
Power	Up 15W, Down 30W
Material	Aluminium 6063 + PC
Light efficiency	Up 900lm/W, Down 2400lm/W,2640lm/W, 2100lm/W, 2550lm/W, 2040lm/W
Driver Brand	Eaglerise/Tridonic
Voltage	AC200-240V
LEDs	OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP20
IK	IK10
CRI	>90
CCT	3000K/4000K/5000K/5700K
Size	L1200/1500W80H38
Warranty	5 Years

Sizes Of LED Ceiling Linear Lights

Full coverage of multiple scenarios Using linear lamps

Commercial premises, office environments, art and cultural venues, home Spaces and public areas.
Through flexible optical configuration, it meets the professional lighting requirements of different places.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body. And any questions about the light, you can ask us for help.

What driver you used in linear lamps?

We use well-known brands, Tridonic, Philips, Osram of power supply, to ensure stable and reliable power output, to ensure the safety and service life of lamps.

Can i get a sample?

Yes, we will provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your linear lights?

Professional after-sales service team will follow up your project, including product warranty, technical support, return service, etc., to protect your rights and interests.
