Recessed LED Track

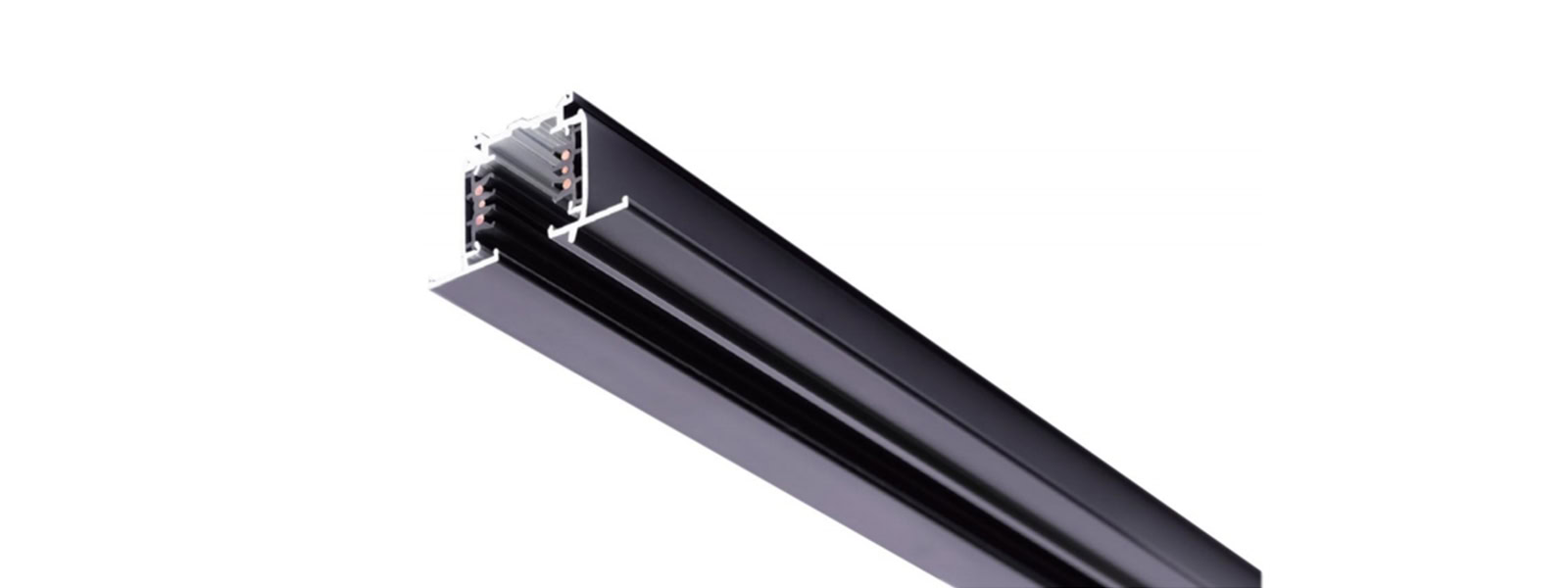

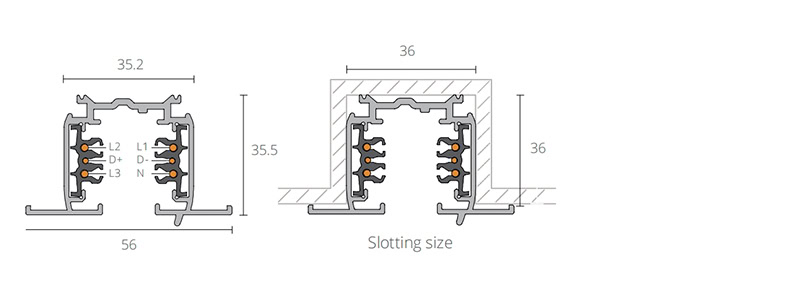

Recessed LED Track - 6 Wires 3 Circuits Recessed Mounted
Recessed led track through the design of multi-loop independent power supply and dedicated DALI signal line, the system realizes efficient, flexible and intelligent lighting control.
6 wires design separates the power supply circuit from the DALI signal line to ensure that power transmission and signal control do not interfere with each other and improve system reliability.

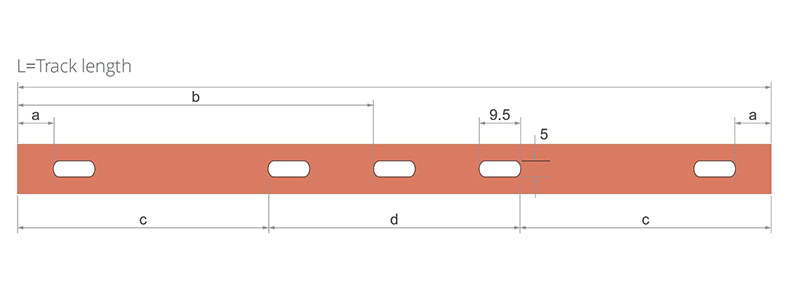

| L/mm | a/mm | b/mm | c/mm | d/mm | Fmax./N |
|---|---|---|---|---|---|
|
1000 |
125 |
|
|
|
300 |
|
2000 |
125 |
995 |
|
|
450 |
|
3000 |
125 |
|
914 |
1172 |
600 |
|
4000 |
125 |
|
1247 |
1506 |
600 |
| Model No. | Track Length | Profile Material | Package | Color |
|---|---|---|---|---|
|
R610 |
1000(mm) |
Aluminum extrusion |
1/9 |
White/Gray/Black |
|
R620 |
2000(mm) |
|||
|
R630 |
3000(mm) |
|||
|
R640 |
4000(mm) |
|||
Accessories For LED Track
R631

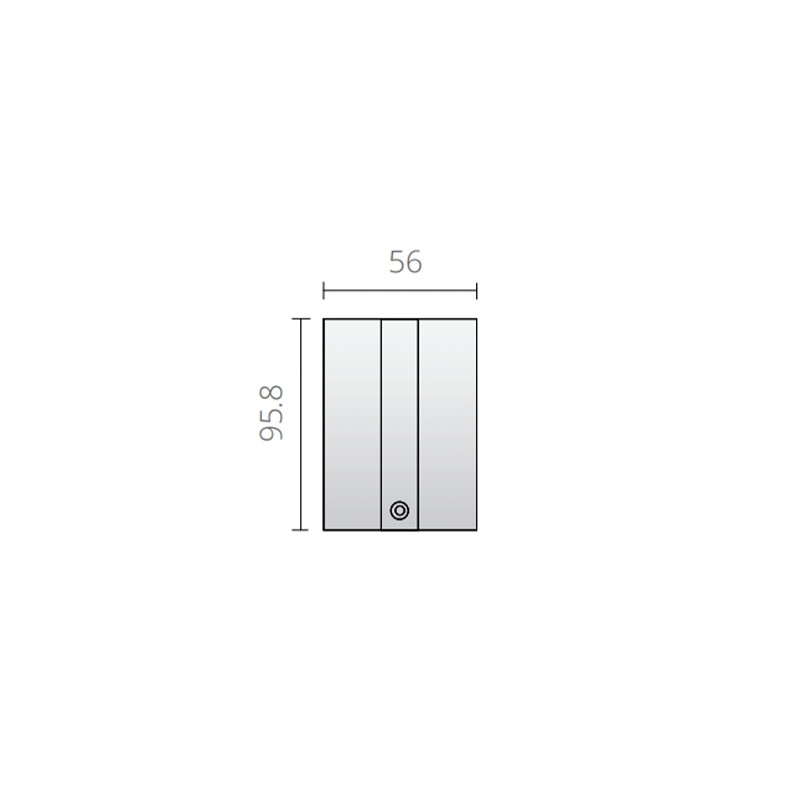

Live-end connector
R432

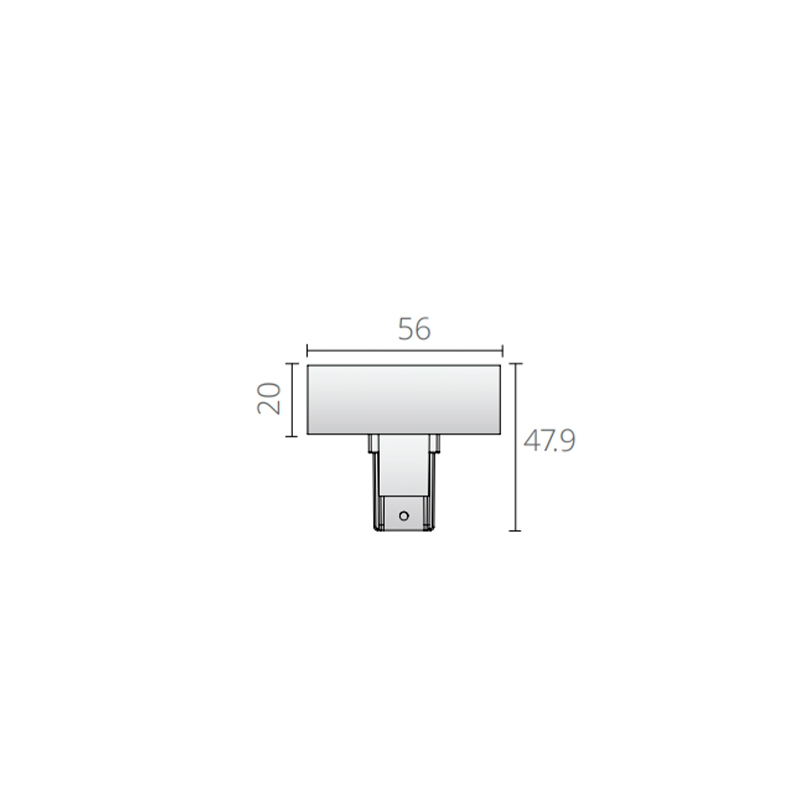

Recessed end cap

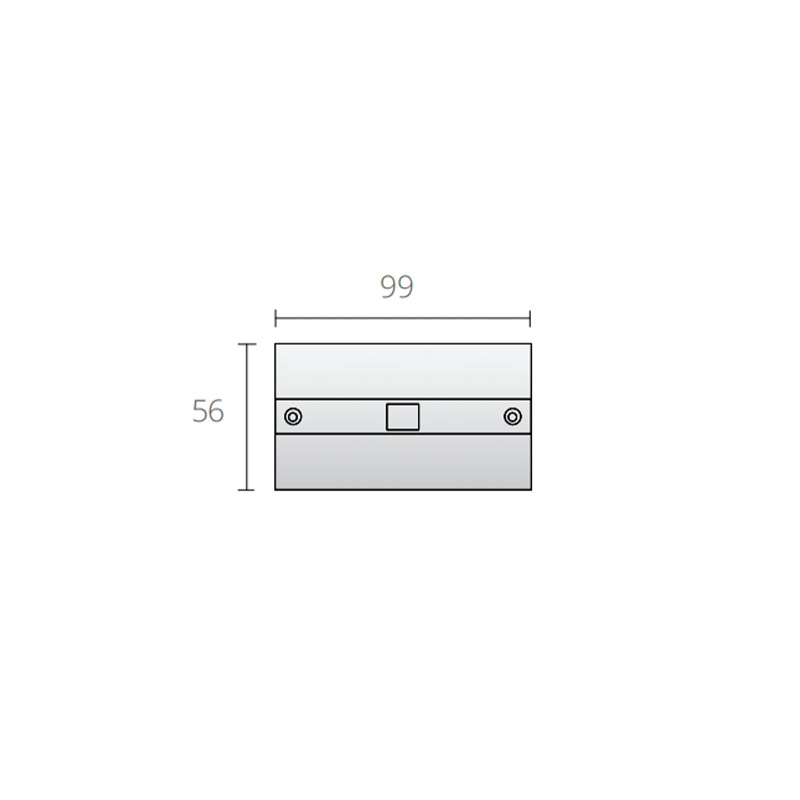

R434
Straight connector cover
TR435L

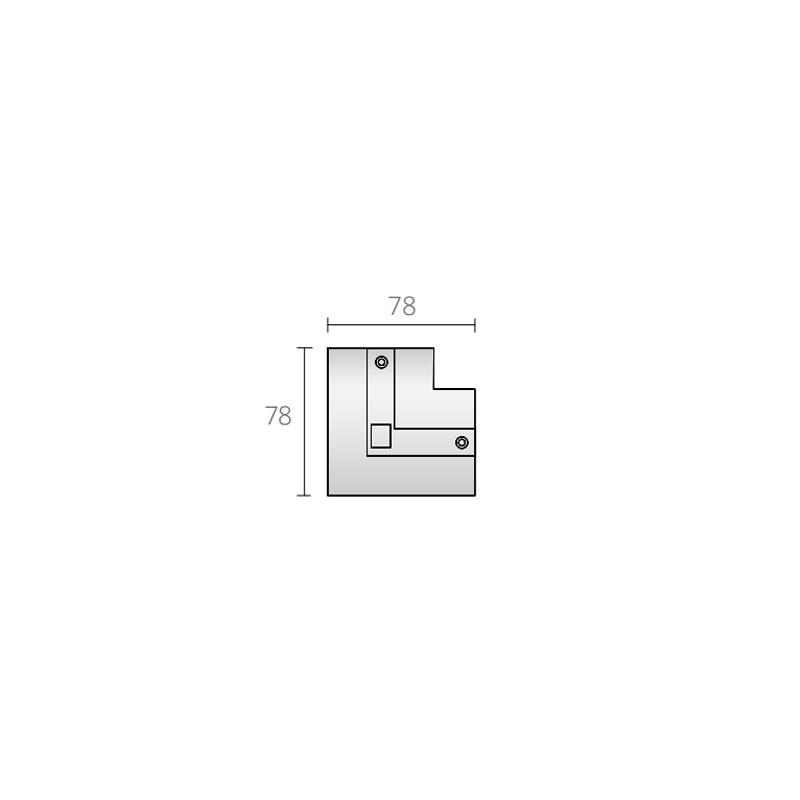

L connector cover
TR435R

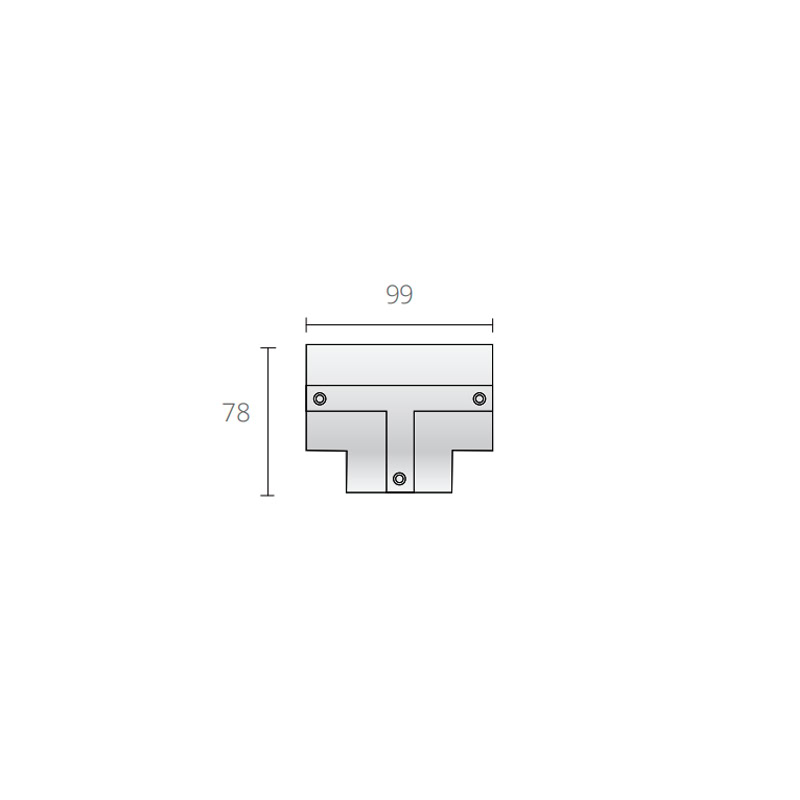

T connector cover
TR436L1

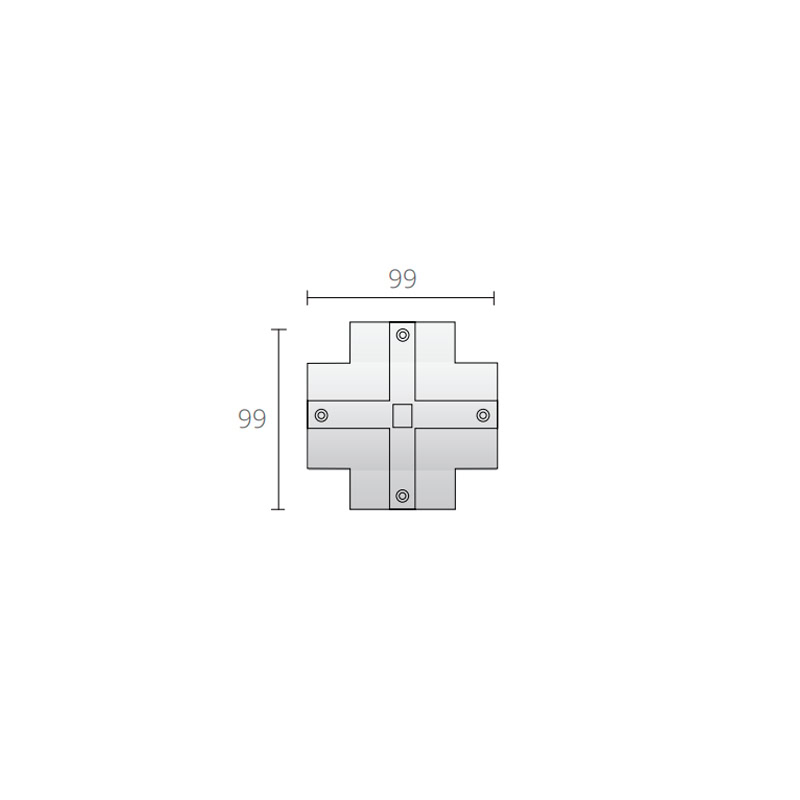

X connector cover

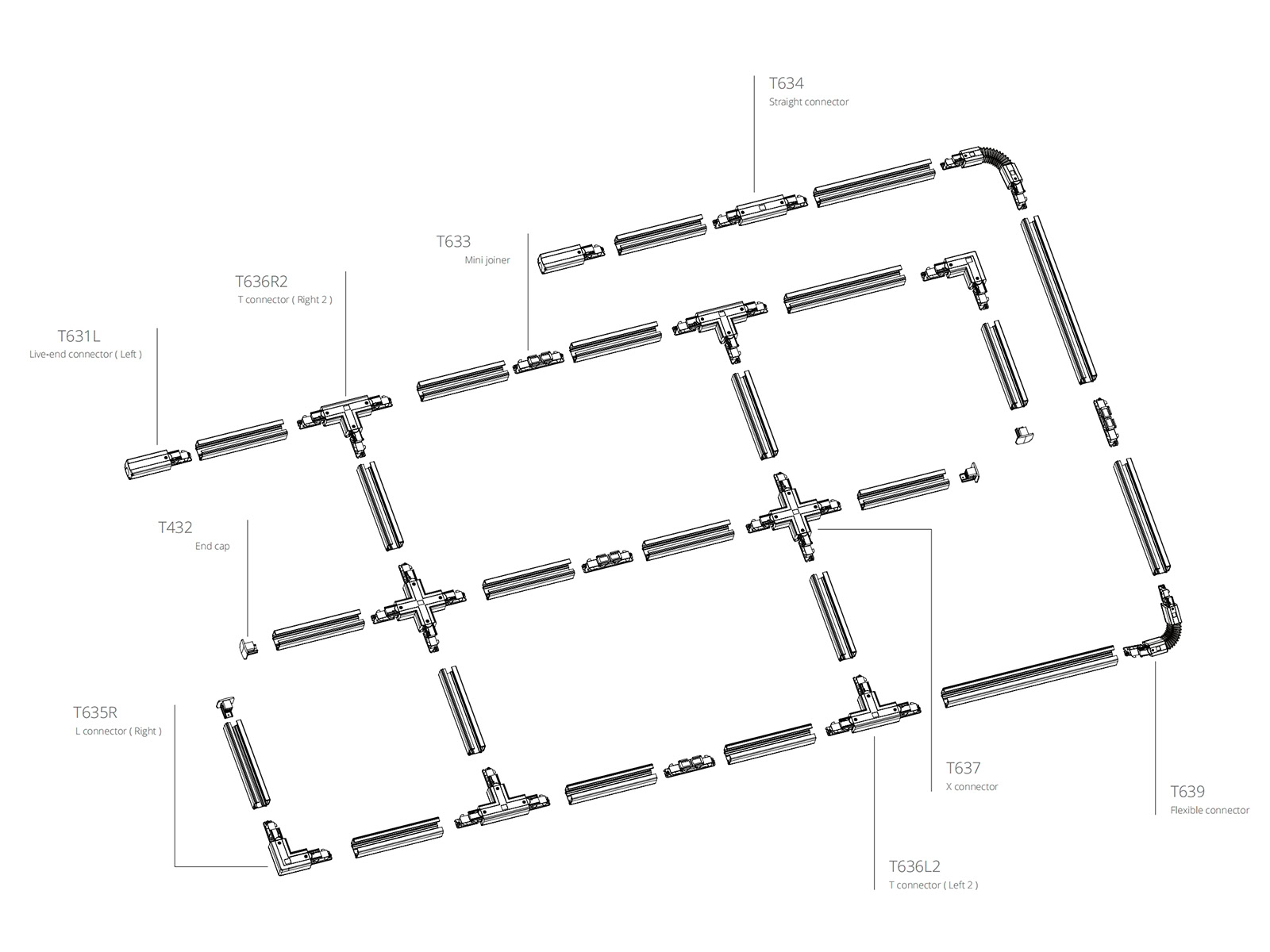

6 Wires 3 Circuits DALI Recessed LED Track System Diagram
The system supports direct mounting, simplifying the installation process by eliminating the need for additional Bridges or complex brackets.
The three-loop independent power supply design can meet the high power demand of large commercial Spaces. Support large-scale expansion, super malls, exhibition centers, airports and other super large Spaces.
