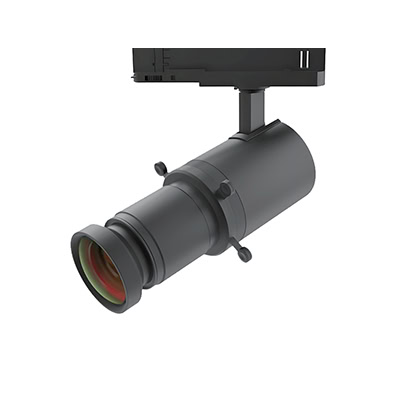

Track Light Spotlight

Track light spotlight with wide optical beam angles of 70°, Use a high CRI light source and precise light control. It can effectively reduce glare and improve visual comfort through precise light control and anti-glare design. Slicing components are designed to be lightweight and easy to install and replace.

Features:

-Wide beam angle 70°

-Wattage: 30W

-Light efiiciency: 1500lm

-AC200-240V 50/60Hz

-IP20, CRI>90/95

-2wires/3wires/4wires/6 wires
-Standard /0-10V DlM/Triac Dim/DALI dimmable

-CITIZEN /CREE/OSRAM LEDs

-TRIDONIC/PHILIPS/OSRAM drivers

-2700K/3000K/4000K/5000K/5700K/RGBW

-Adapter on track/ Surface mounted

-Warranty: 5Years

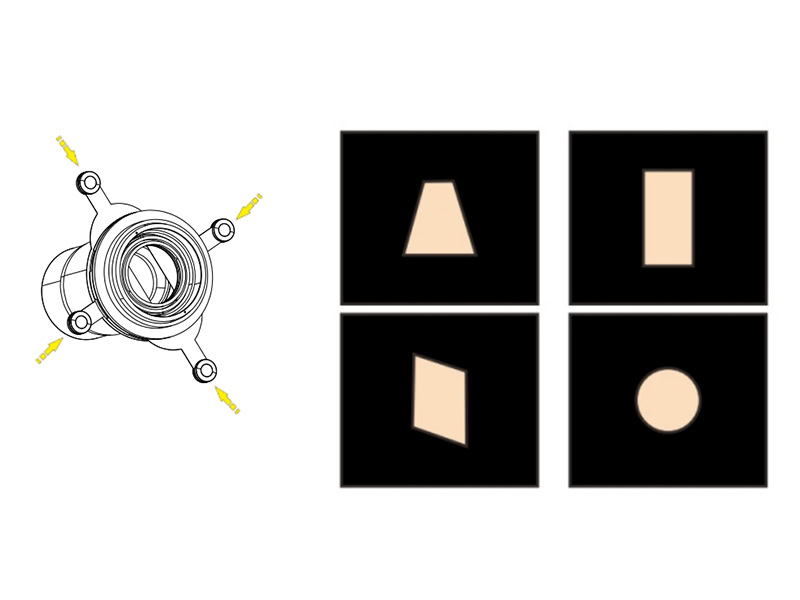

Optical Slice To Create Different Shadow

An adjustable optical slice is added inside the track light to change the path and distribution of light by adjusting the Angle, position or combination of the slice.
Adjust slice position directly by knob or push rod.The light can be focused, spread, cut or patterned to create different light and shadow effects.

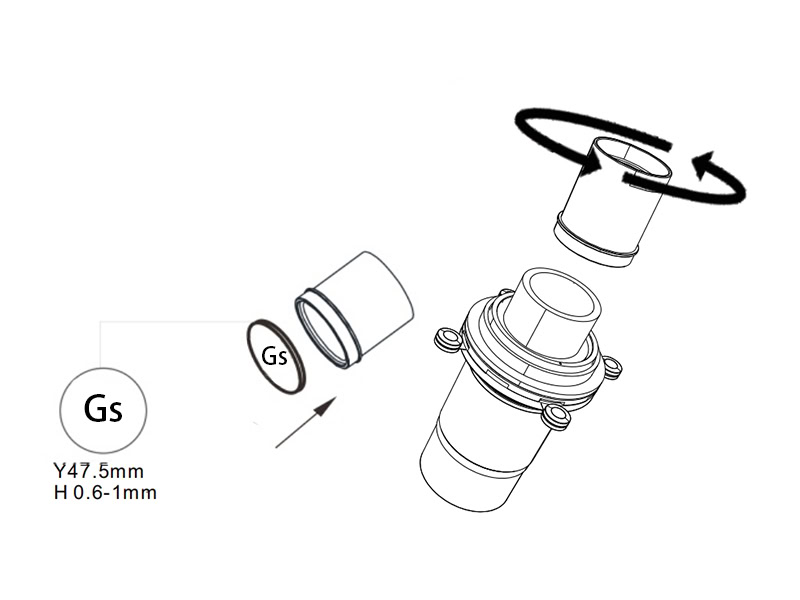

Customized Your Own LOGO Or Design Pattern

You can provide your own logo or design pattern, and we will make customized diaphragm according to your needs. Use metal, glass or acrylic to meet different light effects and durability needs.
When the light is turned on, the logo or pattern on the diaphragm is projected onto the wall, floor or other surface through the light, creating a unique light and shadow effect.
It is suitable for brand stores, exhibition halls, hotels and other places to enhance brand recognition and atmosphere.

All Aluminum Material Track Light

Outdoor lighting: Due to its strong corrosion resistance, all-aluminum lamps are also suitable for outdoor landscape lighting.

The low density and light weight of aluminum make the installation of track lights more convenient while reducing the burden on the ceiling.
Excellent heat dissipation performance means that the lamps can also maintain stable light efficiency when working for a long time, avoiding light decay or damage caused by overheating.

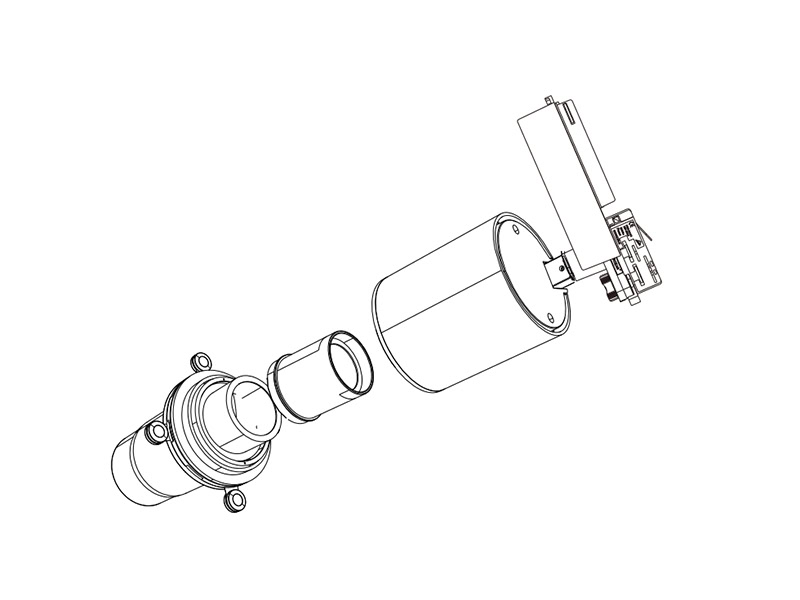

Details Of LED Track Light Spotlight

Slicing lenses are mainly used to control the distribution and shape of the light, and through precise optical design, the light can be cut into a specific shape
Adjustable lenses allow users to adjust the Angle and range of light as needed, usually supporting stepless adjustment from wide Angle to narrow Angle.

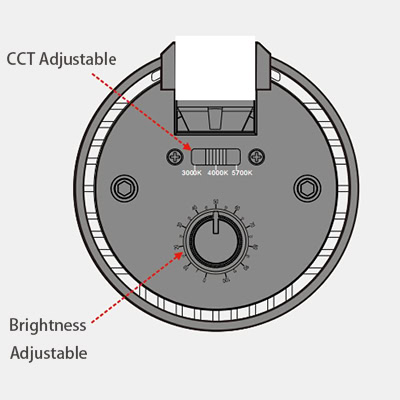

CCT dip regulators are used to adjust the color temperature of the light, usually supporting stepless adjustment from warm light (2700K) to cold light (6500K).

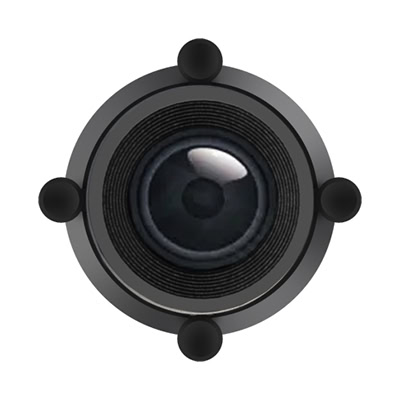

Slice Lens

CCT Adjustable

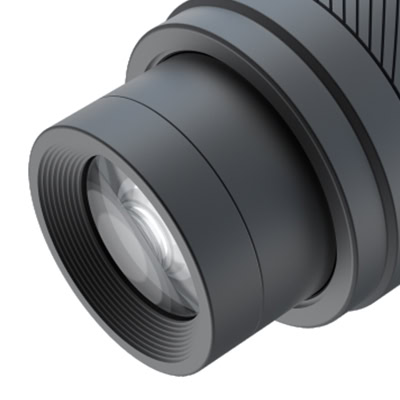

Adjustable lens

Diversified Light And Shadow Using Track Light Spotlight

Diversified light and shadow effects, by manually adjusting the slice can achieve focusing effect, soft light effect, cutting effect and dynamic pattern.
Support customized slices of special shapes or patterns according to customer needs to meet more personalized lighting needs. Provide professional design advice to help customers achieve the ideal lighting effect.

Specification Of Track Light Spotlight

Model No.	GS-TD-30W
Power	30W
Material	316 Stainless steel+Aluminum
Beam angle	70°
Light efficiency	1500lm
Voltage	AC200-240V 50/60Hz
LEDs	CITIZEN/CREE/OSRAM
PF	>0.95
Wires	2/3/4/6/Suction top
LED Lifespan	>50000 Hours
IP	IP20
CRI	>90/95
CCT	2700K/3000K/4000K/5000K/5700K/RGBW
Size	Φ79L234.8H90
Warranty	5 Years

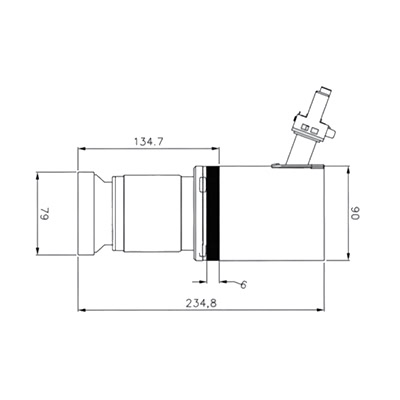

Size Of Track Light Spotlight

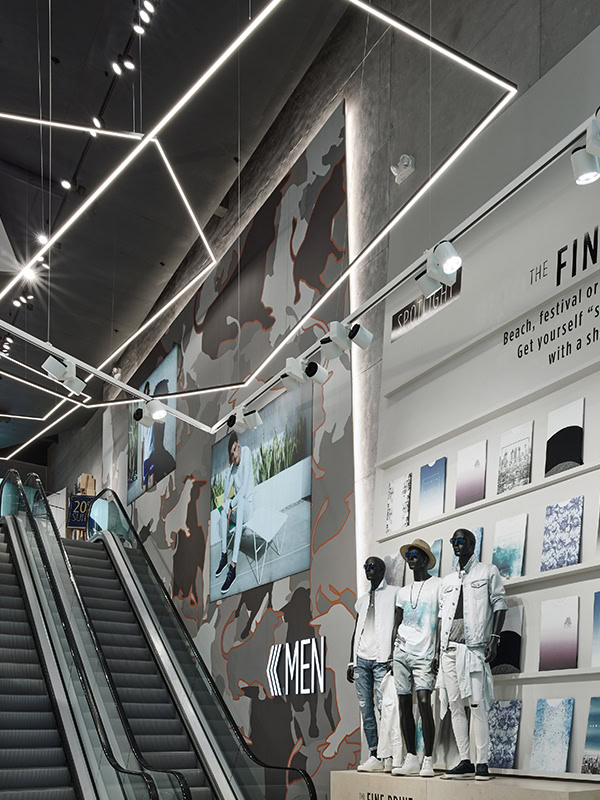

Application Scenarios Using Track Light Spotlight

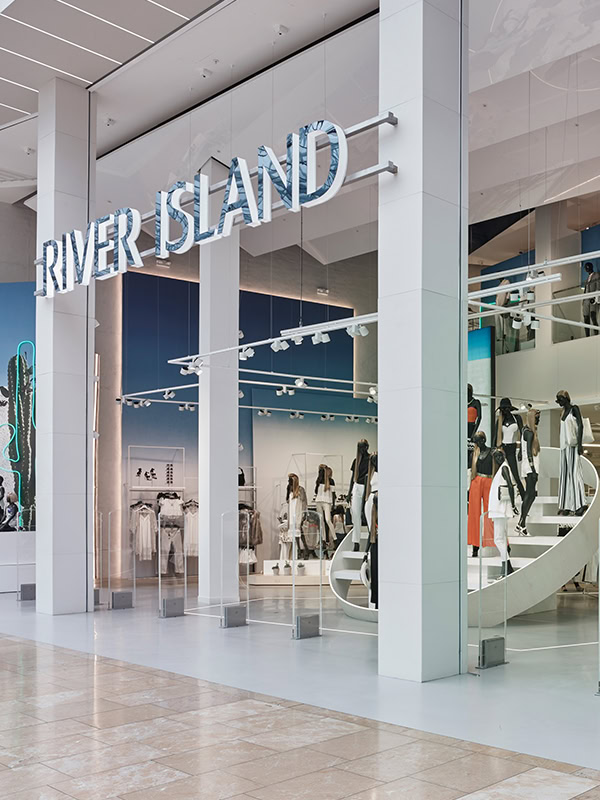

Suitable for shopping malls, exhibition halls, hotels, etc., need high quality, durable lighting equipment.
It is also suitable for modern simple, industrial style and other decoration styles to enhance the grade of home.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body. And any questions about the light, you can ask us for help.

How can I contact you if I have questions?

You can contact us through contact information, such as: telephone, email, online customer service and other ways, our customer service staff will answer your questions in time.

Can i get a track light spotlight sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your track lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
