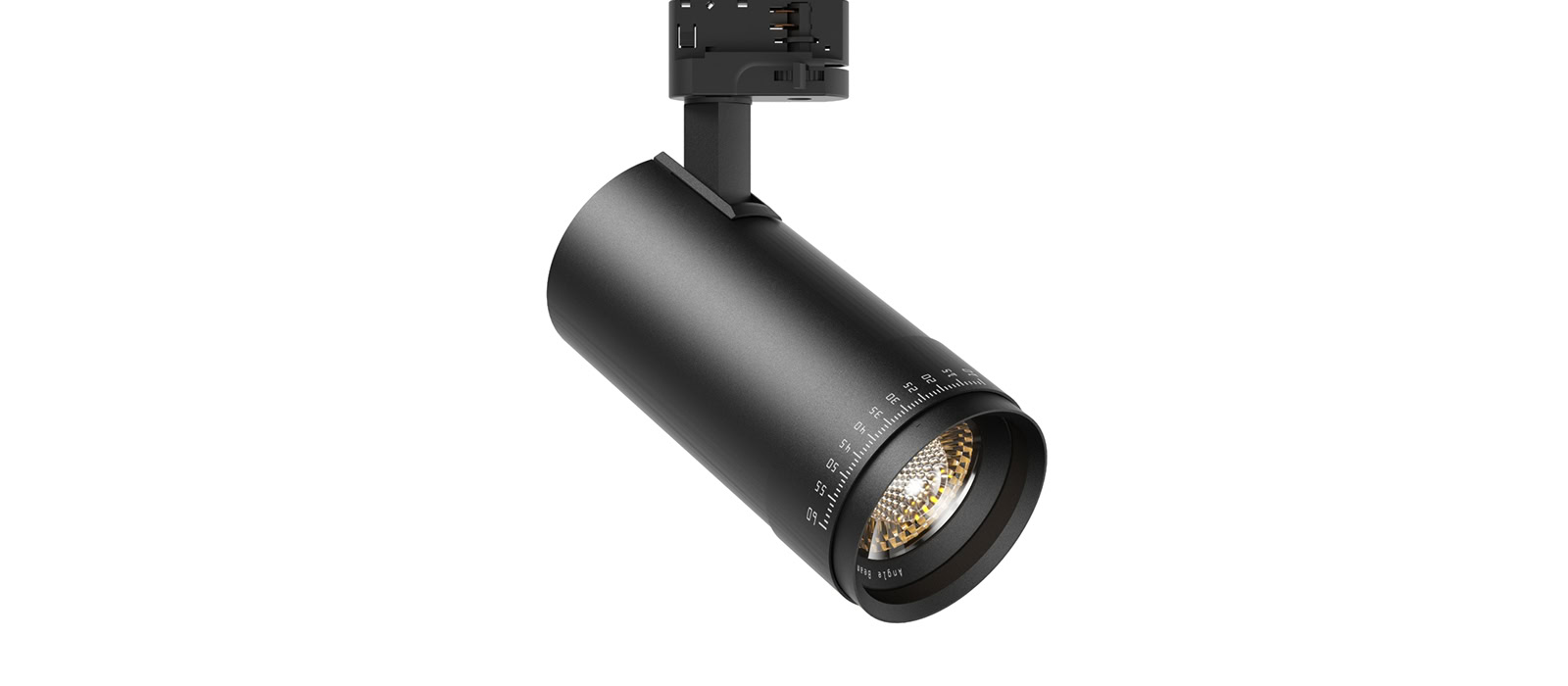

Zoomable Track Light

Zoomable track light break through the limitations of traditional lighting and give light more possibilities. The lamp body is equipped with a precise angle scale to clearly mark the rotation angle.

Whole light body is made of all aluminum, excellent heat dissipation performance, effectively reduce the working temperature of the lamp, and extend the service life of the light source.

Features:

-Zoomable from 10-60°

-Wattage: 7/10/15/30/40W

-IP20, CRI>90/95

-Light efiiciency: 80-85lm/W

-AC200-240V 50/60Hz

-Aluminum+PC
-Standard /0-10V DlM/Triac Dim/DALI dimmable

-CITIZEN /CREE/OSRAM/ LEDs

-TRIDONIC/PHILIPS/OSRAM drivers

-2700K/3000K/4000K/5000K/5700K

-Adapter on track/ Surface mounted

-Warranty: 5Years

Precise Adjustment Beam Angles Zoomable Track Light

7W/10W/15W/30W/40W power selected, allow you to give full play to creativity, create a unique charm of light and shadow space.

Lamp holder can be adjusted up and down by 180 degrees and rotated horizontally by 355 degrees to achieve all-round lighting without dead corners and accurately lock the target area.

Easy Zoom Beam Angle Adjustment From 10° To 60°

The lamp body is equipped with a precise angle scale to clearly mark the rotation angle, which is convenient for you to record and adjust, and easily find the ideal light position.

By freely adjusting the angle, you can easily achieve a variety of lighting effects such as light concentration, wall washing, wall cleaning, etc., to meet the lighting needs of different scenes.

Precise Angle Scale Design On Track Light Body

Angle scale to precisely show the beam angle, convenient for you to record and adjust angle

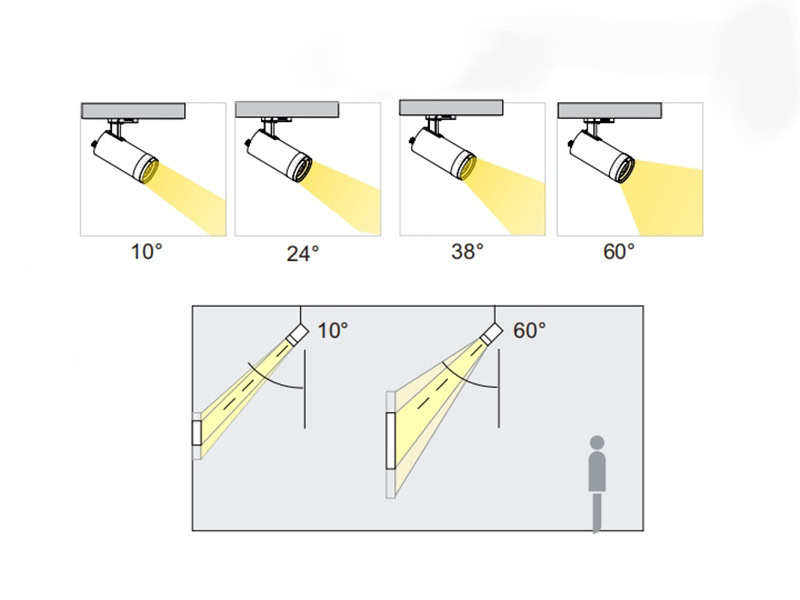

Beam Angles Stepless Adjustable From 10° To 60°

Zoomable track light can achieve stepless zoomable beam angle from 10° to 60°

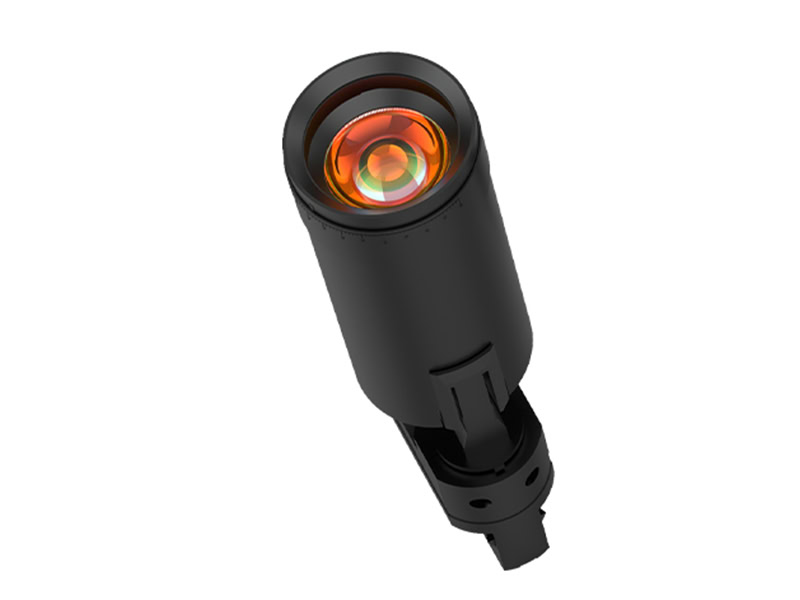

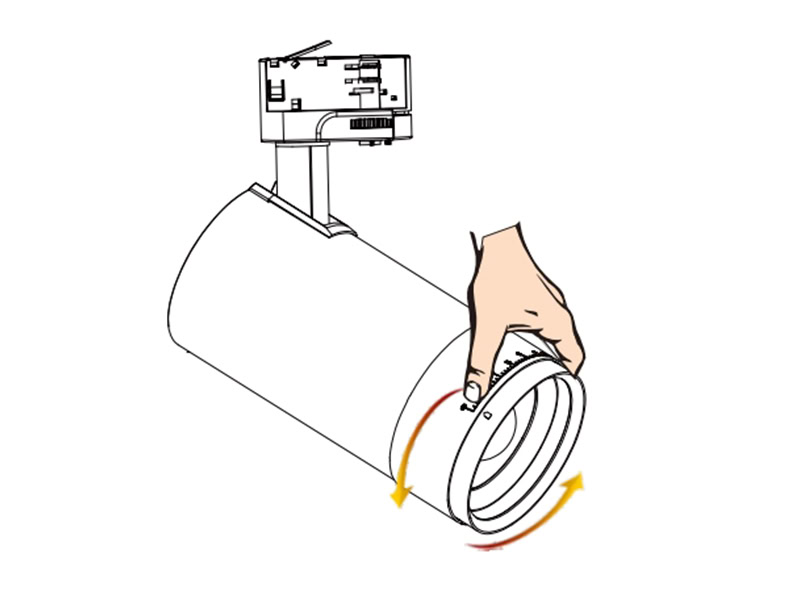

Rotate the lamp lens to change the light angle easily

Accesories For Zoomable Track Light Option

Various optical parts and accessories for option to achieve a variety of light effects to meet the needs of different scenes.

By replacing different lens accessories, you can achieve a variety of light spot effects such as circle, oval, and square, creating a personalized light and shadow space.

Brandoor

Honeycomb

Antiglare Grille

Antiglare ring

Wall washer ring

Color Filter

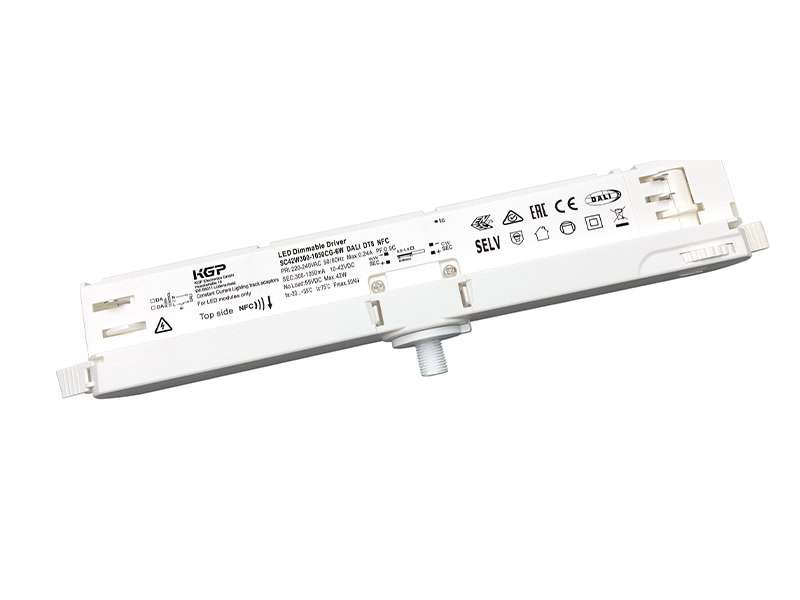

Power Supply And Dimmable Ways

The power supply used by our track lights are internationally renowned brands, such as Tridonic, Philips, Osram.

Ensure stable and reliable power output to ensure the safety and service life of lamps.

Dimmable way support various ways, like 0-10V Dimmable, DALI DT6/8 Dimmable, Triac Dimmable.

Power supply power factor PF>0.95, effectively reduce the energy consumption, more energy conservation and environmental protection.

Zoomable Track Light Source CRI>90 Or CRI>97

Our light source brand can choose citizen or osram light source
CRI up to CRI>90 or CRI>97 can truly reproduce the color of an object:
CRI>90:

Suitable for most commercial and home lighting scenarios.
CRI>97:

Suitable for scenes with high color reproduction requirements, such as museums, art galleries, high-end retail stores, etc.

Datasheet Of Zoomable Track Light

Model No.	GS-T1-7W	GS-T1-10W	GS-T1-15W	GS-T1-30W	GS-T1-40W
Power	7W	10W	15W	20/30W	40W
Material	Aluminum+PC
Beam angle	10°- 60°
Light efficiency	630lm	700lm	1350lm	2700lm	3600lm
Driver Brand	Philips/Tridonic/Osram/KGP
Voltage	AC200-240V DC24V
LEDs	CITIZEN/CREE/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP20
IK	IK10
CRI	>90/>97
CCT	2700K/3000K/4000K/5000K/5700K
Size	Φ50*H135	Φ60*H146	Φ70*H166	Φ90*H186	Φ110*H209
Warranty	5 Years

Sizes Of LED Zoomable Track Lights

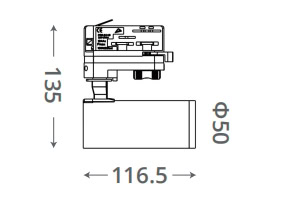

GS-T1-7W

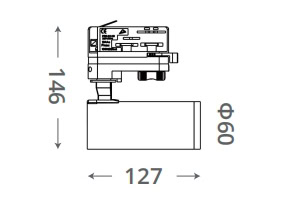

GS-T1-10W

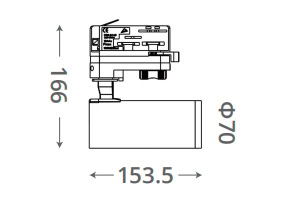

GS-T1-15W

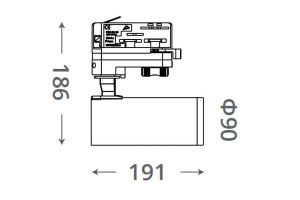

GS-T1-30W

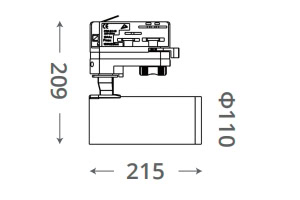

GS-T1-40W

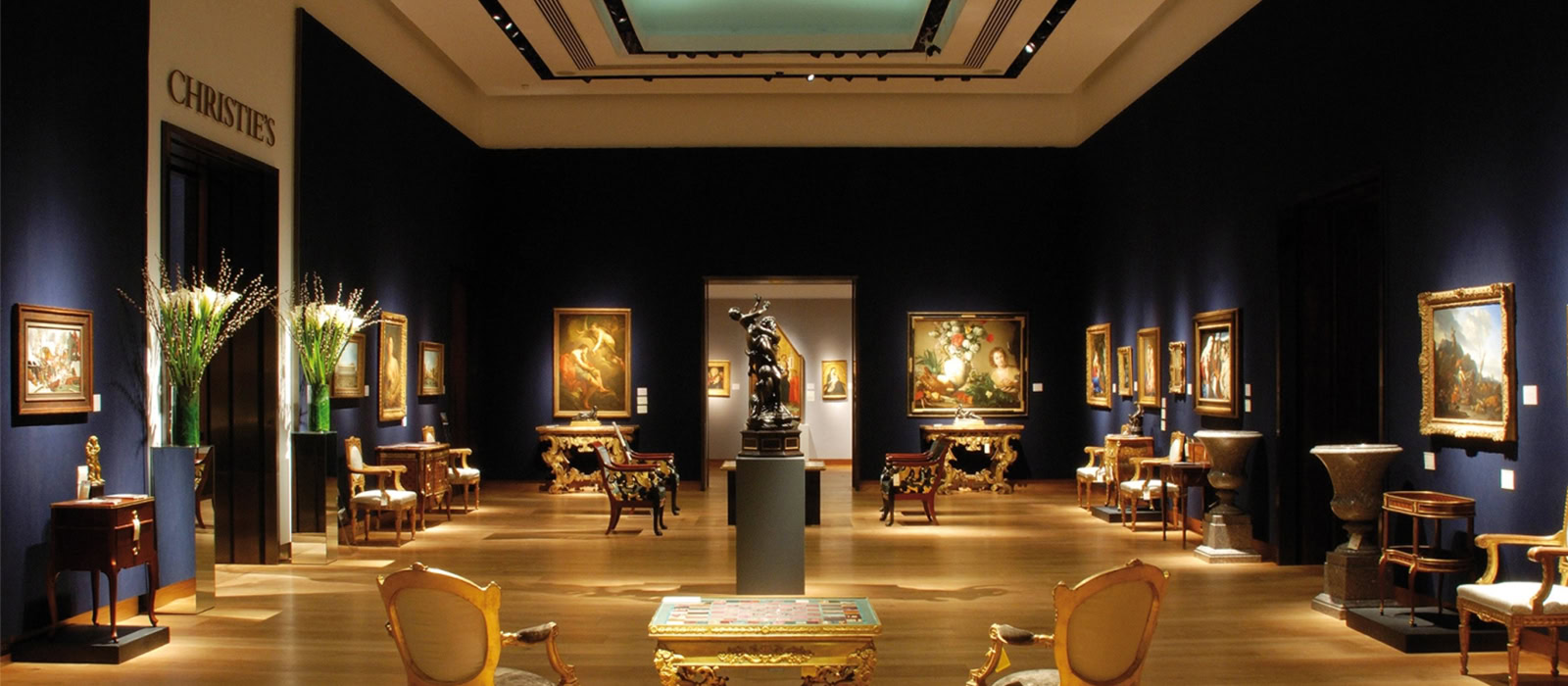

Modern Lighting Solutions using Zoomable track light

The zoomable track lights are mainly suitable for art exhibitions such as museums, art galleries, galleries, and art galleries,

as well as lighting for calligraphy and painting. They are also suitable for high-end hotels, restaurants, cultural and artistic projections, and other places with high pixel requirements

LED Track Light Project Case

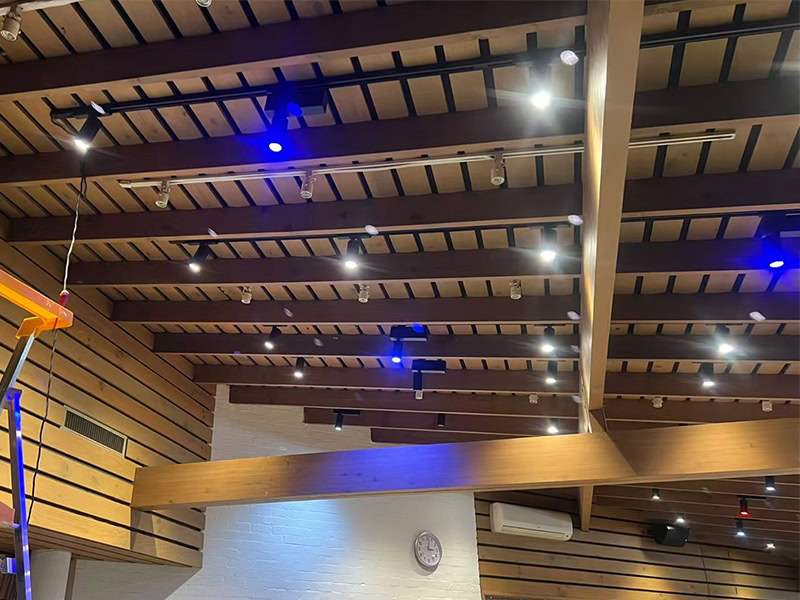

GS zoomable track lights with White color with DALI DT6 dimmable and RGBW DALI DT8 dimmable used in Australia in 2024.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body. And any questions about the light, you can ask us for help.

What driver you used in zoomable track light?

We use well-known brands, Tridonic, Philips, Osram of power supply, to ensure stable and reliable power output, to ensure the safety and service life of lamps.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your track lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
