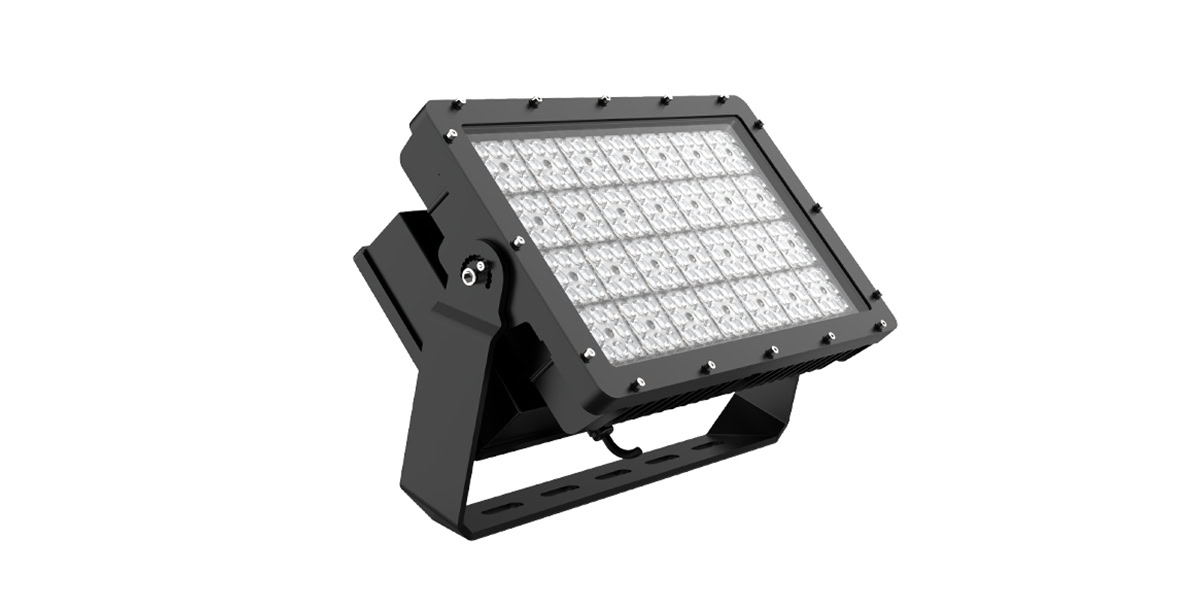

Stadium Flood Light - HP Series
The GS HP series adopts 5050 SMD LED technology, with an efficiency of up to 150lm/W, and covers power ranges from 500W to 2000W. It offers five light distribution angles ranging from 30° to 120° and three color temperatures from 3000K to 6500K. It is equipped with IP65 protection level and an ultra-long lifespan of 50,000 hours. It supports a wide voltage input range of 100-277VAC and meets the lighting needs of various large outdoor venues.
Flexible Adjustment Of Light Direction
Equipped with an adjustable angle bracket, the illumination angle can be adjusted according to actual lighting requirements; multiple lens angles are available for selection, further optimizing the light distribution and meeting personalized installation needs.
High Quality Drivers And Dimming Optional
The drive module is from the international first-line brand MOSO.
Supports over-temperature protection, high conversion efficiency, high PF>0.95, and 10KV lightning protection. Optional 1-10V analog dimming or DALI digital dimming is available.
Supports over-temperature protection, high conversion efficiency, high PF>0.95, and 10KV lightning protection. Optional 1-10V analog dimming or DALI digital dimming is available.
Uniform Light Efficiency Stadium Flood Light
The core light source brand is OSRAM/LUMILEDS, with a uniform luminous efficacy of 150 lm/W, balancing high brightness and energy efficiency.
Module design, and each module 500W, it is very convenient to maintain and installation.
Module design, and each module 500W, it is very convenient to maintain and installation.
Sturdy and durable with long service life
IP65 protection level effectively prevents dust and water, IK08 impact resistance level ensures mechanical strength. Made of high-quality materials and with a heat dissipation design, it has a service life of over 50,000 hours and comes with a 5-year warranty.
Multi-color temperature with high color rendering performance
Color temperature range: 3000K - 6500K. You can choose from warm to cool white light colors according to different application scenarios; Color rendering index Ra ≥ 70 (optional ≥ 80), ensuring true color reproduction and meeting various lighting quality requirements.
Datasheet Of Stadium Flood Light
Model No.
GSF-500W-HP
GSF-1000W-HP
GSF-1500W-HP
GSF-2000W-HP
Power
500W
1000W
1500W
2000W
LED Type
Lumileds3030
Materials
Aluminum + PC lens
Light efficiency
150lm/W
Driver
MOSO
Beam angle
30°/45°/60°/90°/120°
PF
>0.95
LED Lifespan
>50000 hours
IP
IP65
Body finish
Black/Grey
Dimmable ways
DALI/0-10V
Impact resistance
IK08
Working temperature
-30°℃- +55℃
CRI
>80
CCT
3000K/4000K/5000K/6000K
Size
467x326x136
510x636x138
510x923x138
1020x636x138
Warranty
5 Years
Size of LED Stadium Flood Light
Professional Light Distribution
It offers five light distribution angles of 30°, 45°, 60°, 90° and 120°. From narrow-angle focused lighting to wide-range general lighting coverage, it can precisely match different site sizes and lighting requirements, achieving the best light distribution.
Applications In Different Scenarios
Designed specifically for large outdoor venues such as sports stadiums, large gymnasiums, ports, docks, squares, football fields, and construction sites, it meets various high-intensity lighting requirements.
Stadium Flood Light FAQs
LED Stadium Lights provide uniform field coverage that ensures clear visibility for players, referees, and broadcast cameras.
Poor glare control reduces visual comfort and can affect athlete performance and spectator experience.
It directs light more precisely onto the field, reducing wasted spill light and improving uniformity.
It provides structural strength and efficient heat dissipation for outdoor reliability.
It allows partial replacement instead of full fixture replacement, reducing maintenance cost.
