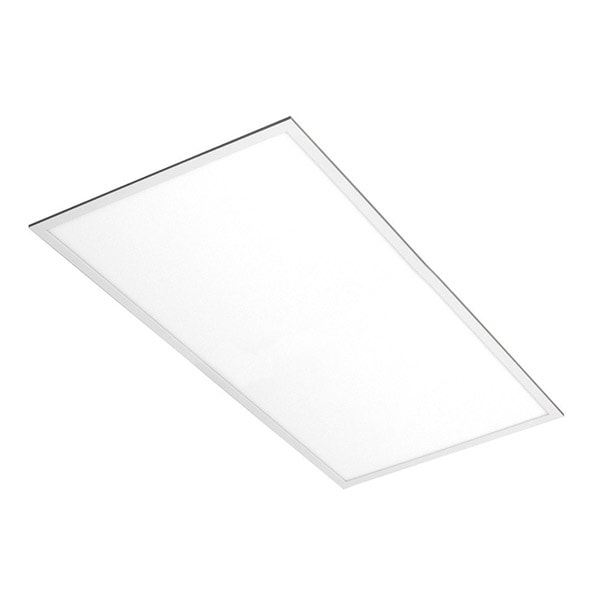

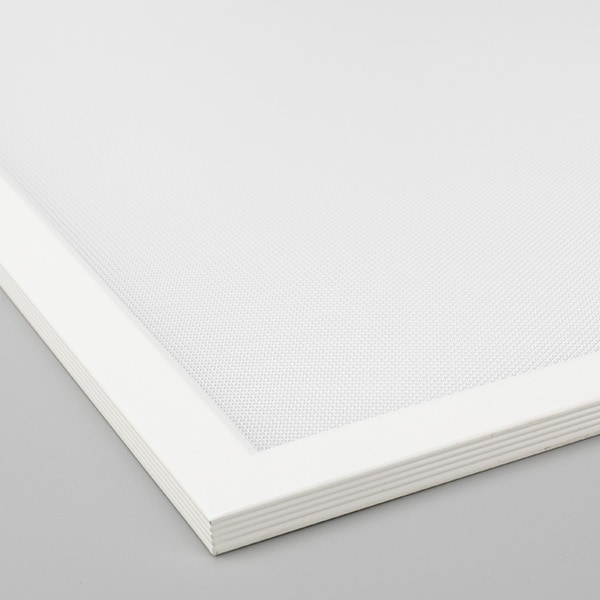

UGR19 LED Panel Light
UGR19 LED Panel Light base on a standards panel light added a low UGR prismatic crystal board and a UGR film.
What is UGR ?
UGR (Unified Glare Rating) is a method of calculating glare from luminaires, light through windows and bright light sources.
The UGR rating helps to determine how likely a luminaire is to cause discomfort to those around it. For example, the discomfort that a LED Panel will cause the worker within an office. This classification ranges from 5 to 40, with low numbers indicating low glare, A luminaire with a UGR lower than 10 will create zero glare.
Glare is a common problem in workplaces. Inappropriate luminaires cause excessive brightness to be ‘bounced off’ reflective surfaces, such as computer screens, whiteboards, etc. This can cause disruption for the occupants of offices, in terms of headaches & eye trouble, which can then lead to employee uncomfortable.
UGR Rating: Environment
UGR≤16: Technical drawing
UGR≤19: Office, Reading, Writing, Training, Meetings.
UGR≤22: Craft and light industries
UGR≤25: Heavy industry
UGR≤28: Railway platforms, foyers

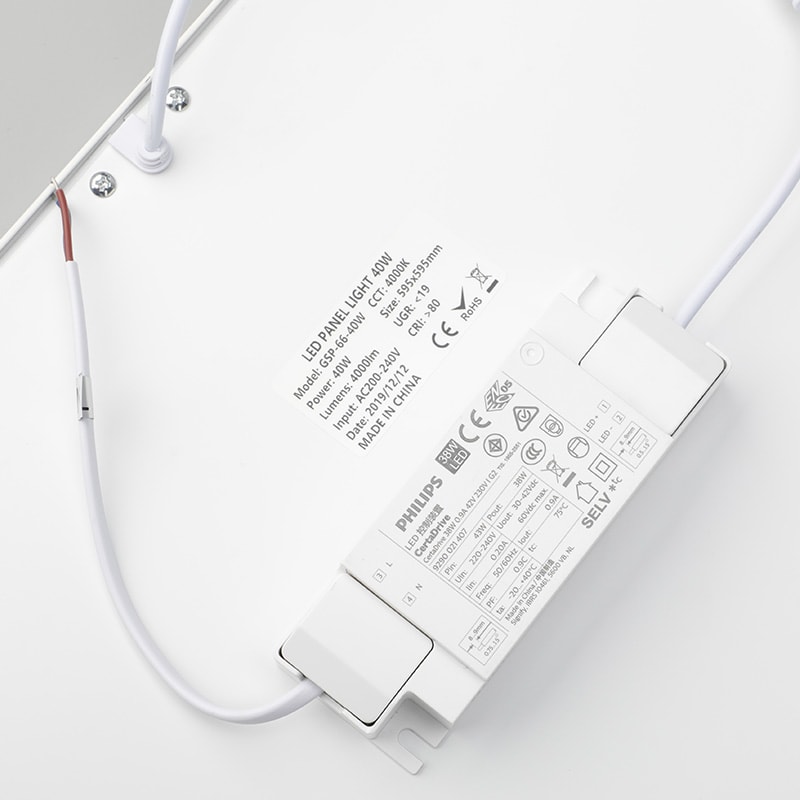

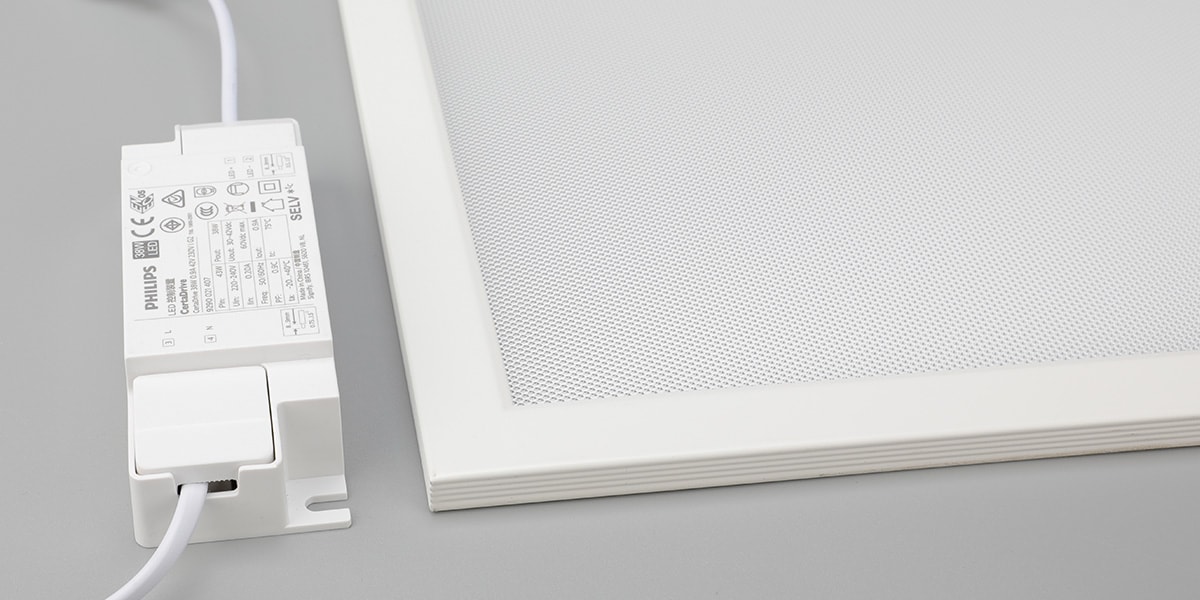

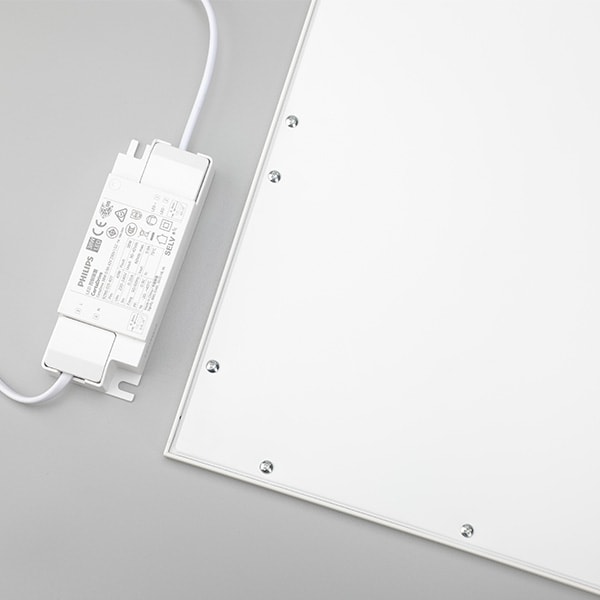

UGR19 LED Panel Lights with Philips Free Flicker driver, 0-10V/Dali dimmable for option
GS LIGHT Panel Light standards with Philips free-flicker driver, when you take photo or video will no flicker effect and better protect your eyes as well.
And the led panel light we offer 0-10V, Dali dimmable with BOKE, Philips, Tridonic dimmable driver for options.

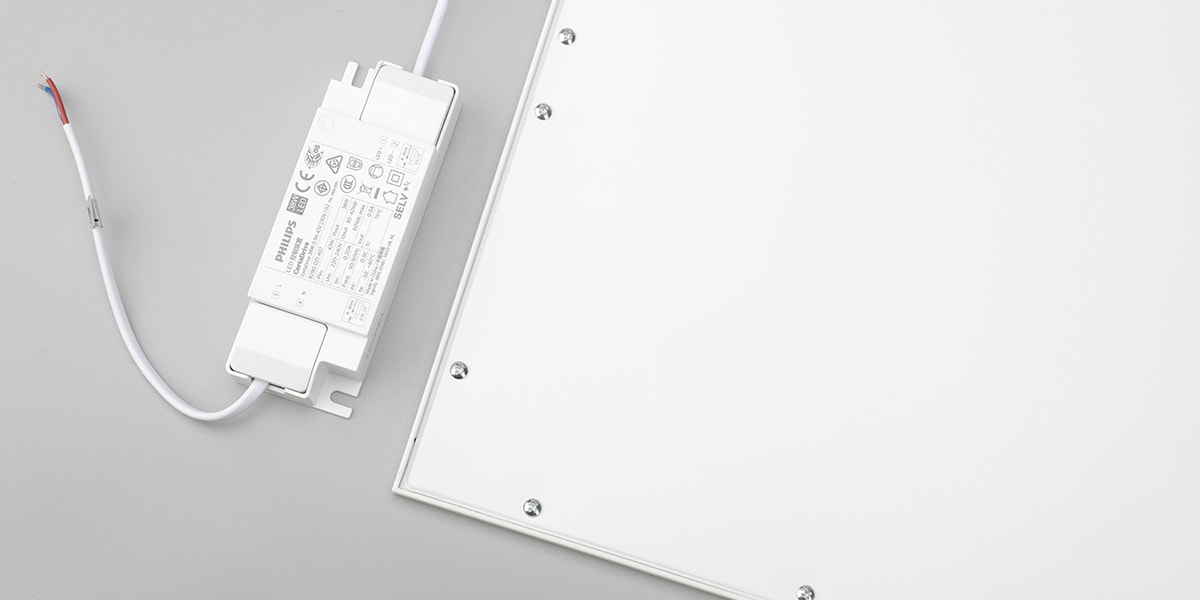

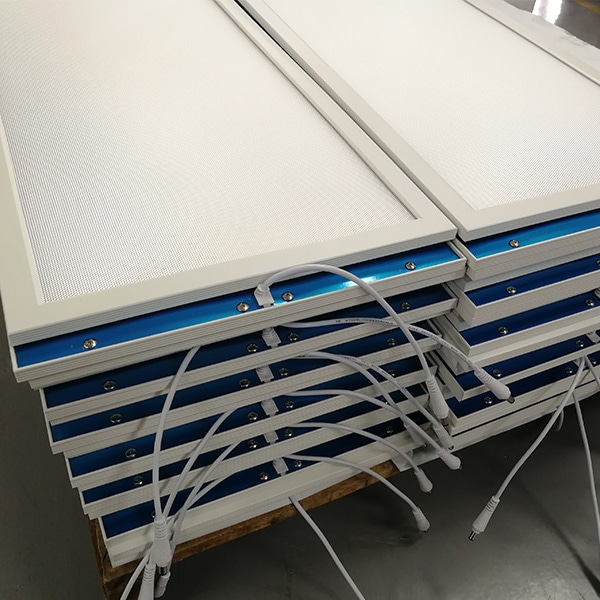

LED light panels backside
GS LIGHT use 0.4mm thickness backboard to make sure the panel lights flat,smooth and stronger. also the backboard we have white color and blue color for customer option.

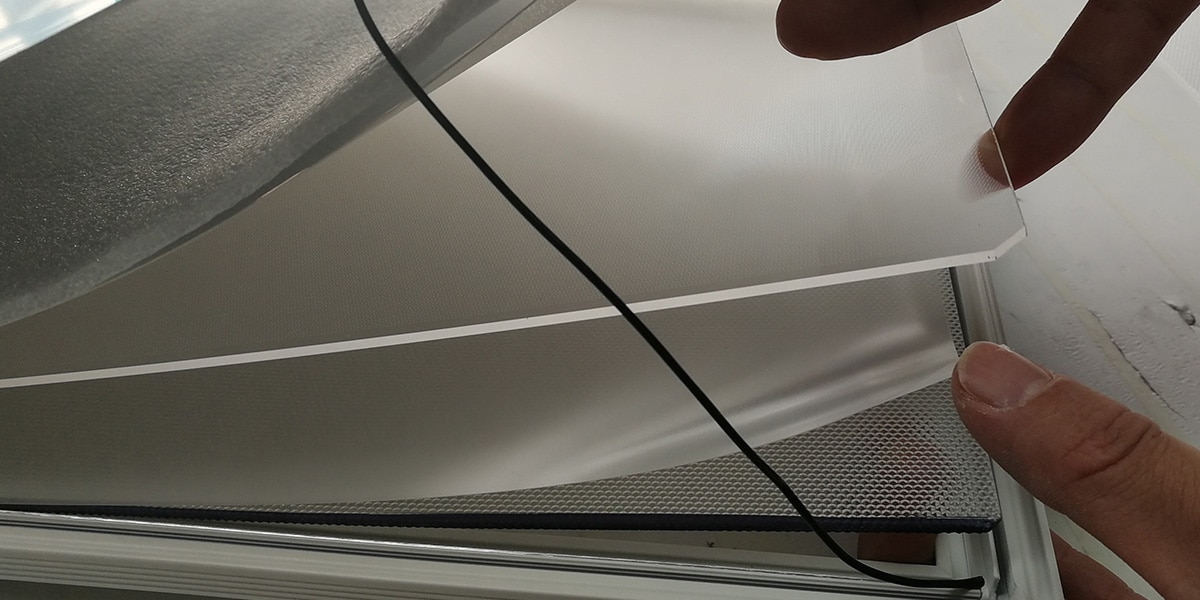

PMMA LGP for LED Ceiling flat panel lights
Normally, The Flat panel light LGP materails have PS and PMMA two types, PS LGP cost cheaper much, but easy change to yellow color after use 1-2 years, The PMMA LGP are the best use for the flat panel lights, which can be use more than 5 years no change colors, but the cost high much than PS.
GS LIGHT only use PMMA LGP to make sure offer 5 years warranty for customers.

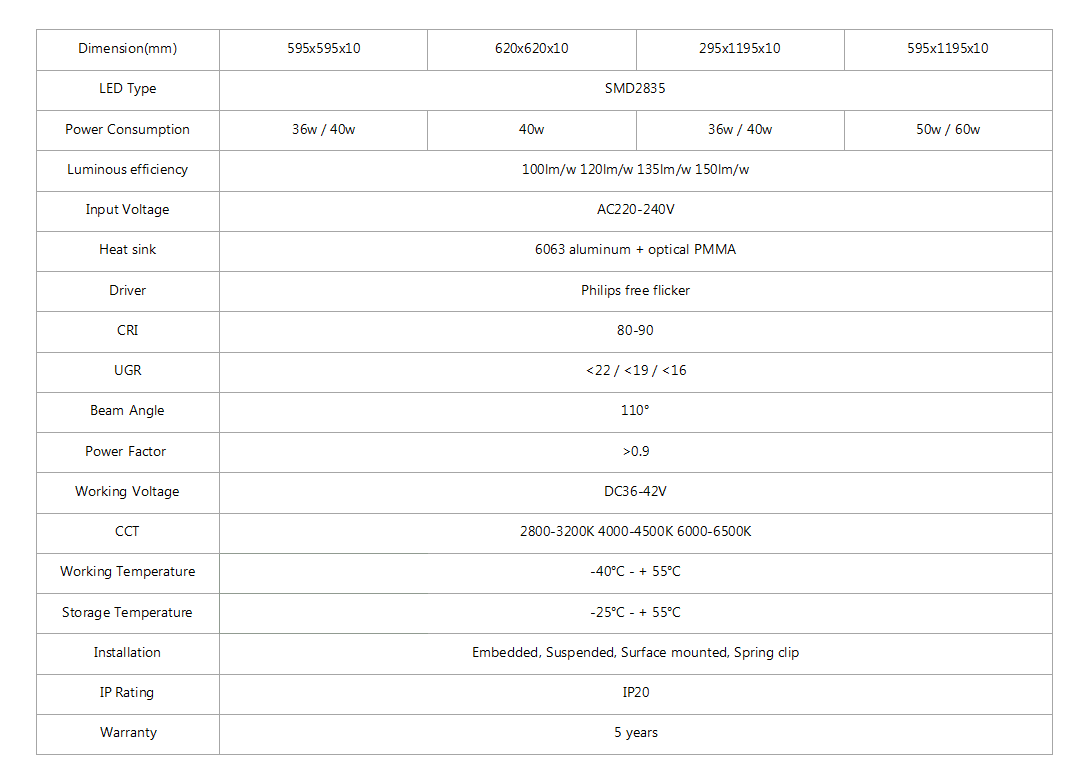

UGR19 LED Ceiling Light Panels datasheet

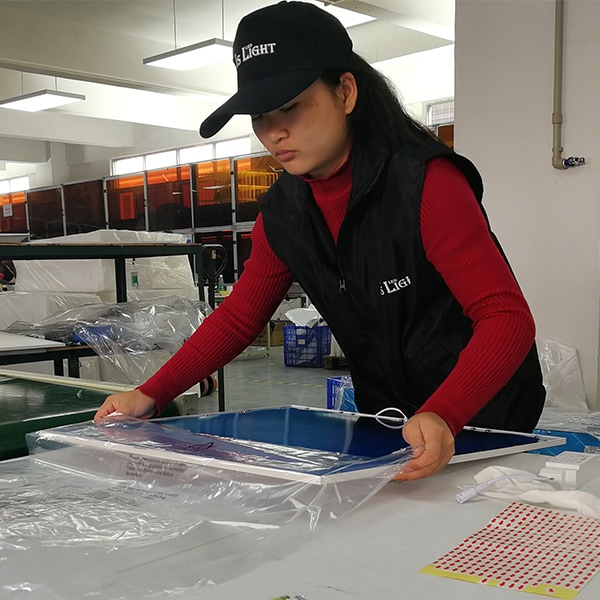

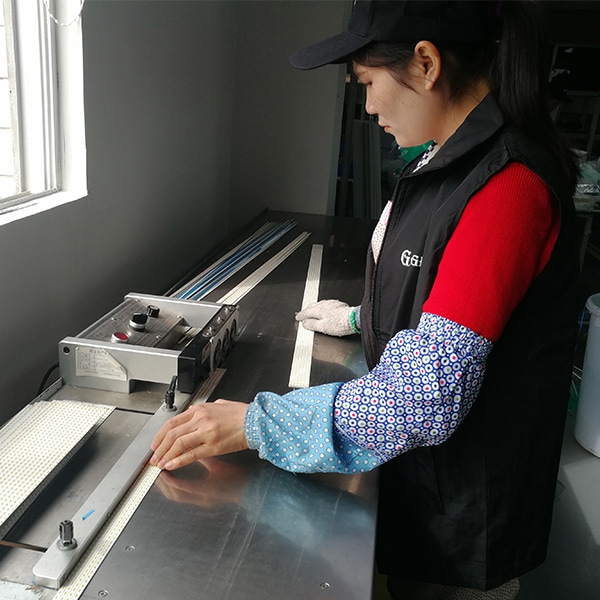

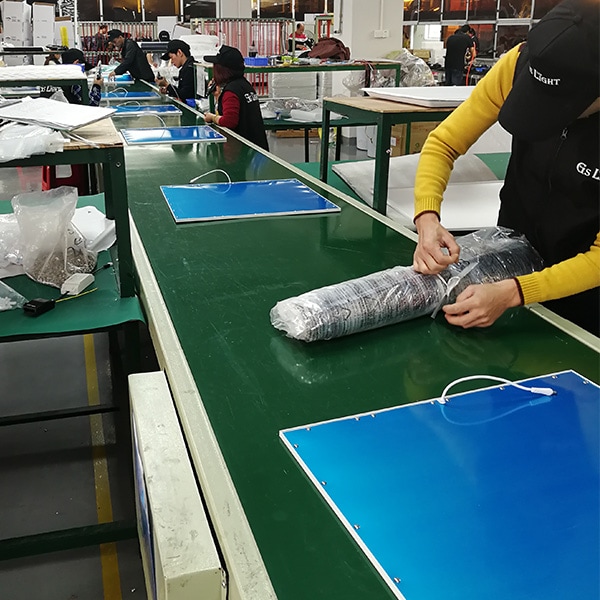

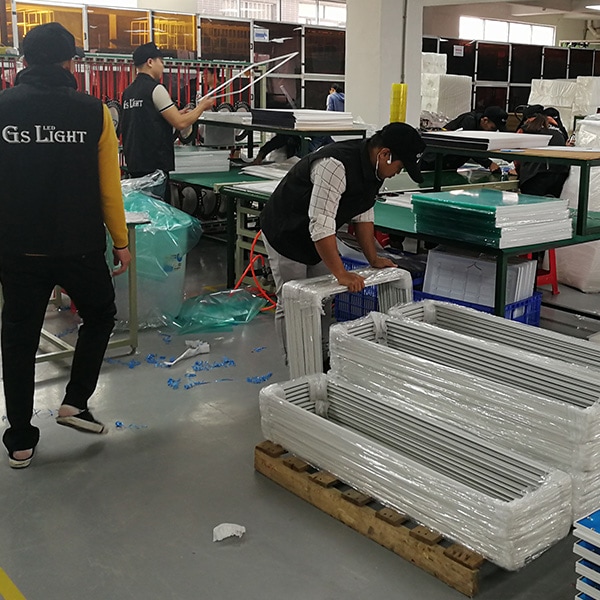

LED Panels Production Line
Our LED Panel light factory own 5000 square meter, the production capacity more than 3000pcs per day.
