LED Flood Light Features
The GS FG series is a high-performance LED spotlight specially designed for building facades, landscape lighting, and stage special effects. It features a combined structure of 6063 aluminum alloy profiles and cast aluminum upper cover, with IP66 level full-structure waterproofing (without adhesive process). It supports various light source configurations such as single color, RGB three-in-one, and RGBW four-in-one, and is equipped with DMX512 automatic addressing control. It is suitable for professional color dynamic lighting in harsh outdoor environments.

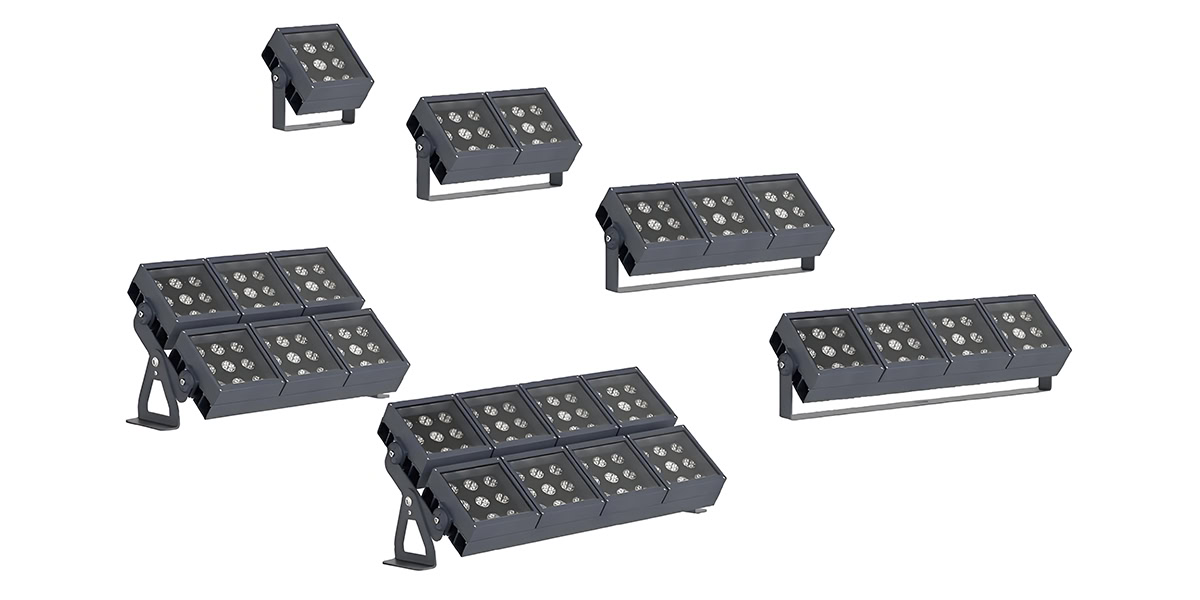

LED Flood Lights Flexible Selection
Flexible selection of multiple power and sizes, offering 6 power specifications, suitable for different irradiation distances and areas.
Supports dual voltage inputs of AC220V and DC24V, compatible with conventional mains power and low-voltage control systems, enhancing installation flexibility and safety.
Supports dual voltage inputs of AC220V and DC24V, compatible with conventional mains power and low-voltage control systems, enhancing installation flexibility and safety.
Flood Lights Specification
Model No.
GS-FG
Power
25/36/50/72/75/108/144/150/216/288W
Material
Die casting aluminum
Voltage
AC220V/DC24V
LEDs
OSRAM/ 3in1/ 4in1/ RGBW
PF
>0.90
LED Lifespan
50000H
IP
IP66
IK
IK08
CRI
>80
CCT
3000K / 4000K / 5000K / 5700K
Working Temp
-30°C ~ +55°C
Warranty
5 Years

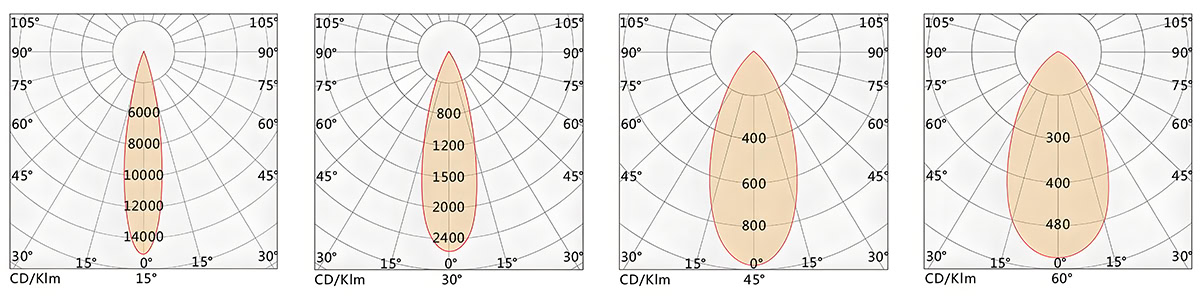

LED Flood Lights Beam Angle
The series offers various light source configurations including single-color light, RGB full-color light, and RGBW four-in-one light.
The RGBW version specially incorporates an independent white light chip, which not only enables pure white light illumination but also allows for the blending of white light with colored light to produce softer intermediate tones. This provides more creative space for lighting design.
The RGBW version specially incorporates an independent white light chip, which not only enables pure white light illumination but also allows for the blending of white light with colored light to produce softer intermediate tones. This provides more creative space for lighting design.

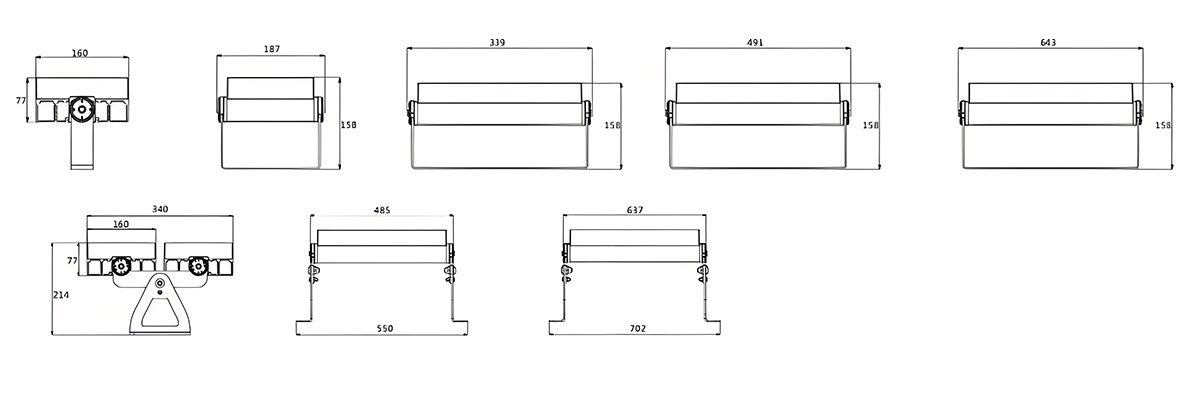

Sizes LED Flood Light
The compact 25W/36W models have a size of only 187×160×158mm, which is lightweight and compact. They are ideal for installation in narrow spaces and scenarios with high requirements for concealment.
The medium-power 50W/72W and 75W/108W models maintain the same width and height, with only the length increased, forming a modular size design that is convenient for engineering installation and ensures uniform effects.
The high-power 150W/216W and 200W/288W models adopt an enlarged size design (maximum 637×340×214mm), equipped with a stronger cooling system and more LED quantities, to ensure stable operation under high power.
The medium-power 50W/72W and 75W/108W models maintain the same width and height, with only the length increased, forming a modular size design that is convenient for engineering installation and ensures uniform effects.
The high-power 150W/216W and 200W/288W models adopt an enlarged size design (maximum 637×340×214mm), equipped with a stronger cooling system and more LED quantities, to ensure stable operation under high power.
LED Landscape Flood Light Applications
Building lighting: Building facades, roof structures, columns; Landscape lighting: Parks, squares, trees, water features; Commercial lighting: Billboards, store signs, exhibitions; Stage and entertainment lighting: Theatres, performance halls, theme parks (dynamic lighting); Special applications: Port equipment, ship lighting
