Recessed Spot Light – DH
Series

GS DH series LED grille spotlights offer multiple configurations including single, double and triple lamp options, with power ranging from 15W to 35W. Featuring brand COB light sources, they achieve an outstanding luminous efficacy of up to 150lm/W and a color rendering index of over 90. Equipped with precise beam angles of 15°, 23° and 38°, they excel in accent lighting and atmosphere creation. Compatible with global AC100-240V voltage and featuring IP20 protection, they are suitable for various commercial and engineering lighting projects, with stable and bulk supply available. Get your professional solution now!

Outstanding and efficient performance

It adopts the first-class international brand COB light source, achieving an outstanding luminous efficacy of up to 150 lumens per watt. This means that while providing the same or even brighter light, energy consumption is significantly reduced, effectively saving operating costs. It combines excellent performance with environmental protection and energy conservation.

Real and brilliant color presentation

With a color rendering index (CRI) of over 90, it can infinitely approximate the true colors of objects as if under natural light. Whether it's the delicate texture of clothing in a retail store or the rich color gradations of paintings in an art gallery, they can all be presented vividly and brightly, ensuring the accuracy and comfort of the visual experience.

Flexible and diverse configuration options

Offer three innovative structural designs: single lamp, double lamps, double lamps, and triple lamps. The power ranges from 15W to 35W. Whether it's a display cabinet that requires a single accent light or a corridor shelf that needs row lighting, the DH series can provide a perfect modular solution, allowing the lighting layout to be completely customized and perfectly matching any space scale and design requirements.

Multiple CCT Optional Recessed Spot Lights

Offer a variety of color temperatures including 3000K (warm yellow light), 4000K (neutral light), and 5000K/6000K (cold white light), meeting the atmosphere requirements of different scenarios. Whether it's a restaurant or hotel that needs a cozy and comfortable atmosphere, or an office space that requires clear and bright vision, they can all be easily matched and set up with just one click to create the ideal lighting environment.

Recessed Spot Light Specification

Model No.

GS-DH1

GS-DH2

GS-DH3

Power

12/25/35W

2x12/25/35W

3x12/25/35W

Material

Die casting aluminum

Voltage

AC220V/DC24V

LEDs

Bridgelux/OSRAM/CREE COB

>0.90

LED Lifespan

50000H

Beam Angle

15°/23°/38°

IP20

IK08

CRI

>80/90

CCT

3000K/4000K/5000K/6000K

Working Temp

-30°C ~ +55°C

Warranty

5 Years

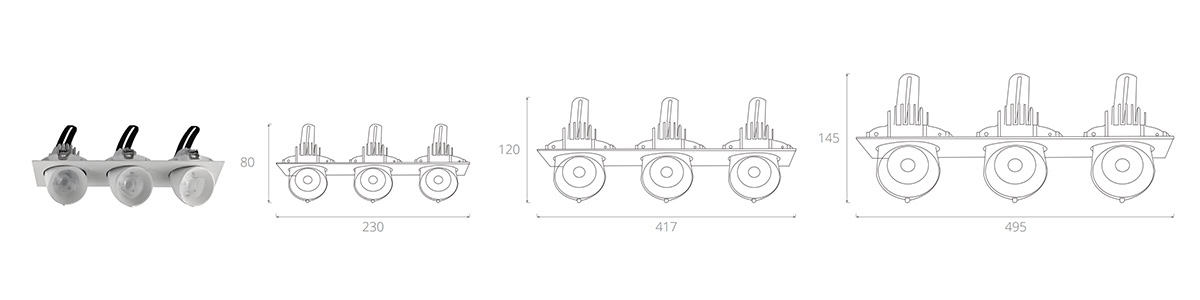

Sizes For Recessed Spot Lights

The product offers precise hole-drawing dimensions and lamp dimensions. The installation process is simple and quick, effectively saving labor and time costs.

GS-DH1-15W, GS-DH1-25W, GS-DH1-35W

GS-DH2-2x15W, GS-DH2-2x25W, GS-DH2-2x35W

GS-DH3-3x15W, GS-DH3-3x25W, GS-DH3-3x35W

Applications In Different Scenarios

We have strong production and supply capabilities, which enable us to provide stable bulk supply support for large-scale commercial projects and engineering applications such as hotels, shopping malls, and office buildings. This ensures a worry-free process from design to implementation for the projects. We are your reliable long-term partner.

Recessed Spot Light FAQs

The DH series Recessed Spot Light is designed for high-end commercial lighting, offering up to 150lm/W high efficiency and CRI >90. It ensures strong visual impact for retail, hotels, and exhibition spaces while reducing energy cost in long-term operation.

Available beam angles include 15°, 23°, and 38°. Narrow angles are ideal for focused accent lighting, while wider angles are better for wall washing or general illumination.

The recessed structure reduces glare by hiding the light source inside the ceiling, creating a more comfortable visual experience and improving spatial depth.

The fixture uses aluminum and PC materials, ensuring good heat dissipation and structural stability for long-term operation.

The series supports single, double, and triple-head configurations, allowing flexible layout design for different architectural spaces.

Yes, GS Light provides stable mass production capacity, making these LED Down Lights suitable for hotels, malls, and office building projects.

The modular design allows quick installation with standard cut-out sizes, reducing labor time and installation complexity.
