LED Batten Light – TE Series

Waterproof LED batten light has multiple power options (18W/36W/50W/60W) adapt to different brightness requirements in various scenarios.
Commercial light up to 160Lm/W system efficiency delivers exceptional brightness while minimizing energy use. Environmentally friendly with no mercury, UV, or lR emissions.

bolt (1)

Wattage

15/30/40 W
brightness-up

Lighting Specifications

CRI>80, 120°
battery-eco

Light efficiency

120lm/W
circuit-voltmeter

Input Voltage

AC200-240V 50/60Hz
brightness (1)

Dimming Options

Standard /0-10V DlM/Triac Dim/DALI dimmable
battery-3

Emergency Function

Self-test emergency with LifePo4 battery optional
keyframes

Materials

PC material
bulb (2)

LED Type

CREE/OSRAM/ LEDs
shadow

LED Driver

Eaglerise/Tridonic/PHILIPS drivers
cloud-rain

IP Rating

IP65
sparkles

Color Temperature

3000K / 4000K / 5000K / 5700K
replace

Warranty

5 Years

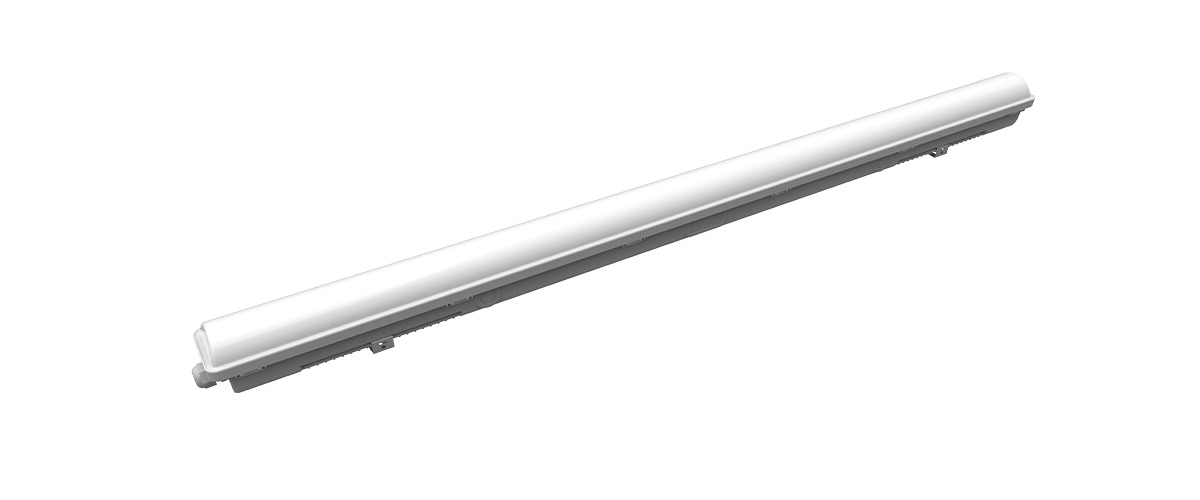

LED Waterproof LED Batten light

Waterproof LED Batten Cost Performance With High Quality

The LED Batten Lights is a series full of cost performance. While ensuring quality, the price of this lamp is advantageous.

Many accessories for option, hollowed out, monochrome, tricolor and multicolor choices.CCT changeable from 2700K to 5700K, DALI/TRIAC/2.4G dimming ways, DMX512 control system is available.

Quick Connector Design Waterproof LED Batten

While achieving rapid connection, it can ensure the stability of the connection.
Without the need for complex tools or cumbersome operations, the lamp can be connected to power cords and other components in a short time through a quick connection interface.
Waterproof LED Batten light quick connector
Waterproof Batten wireless control

Intelligent Wireless Control

The lighting system features adjustable brightness, color temperature, and timing, allowing for precise customization based on actual needs. This ensures optimal illumination while preventing excessive or wasteful lighting, enhancing both energy efficiency and user comfort.

Emergency Battery Optional

We offer optional lithium iron phosphate (LiFePO4) battery systems that incorporate advanced self-diagnostic capabilities and comprehensive emergency response features. These high-performance batteries not only provide reliable power storage but also feature continuous system monitoring that automatically checks voltage, temperature, and charge status.
outdoor batten lamp emergency battery

LED Batten Light Sizes

Our TE series of three-proof lamps come in a variety of specifications to meet the lighting needs of different scenarios. You can choose from three lengths: 600mm, 1200mm, and 1500mm, which can be flexibly adapted to various installation environments. Whether it's a narrow space or a large area, they can provide stable and efficient high-protection lighting.
LED Batten Light dimension
Waterproof Batten IP65

IP65 Waterproof Grade LED Batten Light

In the fields of industrial and commercial lighting, lamps not only need to provide a stable light source but also possess excellent protective performance to cope with complex environments.
The TE series three-proof lamps, with their outstanding IP65 and IK10 protection ratings, are widely applicable to various harsh environments.

3 Ways Of LED Batten Lights Installations

LED batten lights have 3 ways of installation: surface mount, wall mount and suspend mount.

We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.
installation-ways-1536×576 (1)

Intelligent Dimming Control LED Tri Proof Lights

Support DALI, 0-10V dimming and wireless control, adapt to different customer needs, no need to replace hardware.
0-100% smooth brightness adjustment, no stroboscopic, protect human eye comfort. Automatic dimming + remote control, save electricity and reduce labor costs.
led tri proof lights dimmable ways

Datasheet Of Batten Light TE Series

Model No.
GS-TE600-20W
GS-TE1200-40W
GS-TE1200-50W
Power
15W
30W
40W
Material
PC material
Light efficiency
120lm/W
Driver Brand
Eaglerise/Tridonic
Voltage
AC200-240V
LEDs
SMD2835
PF
>0.95
LED Lifespan
>50000 Hours
IP
IP65
IK
IK10
CRI
>80
CCT
3000K/4000K/5000K/5700K
Size
L600xW80xH72
L1200xW80xH72
L1500xW80xH72
Warranty
5 Years

Modern Lighting Solutions
using Batten Light

It can be used in many scenarios, such as industrial plants, warehouses, underground parking lots, tunnels, ship terminals, food processing plants, chemical plants, sewage treatment plants, etc. Its high sealing and corrosion resistant design can adapt to complex environments such as wet, dusty and corrosive gases to ensure stable and safe lighting
application of tri proof in car room
application of IP65 tri proof
application of tri proof light

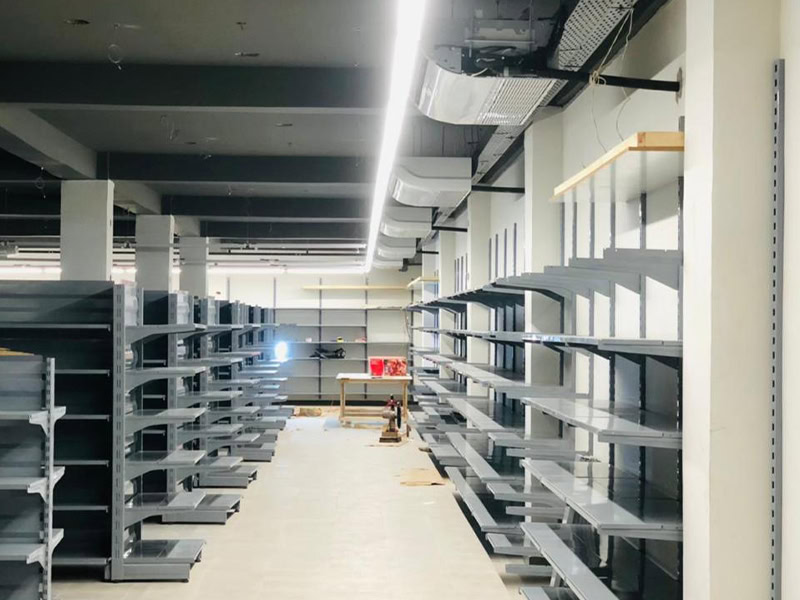

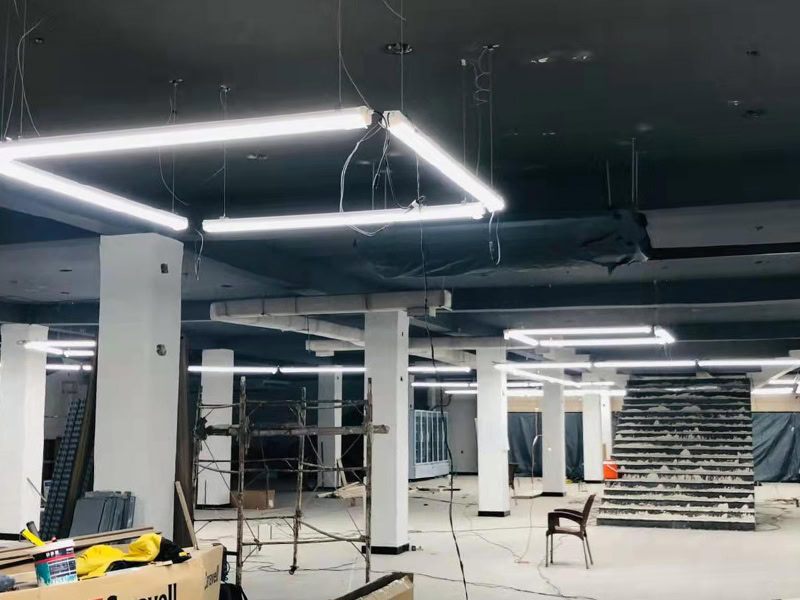

Waterproof LED Batten Lamp Project Case In Pakistan

Waterproof led batten lamps are applied in supermarkets in Pakistan. Their unique design without dark zones ensures that every corner of the supermarket is evenly illuminated.
The climate in Pakistan is complex, but our tri proof lamps operate stably with their excellent waterproof, dustproof and anti-corrosion performance.
Waterproof Batten application
Waterproof Batten used in supermarket

Related Products

LED Batten Light - TC Series
LED Batten Light – TC Series
LED Batten Light - TS Series
LED Batten Light – TS Series
led batten lights indoor lights
LED Batten Light - TL Series
gs-light-IP69k-LED-tri-proof-light-gs
IP69K LED Tri Proof Light

LED Batten Light FAQs

The TE Series is designed to balance performance, flexibility, and budget. It offers multiple control options, emergency functions, and installation methods while maintaining competitive project costs.

The quick connector design simplifies wiring and reduces installation time. It allows electrical connections to be completed more efficiently without complicated assembly procedures.

Yes. LED Tri Proof Lights are commonly used to upgrade traditional fluorescent fixtures, helping improve energy efficiency and lighting quality.

Wireless control allows users to adjust lighting settings remotely, improving convenience and making future system expansion easier.

Yes. The optional emergency battery includes self-diagnostic capabilities that monitor important operating conditions automatically.

IK10 protection helps the fixture withstand accidental impacts that may occur during daily operations, transportation, or maintenance activities.

Yes. Surface mounting, wall mounting, and suspended installation options allow the fixture to adapt to different building structures.

They combine durability, energy efficiency, environmental protection, and installation flexibility in a single lighting solution.

Yes. At GS Light, we can recommend suitable dimming, wireless control, and emergency configurations based on project requirements.
