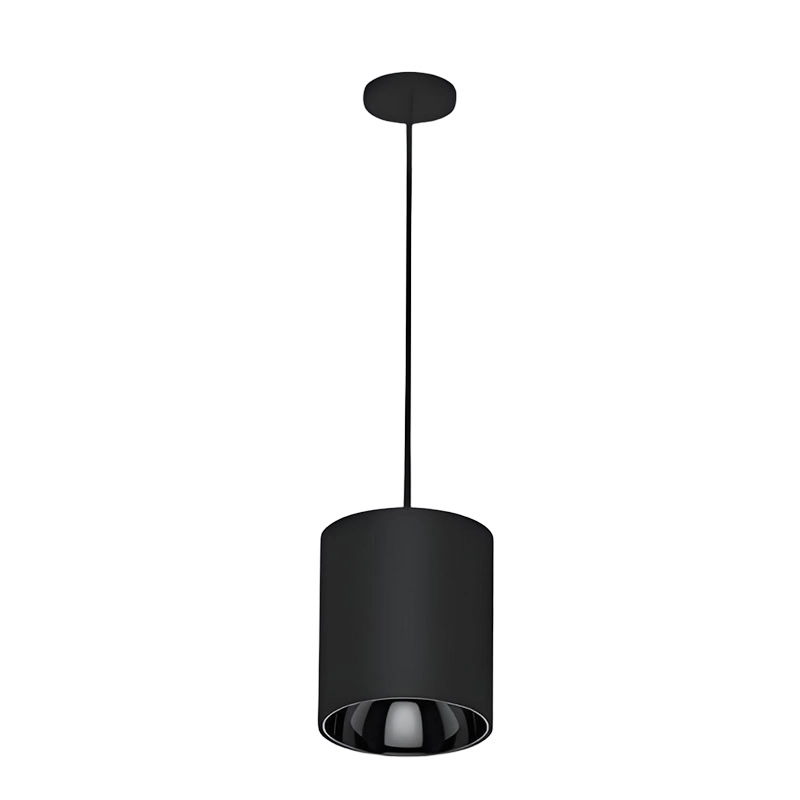

IP65 LED Downlight - SD Seires
The SD series of waterproof surface-mounted downlights are specially designed for high-end commercial and indoor-outdoor integrated lighting. They feature die-cast aluminum bodies and IP65 professional waterproof structures, making them resistant to damp and dusty environments.
Deep anti-glare, outstanding optics
The design features a combination of lenses and secondary reflectors for deep anti-glare effect. The UGR value is less than 12, effectively suppressing glare and ensuring soft and uniform light. It offers options of 40° and 60° beam angles for precise light control, enhancing the visual comfort of the space.
IP65 LED Downlight
The entire lamp reaches the IP65 protection level. The die-cast aluminum housing has excellent heat dissipation performance. The waterproof lens and sealing structure provide dual guarantees. It can be used both indoors and outdoors, has a long lifespan and reliable performance.
Multiple power levels and sizes, fully compatible
Power range from 15W to 100W, suitable for various lighting requirements and installation heights:
15 - 30W: Suitable for ceiling heights of 2.5 - 6 meters (for homes, corridors, offices)
40 - 100W: Suitable for areas with a height of 6 - 12 meters (such as shopping malls, airports, high-speed railway stations, etc., where there are open spaces)
15 - 30W: Suitable for ceiling heights of 2.5 - 6 meters (for homes, corridors, offices)
40 - 100W: Suitable for areas with a height of 6 - 12 meters (such as shopping malls, airports, high-speed railway stations, etc., where there are open spaces)
Datasheet Of IP65 LED Downlight
Model No.
GS-SD75-10W
GS-SD75-15W
GS-SD95-15W
GS-SD95-20W
GS-SD115-30W
GS-SD140-50W
GS-SD170-60W
GS-SD205-100W
Power
10W
15w
15w
20W
30W
40-50W
50-60W
60-100W
Materials
Die casting aluminum
Light efficiency
100 lm/W
Beam angle
20° / 40° / 60°
PF
>0.95
LED Lifespan
>50000 hours
IP
IP65
Impact resistance
IK08
Working temperature
-30°℃- +55℃
CRI
>70
CCT
2700K/3000K/4000K/5000K
Size(mm)
Φ75xH100
Φ75xH152
Φ95xH100
Φ95xH152
Φ115xH152
Φ140xH162
Φ170xH182
Φ205xH212
Warranty
5 Years
Colorful reflector covers
Up to 11 different reflector colors such as silver, white, black, gold, nickel, etc. are available, meeting the personalized design and aesthetic matching requirements of commercial spaces, and achieving a perfect integration of light and environment.
Sizes of IP65 LED Downlights
Power coverage ranges from 15W to 100W, suitable for different lighting requirements and installation heights
Flexible installation, efficient and convenient

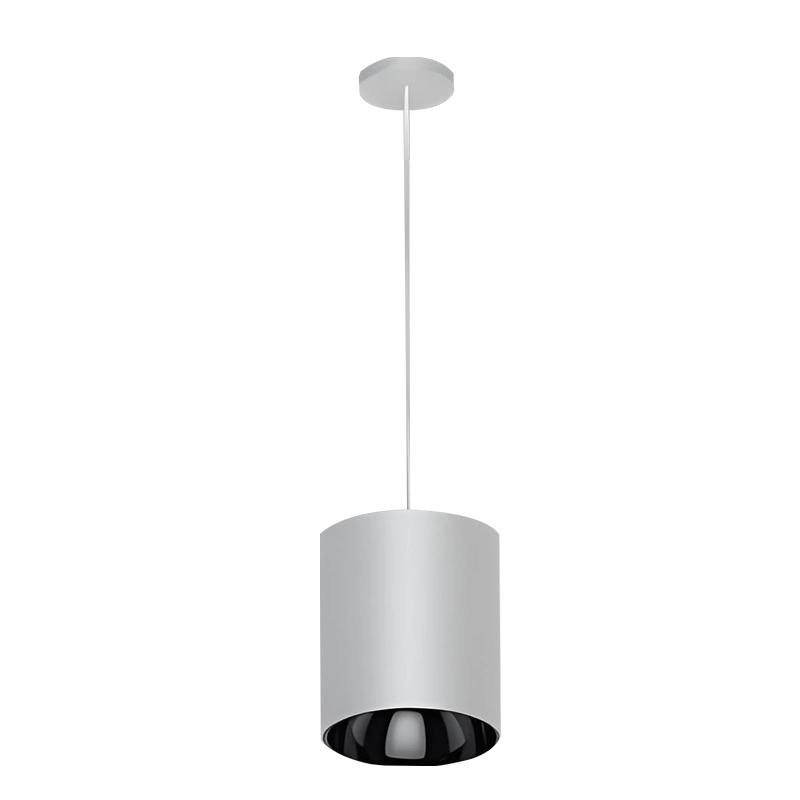

Supports both ceiling-mounted installation and suspension wire installation methods. It can adapt to various base conditions such as gypsum ceilings, metal keels, and cement roofs. The installation process is simple, the debugging is effortless, and it significantly reduces construction time and costs.
Applications In Different Scenarios
Commercial spaces: shopping centers, brand stores, exhibition halls; office and public areas: office corridors, meeting rooms, schools, hospitals; high-end home furnishings: living rooms, kitchens and bathrooms, balconies, atriums of villas. Industrial style venues: coffee shops, restaurants, loft spaces
IP65 LED Downlight FAQs
IP65 LED Downlights are recommended when lighting is exposed to moisture, dust, or semi-outdoor environments such as corridors, entrances, or open commercial ceilings.
Surface-mounted installation eliminates the need for ceiling cutting, reducing installation time and structural limitations.
It enhances heat dissipation, ensuring stable LED operation and longer lifespan under high-power usage.
Different reflector finishes influence visual tone and lighting atmosphere, especially in commercial spaces.
15–30W for low ceilings (2.5–6m), and 40–100W for high ceilings (6–12m).
Narrow beams create focused lighting, while wider beams provide general illumination coverage.
