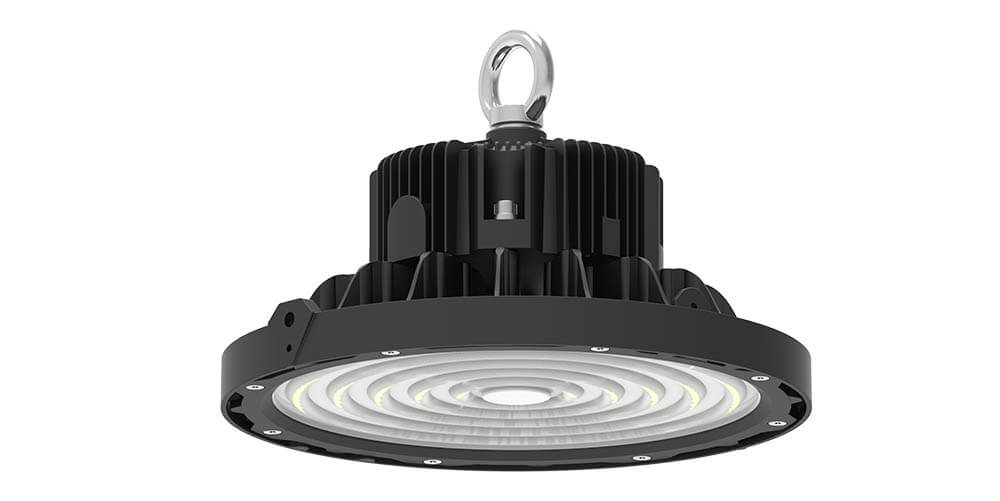

LED High Bay Light – U6 series

UFO high bay light use ADC12 Die-casting aluminum body, with IP65 dustproof and waterproof.

bolt (1)

Wattage

100/150/200/300W
brightness-up

Lighting Specifications

CRI>80, 60°/90°/120°
battery-eco

Light efficiency

150lm/W, 190lm/W SDCM<5 steps
circuit-voltmeter

Input Voltage

AC120-277V
brightness (1)

Dimming Options

0-10V DlM/DALI dimmable
battery-3

Emergency Function

Emergency kits fuction
keyframes

Materials

PC + Aluminum
bulb (2)

LED Type

Lumileds LEDs
shadow

LED Driver

MOSO/Sosen/Philips drivers
cloud-rain

IP Rating

IP65
sparkles

Color Temperature

3000K / 4000K / 5000K / 5700K / 6000K / 6500K
clock-2

Lifespan

>50000 Hours
replace

Warranty

5 Years

UFO High Bay Light High Quality Material

The body is made of ADC12 die-cast aluminum, and the lamps are equipped with high-transparency and yellow-resistant PC lenses. The equipped high-efficiency aluminum substrate features excellent thermal conductivity and electrical insulation.
led high bay structure
light source of high bay

Light Source With High Efficiency

The SMD3030 light source selected is from the Lumileds brand, featuring high brightness and high luminous efficiency. Effectively improve lighting efficiency and reduce energy consumption. In industrial Settings, it provides sufficient and clear light for various production activities, meeting the strict requirements of brightness for different operations. Help improve production efficiency.

Drivers For LED High Bay Light

Choose a well-known power supply like MOSO,Sosen,Philips brand.
It features highly stable current output characteristics and can effectively prevent damage to lamps caused by current fluctuations. Keep the lamps in the best luminous state all the time, providing continuous, uniform and bright light.
drivers of hight bay

Dimmable Ways Optional UFO High Bay

Supports 0-10V and DALI dimming modes. It can automatically adjust according to natural light and human activities to achieve precise lighting and energy conservation.
led high bay light
microwave sensor of high bay

Microwave Sensors Optional

It can be equipped with a microwave sensor and has intelligent sensing function.
When someone or a moving object enters the sensing area, the lamp lights up automatically.
After people leave or objects stop moving for a period of time, the lamps will automatically go out or be adjusted to a low brightness state.

Emergency Kits Function
For High Bay Light

The lights support emergency kits for option, and provide 30mins, 60 mins and 90mins selected. In line with industrial safety standards, suitable for warehouses, workshops, underground mines and other key places.
high bay lights emergency kits

Beam Angles Of LED
High Bay Lights

The unique optical light distribution design achieves uniform illumination through the distribution of light at different angles such as 60°, 90°, and 120°, effectively avoiding lighting dead zones. In industrial environments, providing workers with clear and shadow-free working light can enhance work efficiency and reduce the risk of safety accidents caused by insufficient lighting.
led high bay lamp beam angles

Easily Sensors Installation

1.Remove the plug with a Phillips screw driver. 2.Complete the sensor installation by rotating.
high bay light sensors installation

High Bay Lights Sizes

size of high bay 249mm
100W
size of high bay 289mm
150W
size of high bay 329mm
200W
size of high bay 360mm
300W

Accesories For LED
High Bay Lights Option

We provide matching installation accessories, like bracket, safety rope, external threads and chains.
led high bay mounting U bracket
U Bracket
high bay mounting safety rope
Safety Rope(0.3m)
led high bay mounting External Threads
External Threads M10 / M12
led high bay mounting Stainless Steel
Stainless Steel Hang Chains

Equipped With
PC Refractor For Option

The material of the PC reflector has excellent optical properties, which can effectively reflect light, make the light distribution more uniform and reduce glare. The combination of a reflector and a lens further optimizes the light control capability. Lenses can precisely refract and focus light, achieving light distribution at specific angles.
Small Size PC Refractor
Small Size PC Refractor
Middle Size PC Refractor
Middle Size PC Refractor
Large Size PC Refractor
Large Size PC Refractor
Small Size PC Refractor With Drop Lens
Small Size PC Refractor With Drop Lens
Middle Size PC Refractor With Drop Lens
Middle Size PC Refractor With Drop Lens
Large Size PC Refractor With Drop Lens
Large Size PC Refractor With Drop Lens

Datasheet Of LED
UFO High Bay Light

Model No.
GSH-100W-U6
GSH-150W-U6
GSH-200W-U6
GSH-300W-U6
Power
100W
150W
200W
300W
Material
Aluminum housing and PC lens
Light efficiency
150lm/W 190lm/W
Driver Brand
Sosen, MOSO, Philips
Beam Angle
60°/90°/120°
Voltage
AC120-277V
LEDs
SMD3030
PF
>0.95
LED Lifespan
>50000 hours
IP
IP65
IK
IK10
CRI
>80
CCT
3000K/4000K/5000K/5700K/6000K/6500K
Size
Φ249×173.5
Φ289×176.5
Φ329×179.5
Φ360×180
Warranty
5 Years

Modern Lighting Solutions
using High Bay Light

In industry, in factory workshops such as automobile manufacturing and mechanical processing, it can provide lighting for production operations. In all kinds of warehouses, it is convenient for the search and handling. In the business field, supermarkets use it to illuminate the shelves, and gymnasiums rely on it to meet their lighting needs. In terms of public facilities, there is an underground parking lot.
application of high bay lights warehouse
application of high bay lights tennis court
application of high bay lights sports field

LED High Bay Lamp
Project Case In Egypt

Provide professional lighting solutions for large warehouses in Egypt, improve energy efficiency, reduce operating costs, and meet the requirements of high-intensity and long-duration lighting.
led high bay ufo cases
led high bay ufo estonia case

Related Products

L2
LED High Bay Light - L2 Series
U14
LED High Bay Light - U14 Series
U10
LED High Bay Light - U10 Series
U12
LED High Bay Light - U12 Series

LED High Bay Light FAQs

UFO high bay lights feature a compact design, lower weight, and more efficient heat dissipation. They are easier to install and often provide higher energy efficiency than traditional metal halide or HID lighting systems.

UFO high bay lights are widely used in warehouses, manufacturing plants, logistics centers, workshops, gymnasiums, retail warehouses, and other facilities with high ceilings and large open areas.

Their circular light distribution helps provide uniform illumination across large spaces while reducing dark spots between aisles, racks, and work areas.

Yes. Replacing conventional HID or metal halide fixtures with LED UFO high bay lights can significantly reduce energy consumption while lowering maintenance costs.

Proper lighting helps employees identify hazards, operate equipment more accurately, and move safely throughout the facility. Uniform illumination can also reduce shadows and visibility issues.

Yes. LED UFO high bay lights are designed for long operating hours and are commonly used in factories, warehouses, and distribution centers that require continuous lighting.

UFO high bay lights are often preferred for open spaces with wide lighting coverage requirements, while linear high bay lights are commonly used in warehouse aisles and shelving systems that require directional lighting.

Yes. Industrial-grade UFO high bay lights with IP65 protection are designed to resist dust and moisture, making them suitable for demanding industrial applications.

Effective heat dissipation helps maintain LED performance, reduce lumen depreciation, and extend the overall lifespan of the lighting fixture, especially in industrial environments.

Key factors include mounting height, facility layout, lighting uniformity, energy efficiency, control options, maintenance requirements, and long-term operating costs.
