LED Facade Flood Light Landscape F Series
The Facade Flood Light F series takes outdoor durability as the core, integrating aluminum lamp bodies, thickened tempered glass lampshades and 304 stainless steel fasteners to create a stable structure that is resistant to corrosion and rust.
The convective heat dissipation system, in combination with a low-heat core chip, reduces light attenuation and extends service life. It supports the optional installation of an anti-glare cover. When the cover is not available, it provides wide-angle direct lighting, and when the cover is available, it softens the light to avoid glare. The product is suitable for environments ranging from -20 ℃ to + 50℃, taking into account both the functionality and decorative nature of outdoor lighting, and is adaptable to various scenarios.
The convective heat dissipation system, in combination with a low-heat core chip, reduces light attenuation and extends service life. It supports the optional installation of an anti-glare cover. When the cover is not available, it provides wide-angle direct lighting, and when the cover is available, it softens the light to avoid glare. The product is suitable for environments ranging from -20 ℃ to + 50℃, taking into account both the functionality and decorative nature of outdoor lighting, and is adaptable to various scenarios.
Facade Flood Lighting High Quality LEDs
Equipped with CREE brand LED beads, it features high luminous flux and high brightness, while also having low heat generation, slow light attenuation, longer service life and reduced maintenance costs in the later stage. The number of leds can be flexibly combined from 4 to 48. The corresponding power covers single-color 8W-100W and RGBW 10W-120W. You can choose the model according to the lighting area and brightness requirements.
Adjustable Bracket of LED Facade Flood Light
The lamp body and the bracket adopt a rotatable and adjustable connection structure, supporting multi-angle free adjustment. It can precisely adjust the illumination Angle according to the height difference and concave-convex shape of the building facade, ensuring uniform light coverage of the target area and perfectly meeting the diverse lighting needs of building facades.

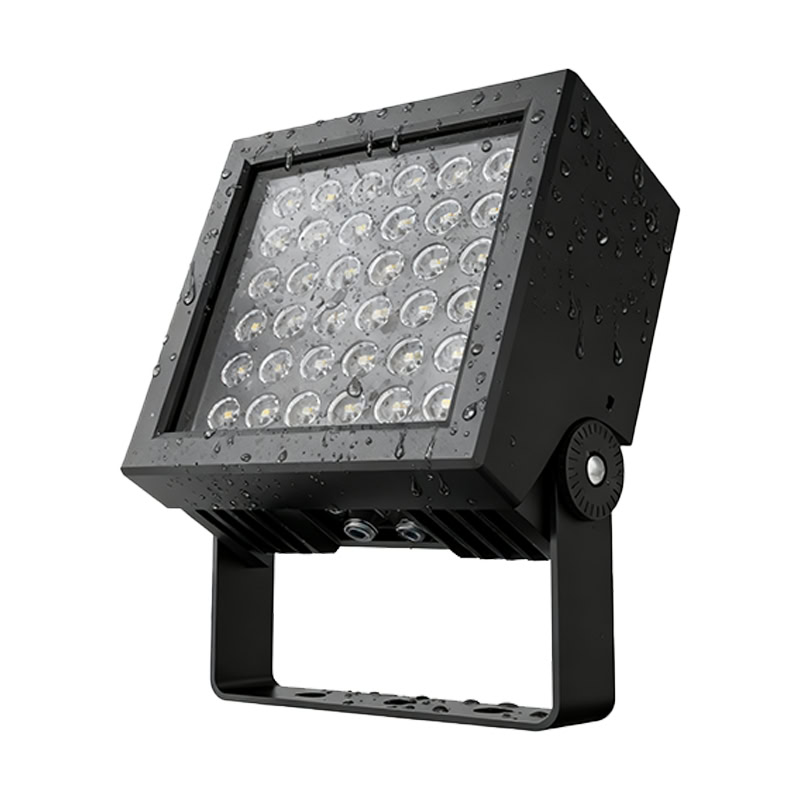

Landscape Flood Light IP66 Waterproof
The Facade Flood Light adopts a fully sealed waterproof structure with built-in waterproof silicone components. Its protection level reaches IP66, which can effectively prevent dust intrusion and rain erosion. Even in bad weather such as heavy rain and sandstorms, it can still provide normal lighting.
It has passed high and low temperature environment tests, with an operating temperature range covering -20 ℃ to + 50℃. It can operate stably in both the cold winter in the north and the hot summer in the south, without worrying about the impact of environmental temperature differences on the performance of the lamps. It is suitable for outdoor use in many regions across the country.
It has passed high and low temperature environment tests, with an operating temperature range covering -20 ℃ to + 50℃. It can operate stably in both the cold winter in the north and the hot summer in the south, without worrying about the impact of environmental temperature differences on the performance of the lamps. It is suitable for outdoor use in many regions across the country.
Facade Flood Lights Horizontal-Cross Structure
The lamp body is made of aluminum material, which is sturdy in texture, has strong corrosion resistance, and also has good thermal conductivity to assist the lamp in heat dissipation.
At the same time, the lampshade is made of high-transparency thickened tempered glass, which has a large light transmission area, a wide lighting range, a grand appearance and is not prone to rust. It can still maintain its light transmission and aesthetic appeal even after long-term outdoor use.
At the same time, the lampshade is made of high-transparency thickened tempered glass, which has a large light transmission area, a wide lighting range, a grand appearance and is not prone to rust. It can still maintain its light transmission and aesthetic appeal even after long-term outdoor use.
LED Facade Flood Lights Optional Bracket
- Aluminum/Iron brackets: Lightweight design, high heat conduction efficiency, suitable for conventional outdoor scenarios;
- 316/304 Stainless steel brackets: Higher strength and stronger corrosion resistance, suitable for harsh environments such as dampness and dust, meeting different installation requirements.
Aluminum/Iron Bracket
316/304 Stainless Steel Bracket
Facade Flood Lights Anti-glare Covers are Optional
Optional anti-glare cover support: When the anti-glare cover is not available, the light is in a wide-angle direct state, which can achieve large-area and high-brightness lighting coverage, suitable for strong light illumination needs such as open squares and large building facades.
After being equipped with an anti-glare shield, it can effectively soften the light, limit the spread of stray light, reduce the glare interference to the surrounding environment and human eyes, and is more suitable for scenarios with high requirements for light comfort, such as street-facing buildings and areas close to people's activity zones.
After being equipped with an anti-glare shield, it can effectively soften the light, limit the spread of stray light, reduce the glare interference to the surrounding environment and human eyes, and is more suitable for scenarios with high requirements for light comfort, such as street-facing buildings and areas close to people's activity zones.
Without anti-glare visor
With anti-glare visor
Different Model Facade Flood Light
It covers multiple models from GS-F65-10W to GS-F220-120W, with a power range of 10W to 120W, and is used for building landscape facade lighting.
Luminous Color of Facade Flood Light
It supports single-color mode (precisely matching the single color temperature requirements such as warm yellow and cold white), and can also be selected as the RGBW four-in-one mode, red, green, blue and white, easily adapting to the lighting needs of different scenarios such as the warm atmosphere of the courtyard and the colorful light and shadow on the building facade.
Beam Angle of Landscape Flood Lighting
The beam Angle is available in multiple options: 3°, 5°, 8°, 15°, 24°, 38°, 45°, 60°, and 90°.
A small Angle (3°-15°) is suitable for focusing light on the Outlines of buildings and landscape features, highlighting key areas.
The large Angle (38°-90°) is suitable for floodlighting to cover courtyards and park walkways, achieving large-scale illumination. In terms of color temperature, the single-color models range from 2700K to 6000K, which can match the lighting atmosphere of different scenarios.
A small Angle (3°-15°) is suitable for focusing light on the Outlines of buildings and landscape features, highlighting key areas.
The large Angle (38°-90°) is suitable for floodlighting to cover courtyards and park walkways, achieving large-scale illumination. In terms of color temperature, the single-color models range from 2700K to 6000K, which can match the lighting atmosphere of different scenarios.
Facade Flood Light Dimension
The size of flood lights is designed differently by model. For example, the GS-F65 series is W65x55x99mm, and the maximum size of the GS-F220 series reaches W220x135x307mm. The small size is suitable for compact Spaces, while the large size meets the high-power lighting requirements and adapts to the space limitations of different installation.
GS-F65-8W
GS-F80-12W
GS-F105-18W
GS-F130-24W
GS-F160-36W
GS-F185-48W
GS-F220-72W
GS-F220-100W
Datasheet of Facade Flood Light
Model No.
GS-F65
GS-F80
GS-F105
GS-F130
GS-F160
GS-F185
GS-F220
GS-F220-L
Power(SINGLE)
8W
12W
18W
24W
36W
48W
72W
100W
Power(RGBW)
10W
15W
24W
36W
38W
60W
96W
120W
LED qty
1/4PCS
1/5PCS
4/5/8PCS
4/8/12PCS
9/16PCS
9/24PCS
12/24/36PCS
16/36/48PCS
L*W*H(mm)
W65x55x99
W80x60x115
W105x82x148
W130x82x178
W160x82x218
W185x90x247
W220x95x291
W220x135x307
Material
ADC12 aluminum, Tempered glass, 304 stainless - steel
LED
CREE
Luminous Color
SINGLE, RGBW 4IN1
IP
IP66
Voltage
DC24V / AC200-240V
Beam Angle
3°/5°/8°/15°/24°/38°/45°/60°/90°
Working Temp
-20°C to +50°C
Life Span
50,000 hours
Warranty
5 Years
Applications In Different Scenarios
Facade Flood Light is widely adapted to various outdoor scenarios:
In the outdoor courtyard, a warm and relaxing atmosphere can be created by using warm-colored light lines to illuminate the walkways and green plants. On the exterior walls of the building, different beam angles are used to outline the lines of the building's facade, enhancing its recognition and aesthetic appeal at night.
When installed on both sides of the bridge, it can not only illuminate the bridge structure to ensure traffic safety, but also allow the lights to reflect on the water surface, creating a dynamic light and shadow effect.
In the park and river landscapes, the landscape ornaments, walkways and riverbanks can be illuminated, extending the night excursion time for citizens.
It is also applicable to the exterior walls of hotels and outdoor squares of shopping malls. Through high-quality lighting, it enhances the grade of the place, attracts customers, and fully meets the needs of outdoor functional lighting and decoration.
In the outdoor courtyard, a warm and relaxing atmosphere can be created by using warm-colored light lines to illuminate the walkways and green plants. On the exterior walls of the building, different beam angles are used to outline the lines of the building's facade, enhancing its recognition and aesthetic appeal at night.
When installed on both sides of the bridge, it can not only illuminate the bridge structure to ensure traffic safety, but also allow the lights to reflect on the water surface, creating a dynamic light and shadow effect.
In the park and river landscapes, the landscape ornaments, walkways and riverbanks can be illuminated, extending the night excursion time for citizens.
It is also applicable to the exterior walls of hotels and outdoor squares of shopping malls. Through high-quality lighting, it enhances the grade of the place, attracts customers, and fully meets the needs of outdoor functional lighting and decoration.
Facade Flood Light FAQs
A Facade Flood Light is designed to illuminate building exteriors, highlighting architectural details, textures, and structural features while enhancing nighttime visibility and aesthetics.
These fixtures are widely used for hotels, office buildings, shopping centers, museums, stadiums, residential towers, and public landmarks.
The required wattage depends on the building height, facade material, illumination distance, and desired lighting effect. Larger structures generally require higher-output Landscape Flood Lights.
Narrow beam angles are suitable for tall buildings and accent lighting, while wider beam angles provide more uniform illumination across large facade surfaces.
The ideal mounting angle varies by project, but adjustable brackets allow installers to optimize light distribution and reduce unwanted glare.
A CRI above 80 is suitable for most applications, helping reveal the natural colors and textures of architectural materials.
Yes. Professional Landscape Flood Lights are designed for continuous outdoor operation under varying weather conditions.
Key factors include beam angle, mounting distance, facade color, surface texture, fixture spacing, and light output.
Many projects require specific finishes to match architectural designs. GS Light can assist with customization based on project requirements.
Lighting distance depends on wattage, optical design, and beam angle. Narrow-beam fixtures generally achieve longer projection distances.
Routine inspections and occasional cleaning are generally recommended to maintain consistent lighting performance.
