Outdoor Bollard Lights BW-Flat Head Series

BW Flat Head LED bollard light is versatile outdoor bollard lights. Minimalist φ120 flat design, 10W–15W, 700–1050lm, sturdy structure, reliable protection, fits most outdoor scenes, cost-effective, easy to install and durable.

bolt (1)

Wattage

10W/14W/20W/24W/30W
circuit-voltmeter

Input Voltage

AC200-240V
keyframes

Materials

Die-casting aluminum alloy with Extruded aluminum alloy
bulb (2)

LED Type

Lumileds 2835
cloud-rain

IP Rating

IP65
sparkles

Color Temperature

2700K-6500K
clock-2

Lifespan

>50000hours
replace

Warranty

5 Years
Breating Apparatus bollard light replacement

Outdoor Bollard Lights Removable Lamp Head

features a removable lamp head design for quick access to LED and driver modules, simplifying installation and post-maintenance processes.

Robust Construction for Outdoor Use

The main body of these outdoor bollard lights is crafted from die-casting and extruded aluminum alloy, finished with anti-UV electrostatic powder coating. This ensures resistance to corrosion, fading, and physical impact, making them perfect for long-term outdoor installation.

outdoor bollard lights Diameter 120 M2 head

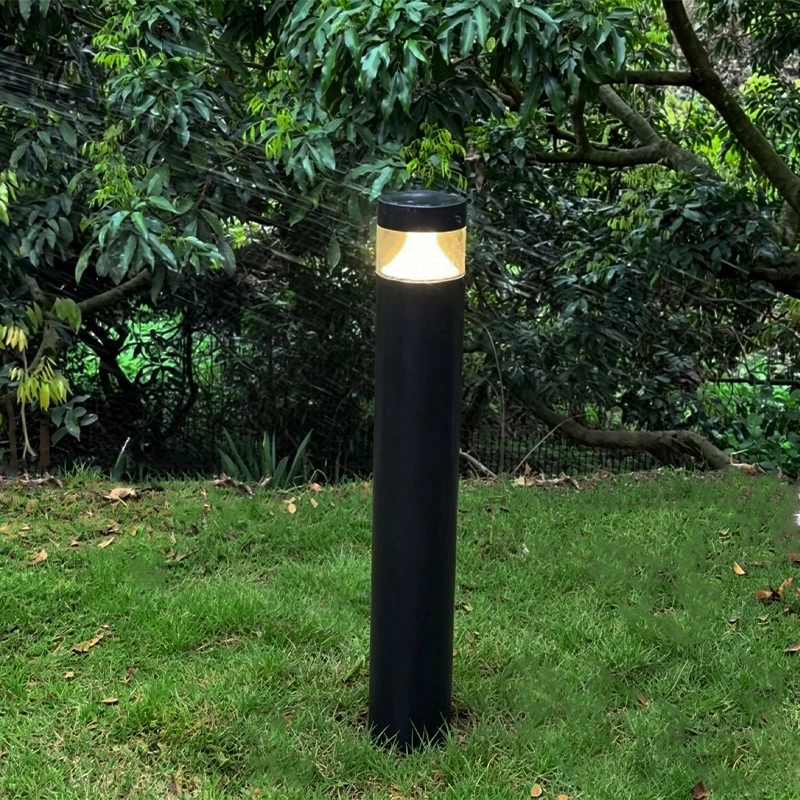

Bollard Light Replacement IP65 waterproof

IP65 & IK08 Protection Outdoor Bollard Lights

With IP65 waterproof/dustproof rating and IK08 impact resistance, these outdoor bollard lights withstand rain, dust, and accidental collisions, ensuring stable operation in extreme weather conditions.

Anti-Glare & High-Efficiency Lighting

Equipped with a clear anti-UV PC diffuser and anti-glare plate, the BW Series outdoor bollard lights provide uniform, comfortable illumination without harsh glare. The wide color temperature range (2700K-6500K) adapts to various lighting scenarios, from warm ambient glow to bright task lighting.

bollard light replacement Lighting

Outdoor Bollard Lights Heads

All lamp heads are designed to be detachable, facilitating quick maintenance of the LED and driver modules.

outdoor bollard lights Diameter 160 M1 head
GS-BW-A160-M2
Diameter: Φ160
Head: M3
outdoor bollard lights Diameter 120 M2 head
GS-BW-B120-M2
Diameter: Φ120
Head: M3
outdoor bollard lights Diameter 120 N1 head
GS-BW-C120-N2
Diameter: Φ120
Head: N3

dimension of Outdoor Bollard Lights

bollard landscape lighting 120 diameterDiameter 160 bollard light replacement
outdoor bollard lights diameter 160
GS-BW-A160-M3
Diameter: Φ160
Head: M3
outdoor bollard lights diameter 120
GS-BW-B120-M3
Diameter: Φ120
Head: M3
diameter 120 outdoor bollard lights
GS-BW-C120-N3
Diameter: Φ120
Head: N3

Outdoor Bollard Lights optional accessory

Includes die-casting heatsink, breathing apparatus, and anti-glare board for enhanced performance and customization .

bollard light replacement Die Casting Heatsink
Die Casting Heatsink
bollard light replacement Die Casting Heatsink GS LIGHT
Die Casting Heatsink
Breating Apparatus bollard light replacement
Breating Apparatus
Anti-glare Board bollard light replacement
Anti-glare Board
bollard landscape lighting Clear Injection Pc Diffuser
Clear Injection Pc Diffuser
Opal Pmma Diffuser bollard landscape lighting
Opal Pmma Diffuser
bollard landscape lighting Die Casting Reflector
Die Casting Reflector
Injection Pc Diffuser outdoor bollard lights
Injection Pc Diffuser
outdoor bollard lights Die Casting Reflector GS LIGHT
Die Casting Reflector
outdoor bollard lights Injection Pc Diffuser GS LIGHT
Injection Pc Diffuser
Die Casting Reflector Diameter 120 N1 HEAD outdoor bollard lights
Die Casting Reflector

Selectable Dimension and Wattages

Model No.
GS-BW-A160-10W
GS-BW-A160-14W
GS-BW-A160-20W
GS-BW-A160-24W
GS-BW-A160-30W
Power
10W
14W
20W
24W
30W
Voltage
AC200-240V
Lumens
750Lm
1055Lm
1463Lm
1672Lm
2070Lm
LED
Lumileds 2835
Lumileds 2835
Lumileds 2835
Lumileds 2835
Lumileds 3030
IP
IP65
IK
IK08
CRI
>80
CCT
2700-6500K
Model No.
GS-BW-B120-10W
GS-BW-B120-15W
Power
10W
15W
Voltage
AC200-240V
Lumens
700Lm
1050Lm
LED
Lumileds 2835
Lumileds 2835
IP
IP65
IK
IK08
CRI
>80
CCT
2700-6500K
Model No.
GS-BW-C120-10W
GS-BW-C120-15W
Power
10W
15W
Voltage
AC200-240V
Lumens
700Lm
1050Lm
LED
Lumileds 2835
Lumileds 2835
IP
IP65
IK
IK08
CRI
>80
CCT
2700-6500K

Outdoor Bollard Lights Applications In Different Scenarios

Widely applicable in walkways, car parks, commercial plazas, and residential complexes. These outdoor bollard lights provide reliable lighting for safety and navigation, while their sleek design complements modern architectural styles. Whether for illuminating pathways or enhancing security, they are a practical and durable choice for any outdoor space .

LED Outdoor Bollard Lights FAQs

Yes, the BW Series outdoor bollard lights feature an IP65 waterproof and dustproof rating, along with IK08 impact resistance, ensuring reliable performance in rain, snow, and harsh outdoor environments.

The clear anti-UV PC diffuser with an anti-glare plate reduces harsh light and ensures uniform illumination, making these outdoor bollard lights ideal for walkways and public areas where eye comfort is critical.

Absolutely. The removable lamp head design allows quick access to LED and driver modules, simplifying installation and post-maintenance for outdoor bollard lights.

The main body combines die-casting and extruded aluminum alloy with anti-UV electrostatic powder coating, ensuring durability and resistance to corrosion for outdoor use.

They are ideal for walkways, parks, car parks, and prestigious retail areas, providing both functional and decorative lighting solutions.

Equipped with high-quality Lumileds LEDs, the BW Series delivers high luminous efficacy (e.g., 10W model provides 750Lm), ensuring energy savings for long-term use.

The clear anti-UV injection polycarbonate diffuser prevents yellowing and maintains light transmittance, even with prolonged outdoor exposure.

Thanks to durable materials and efficient heat dissipation, GS Light’s bollard lights have a 50000-hours long lifespan, ensuring stable operation for years in outdoor environments.

Yes, the anti-UV powder coating and aluminum construction resist corrosion, making them suitable for coastal and high-humidity environments.
