GS Light logo

IP69K LED Tri Proof Light

GS LIGHT IP69K LED Tri proof Light are an ideal solution for food processing and poultry lighting industry.

The IP69K is the highest level of this protection and is designed for applications where water jets are under high pressure and high temperature are used for specific wash-downs.

This will also include special sensitization and chemical cleaning. In some instances, the cleaning process involves very intensive requirements for industries such as Food & Beverage as well as the vehicle industry.

The IP69K Lighting are durable and eco-friendly alternative lighting systems to traditional fluorescent tubes.

The LED Tri-proof light are designed to withstand severe environments and will help you reduce your energy consumption by up to 80%.

GS LIGHT`s IP69K LED Tri Proof Lights use High efficiency SMD2835, Total lamp up to 150lm/w, also we use TUV Free Flicker driver good for eyes.

The products Against water pressure of 100bar (1450psi) and temperature of 80°C. The working life more than 50000 hours which offer 5 years warranty

brightness-up

Lighting Specifications

PMMA IK06 / PC IK10 Anti-ammonia
battery-eco

Light efficiency

System efficiency up to 130lm/W & 150lm/W option
shadow

LED Driver

Flicker Free driver
angle

Beam Angle

Wide beam angle 120°
adjustments-alt

Mounting Type

Surface Mount or Suspended
cloud-rain

IP Rating

IP69K
certificate

Certification

Environmentally friendly, no mercury, No UV, No IR
replace

Warranty

5 Year Warranty on complete fixture. (LED's, Driver, & Housing)

IP69K LED Tri Proof light with ceiling surface mount

GS LIGHT’s IP69K LED Tri-Proof Light is built for tough environments like food processing and poultry facilities. It withstands high-pressure (100bar) and high-temperature (80°C) wash-downs, ideal for strict sanitization.

With up to 150 lm/W, a flicker-free driver, and 80% energy savings, it’s a durable, eco-friendly alternative to fluorescent lights. Long-lasting (50,000+ hrs) and backed by a 5-year warranty.
IP69k LED tri proof light

GS LIGHT IP69K LED batten lights with Suspension mount

GS LIGHT’s IP69K LED Batten Light with suspension mount is perfect for harsh, hygienic environments. It resists high-pressure, high-temperature cleaning and delivers up to 150 lm/W with flicker-free performance. Durable, energy-efficient, and built to last 50,000+ hours.
IP69k LED tri proof light Suspension
Hiclean IP69K tri proof light 03

Tri Proof Lighting Quick and Easy Linkable Connctors

GS LIGHT’s Tri-Proof Lights feature quick and easy linkable connectors for fast, seamless installation. Ideal for continuous runs in demanding environments, saving time and reducing labor costs.

IP65 Tri proof LED Light Construction

GS LIGHT’s IP65 Tri-Proof LED Light features a robust, waterproof build for reliable performance in dusty, damp, or industrial environments. Built to last with energy-efficient, low-maintenance design.
ip69k-tri-proof-light-detail-1

LED Tri Proof Lights Dimension

led tri proof light
IP69K LED Tri proof light UGR19

GS LIGHT IP69K Tri Proof Light UGR<19, 60°/90° Reflector for option

GS LIGHT’s IP65 Tri-Proof LED Light features a robust, waterproof build for reliable performance in dusty, damp, or industrial environments. Built to last with energy-efficient, low-maintenance design.

LED Tri-proof lighting installation

GS LIGHT’s LED Tri-Proof Lights are designed for quick and versatile installation—surface-mounted, suspended, or linkable—making them ideal for a wide range of industrial and commercial settings.
Hiclean IP69K tri proof light installation

Tri Proof Lamp Datasheet

Model No.
GS-TF-20W
GS-TF-40W
GS-TF-50W
GS-TF-60W
Power
20W
40W
50W
60W
Dimension
552×Φ75mm
1152×Φ75mm
1452×Φ75mm
1452×Φ75mm
Material
Aluminum + PC
Light efficiency
150lm/W
Working Voltage
DC36–42V
LED Type
SMD2835
Voltage
AC100-240V(50/60HZ)
LEDs
SMD2835
LED Lifespan
Ta 40°C L70>54000 hours
IP
IP69K
IK
IK10
Beam Angle
120°
CRI
>80
Power Factor
>0.9
CCT
3000K/4000K/5000K/5700K
Working Temperature
-40°C to +55°C

The IP69K Tri Proof Lights Application

Ideal for food processing areas, poultry farms, factories, warehouses, gyms, and exhibition halls. Also perfect for parking garages, corridors, and shops. Suitable for both new and retrofit projects, offering energy efficiency and cost savings across commercial and industrial spaces.
application of tri proof lights railway station
application of led tri proof lamps
application of led triproof lamp

Related Products

LED Tri Proof Light - TB Series
LED Tri Proof Light – TB Series

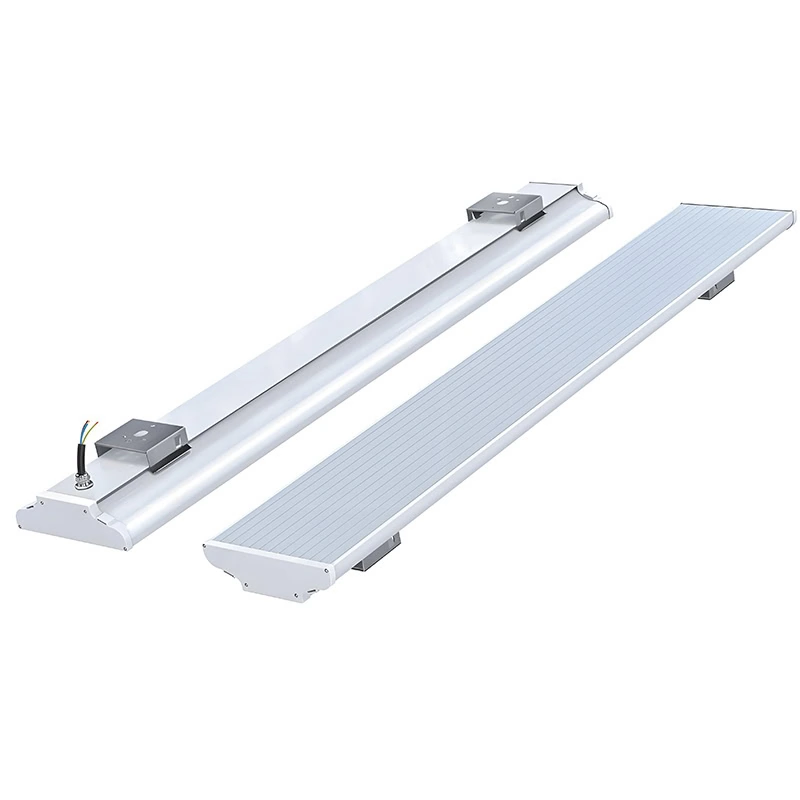

LED Tri Proof Light - TW Series
LED Tri Proof Light – TW Series
led batten lights indoor lights
LED Batten Light - TL Series

IP69K LED Tri Proof Light FAQs

An IP69K LED Tri Proof Light is designed to withstand high-pressure, high-temperature water cleaning, making it suitable for environments with strict hygiene and washdown requirements.

Food processing facilities are frequently cleaned with high-pressure water. LED Tri Proof Lights with IP69K protection help maintain reliable performance during regular washdown procedures.

The sealed construction helps prevent water, dust, and other contaminants from reaching internal electrical components, supporting long-term operation.

Yes. Its enclosed design makes it suitable for production areas where cleanliness and equipment protection are important.

In environments where cleaning agents or moisture are present, corrosion resistance helps maintain the fixture's appearance and long-term performance.

A reliable cable entry helps maintain the fixture's overall sealing performance and protects internal electrical connections.

Impact-resistant fixtures are better suited to environments where accidental contact with equipment or tools may occur.

Its durable construction and protective design help reduce maintenance requirements in demanding environments..

Consider the cleaning process, environmental conditions, installation location, and maintenance requirements to select the most suitable fixture.

Its enclosed structure and smooth surface help minimize dust accumulation and make routine cleaning more efficient.
