LED Tri Proof Light – TA Series

LED batten lamp has multiple power options (18W/36W/50W/60W), Tempered glass cover, and stainless steel bottom shell and clip
Commercial light up to 160Lm/W system efficiency delivers exceptional brightness while minimizing energy use. Environmentally friendly with no mercury, UV, or lR emissions

bolt (1)

Wattage

20/40/60 W
brightness-up

Lighting Specifications

CRI>80, 120°
battery-eco

Light efficiency

160lm/W
circuit-voltmeter

Input Voltage

AC200-240V 50/60Hz
brightness (1)

Dimming Options

Standard /0-10V DlM/Triac Dim/DALI dimmable
battery-3

Emergency Function

Self-test emergency with LifePo4 battery optional
keyframes

Materials

PC cover + Aluminum housing
bulb (2)

LED Type

CREE/OSRAM LEDs
shadow

LED Driver

Eaglerise/Tridonic drivers
cloud-rain

IP Rating

IP65
sparkles

Color Temperature

3000K / 4000K / 5000K / 5700K / 6000K / 6500K
clock-2

Lifespan

Ta40℃ L70> 54000 hours
replace

Warranty

5 Years

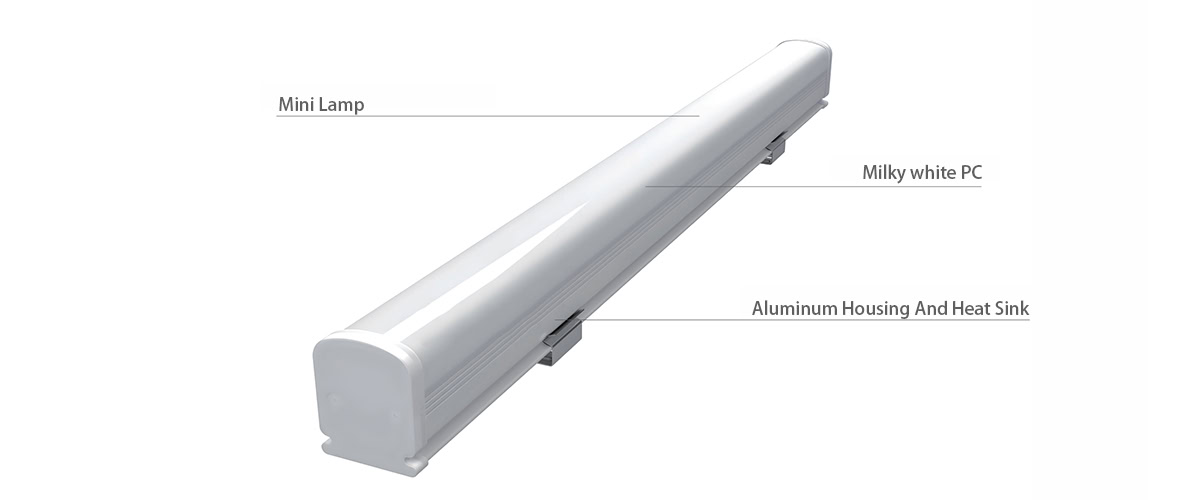

LED Tri Proof Lamp High Quality Material

Equipped with aluminum heat sinks, it has excellent heat dissipation performance, ensuring the stable operation of the lamp,
effectively extending its service life, and reducing the frequency of faults and replacements caused by heat dissipation issues.
structure of led tri proof lamp

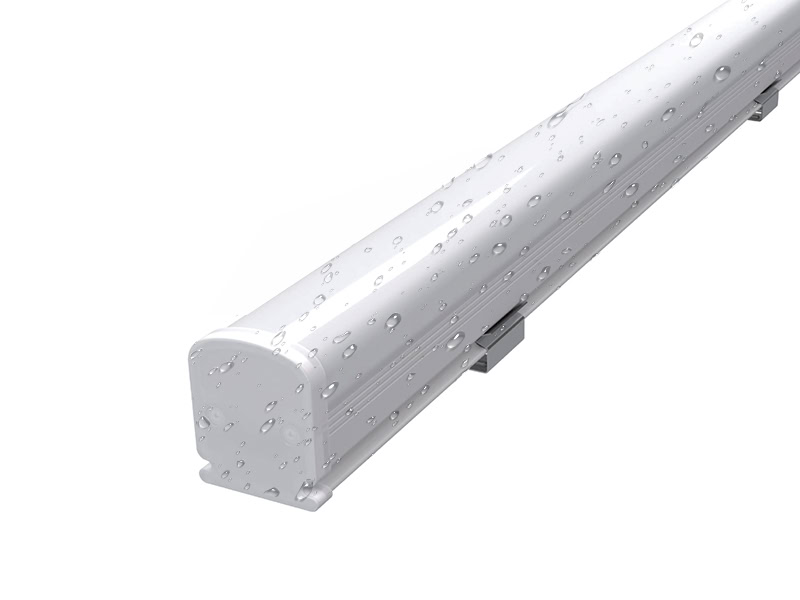

IP65 LED Tri Proof Lamp

Robust Environmental Protection
• IP65-rated enclosure - completely dust-tight and protected against powerful water jets from any direction
• IK10 impact resistance - withstands 20 joules of force (equivalent to a 5kg weight dropped from 40cm)
led tri proof lamp IP65
outdoor batten lamp emergency battery

Emergency Battery Optional

Optional lithium iron phosphate (LiFePO4) batteries are available, featuring self-check and emergency response functions.
The integrated smart technology includes fail-safe mechanisms and real-time alerts to ensure optimal performance and safety.

3 Kinds Of Ways Of LED Tri Proof Lamp Installations

Tri proof lights have 3 ways of installation: surface mount, wall mount and suspend mount.

We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.
installation-ways-1536×576 (1)

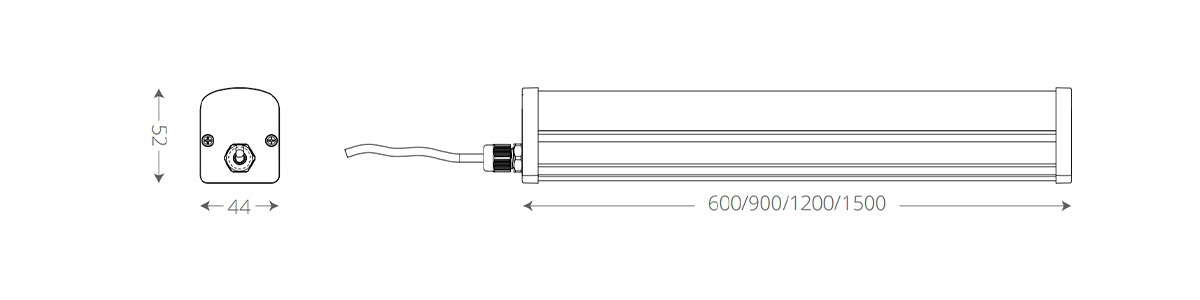

LED Tri Proof Lamp Sizes

Offer various specifications to meet the lighting needs of different scenarios. Four lengths are available for selection: 600mm, 900mm, 1200mm, and 1500mm. They can flexibly adapt to various installation environments.
size of led tri proof lamp
outdoor led batten dimming function

Dimming Function And Control System

Set the daylight threshold at 25Lux. When the ambient light intensity reaches or exceeds 25Lux, it is considered to have sufficient light.
When it is below 25Lux, it is regarded as insufficient light. When the lamp detects human movement, the light will switch from a low-brightness state to full brightness (100% brightness).

Equipped With Sensors For Optional

Equipped with advanced sensing technology, it precisely covers the detection range, ensuring no blind spots in sensing and achieving an intelligent lighting experience.
Supports flexible adjustment from 25% to 100%. Whether it’s a quiet office, a busy corridor, or a frequently accessed warehouse space, the lighting control can be customized as needed.
outdoor led batten sensor detection

Drivers Used In LED Tri Proof Lamp

For the core components of lighting products, such as power supplies, well-known industry brands like Tridonic and Eaglerise are used.
From high efficiency and energy conservation to stable operation, from long-lasting durability to safety and reliability, every link demonstrates quality.
led tri proof lamp driver tridonicled tri proof lamp driver
linear batten light beam angle 120degree

High Light Efficiency And 120° Beam Angle

The TF series is equipped with high-efficiency LED technology, with a luminous efficacy of up to 160lm/W.
It adopts a 120-degree large-angle lighting design, allowing a single lamp to cover a wider space and effectively reducing the number and cost of lamp installations.

Datasheet Of LED Tri Proof Lamp TF Series

Model No.
GS-TF600-20W
GS-TF1200-40W
GS-TF1500-60W
Power
20W
40W
60W
Material
Aluminum housing and PC cover
Light efficiency
160lm/W
Driver Brand
Eaglerise/Tridonic
Voltage
AC200-240V
LEDs
SMD2835
PF
>0.95
LED Lifespan
Ta 40°C L70>54000 hours
IP
IP65
IK
IK10
CRI
>80
CCT
3000K/4000K/5000K/5700K/6000K/6500K
Size
600*44*52
1200*44*52
1500*44*52
Warranty
5 Years

Applications Of LED Tri Proof Lamp

Small-sized design, easy to install and not taking up too much space It can be flexibly adapted to various scenarios such as office Spaces, medical facilities, and retail stores, easily creating a comfortable, safe and bright lighting environment.
application of tri proof in car room
application of IP65 tri proof
application of tri proof light

Related Products

LED Tri Proof Light - TM Series
LED Tri Proof Light – TM Series
LED Tri Proof Light - TN Series
LED Tri Proof Light – TN Series
LED Batten Light - TC Series
LED Batten Light – TC Series

LED Tri Proof Light FAQs

The enclosed design helps protect internal components from dust, moisture, and environmental contaminants, contributing to reliable long-term performance.

Yes. The fixture is designed for environments where humidity is present, making it suitable for utility rooms, production areas, and covered outdoor applications.

Yes. Multiple power options allow users to select the most appropriate lighting level for different areas while maintaining a consistent fixture appearance.

They offer reliable illumination, reduced maintenance requirements, and enhanced protection against environmental factors commonly found in industrial facilities.

The diffuser helps distribute light more evenly, reducing harsh brightness and creating a more comfortable visual environment.

In commercial and industrial environments, fixtures may occasionally be exposed to accidental impacts. Impact resistance helps protect internal components and maintain normal operation.

Yes. Parking garages often require durable and low-maintenance lighting solutions, making LED Tri Proof Lights a practical choice.

The size of the installation area, mounting layout, and required illumination level should all be considered when selecting fixture length.

Yes. At GS Light, we can recommend suitable LED Tri Proof Lights based on installation environments, lighting goals, and project requirements.
