LED Tri Proof Light – TD Series

Tri proof light TD series as a high-power lighting series, it offers multiple power options of 60W, 120W, and 150W, easily meeting the lighting needs of large areas and long distances. ON/OFF sensors or use DALI function to achieve intelligent lighting control, which is energy-saving and convenient. The tool-free intelligent end cover design enables installation and maintenance to be completed by hand.

bolt (1)

Wattage

60/120/150 W
brightness-up

Lighting Specifications

CRI>80, 120°
battery-eco

Light efficiency

160lm/W
circuit-voltmeter

Input Voltage

AC200-240V 50/60Hz
brightness (1)

Dimming Options

Standard /0-10V DlM/Triac Dim/DALI dimmable
battery-3

Emergency Function

Self-test emergency with LifePo4 battery optional
keyframes

Materials

PC cover + Aluminum housing
bulb (2)

LED Type

CREE/OSRAM LEDs
shadow

LED Driver

Eaglerise/Tridonic drivers
cloud-rain

IP Rating

IP65
sparkles

Color Temperature

3000K / 4000K / 5000K / 5700K / 6000K / 6500K
replace

Warranty

5 Years

Tri Proof Light High Quality Material

The PC casing endows the product with strong heat dissipation performance. Even if it operates under high load for a long time, it can still ensure stable operation.
Whether it is an extremely harsh industrial environment or a conventional operation scenario, it can handle them all with ease
tri proof light TD series structure

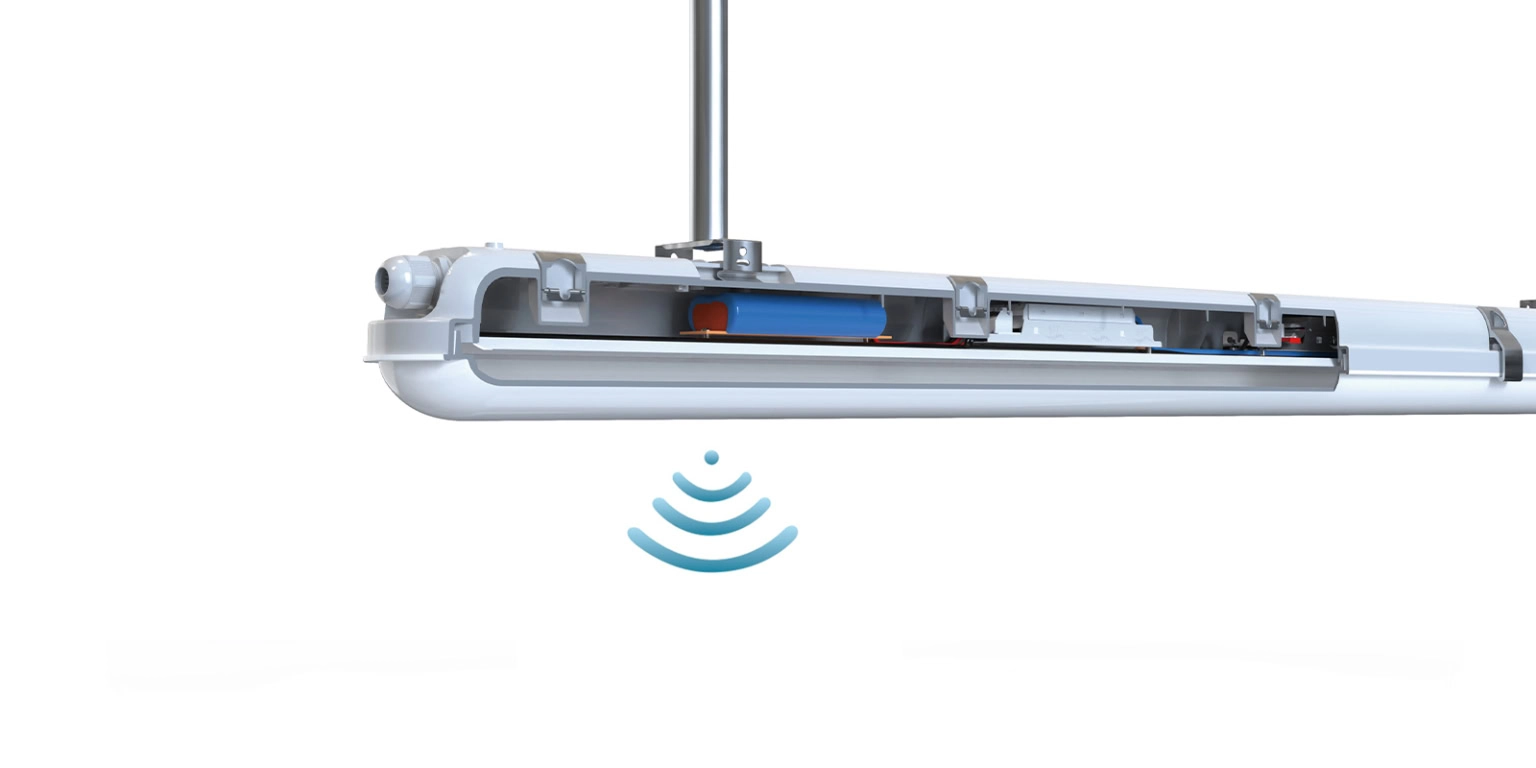

Sensors Function And
Modes Optional

You can choose to set the daylight threshold at 25Lux or the daylight threshold disabling mode.
This setting can be flexibly selected according to actual needs, facilitating energy conservation and on-demand lighting under different lighting conditions.
led-batten-light-microwave-sensors-1536x768
outdoor batten lamp emergency battery

Emergency Battery Optional

The TD series can be optionally equipped with lithium iron phosphate (LiFePO4) batteries.
The self-check function can monitor the battery status in real time, issue early warnings of potential faults, and ensure the stable operation of the equipment.
The emergency response function can quickly activate the lighting in case of sudden power outages and other emergencies, ensuring the safety and order of the operation.

3 Kinds Of Ways Of Tri Proof Lights Installations

Tri proof lights have 3 ways of installation: surface mount, wall mount and suspend mount.

We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.
installation-ways-1536×576 (1)

LED Batten Light Sizes

sizes of tri proof

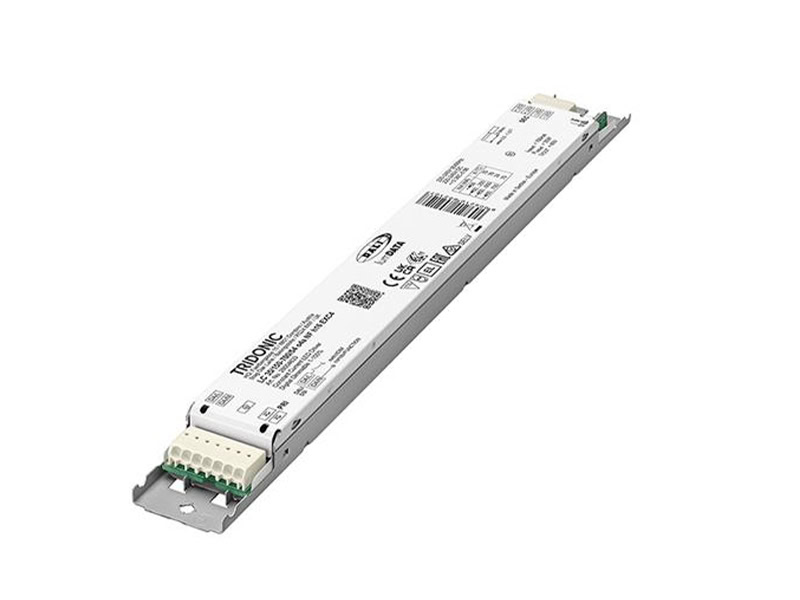

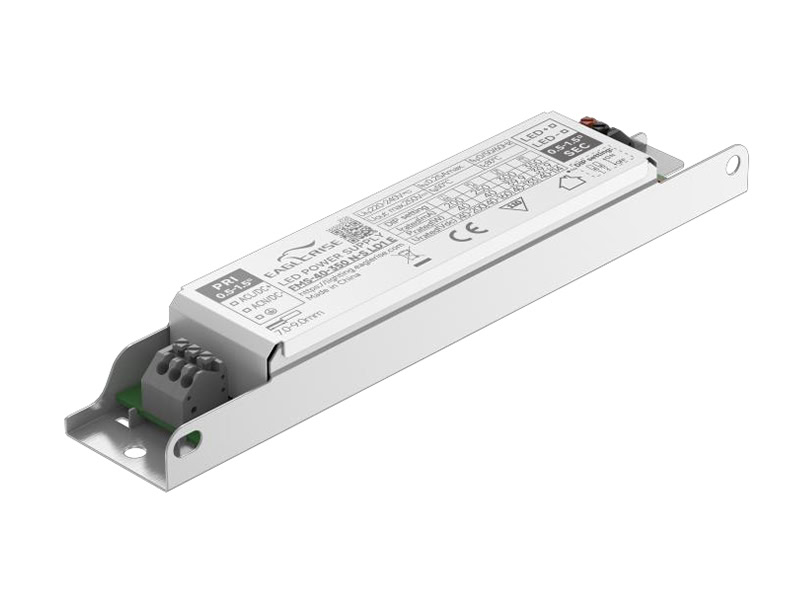

Drivers Used In LED Tri Proof Lights

For the core components of lighting products, such as power supplies, well-known industry brands like Tridonic and Eaglerise are used.
From high efficiency and energy conservation to stable operation, from long-lasting durability to safety and reliability, every link demonstrates quality.
led tri proof lamp driver tridonicled tri proof lamp driver
led tri proof lights dimmable ways

Intelligent Dimming Control LED Tri Proof Lights

Support DALI, 0-10V dimming and wireless control, adapt to different customer needs, no need to replace hardware.

0-100% smooth brightness adjustment, no stroboscopic, protect human eye comfort. Automatic dimming + remote control, save electricity and reduce labor costs.

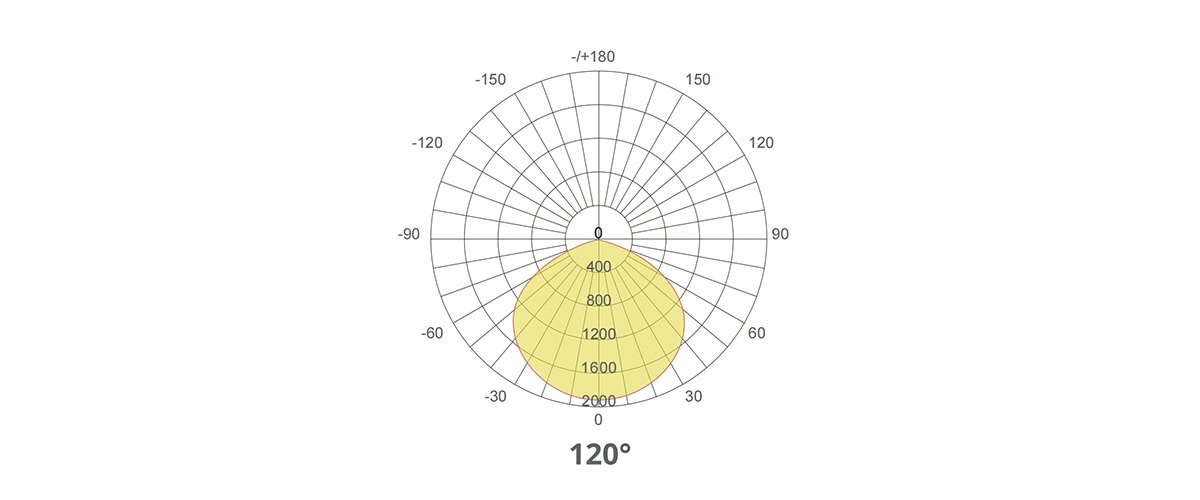

High Light Efficiency And 120° Beam Angle

The TD series is equipped with high-efficiency LED technology, with a luminous efficacy of up to 160lm/W.
It adopts a 120-degree large-angle lighting design, allowing a single lamp to cover a wider space and effectively reducing the number and cost of lamp installations.
linear batten light beam angle 120degree
easy twist openning design of tri proof

Easy Twist Openning Design

The TD series innovatively adopts a tool-free intelligent end cover design, eliminating the need for any tools such as screwdrivers or wrenches. With just a simple twist and turn by hand, installation and maintenance can be quickly completed.

Datasheet Of LED Tri Proof Light

Model No.
GS-TD600-60W
GS-TD1200-120W
GS-TD1500-150W
Power
60W
120W
150W
Material
All plastic and aluminum heat sink
Light efficiency
160lm/W
Driver Brand
Eaglerise/Tridonic
Voltage
AC200-240V
LEDs
SMD2835
PF
>0.95
LED Lifespan
Ta 40°C L70>54000 hours
IP
IP65
IK
IK10
CRI
>80
CCT
3000K/4000K/5000K/5700K/6000K/6500K
Size
600*74*76
1200*74*76
1500*74*76
Warranty
5 Years

Modern Lighting Solutions
using Batten Light

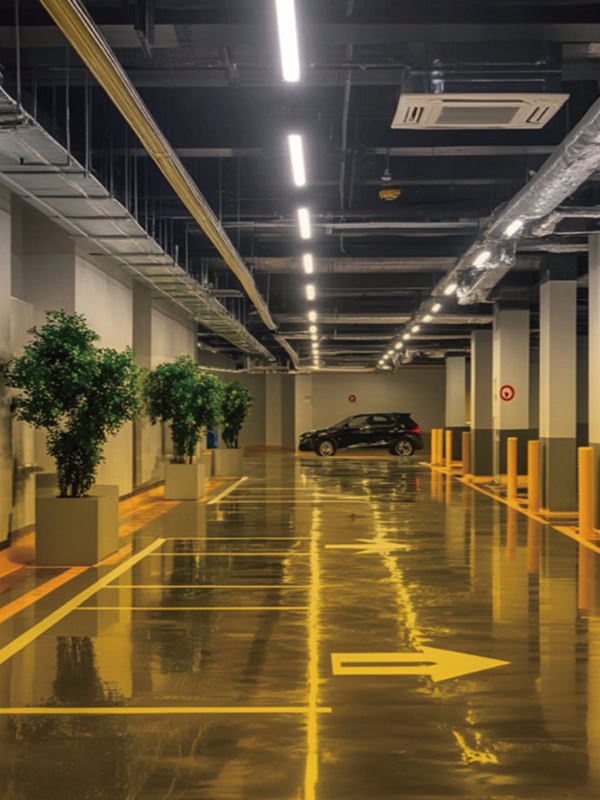

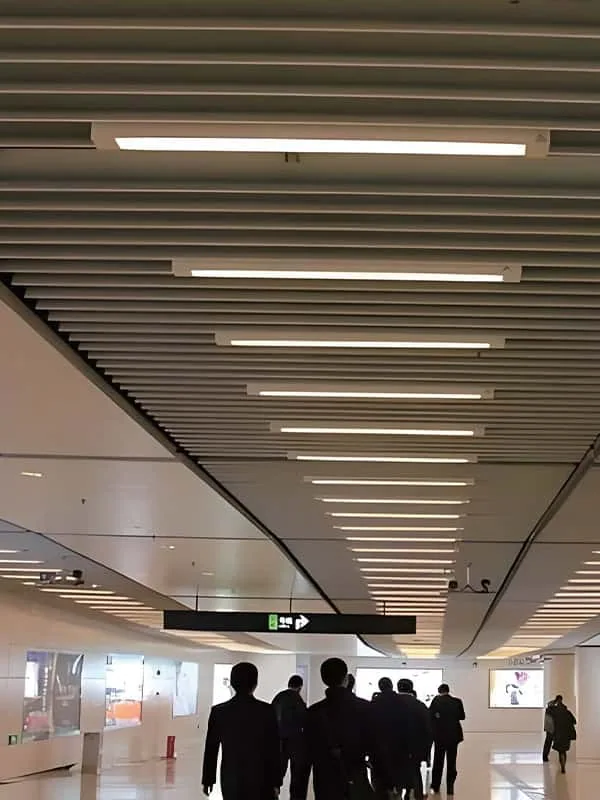

In industry, in factory workshops such as automobile manufacturing and mechanical processing, it can provide lighting for production operations. In all kinds of warehouses, it is convenient for the search and handling. In the business field, supermarkets use it to illuminate the shelves, and gymnasiums rely on it to meet their lighting needs. In terms of public facilities, there is an underground parking lot.
application of tri proof lights railway station
application-of-tri-proof
application of led tri proof lamps

Related Products

LED Batten Light - TC Series
LED Batten Light – TC Series

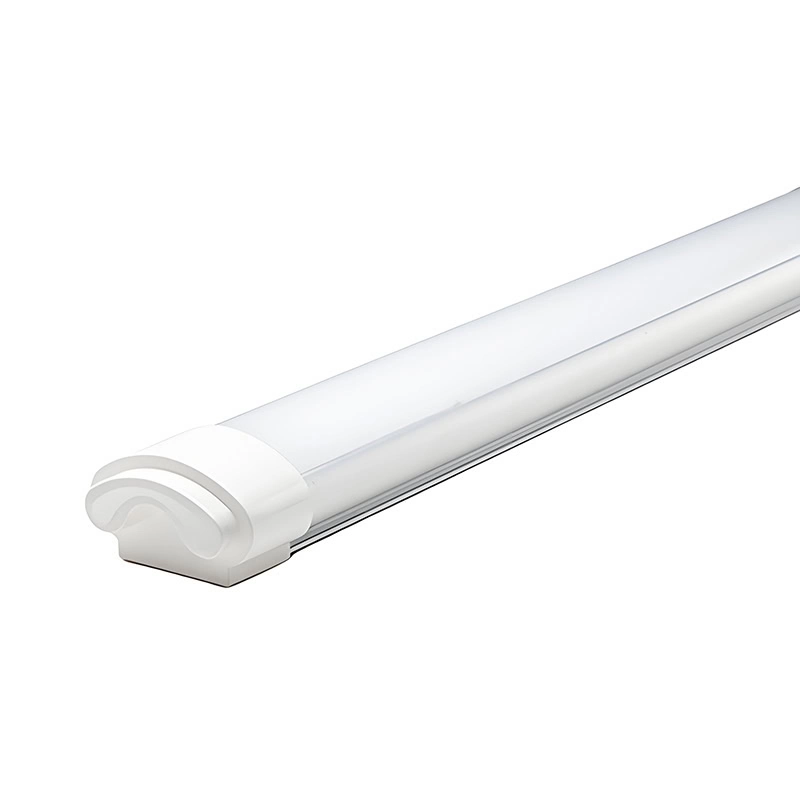

LED Tri Proof Light - TM Series
LED Tri Proof Light – TM Series
LED Tri Proof Light - TN Series
LED Tri Proof Light – TN Series
LED Tri Proof Light - TF Series
LED Tri Proof Light – TF Series

LED Tri Proof Light FAQs

Quick linkable connectors simplify fixture-to-fixture wiring, helping reduce installation time while making continuous lighting layouts more efficient.

Yes. The linkable design supports continuous lighting layouts, making it suitable for long aisles, workshops, and other large indoor spaces.

The optional reflector helps reduce glare while directing light more effectively, improving visual comfort in working environments.

A 60° reflector is generally suitable for more concentrated illumination, while a 90° reflector provides wider light distribution. The selection depends on the project layout and lighting objectives.

A flicker-free driver helps provide stable illumination and contributes to a more comfortable visual experience during extended operation.

Both options are available. Surface mounting is suitable for lower ceilings, while suspension mounting is often preferred for higher installation heights.

The aluminum body helps improve heat dissipation, while the PC components contribute to durability and impact resistance.

Yes. The protective design makes LED Tri Proof Lights suitable for environments where regular cleaning is part of normal maintenance procedures.

Consistent light distribution helps reduce dark areas and creates a more comfortable visual environment for daily operations.

Yes. Its robust construction and high protection level make LED Tri Proof Lights suitable for demanding commercial and industrial environments.
