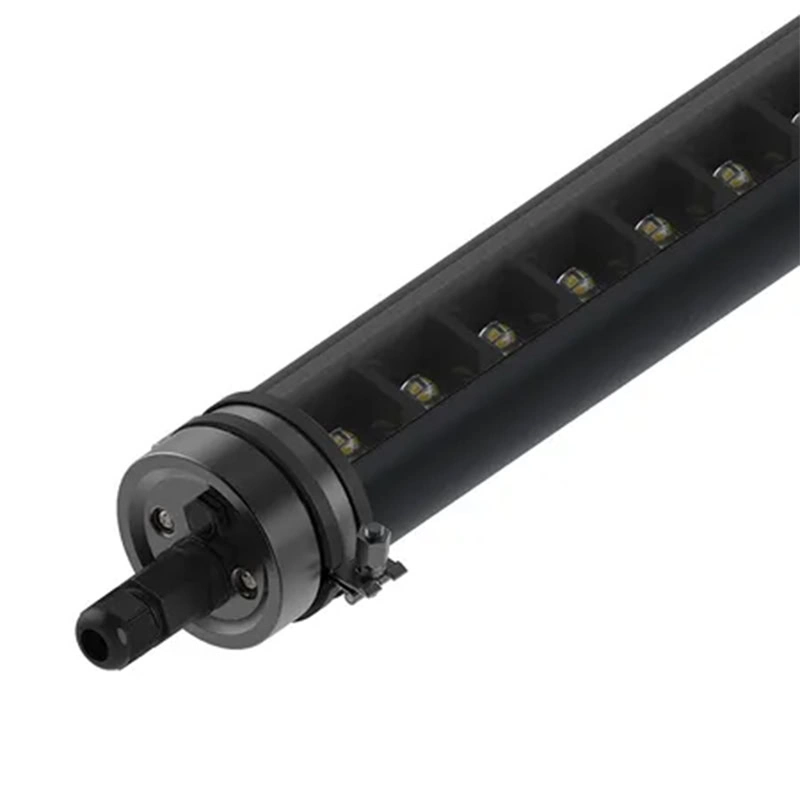

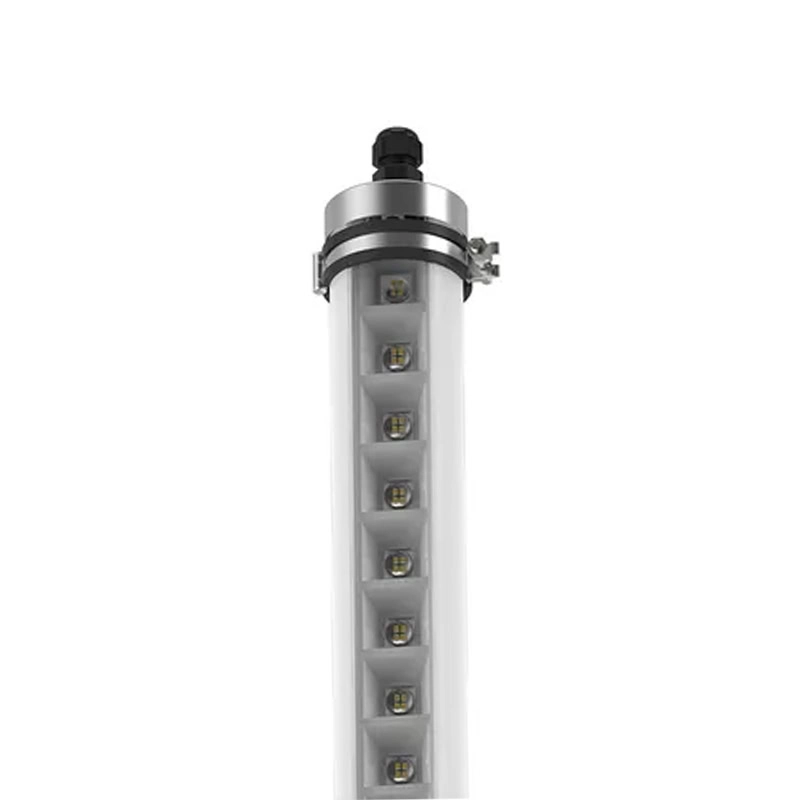

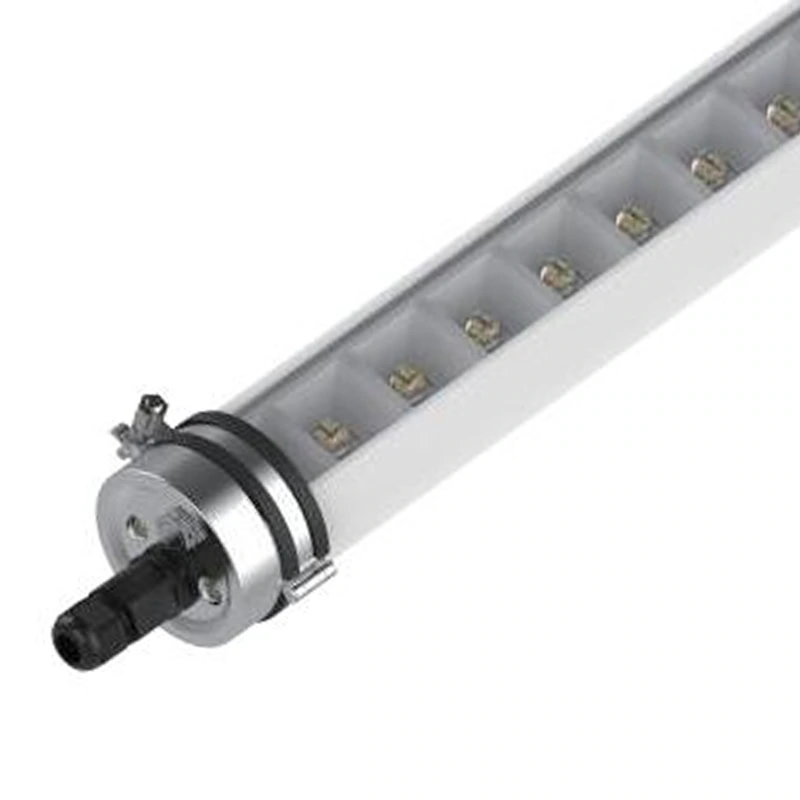

Low Glare Tri Proof LED Light
The IP69K tri proof led light has a power range of 20W to 60W. It uses brand LED and has a luminous efficiency of 130lm/W, with a color rendering index (CRI) greater than 80. The protection level is IP67 & IP69K, IK10. It can withstand 100bar water pressure and 80℃ high temperature, supports 0-10V/DALI dimming, and offers multiple color temperature options ranging from 2700K to 6500K.
Its rapid startup enables it to instantly output 100% light flux, with a high color rendering index to accurately reproduce true colors. Combined with a low-glare design, it not only ensures visual comfort but also enhances lighting quality. The 5-year warranty ensures long-term reliable operation. It is an ideal choice for lighting in industries, transportation, agriculture and other fields.
Tri Proof LED Light Low Glare UGR<16
The tri proof LED light features a low-glare characteristic with an UGR value of less than 16, which can effectively reduce the stimulation of glare on human eyes or the vision of animals.
In industrial settings, it can enhance the visual comfort of workers and reduce the operational risks caused by visual fatigue.
In agricultural settings such as livestock farms, it can reduce the stress response of animals caused by glare, create a more friendly lighting environment, and at the same time not affect the brightness and uniformity of the lighting, achieving a balance between comfort and efficiency in lighting.

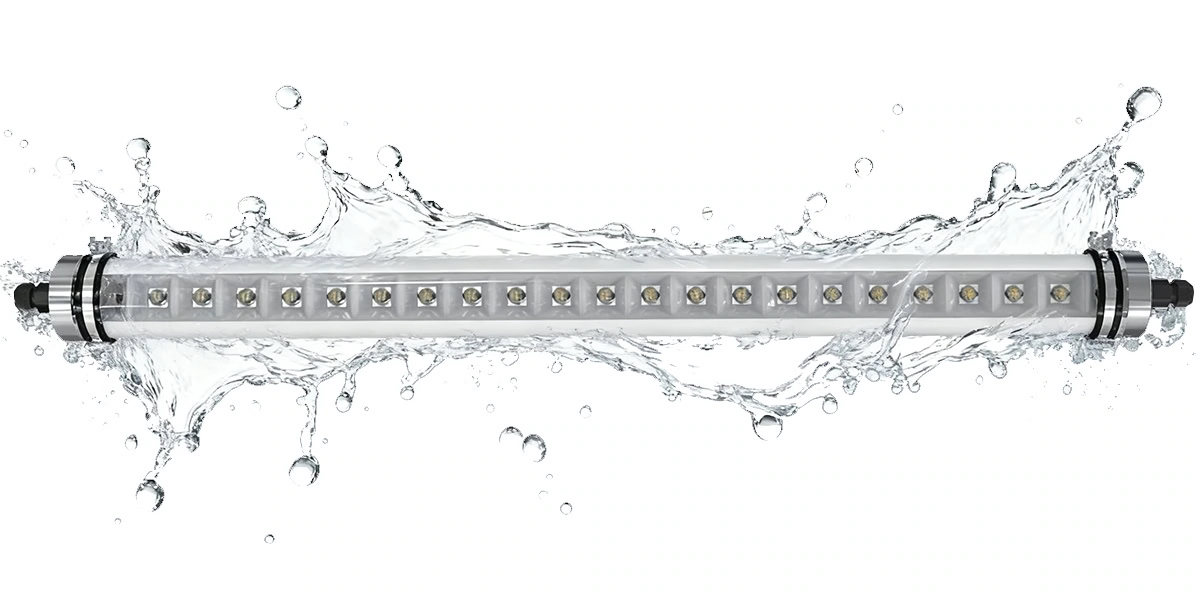

IP69K High Protection Tri Proof LED Light
With IP67 and IP69K protection levels and IK10 shock resistance level, it means it can withstand high-pressure water jets, dust intrusion, and also endure strong mechanical impacts.
Whether in the humid and dusty environment of a food processing plant, the salt fog corrosion environment of a ship or port, or the high-pressure water flushing scene of a car wash, it can operate stably and withstand a water pressure of 100 bar and a temperature of 80℃, ensuring uninterrupted lighting in extreme environments.
Durable Material of Tri Proof LED Light
The tri proof LED light is equipped with a MILKY PC/PMMA lamp body shell and 304/316 stainless steel end caps, featuring excellent corrosion resistance, impact resistance and high-temperature tolerance.
The PC/PMMA material achieves an IK08 impact resistance level, capable of withstanding daily mechanical impacts; the 304/316 stainless steel end caps, on the other hand, do not rust even in corrosive environments such as ship ports and water treatment plants, ensuring the structural stability.
Meanwhile, the lamp body can withstand working temperatures ranging from -20℃ to 40℃ and storage temperatures ranging from -20℃ to 60℃. In extreme cold and hot environments (such as factory buildings in northern regions during winter and high-temperature workshops in southern regions), the material performance remains stable. Combined with IP69K protection, it ensures the lamp's durability from the material level, enabling it to last for a long time in various harsh scenarios and fulfilling the reliable commitment of a 5-year warranty.
Tri Proof LED Light Intelligent Dimming Control
Support DALI, 0-10V dimming and wireless control, adapt to different customer needs, no need to replace hardware.
0-100% smooth brightness adjustment, no stroboscopic, protect human eye comfort. Automatic dimming + remote control, save electricity and reduce labor costs.
High Light Efficiency about Tri Proof LED Light
The tri proof LED light has an luminous efficiency of up to 130lm/W. It is equipped with brand-name LEDs, providing ample light output and achieving energy savings and consumption reduction.
Take a 60W lamp as an example. Compared with traditional lighting equipment of the same power, it can reduce electricity consumption while meeting the lighting requirements. Long-term use can help enterprises lower their electricity costs. At the same time, the high luminous efficiency ensures the brightness of the lighting area, improving work efficiency and environmental safety.
Tri Proof LED Light Multiple Lamp Connection Design
With connectable terminals and a quick wiring port, installation and connection between LEDs can be carried out effortlessly with the connectable terminals. The quick wiring port, which greatly simplifies the wiring process, ensures a safe and reliable connection.
Beam Angle of Tri Proof LED Light
The tri proof LED light offers two beam angles to choose from: 50° (with UGR < 16) and 80° (with UGR < 19).
A 50° beam angle of light provides concentrated illumination, suitable for areas requiring focused lighting, such as the operation areas of industrial equipment. It can enhance local brightness and ensure operational accuracy.
The 80° beam angle provides more uniform and extensive illumination, suitable for large-scale space lighting, such as storage areas and transportation tunnels. It can achieve a wide range of bright coverage. The combination of the two angles can meet the lighting breadth and concentration requirements of different spaces.
Installation Mode of Tri Proof LED Light
Support both surface mounting and suspension mounting methods, which are suitable for different building structures and space layouts.
For industrial factories with flat ceilings, the surface installation is simple and efficient; for warehouses or transportation hubs with high ceilings, the suspended installation can achieve uniform lighting without occupying floor space. Both installation methods are convenient and stable, and can be flexibly chosen according to the actual situation of the project to reduce installation difficulty and cost.
IP69K Tri Proof LED Light Dimension
It comes in various sizes and can be selected according to the size of the space and lighting requirements.
The small size is suitable for compact spaces such as beside equipment or small operation rooms, while the large size is suitable for open areas like factories and warehouses. The precise size design ensures that the lamps can achieve proper lighting in various spaces, neither wasting space nor leaving any lighting blind spots.
Datasheet of Tri Proof LED Light
Applications In Different Scenarios
The tri proof LED light is widely applicable in various fields such as industry, transportation, and agriculture.
In the industrial field, it can be used in food processing plants and car washes (to withstand high-pressure water and moisture).
In the transportation field, it is applicable to tunnels and railway stations (with high protection and uniform lighting);
In the agricultural field, it can be used in livestock farms (to reduce glare and enhance animal welfare);
It is also applicable to scenarios such as parking lots (waterproof and durable) and water treatment plants (resistant to corrosion and moisture), providing professional and reliable lighting support for each of these scenarios.
Low-glare Tri Proof LED Light FAQs
Yes. The 60° and 90° beam angle options allow you to adapt the lighting layout to different ceiling heights and working areas while maintaining a consistent fixture appearance.
Yes. Instead of allowing light to spread in all directions, the optical design controls the light more effectively, helping improve visual comfort while maintaining practical illumination.
A 60° beam provides more focused illumination than a 90° beam. Whether it is suitable depends on the mounting height and lighting layout of your project.
Yes. The low-glare optical design focuses on controlling the direction of light rather than simply reducing the fixture's light output.
Yes. It helps simplify electrical connections and can improve installation efficiency during replacement projects.
Yes. Depending on the lighting design, many projects use the same series of LED Tri Proof Lights throughout the facility while selecting different beam angles where necessary.
If your project places greater emphasis on visual comfort, especially in occupied working areas, the low-glare version is generally the better option.
Yes. We can recommend suitable LED Tri Proof Lights based on your installation height, lighting layout, beam angle preference, and control requirements.
