Tri Proof Light LED Materials
The combination of a PC casing and an internal aluminum heat sink takes into account both sturdiness and heat dissipation.
The PC casing has a light transmittance of 82% to 85%, ensuring that the light spreads evenly and gently, reducing glare and providing a comfortable lighting environment.
The PC casing has a light transmittance of 82% to 85%, ensuring that the light spreads evenly and gently, reducing glare and providing a comfortable lighting environment.
IP65 Tri Proof Light LED
Our rugged lighting solution boasts an IP65-rated enclosure, ensuring complete protection against dust ingress and powerful water jets from any direction.
The IK10 impact resistance rating guarantees exceptional durability, withstanding mechanical impacts of up to 20 joules – equivalent to a 5kg weight dropped from 40cm – making it virtually indestructible in demanding industrial environments.
The IK10 impact resistance rating guarantees exceptional durability, withstanding mechanical impacts of up to 20 joules – equivalent to a 5kg weight dropped from 40cm – making it virtually indestructible in demanding industrial environments.
Emergency Battery Optional
We offer optional lithium iron phosphate (LiFePO4) battery systems that incorporate advanced self-diagnostic capabilities and comprehensive emergency response features. These high-performance batteries not only provide reliable power storage but also feature continuous system monitoring that automatically checks voltage, temperature, and charge status.
3 Ways Of Tri Proof Light LED Installations
Tri proof lights have 3 ways of installation: surface mount, wall mount and suspend mount.
We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.
We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.
Tri Proof Light LED Sizes
It offers a wide range of options from 600mm to 1500mm in size and corresponding power. It can flexibly meet various lighting needs in different spaces. Whether it is a narrow corridor or an open hall, it can achieve precise light distribution and efficient energy saving.
Dimming Function And Control System
Set the daylight threshold at 25Lux. When the ambient light intensity reaches or exceeds 25Lux, it is considered to have sufficient light.
When it is below 25Lux, it is regarded as insufficient light. When the lamp detects human movement, the light will switch from a low-brightness state to full brightness (100% brightness).
When it is below 25Lux, it is regarded as insufficient light. When the lamp detects human movement, the light will switch from a low-brightness state to full brightness (100% brightness).
High Light Efficiency And 120° Beam Angle
The TPE series is equipped with high-efficiency LED technology, with a luminous efficacy of up to 160lm/W.
It adopts a 120-degree large-angle lighting design, allowing a single lamp to cover a wider space and effectively reducing the number and cost of lamp installations.
It adopts a 120-degree large-angle lighting design, allowing a single lamp to cover a wider space and effectively reducing the number and cost of lamp installations.
Equipped With Sensors For Optional
Our batten lamps are equipped with advanced sensing technology, ensuring precise coverage of the detection range.

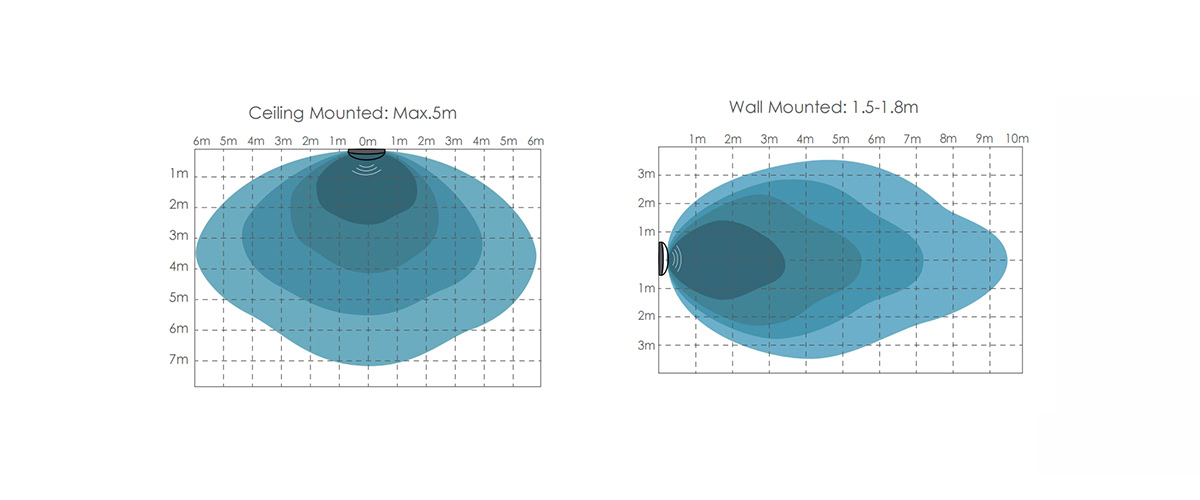

When installed on the ceiling, the maximum detection distance can reach 5 meters. When installed on the wall, it is recommended to install at a height of 1.5 to 1.8 meters, which can also effectively detect the surrounding area and provide convenient lighting control for the place. Different colors indicate different sensing sensitivities, ranging from 25% to 100%, to meet diverse usage scenarios.
When installed on the ceiling, the maximum detection distance can reach 5 meters. When installed on the wall, it is recommended to install at a height of 1.5 to 1.8 meters, which can also effectively detect the surrounding area and provide convenient lighting control for the place. Different colors indicate different sensing sensitivities, ranging from 25% to 100%, to meet diverse usage scenarios.
Datasheet Of Batten Light TPE Series
Model No.
GS-TPE600-20W
GS-TPE1200-40W
GS-TPE1500-50W
GS-TPE1500-60W
Power
20W
40W
50W
60W
LED Type
SMD2835
Light efficiency
130lm/W, 160lm/W
CRI
>80
Input Voltage
AC100~240V 50/60Hz
IP
IP65
Beam Angle
120°
CCT
3000K / 4000K / 5000K / 5700K / 6000K / 6500K
Working Temp
-20°C ~ +40°C
Life Span
Ta40°CL70 > 54000 hours
Dimming
0-10V / DALI
Size(mm)
600*65*55
1200*65*55
1500*65*55
1500*65*55
Warranty
5 Years
Modern Lighting Solutions Using Tri Proof Lights
It can be used in many scenarios, such as industrial plants, warehouses, underground parking lots, tunnels, ship terminals, food processing plants, chemical plants, sewage treatment plants, etc. Its high sealing and corrosion resistant design can adapt to complex environments such as wet, dusty and corrosive gases to ensure stable and safe lighting
LED Tri Proof Light FAQs
LED Tri Proof Lights are widely used in warehouses, industrial workshops, parking garages, utility rooms, corridors, logistics centers, and other locations that require reliable lighting and environmental protection.
These fixtures are designed to provide stable performance in challenging environments, helping reduce lighting interruptions and maintenance-related concerns over time.
Adequate and consistent illumination can improve visibility, helping employees identify obstacles and perform tasks more safely.
Yes. Utility buildings often require durable and low-maintenance lighting solutions that can operate reliably over extended periods.
Using a consistent lighting solution across multiple areas can simplify maintenance, purchasing, and future expansion planning.
Buyers should consider environmental conditions, maintenance expectations, energy performance, installation requirements, and overall lifecycle value.
