Wall Spot Light – T Series

The GS Wall spot light is equipped with CREE COB light source, with color temperatures covering 3000K/4000K/6000K and CRI≥80/90. Supports adjustable beam angles of 12°/24°/36°/60°, input voltage 220-240Vac, operating temperature -20 to +50°C, complies with IP65, IK06 and other standards, and comes with a 5-year warranty.

bolt (1)

Wattage

1×5/10/15/20/30/40/60W
battery-eco

Light efficiency

95-100lm/W
circuit-voltmeter

Input Voltage

220-240V
keyframes

Materials

Aluminum housing with corrosion resistant powdercoat
bulb (2)

LED Type

CREE COB
angle

Beam Angle

12°/24°/36°/60°
cloud-rain

IP Rating

IP65
sparkles

Color Temperature

3000K, 4000K, 6000K
clock-2

Lifespan

MIN 50000 hours
replace

Warranty

5 Years
wall spot light 150 high

Wall Spot Light

Wall Spot Light focuses on precise lighting design, with uniform illumination and controllable coverage area, which can meet the needs of basic lighting and lighting of key areas. The product has passed multiple international certifications, featuring excellent corrosion resistance and impact resistance. It can operate stably in various environments such as damp and outdoor conditions, and is suitable for lighting needs in different scenarios including commercial, public and household use.

Wall Spot Light Beam Angle

Wall Spot Light supports multi-level beam Angle adjustment of 12°/24°/36°/60°, and can flexibly switch the lighting range according to usage requirements - the narrow beam Angle is suitable for key lighting (such as display cabinets, wall decoration), and the wide beam Angle is adapted to environmental lighting (such as corridors, halls). At the same time, it can reduce glare interference, focus the light on the target area, avoid light waste, and balance practicality and visual comfort.

wall spot light lighting
wall spot light 150H beam Angle
Square wall spot light lighting

High Protection and Durability Wall Spot Light

It adopts a high-quality aluminum shell with an anti-corrosion powder coating on the surface, which can effectively resist daily oxidation, acid and alkali erosion, and extend the service life. Even if it is exposed outdoors or in a humid environment for a long time, it is not easy to rust or fade.

It is also equipped with 8mm thick toughened glass diffuser, which is of high hardness and strong impact resistance, can prevent damage caused by external force collision, ensure usage safety, and also allow light to pass through more evenly.

Up down lighting wall lights front view
Round large head wall spot light

Wall Spot Light High-quality Light Source

The Wall Spot Light light source adopts the high-quality CREE COB LED in the industry, with a luminous efficacy of 95-100lm/W, high luminous efficiency and low energy consumption.

The color temperature is available in 3000K (warm light), 4000K (neutral light), and 6000K (cool light) to meet the atmosphere requirements of different scenes. CRI≥80/90, with high color reproduction, it can truly present the original color of objects. Whether for home lighting or commercial display, it can bring clear and natural visual effects.

Wall Spot Light IP65 IP Grade

Wall Spot Light has an IP65 waterproof rating and is fully dust-proof and spray-proof. It can handle scenarios such as outdoor rainy days, damp corridors, and water vapor in bathrooms. It can effectively prevent dust from entering the interior of the lamp body and prevent circuit failures caused by moisture penetration, ensuring stable operation in complex environments.

wall spot light IP65 waterproof

Dimension of Wall Spot Light

Wall Spot Light covers multiple series, with different lamp heads, different appearances, different sizes, different powers, and different brackets, adapting to different lighting needs.

wall spot lightwall spot light Dimensionwall spot light 150 highwall spot light 150 high Dimension
GS-T120
GS-T150
Round small head wall spot lightshort bracket Round small head wall spot lightL650 Long bracket Round small head wall spot light DimensionL950 Long bracket Round small head wall spot light size
GS-TR150
Round large head wall spot lightshort bracket Round large head wall spot lightL700 long bracket Round large head wall spot light DimensionL1000 long bracket Round large head wall spot light
GS-TR200

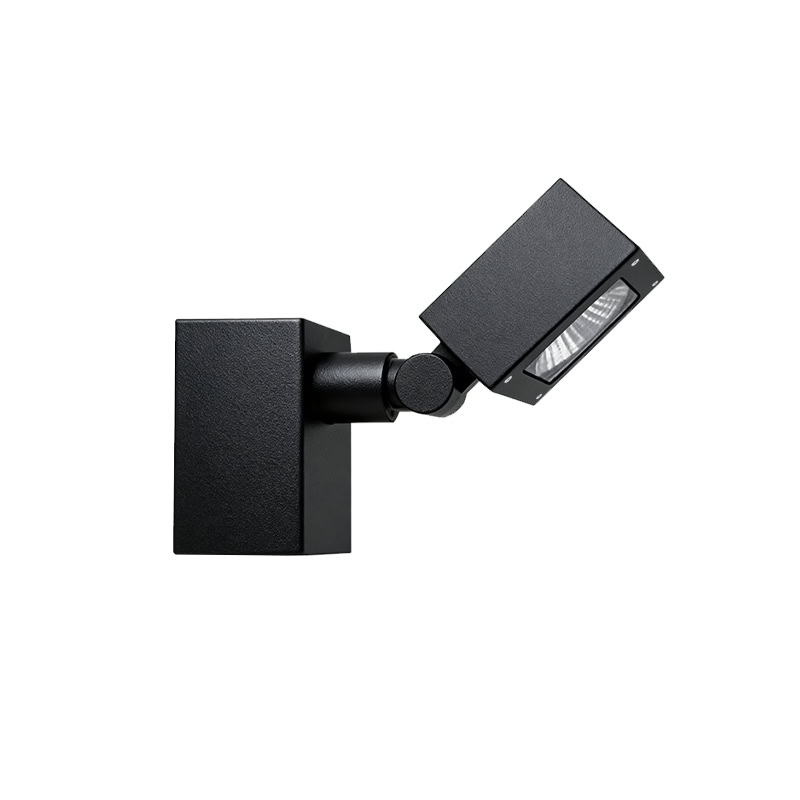

Square head wall spot lightshort bracket Square head wall spot lightL650 long bracket Square head wall spot light sizeL950 Long bracket Square head wall spot light Dimension
GS-TS150

Datasheet of Wall Spot Light

Model No.
GS-T120
GS-T150
GS-TR150
GS-TR200
GS-TS150
Power
1x5/10W
1x5/10W
1x15/20/30W
2×15/20/30W
2×20/30/40/60W
Size
Φ60x120
Φ60x150
Φ150
Φ200
L150x150
LED Type
CREE COB
Lumens
95-100lm/W
CRI
>80
Input Voltage
220-240V
IP
IP20/IP65
IK
IK08
Beam Angle
12°/24°/36°/60°
CCT
3000K / 4000K / 6000K
Working Temp
-20°C~+50°C
Life Span
50,000 hours
Warranty
5 Years

Applications In Different Scenarios​

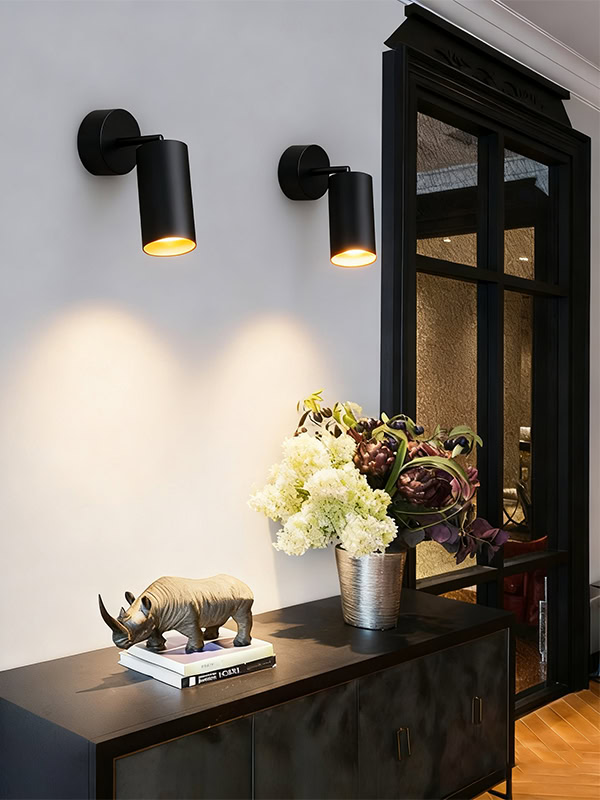

In commercial scenarios, Wall Spot Light can be installed in the shop Windows of shopping malls and hotel lobbies. Through adjustable color temperature and beam Angle, it can highlight the characteristics of products or create a high-end atmosphere.

In outdoor scenarios, IP65 grade models can be selected for courtyards, community walkways, and park rest areas to resist wind and rain and provide safe lighting.

In terms of public facilities, areas such as subway station passageways, office building corridors, and hospital lobbies can reduce maintenance costs due to their stable performance and long warranty periods. In home Settings, the installation of balconies, foyers, and background walls in living rooms can supplement basic lighting and enhance the spatial style.

wall spot light application
wall spot light applicant
room wall spot light applicantion

Wall Spot Light FAQs

A Wall Spot Light is designed to provide focused illumination for highlighting architectural details, signs, sculptures, landscape features, or decorative walls.

Yes. Many LED Wall Lights feature adjustable heads or brackets, allowing installers to fine-tune the lighting direction according to project needs.

Yes. Focused lighting makes these fixtures suitable for illuminating logos, signage, brand walls, and commercial identity features.

Directional lighting reduces wasted light and helps draw attention to specific architectural or decorative features.

Some LED Wall Lights incorporate optical accessories or recessed light sources to help improve visual comfort and reduce glare.

Yes. Combining multiple fixtures can create layered lighting effects and improve depth, contrast, and visual impact.

These fixtures are widely used in hotels, resorts, commercial buildings, public spaces, landscape projects, and architectural lighting applications.
