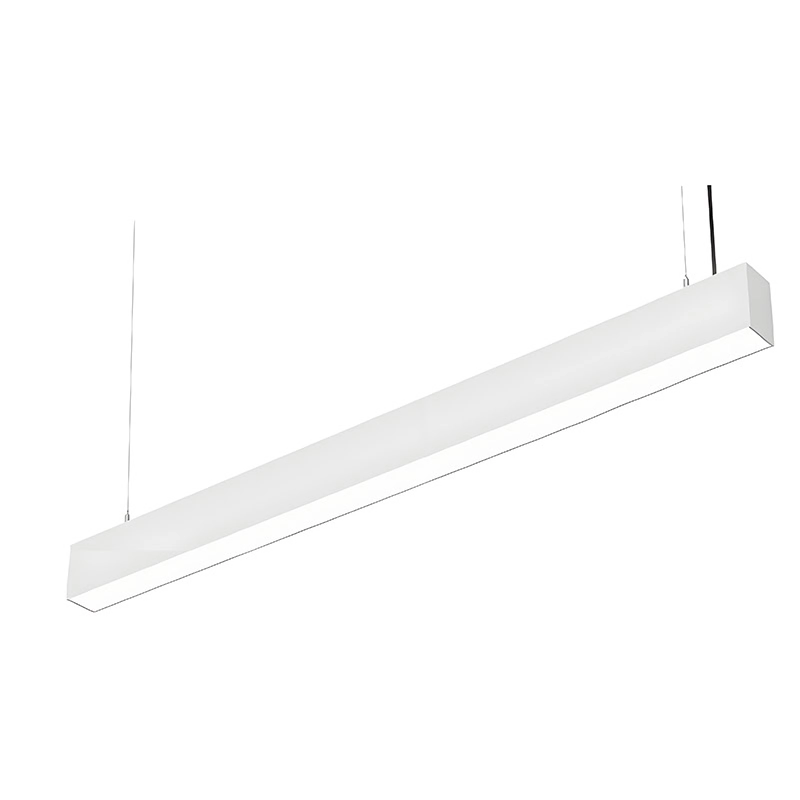

LED Linear Light – L5075 Series

LED linear light, engineered for superior performance and sleek design. This high-efficiency linear LED lighting solution features Osram LEDs and driver, delivering 120lm/W with UGR<19 for glare-free illumination. Its innovative modular design allows for multiple splicing options (Y, T, L, +), enabling endless linear light configurations for modern offices and commercial spaces. With a 5-year warranty and optional emergency features, this LED linear luminaire combines flexibility, reliability, and advanced optics. Discover the perfect linear LED solution to enhance your space.

bolt (1)

Wattage

20W/40W
battery-eco

Light efficiency

120lm/W
circuit-voltmeter

Input Voltage

AC200-240V 50/60Hz
keyframes

Materials

Aluminum+PC
shadow

LED Driver

Osram
angle

Beam Angle

120°
ruler-measure

Size

L600/1200*W50*H75
cloud-rain

IP Rating

IP20
sparkles

Color Temperature

3000K / 4000K / 5000K / 5700K
replace

Warranty

5 Years

LED Linear Lights Details

The GS L5075 series LED linear lights feature an integrated cast aluminum heat sink, PC reflector and PMMA optical lens. They are equipped with Osram LED chips and driver solutions, achieving a luminous efficacy of up to 120lm/W and a color rendering index (Ra) greater than 80.
There are no dark areas or flickering, with an UGR (Unified Glare Rating) of less than 19, providing a comfortable and uniform lighting experience.
An optional emergency power supply version is available, supporting a battery life of 60/90/180 minutes. It is an ideal choice for modern offices, businesses and high-end indoor lighting.
led indoor linear

Exquisite Craftsmanship

The lamp body is made of high-strength die-cast aluminum, featuring excellent heat dissipation and longer lifespan; the PC reflector and PMMA lens are precisely matched for light distribution, achieving efficient anti-glare effect, with soft and uniform light, providing a more comfortable visual experience. The appearance offers two classic color options: Athens White and Knight Black, which can perfectly blend into various space styles.

Optical performance

Using Osram LED chips, it ensures high luminous efficiency and excellent color reproduction; with a 120° wide-angle beam, the lighting coverage is wider; without flicker design, it is safe for the eyes when used for a long time, especially suitable for scenarios such as office work and reading that require high visual comfort.


Intelligent Installation

The modular design makes the installation simple and efficient. The lamp bodies can be directly connected and lit up once the power is turned on. There is no need for complex wiring, which significantly saves installation time and cost, and is particularly suitable for large-scale offices and commercial venues.
led linear light Splicing light

Splicing light

Simple and convenient to install. The lamp body can be spliced.
After splicing and installing the chandelier, the light can be turned on.
No need to consider the internal wiring of the lamp body separately.
led linear light Azimuth

Azimuth

Multi-directional bending, precise control of light emission.
Make people feel more comfortable and relaxed.
Suitable for use in sophisticated office areas.
led linear light Quick splicing

Quick splicing

It can be spliced into various shapes and creatively combined.
Suitable for placement at various workstations.
Meet various spatial scenarios and enrich office Spaces.

Flexible assembly LED Linear Light

Supports multiple assembly methods: Y-type, T-type, L-type, cross-type, 120° corner, etc. They can be freely combined into various forms such as straight lines, arcs, and rings, meeting different space layout and creative lighting requirements. Installation is convenient and no additional wiring is required.

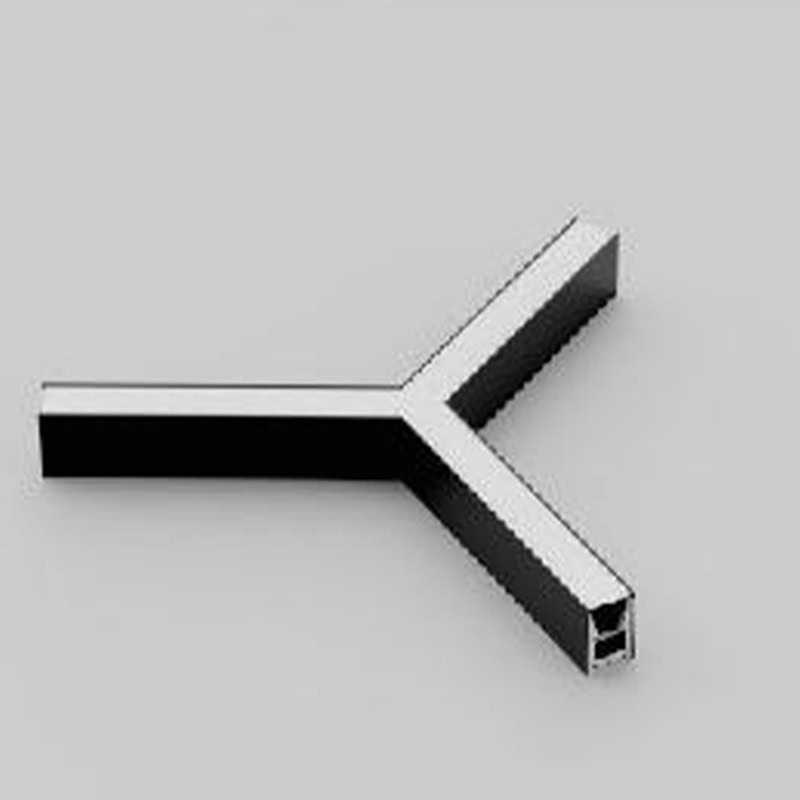

led linear light Y splice
Y Splice
led linear lights 120 splice
120° Splice

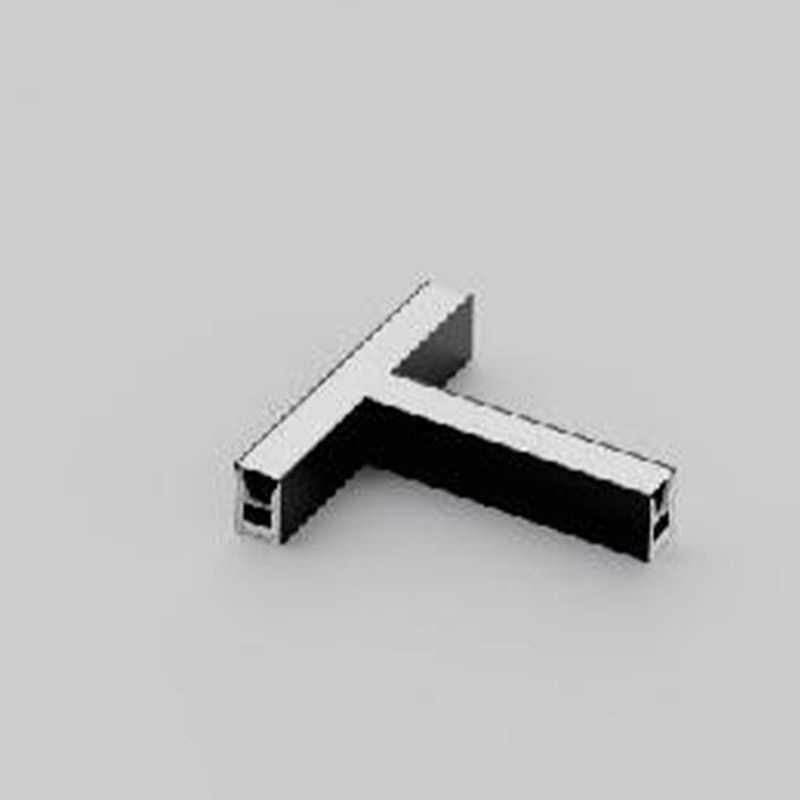

led linear light T splice
T Splice

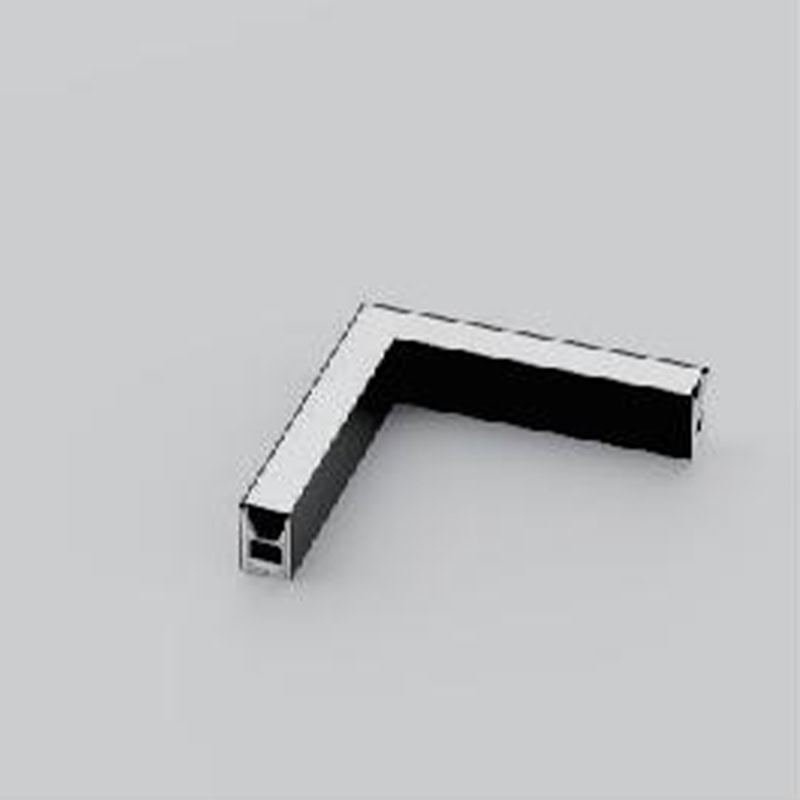

led linear lights L splcie
L Splice

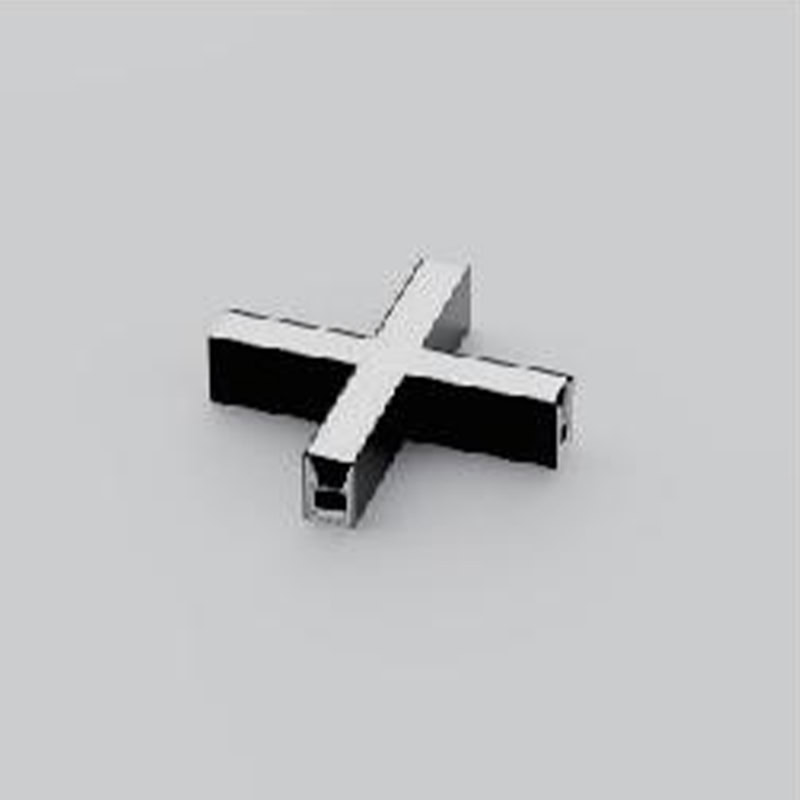

led linear lights splice
+ Splice

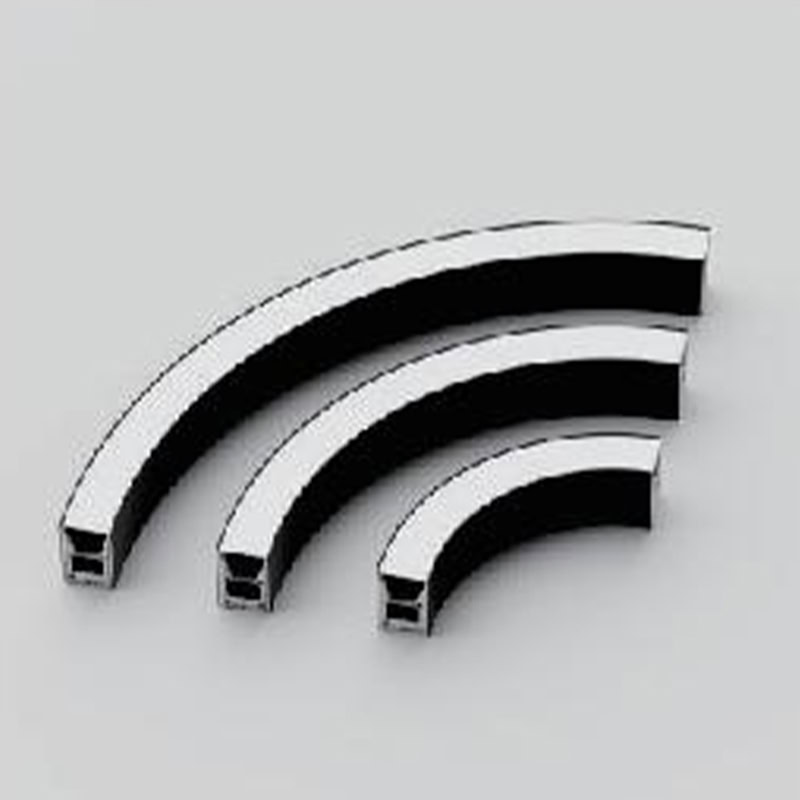

led linear lights A quarter
A Quarter

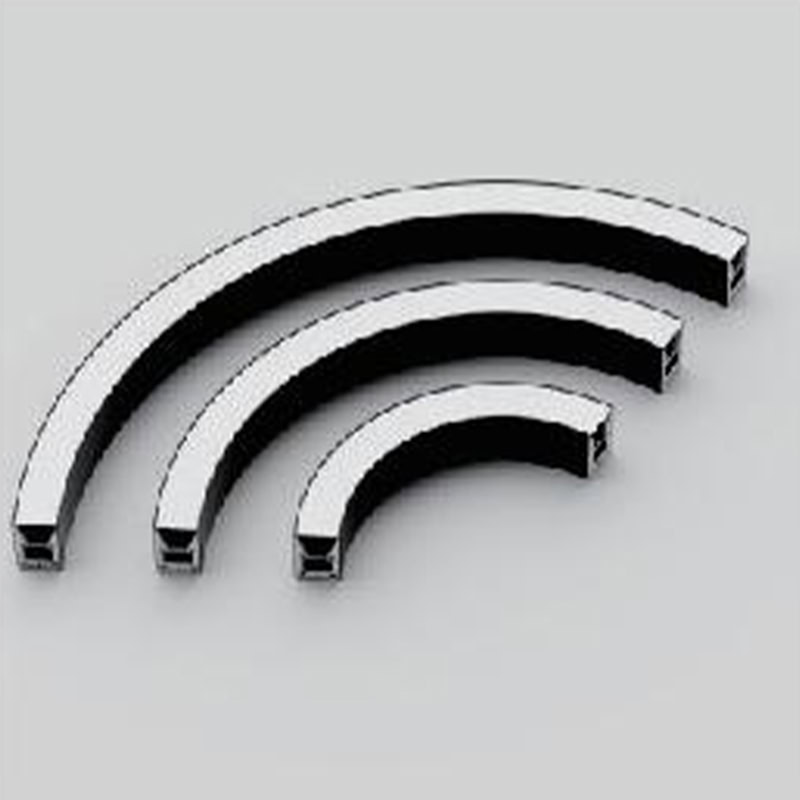

led linear light one half type
One Third

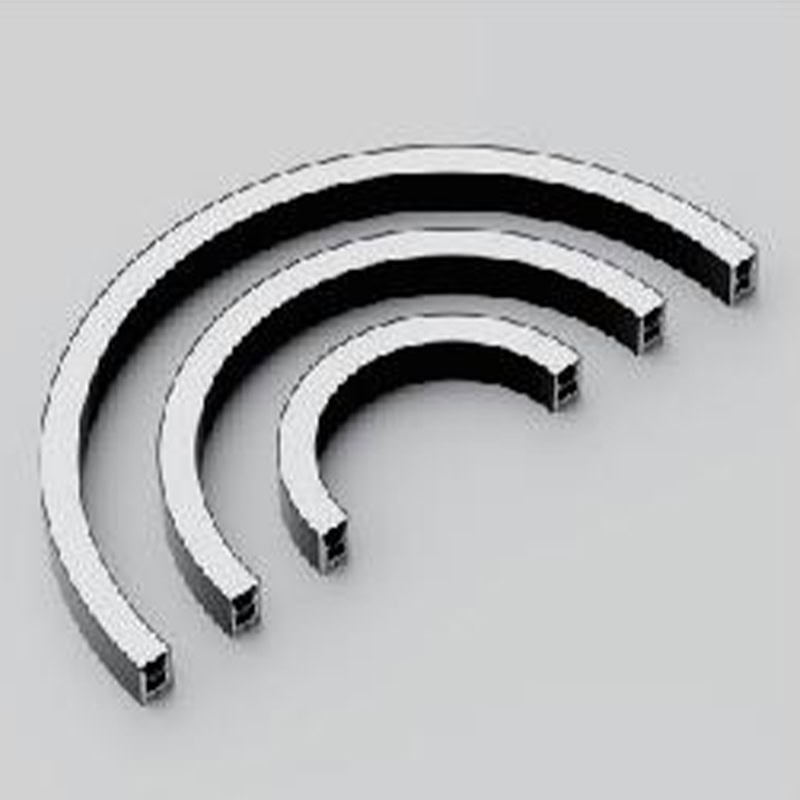

led linear lights one half
One Half

Datasheet Of
LED Linear Lights

Model No.
GSH-20W-L5075
GSH-40W-L5075
Power
20W
40W
Material
Aluminium 6063 + PC
Light efficiency
120lm/W
Driver Brand
Osram
Voltage
AC200-240V
LEDs
OSRAM chips
PF
>0.95
LED Lifespan
>50000 hours
IP
IP20
IK
IK10
CRI
>80
CCT
3000K/4000K/5000K/5700K
Size
L600*W50*H75
L1200*W50*H75
Warranty
5 Years

Sizes Of LED Linear Light L5075 Series

size of L5075 linear

Modern LED Linear
Lighting Solutions

Linear lights, with their flexible optical configuration and elegant minimalist design, have become the mainstream choice for modern indoor lighting. Meet the lighting needs of all scenarios, from high-end retail and professional offices to art exhibitions and home decoration.
led linear lights applications
usage of led linear lights
led modular linear light application

Related Products

LN
LED Linear Light - LN Series
LP
LED Linear Light - LP Series
LO
LED Linear Light - LO Series

LED Linear Light FAQs

The LED Linear Light from GS Light is designed for modern indoor lighting such as offices, commercial buildings, schools, and public areas, providing uniform and comfortable illumination.

Yes, this LED Linear Light supports Y, T, L, cross and straight splicing, allowing flexible combinations for creative ceiling designs.

The LED Linear Light is designed with optical components such as PC reflectors and PMMA lenses, achieving UGR<19 for comfortable visual experience.

LED Linear Lights provide soft, uniform and flicker-free lighting, making them ideal for long-hour working environments.

LED Linear Lights are made of high-strength aluminum and PC materials, ensuring durability and good heat dissipation.

Yes, LED Linear Lights feature a quick splicing design that allows fast installation without complex wiring.

Yes, LED Linear Lights are ideal for retail stores, offices, corridors, and large commercial environments.

The minimalist linear design enhances modern architectural aesthetics while maintaining functional lighting performance.
