LED Stadium Light Description
LED stadium light features a durable 6063 aluminum body with excellent heat dissipation and corrosion resistance.
Equipped with Lumileds, CREE, or CITIZEN chips and Meanwell/Inventronics drivers for stable, high-brightness output and long lifespan.
Offers multiple beam angles (8°–90°, asymmetric 50°), IP66 and IK08 protection, and 10KV lightning resistance.
Lightweight, easy to install, energy-saving—up to 80% vs traditional fixtures.
Certified by TUV, CE, CB, and SAA with a 5-year warranty.
Equipped with Lumileds, CREE, or CITIZEN chips and Meanwell/Inventronics drivers for stable, high-brightness output and long lifespan.
Offers multiple beam angles (8°–90°, asymmetric 50°), IP66 and IK08 protection, and 10KV lightning resistance.
Lightweight, easy to install, energy-saving—up to 80% vs traditional fixtures.
Certified by TUV, CE, CB, and SAA with a 5-year warranty.
High Luminance low glare
As a powerful and flexible LED floodlight for wide-ranging sports and highcolumn area lighting applications,
GS offers numerous CCT/CRI/TLCI(4000K and 5700K, CRI from 70 to 90+ and TLCI up to 90+) configuration options,
In addition to flicker-free operation for HDTV broadcasting, it also providesmixed optics. Thanks to its tiltable LED modules,
it enables installation designoptimisation with a minimum number of floodlights.
GS offers numerous CCT/CRI/TLCI(4000K and 5700K, CRI from 70 to 90+ and TLCI up to 90+) configuration options,
In addition to flicker-free operation for HDTV broadcasting, it also providesmixed optics. Thanks to its tiltable LED modules,
it enables installation designoptimisation with a minimum number of floodlights.

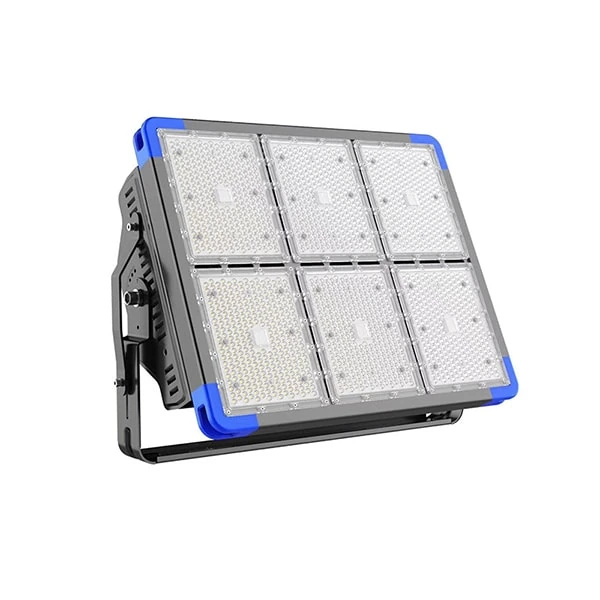

LED Stadium Light
Aeroflow Cooling System
Unique aerodynamic vents created by the vertical fins are designed to accelerate natural convection through the heatsink.
Each airway is heated and therising hot air draws cold air in from the bottom, immediately cooling the LEDs, The hot air accelerates away from the fins,
quickly removing heat from the floodlight module. During a refurbishment project, it is important to consider the weight and windage of
selected products and their suitability for existing or proposed mounting structures. Note that a floodlight mounted horizontal to the ground,
as with an asymmetic distribution, helps to decrease windage and provides better control of spill light.
Each airway is heated and therising hot air draws cold air in from the bottom, immediately cooling the LEDs, The hot air accelerates away from the fins,
quickly removing heat from the floodlight module. During a refurbishment project, it is important to consider the weight and windage of
selected products and their suitability for existing or proposed mounting structures. Note that a floodlight mounted horizontal to the ground,
as with an asymmetic distribution, helps to decrease windage and provides better control of spill light.
LED Stadium Light Accessories Repairs
GS is available in complete lighting accessories and repairs for wide-ranging professional and recreational sports applications, both indoors and outdoors.
We provide players with safety and flexibility, fully meet relevant sports lighting requirements.
We provide players with safety and flexibility, fully meet relevant sports lighting requirements.


LED Flood Lights Datasheet
Model No.
GS-S1-400W
GS-S2-800W
GS-S3-1200W
GS-S4-1600W
Power
400W
800W
1200W
1600W
Light efficiency
140 lm/w
Beam Angle
8° / 20° / 40° / 60° / 90° / Asymmetric 50°
LEDs
CITIZEN
Driver
Inventronics
Control
DALI, DMX RDM for options
Input Voltage
AC100–305V
Heat Sink
Aluminum + PC lens
PF
>0.95
LED Lifespan
Up to 100,000 hrs (LM70)
IP
IP66
IK
IK10
CRI
Ra80/90
CCT
4000K, 5000K, 5700K
Surge Protection
10KV
Working temperature
-40°C to +45°C
Size
276×572×350
428×572×350
579×572×386
732×572×420
G.W. (kg)
10 kg
16 kg
21 kg
27 kg
Warranty
5 Years
GS LIGHT Stadium Lights Application
Outdoor lighting widely used in sports field, large gymnasium, highway, tunnel, soccer court, basketball court, stadium, wharf, toll stations, airport, plaza, pathway, architecture, industrial facilities etc.
