Zoomable Track Light – T1 Series

Zoomable track light break through the limitations of traditional lighting and give light more possibilities. The lamp body is equipped with a precise angle scale to clearly mark the rotation angle.

Whole light body is made of all aluminum, excellent heat dissipation performance, effectively reduce the working temperature of the lamp, and extend the service life of the light source.

bolt (1)

Wattage

7/10/15/30/40W
brightness-up

Lighting Specifications

IP20, CRI>90/95
battery-eco

Light efficiency

80-85lm/W
circuit-voltmeter

Input Voltage

AC200-240V 50/60Hz
brightness (1)

Dimming Options

Standard /0-10V DlM/Triac Dim/DALI dimmable
keyframes

Materials

Aluminum+PC
bulb (2)

LED Type

CITIZEN /CREE/OSRAM/ LEDs
shadow

LED Driver

TRIDONIC/PHILIPS/OSRAM drivers
angle

Beam Angle

10°- 60°
adjustments-alt

Mounting Type

Adapter on track/ Surface mounted
telescope

Zoom Range

Zoomable from 10-60°
sparkles

Color Temperature

2700K / 3000K / 4000K / 5000K / 5700K
clock-2

Lifespan

>50000 Hours
replace

Warranty

5 Years

Precise Adjustment Beam Angles Zoomable Track Light

7W/10W/15W/30W/40W power selected, allow you to give full play to creativity, create a unique charm of light and shadow space.

Lamp holder can be adjusted up and down by 180 degrees and rotated horizontally by 355 degrees to achieve all-round lighting without dead corners and accurately lock the target area.

Precise Angle Scale Design On Track Light Body

Angle scale to precisely show the beam angle, convenient for you to record and adjust angle

Beam Angles Stepless Adjustable From 10° To 60°

Zoomable track light can achieve stepless zoomable beam angle from 10° to 60°

Rotate the lamp lens to change the light angle easily
track light lens

Zoomable Track Light Source CRI>90 Or CRI>97

Protect your eyes from the glare: The light is soft and uniform to avoid glare and create a comfortable and healthy lighting environment.
Our light source brand can choose citizen or osram light source
CRI up to CRI>90 or CRI>97 can truly reproduce the color of an object:

CRI>90: Suitable for most commercial and home lighting scenarios.

CRI>97:Suitable for scenes with high color reproduction requirements, such as museums, art galleries, high-end retail stores, etc.
Rail mounting: Support track installation, can flexibly adjust the position and number of lamps according to needs, to meet the lighting needs of different Spaces.

Accesories For Zoomable
Track Light Option

Various optical parts and accessories for option to achieve a variety of light effects to meet the needs of different scenes.

By replacing different lens accessories, you can achieve a variety of light spot effects such as circle, oval, and square, creating a personalized light and shadow space.
led track light brandoor
Brandoor
led track light honeycomb
Honeycomb
led track light antiglare grille
Antiglare Grille
track light antiglare ring
Antiglare ring
track light wall washer ring
Wall washer ring
led track color filter
Color Filter

Power Supply And Dimmable Ways

The power supply used by our track lights are internationally renowned brands, such as Tridonic, Philips, Osram. Ensure stable and reliable power output to ensure the safety and service life.

Dimmable way support various ways, like 0-10V Dimmable, DALI DT6/8 Dimmable, Triac Dimmable.

Power supply power factor PF>0.95, effectively reduce the energy consumption, more energy conservation and environmental protection.
zoomable track light driver

Sizes Of LED Zoomable Track Lights

LED track lights color fliters
size of zoomable track light 7W
GS-T1-7W
size of track light 10W
GS-T1-10W
size of zoomable track light 15w
GS-T1-15W
size of track light 30W
GS-T1-30W
size of track light 40W
GS-T1-40W

Easy Zoom Beam Angle
Adjustment From 10° To 60°

The lamp body is equipped with a precise angle scale to clearly mark the rotation angle, which is convenient for you to record and adjust, and easily find the ideal light position.

By freely adjusting the angle, you can easily achieve a variety of lighting effects such as light concentration, wall washing, wall cleaning, etc., to meet the lighting needs of different scenes.
track light zoom adjustment
track light 10 degree to 60 degree

Datasheet Of
Zoomable Track Light

Model No.
GS-T1-7W
GS-T1-10W
GS-T1-15W
GS-T1-30W
GS-T1-40W
Power
7W
10W
15W
30W
40W
Material
Aluminum+PC
Light efficiency
630lm
700lm
1350lm
2700lm
3600lm
Driver Brand
Philips/Tridonic/Osram/KGP
Beam Angle
10°- 60°
Voltage
AC200-240V DC24V
LEDs
CITIZEN/CREE/OSRAM
PF
>0.95
LED Lifespan
>50000 hours
IP
IP20
IK
IK10
CRI
>90/>97
CCT
2700K/3000K/4000K/5000K/5700K
Size
Φ50*H135
Φ60*H146
Φ70*H166
Φ90*H186
Φ110*H209
Warranty
5 Years

Modern Lighting Solutions
using Zoomable track light

The zoomable track lights are mainly suitable for art exhibitions such as museums, art galleries, galleries, and art galleries, as well as lighting for calligraphy and painting. They are also suitable for high-end hotels, restaurants, cultural and artistic projections, and other places with high pixel requirements
usage of led track light

LED Track Light Project Case

GS zoomable track lights with White color with DALI DT6 dimmable and RGBW DALI DT8 dimmable used in Australia in 2024.
track light project case
zoomable track lights project

Related Products

led-track-lights-shapeable-gs
Shapeable LED Track Light - TS Series
led-track-lights-smart-gs
Smart LED Track Light – TC Series
led-track-lights-gs

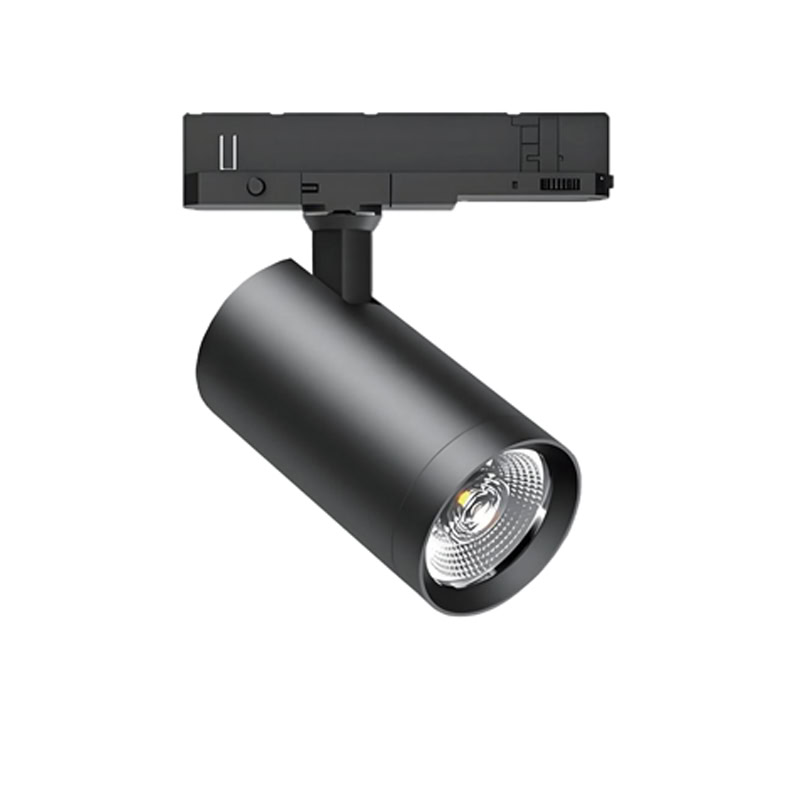

Lens Changeable LED Track Light - TZ Series

Zoomable Track Light FAQs

A Zoomable Track Light is a flexible LED Track Light that allows users to adjust the beam angle from narrow to wide to achieve precise lighting focus or wide-area illumination.

GS Light LED Track Light offers adjustable beam control, high-precision lighting direction, and flexible optical design, making it ideal for modern commercial lighting projects.

LED Track Light is widely used in retail stores, museums, galleries, hotels, and exhibition spaces for accent lighting and spatial highlighting.

It provides precise lighting control, reducing glare and ensuring artworks are highlighted without visual distortion.

Yes, it enhances visual hierarchy and makes products more attractive through focused lighting design.

Yes, optical design and accessory options help reduce glare and improve visual comfort.

Yes, GS Light LED Track Light supports common dimming systems such as DALI, 0-10V, TRIAC, depending on project requirements.

Because it combines flexible beam control, reliable optical performance, and professional lighting design support for global projects.
