Dimmable Strip Lights
Dimmable Strip Lights takes "3-Wire 2-Channel or 2835-3-Wire 2-Channel and 2-Wire + 12V/24V power supply" as its core advantage. The 12V/24V low voltage feature is suitable for long-distance installation (reducing line loss), and the independent control of warm white and cold white light can flexibly switch the light atmosphere.
Supports multiple control methods such as WIFI, BLE Mesh, Zigbee, PWM, etc., and is compatible with both intelligent and traditional lighting scenarios; The bottom is equipped with 3M strong adhesive, allowing for quick installation without complex tools. It features high color rendering and long service life, making it suitable for both commercial projects and large home lighting needs.
Dimmable Strip Lights CCT-Tunable
Dimmable Strip Lights IP Grade
The product offers multiple protection levels to choose from, including IP20, IP54, IP65, IP67 and IP68.
- IP20: Basic dust-proof, suitable for dry and dust-free indoor environments (such as concealed lighting in living rooms and bedrooms);
- IP54: Dust-proof + splash-proof, suitable for damp indoor scenarios such as kitchens and bathrooms;
- IP65: Completely dust-proof + low-pressure water spray resistant, suitable for semi-open Spaces such as balconies and shop fronts.
- IP67: Completely dust-proof + short-term immersion, suitable for use around swimming pools and fountain landscapes.
- IP68: Completely dust-proof + long-term immersion, meeting the underwater lighting needs of aquariums, underwater landscapes, etc.

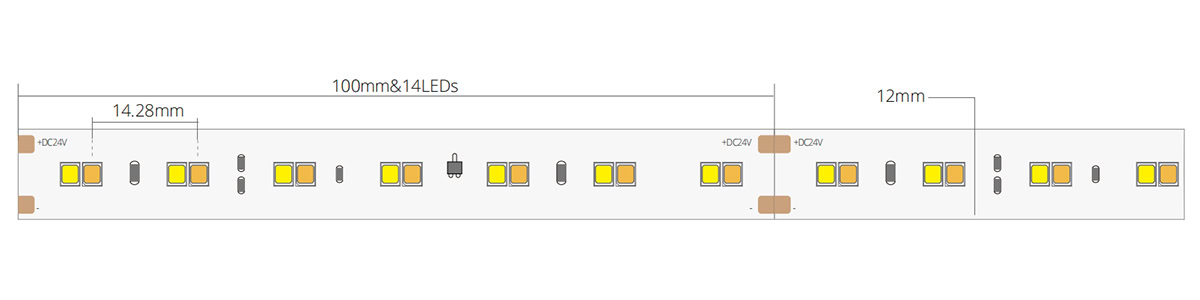

Dimension Of Dimmable Strip Lights
Core Cutting Lengths (per unit): 25mm/50mm/62.5mm/55.55mm/71.42mm/100mm (matching 3/6/12/14/18/24 LEDs per unit for different models)
LED Pitch: 8.33mm (mainstream), 2.97mm/5.2mm/5.55mm/7.14mm/7.81mm/7.93mm/10.2mm/14.28mm/16.67mm (variant for high-density models)
FPC Width: 6mm/8mm/10mm/12mm (varies by IP rating/model, IP20 basic, wider for higher IP)
Universal Spec: 240 LEDs/M (SMD2216 mainstream), 120/180/192/196/252/336/384 LEDs/M (dense variants for SMD2216/SMD2835)
SMD4040RGB & 84 LEDs/M
SMD5050RGB & 60 LEDs/M
SMD5050RGB&60LEDs/M
SMD5050RGB & 80 LEDs/M
SMD5050RGB&60LEDs/M
SMD5050RGBW & 80 LEDs/M
SMD5050RGBW & 60 LEDs/M
Tab Content
Datasheet Of Dimmable Strip Lights
All Types of Dimmable Strip Lights
GS-12-0060
GS-24-0061
GS-12-0062
GS-24-0063
GS-12-0064
GS-24-0065
GS-24-0066
GS-12-0067
GS-12-0068
GS-24-0069
GS-24-0070
GS-24-0071
GS-24-0072
GS-24-0073
GS-12-0074
GS-24-0075
GS-24-0076
GS-24-0077
GS-24-0078
GS-24-0030
GS-24-0036
GS-24-21
Why Global Clients Trust GS LIGHT for Pixel LED Light Solutions
High Color Rendering – Ra>90 & R9>50, restores true, vivid colors for any scene
Customizable Flexibility – Cuttable at marked units, fits curved/irregular surfaces perfectly
Wide Temperature Stability – Stable operation in -20°C~45°C environments
Minimal Light Attenuation – Consistent brightness over long-term use
Tool-Free Installation – 3M adhesive backing for quick pasting and seamless splicing
Uniform Illumination – 120° wide beam angle, no glare or uneven brightness
Smart Control Compatibility – Works with WIFI/BLE Mesh/Zigbee/DALI
Consistent Color Quality – Single bin grading, no color shift after splicing
IP65/IP67/IP68
12V/24V DC
50,000+hours
Applications In Different Scenarios
The dimmable strip lights is applicable to multiple scenarios:
In the commercial field, it can be used for window lighting in shopping malls (6500K cold light highlighting exhibits), lighting for jewelry/cosmetics display cabinets (high color rendering and texture restoration), and lighting for supermarket shelves (wide beam coverage without blind spots).
In the home furnishing field, it can be used as an ambient light for the living room background wall (3000K natural light suitable for daily use), an auxiliary light for the bedroom ceiling (2700K warm light for sleep), and internal lighting for cabinets/drawers (24V safe voltage to prevent electric shock).
Public Spaces such as hotel corridors, office building lobbies, and small shops, with a working temperature range of -20 ℃ to 45℃ and a long lifespan of 50,000 hours, can meet the long-term stable lighting requirements and reduce the later maintenance costs.
Dimmable Strip Lights FAQs
It’s extremely easy to operate. Compatible with smart controls like WIFI/BLE Mesh/Zigbee and traditional engineering controls such as PWM/DALI, it supports one-click adjustment of CCT and brightness. The control protocols of all GS Light strip light series are optimized to adapt to mainstream controllers on the market without complex debugging.
Fixed-length cutting is supported. Just cut along the marked standard positions (25mm/50mm/100mm, etc.) on the strip, and the remaining part can still be used normally, adapting to the size requirements of different installation spaces.
Some models support protection ratings such as IP54/IP65/IP67 and can be directly used in humid scenarios like kitchens and bathrooms; IP68 models can even be used underwater for a short time. Waterproof strip lights are sealed with glue to effectively block water vapor.
It supports stepless adjustment of both CCT and brightness with no flicker when dimmed. GS Light dimmable strip lights are equipped with a flicker-free drive solution, ensuring soft light even at low brightness, which is not dazzling for long-term direct viewing and meets eye-protective lighting needs.
It has excellent flexibility with an ultra-thin FPC flexible substrate, which can be bent at will and closely fit irregular surfaces such as curved cabinets, special-shaped walls and suspended ceilings. GS Light flexible strip lights have a small bending radius, and the circuit will not be damaged even after repeated bending.
