GS Light logo

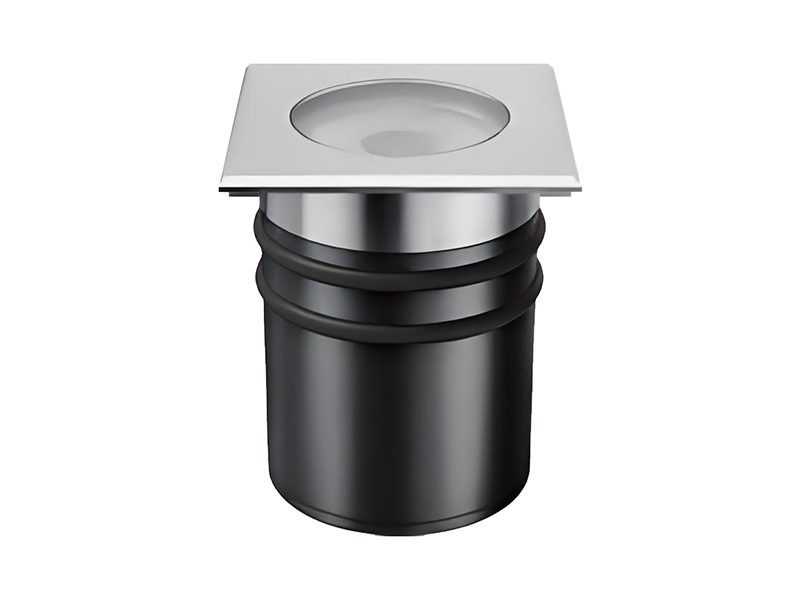

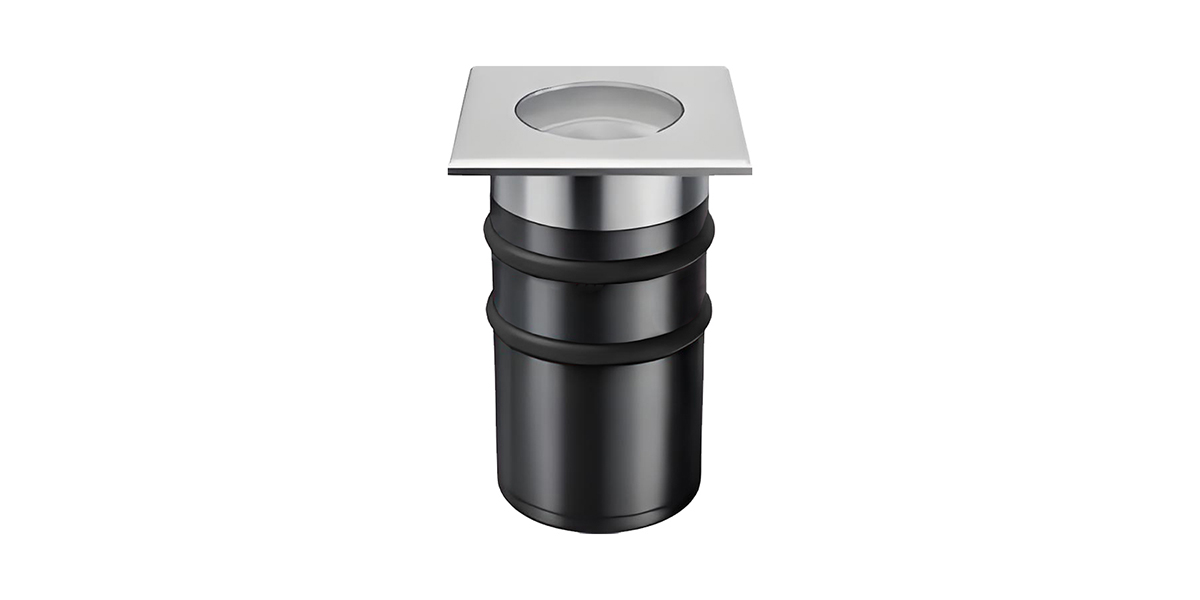

In Ground Landscape Lights Mini Square Series

In ground landscape lights mini square series with light source from CREE/OSRAM.
Wattages choose from 2W to 15W, High performance, used 316 stainless steel, high quality aluminum alloy, and super white tempered glass.

bolt (1)

Wattage

2/4/4.5/6.5/10/15W
brightness-up

Lighting Specifications

CRI>80
keyframes

Materials

Aluminum and Tempered glass and Stainless steel face ring
bulb (2)

LED Type

CREE/OSRAM light source
shadow

LED Driver

KGP driver
angle

Beam Angle

5°/10°/15°/20°/30°/ 40°/60°/10*45°/25* 45°
cloud-rain

IP Rating

IP67
sparkles

Color Temperature

3000K/4000K/5000K/5700K/6000K/6500K
replace

Warranty

5 Years

In Ground Landscape Lights

The square face cover breaks the conventional round shape, outlining a unique profile with simple and bold lines, adding a modern and design sense to the space.
Whether it is the modern-style building facade or the fashionable commercial street landscape, the square roof can blend perfectly and become the visual focus.
In Ground Landscape Lights

In Ground Landscape Lights Square Shaped Cover Design

The square-shaped cover breaks away from the traditional circular design, using simple and neat lines to outline a unique shape, infusing the space with modern beauty and design tension.
Whether it is the modern architectural facade or the fashionable commercial street scene, the square structure can naturally blend in, becoming the visual focal point and endowing the environment with a more distinctive lighting language.
outdoor led inground drivers

Drivers Of In Ground Landscape Lights

Equipped with a dedicated power supply of KGP brand, it has IP67-level water resistance and is suitable for outdoor damp environments.
The PF index is greater than 0.95, with a high power factor and stable current without loss.
Ensure the long-term and reliable operation of lamps from the source and reduce the risk of circuit failures.

RGBW Effect Of In Ground Landscape Lights

It offers monochrome /RGB three-in-one/RGBW four-in-one light source options, which can meet the diverse scene requirements such as static monochrome lighting, multi-color mixed light and warm white light.
Color expression suitable for different scenarios such as landscape atmosphere creation and commercial space lighting.
Deep cup hidden light design
Deep cup hidden light design

High Quality COB Light Source

Equipped with CREE COB light source, the power ranges from 4.5W to 15W, adapting to different brightness requirements.
It offers extremely narrow to wide beam Angle options, with a rotationally symmetrical light pattern, making it suitable for key lighting or large-area floodlighting.
High color temperature accuracy and stable color performance.

In Ground Landscape Lights Structure

This lamp adopts a cast aluminum housing, with the surface treated by sandblasting and powder coating. It is complemented by a titanium-chrome white 316 stainless steel front ring, presenting an outstanding texture and lasting beauty.
The entire aluminum alloy components not only have excellent strength but also possess excellent heat-conducting performance, effectively prolonging the lifespan of the light source. Coupled with stainless steel screws for fixation, it significantly enhances the overall corrosion resistance, making it resistant to harsh outdoor conditions such as humidity and high salt content, and suitable for various high-end lighting scenarios including landscapes and buildings.
In Ground Landscape Lights structure

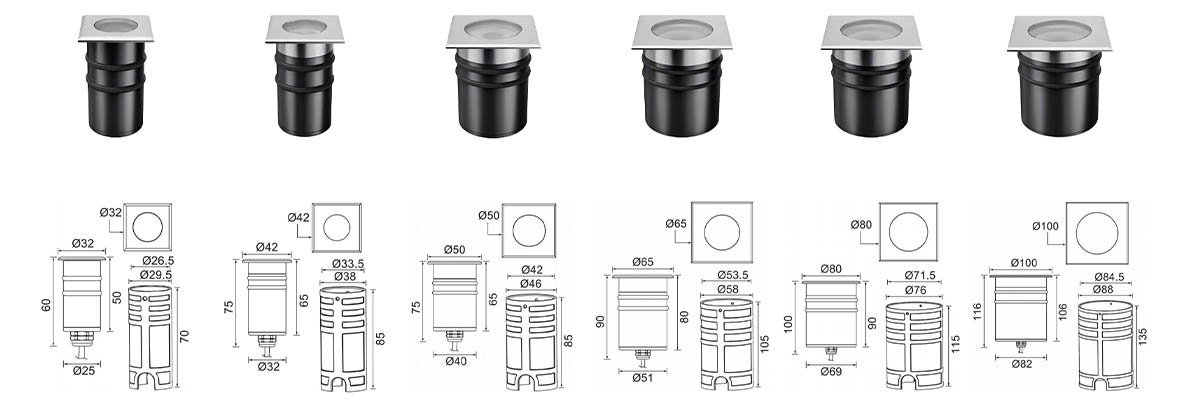

Size Of In Ground Landscape Lights Mini Series

It can be flexibly arranged according to demand to adapt to different lighting designs.
In Ground Landscape Lights sizes

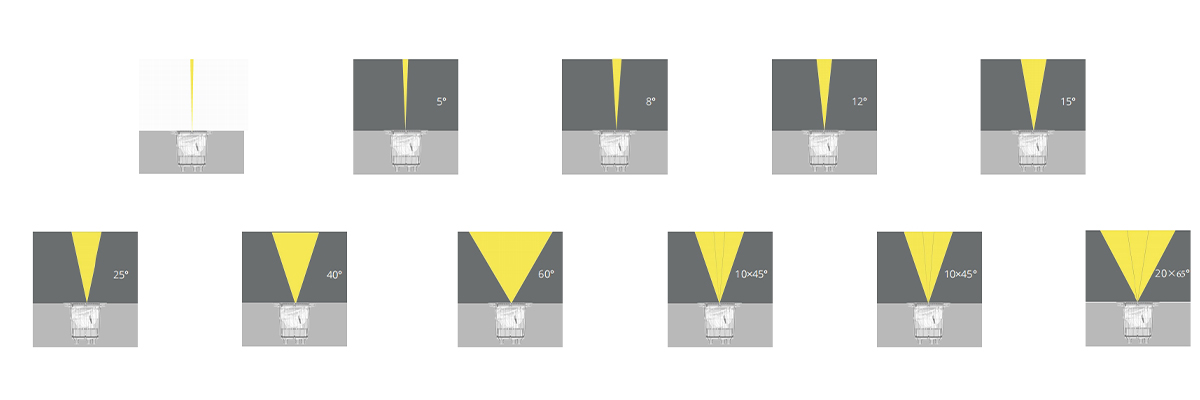

In Ground Landscape Lights Beam Angles Options

This type of underground lamp offers a total of nine different beam angles, including 5°, 10°, 15°, 20°, 30°, 40°, 60°, as well as 10×45° and 25×45°. It precisely meets the diverse lighting requirements ranging from narrow spotlights to wide-area wall wash. Users can freely choose the most suitable beam angle according to the characteristics of the scene and the lighting goals, creating a rich and focused visual effect and achieving a high combination of functionality and artistry.

In Ground Landscape Lights Parts Addition

surface light of led light inground
Surface light
polarization of inground light
Polarized design
Stretch Film of led light inground
Stretch film of LED light
honecomb of inground light
Honeycomb

Datasheet Of LED Ground Lights

Model No.
GS3260S-2W
GS4275S-4W
GS5075S-4.5W
GS6590S-6.5W
GS80100S-10W
GS100116S-15W
Power
1*2W
1*4W
1*4.5W
1*6.5W
1*10W
1*15W
LEDs
CREE XPE/OSRAM 3030
CREE 1304
CREE 1304
CREE 1512
CREE 1512
CREE 1512
Luminous
120lm
340lm
454lm
720lm
900lm
1300lm
Beam Angle
5°/10°/15°/20°/30°/ 40°/60°/10*45°/25* 45°
15°/24°/36°/55°
15°/24°/36°/55°
15°/24°/36°/55°
15°/24°/36°/55°
15°/24°/36°/55°
Material
316 Stainless steel+Aluminum
Voltage
12/24VDC / 220~240VAC
PF
>0.95
LED Lifespan
>50000 hours
IP
IP67
CRI
>80/90
CCT
3000K/4000K/5000K/6000K
Size
32mm
42mm
50mm
65mm
80mm
100mm
Warranty
5 Years

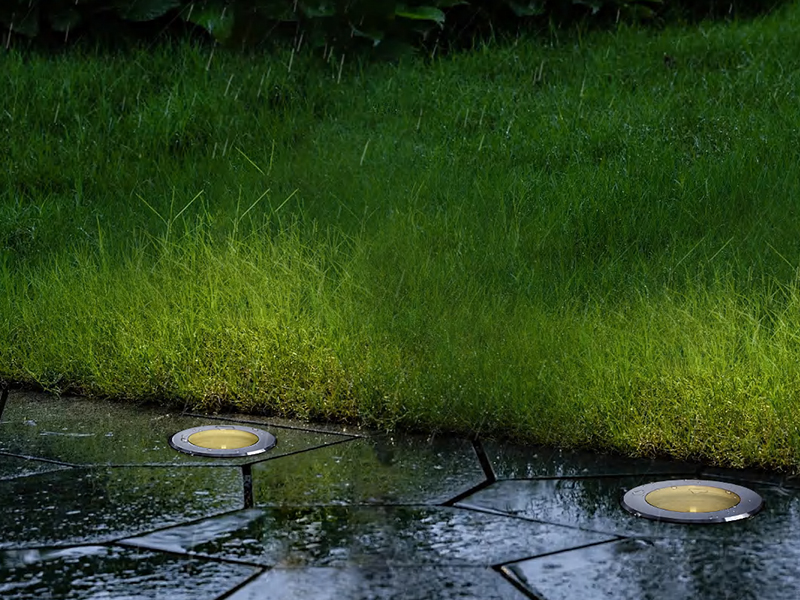

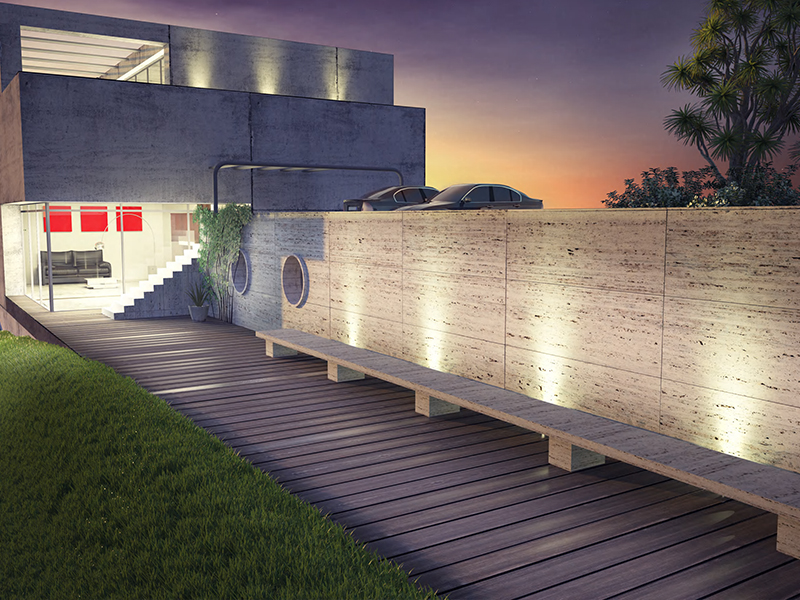

Durable Underground Lights Applications

Outdoor scenarios: hotels, villas, building facades, gardens, residential areas, especially suitable for environments that require landscape lighting or functional underground lighting
Special environments: Seaside, areas with high humidity or high corrosiveness (due to the strong weather resistance of the material)
applications of inground
application of inground
led inground lights application

Related Products

circular-LED-Ground-Lights4w-768x768
LED Ground Lights Mini Circular Series
in-ground-pathway-lightst-2W-768x768
In Ground Pathway Lights Step Series

In Ground Landscape Lights FAQs

Inground Lights are commonly used to highlight trees, shrubs, flower beds, sculptures, water features, retaining walls, and other landscape focal points.

By illuminating selected landscape elements from below, Inground Lights help create contrast, shadows, and visual depth throughout the outdoor environment.

Yes. They are often used to accent ornamental trees, showcasing branch structures, canopy shapes, and seasonal foliage colors.

Yes. They are frequently installed around ponds, fountains, and decorative water features to enhance visual appeal after dark.

Warm white light is a popular choice because it creates a comfortable atmosphere and enhances the natural appearance of plants and landscape materials.

Yes. They can be positioned close to garden walls to emphasize textures, materials, and architectural details.

Yes. In Ground Landscape Lights are frequently specified for resorts, hotels, villas, and luxury outdoor environments.

Selecting recessed Inground Lights, appropriate beam angles, and careful fixture positioning can help improve visual comfort.

Yes. Inground Lights are commonly installed within lawns to provide discreet lighting while maintaining a clean landscape appearance.

Important factors include beam angle, mounting position, light output, color temperature, target object size, and surrounding landscape conditions.
