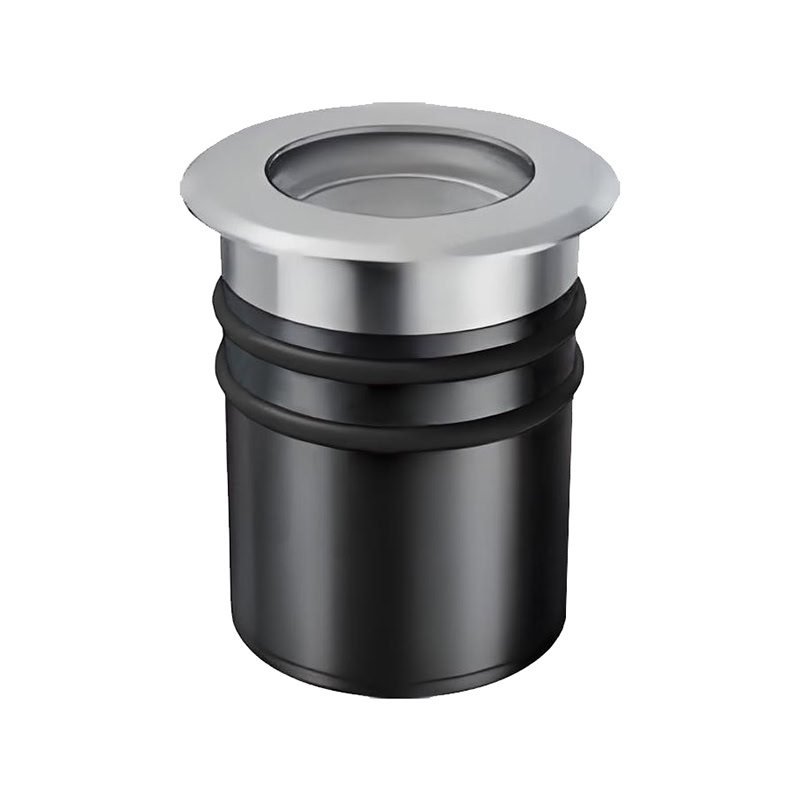

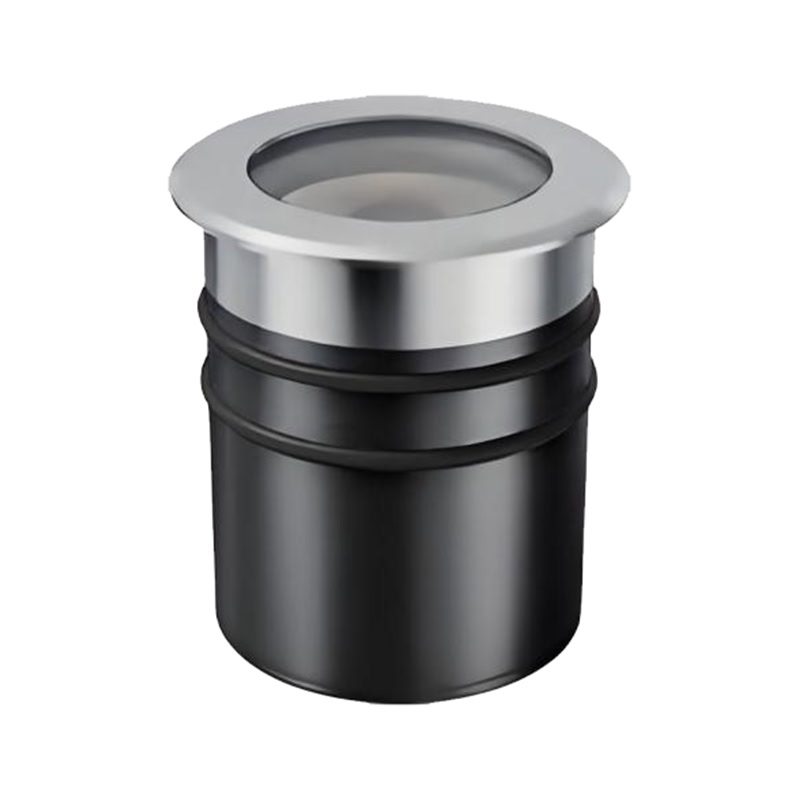

LED Ground Lights
The circular mini underground lamp series has a sturdy and durable structure, reducing the frequency of malfunctions.
Lamp body adopts a die-cast aluminum shell, and the surface is treated with powder coating.It is equipped with a titanium-chrome white 316L stainless steel front ring,
Rear cover are made of 6063 aluminum alloy, which is of high strength and good thermal conductivity. The screws are made of stainless steel and have strong corrosion resistance.
Lamp body adopts a die-cast aluminum shell, and the surface is treated with powder coating.It is equipped with a titanium-chrome white 316L stainless steel front ring,
Rear cover are made of 6063 aluminum alloy, which is of high strength and good thermal conductivity. The screws are made of stainless steel and have strong corrosion resistance.
Drivers Of LED Ground Lights
Equipped with a dedicated power supply of KGP brand, it has IP67-level water resistance and is suitable for outdoor damp environments.
The PF index is greater than 0.95, with a high power factor and stable current without loss.
Ensure the long-term and reliable operation of lamps from the source and reduce the risk of circuit failures.
The PF index is greater than 0.95, with a high power factor and stable current without loss.
Ensure the long-term and reliable operation of lamps from the source and reduce the risk of circuit failures.
High Quality COB Light Source
Equipped with CREE COB light source, the power ranges from 4.5W to 15W, adapting to different brightness requirements.
It offers extremely narrow to wide beam Angle options, with a rotationally symmetrical light pattern, making it suitable for key lighting or large-area floodlighting.
High color temperature accuracy and stable color performance.
It offers extremely narrow to wide beam Angle options, with a rotationally symmetrical light pattern, making it suitable for key lighting or large-area floodlighting.
High color temperature accuracy and stable color performance.

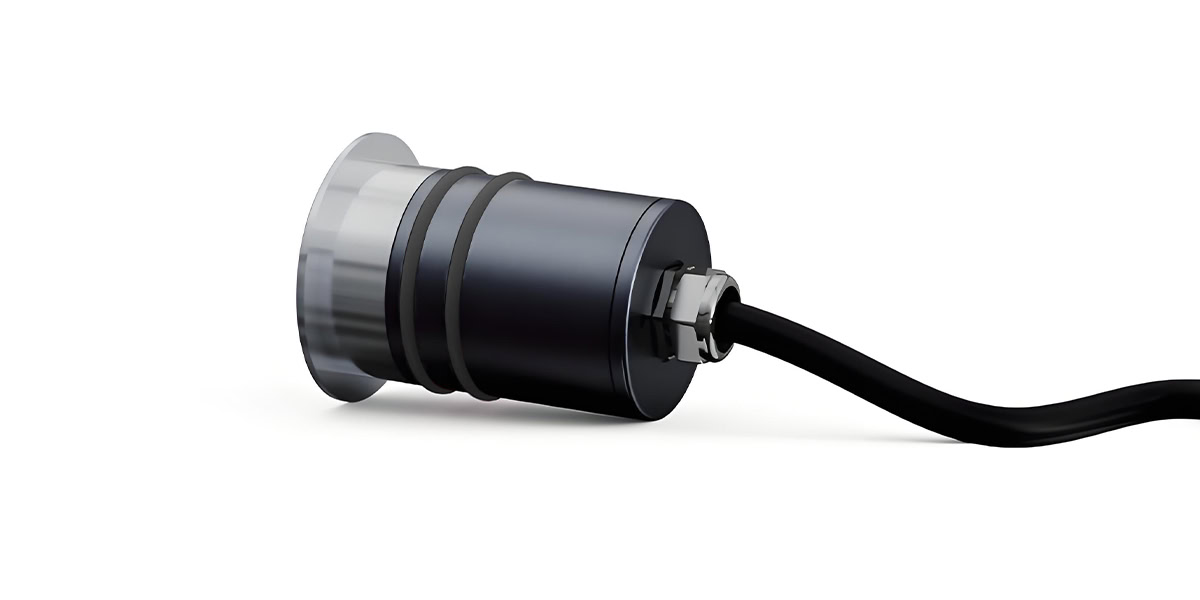

LED Ground Lights Structure
This type of lamp uses high-transparency tempered safety glass as the light-transmitting surface material. The light transmittance is over 95%. It ensures efficient light output while also having excellent shock resistance and explosion-proof performance. Combined with the specially designed anti-glare cup design, it precisely optimizes the light path distribution, effectively suppresses glare, and significantly improves visual comfort.
The surface of the glass has been treated with a nano-coating, which prevents stains and fingerprints, is easy to clean and maintain, and remains transparent and new-like even after long-term use. The overall optical system has been scientifically balanced in light distribution, ensuring soft and uniform light without flicker or blue light hazards. It is particularly suitable for high-end indoor and outdoor lighting scenarios where people's eyes need to be exposed to light for a long time.
The surface of the glass has been treated with a nano-coating, which prevents stains and fingerprints, is easy to clean and maintain, and remains transparent and new-like even after long-term use. The overall optical system has been scientifically balanced in light distribution, ensuring soft and uniform light without flicker or blue light hazards. It is particularly suitable for high-end indoor and outdoor lighting scenarios where people's eyes need to be exposed to light for a long time.

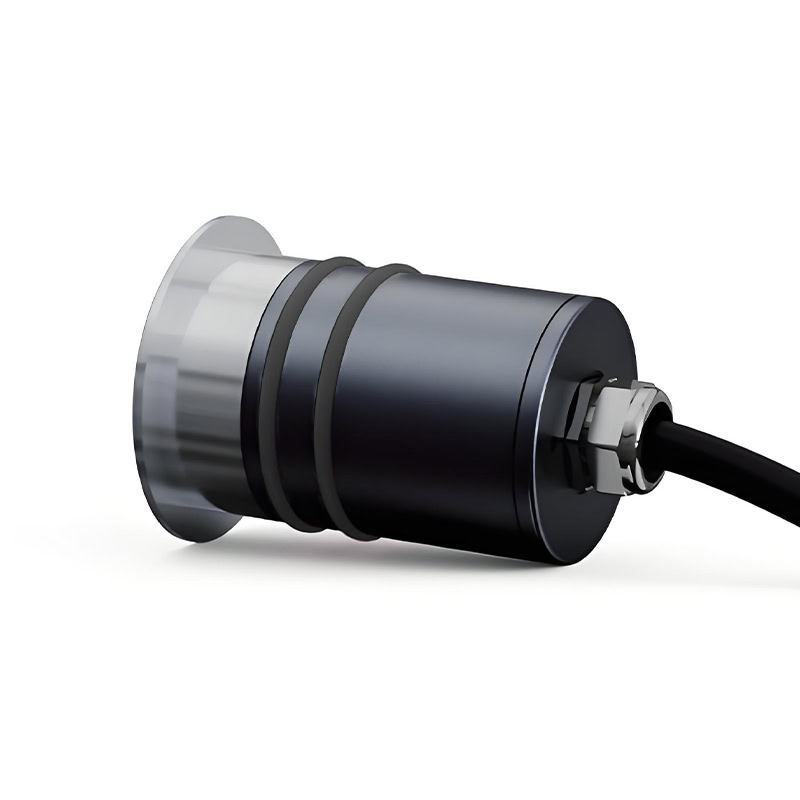

Size Of LED Ground Lights Mini Series
It can be flexibly arranged according to actual needs, and is compatible with various lighting design schemes. Whether it is basic functional lighting, creating a landscape atmosphere, or outlining the building facade, precise light distribution and efficient coverage can be achieved, meeting the professional lighting requirements in different scenarios.
LED Ground Lights Beam Angles Options
This type of underground lamp offers a variety of beam angles such as 5°, 10°, 15°, 20°, 30°, 40°, 60°, as well as 10×45° and 25×45°. It precisely meets the diverse lighting requirements ranging from narrow spotlights to wide-area wall wash. Users can freely choose the most suitable beam angle according to the scene characteristics and lighting goals, creating a rich and focused visual effect and achieving a high combination of functionality and artistry.
Meanwhile, the lamps can be flexibly adjusted to change the illumination angle after installation, significantly enhancing the adaptability of the project and the matching degree of the scene. Whether it is the outlining of the building facade, the lighting of the landscape plants, or the lighting of the walkway steps, they can all be adjusted to a personalized angle to precisely control the range of the light spot and the direction of the light, ensuring that each lamp can perfectly meet the actual needs and providing more possibilities for creative light environment design.
Meanwhile, the lamps can be flexibly adjusted to change the illumination angle after installation, significantly enhancing the adaptability of the project and the matching degree of the scene. Whether it is the outlining of the building facade, the lighting of the landscape plants, or the lighting of the walkway steps, they can all be adjusted to a personalized angle to precisely control the range of the light spot and the direction of the light, ensuring that each lamp can perfectly meet the actual needs and providing more possibilities for creative light environment design.
LED Ground Lights Parts Addition
Surface light
Polarized design
Stretch film of LED light
Honeycomb
Datasheet Of LED Ground Lights
Model No.
GS3260R-2W
GS4275R-4W
GS5075R-4.5W
GS6590R-6.5W
GS80100R-10W
Power
2W
4W
4.5W
6.5W
10W
Beam Angle
5°/10°/15°/20°/30°/ 40°/60°/10*45°/25* 45°
15°/24°/36°/55°
12°/24°/36°/55°
Light efficiency
120lm
340lm
454lm
720lm
900lm
Material
316 Stainless steel+Aluminum
Voltage
DC24V/AC220V
Light Source
CREE
LEDs
COB
PF
>0.95
LED Lifespan
>50000 hours
IP
IP67
CRI
>80/90
CCT
3000K/4000K/5000K/6000K
Diameter
32mm
42mm
50mm
65mm
80mm
Warranty
5 Years
Durable LED Ground Lights Applications
Outdoor scenarios: hotels, villas, building facades, gardens, residential areas, especially suitable for environments that require landscape lighting or functional underground lighting Special environments: Seaside, areas with high humidity or high corrosiveness (due to the strong weather resistance of the material)
Related Products
In Ground Landscape Lights Mini Square Series
In Ground Pathway Lights Step Series
LED Ground Lights FAQs
Inground Lights are available with different lumen outputs to accommodate decorative lighting, pathway illumination, and architectural accent lighting applications.
Narrow beam angles are often selected to emphasize architectural details, while wider beam angles help illuminate larger surfaces more evenly.
Yes. Inground Lights are commonly used to highlight sculptures, art installations, and landscape focal points.
They can be installed in concrete, stone paving, landscape hardscape areas, commercial plazas, and other outdoor surfaces.
Yes. Their compact recessed design makes them suitable for narrow planting areas and limited installation spaces.
Absolutely. LED Ground Lights are widely specified for commercial buildings, shopping centers, hotels, and public landscapes.
Routine inspections, surface cleaning, and checking drainage conditions are generally sufficient for long-term operation.
Yes. Inground Lights are often combined with spotlights, wall washers, and bollard lights to create multi-layered landscape lighting effects.
Yes. Sample evaluation is commonly available to verify lighting performance, installation compatibility, and product quality.
