COB Depth Anti Glare LED In Ground – DC Series

LED In Ground depth anti-glare series blocks part of the direct light, allowing the light to be reflected multiple times inside the lamp before being emitted.
Significantly reduce the intensity of glare, achieving an anti-glare effect with URG≤16, and is suitable for scenarios with high requirements for the light environment

bolt (1)

Wattage

6/12/20/25/36W
brightness-up

Lighting Specifications

CRI>80
battery-eco

Light efficiency

90lm/W
brightness (1)

Dimming Options

DALI/ 0-10V dimming for option
keyframes

Materials

Aluminum and Tempered glass and Stainless steel face ring
bulb (2)

LED Type

CREE/OSRAM 3030 light source
shadow

LED Driver

KGP driver
angle

Beam Angle

18°/24°/38°/60°
cloud-rain

IP Rating

IP67
sparkles

Color Temperature

3000K/4000K/5000K/5700K/6000K/6500K
replace

Warranty

5 Years

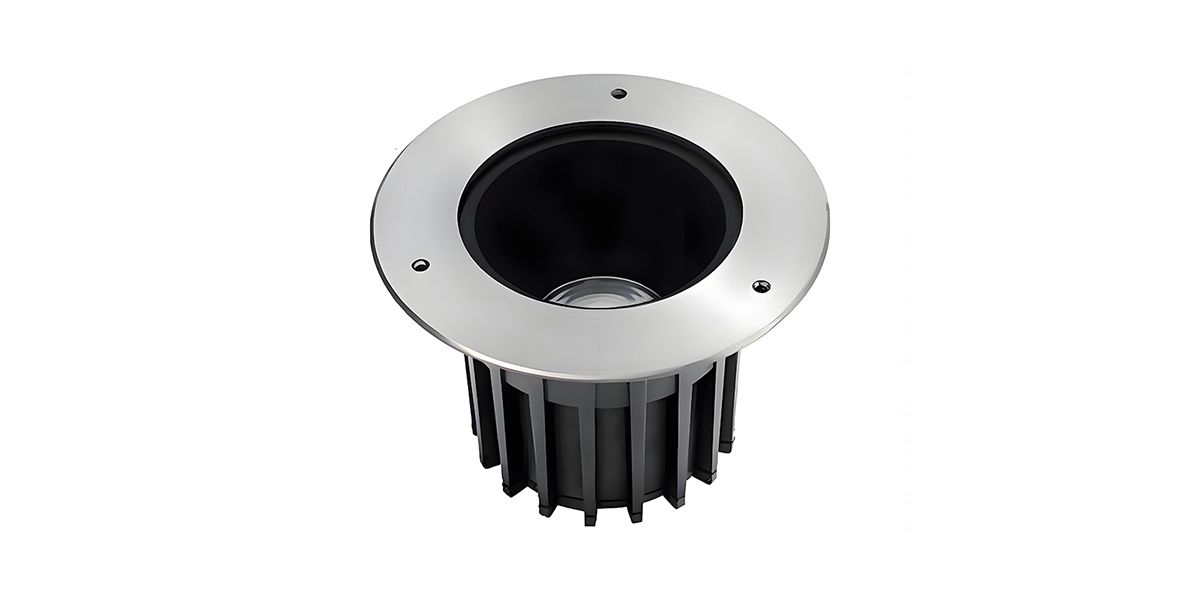

LED In Ground Lights High Quality Materials

It adopts a combination of 316 stainless steel and aluminum alloy, featuring a high-density and lightweight lamp body, which takes into account both sturdiness and ease of installation.
Stainless steel is used for exposed components such as surface rings and screws. After anodizing and polishing treatment, it has excellent corrosion resistance.
led in ground high quality material
outdoor led inground drivers

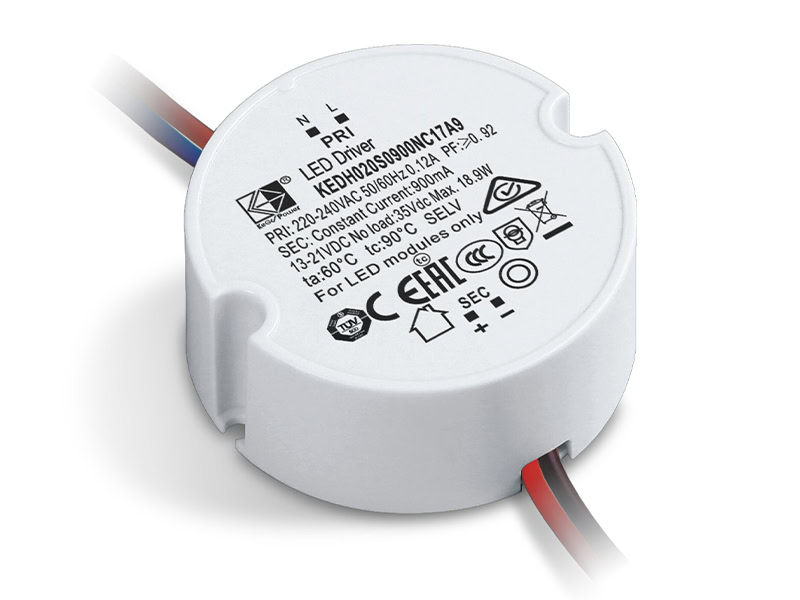

Drivers Of LED In Ground Lights

Equipped with a dedicated power supply of KGP brand, it has IP67-level water resistance and is suitable for outdoor damp environments.
The PF index is greater than 0.95, with a high power factor and stable current without loss.
Ensure the long-term and reliable operation of lamps from the source and reduce the risk of circuit failures.

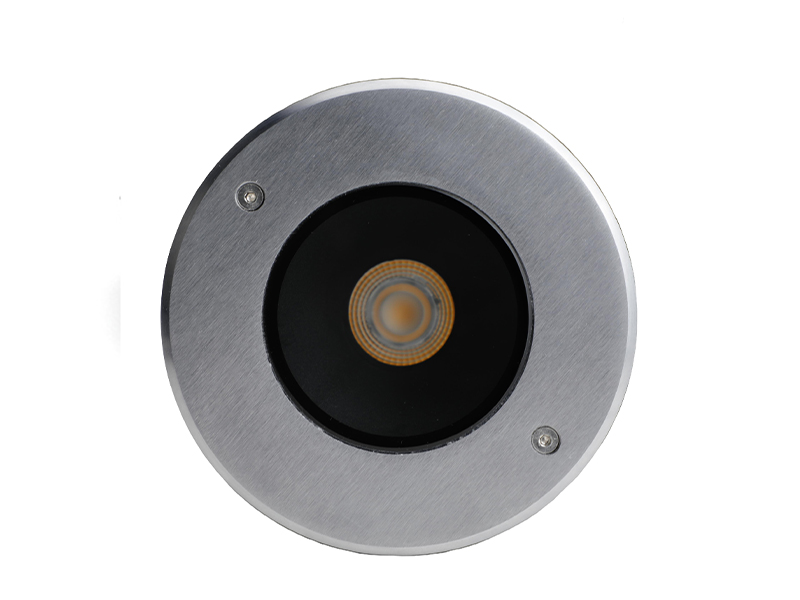

LED In Ground Lights COB Light Source

The CREE COB light source is adopted, featuring higher luminous efficiency and uniform light color. The luminous efficiency of the 12W model reaches 1120lm, meeting the requirements of high brightness.
The light-emitting surface is more concentrated and the light distribution is uniform, avoiding the problem of light spot dispersion in traditional light sources.
Deep cup hidden light design

COB LED In Ground Lights

underground light changing color
Changing colors from 2700K to 4000K, RGB/RGBW/DMX control for option.
According to the changing needs of your scene, choose the right color temperature to create a different atmosphere.
underground light dali control

It can support DALI/0-10V Control dimmable.
DALI Dimming: Suitable for scenarios that require precise control and intelligent management.
0-10V dimming: Suitable for simple, low-cost dimming needs.
Deep cup hidden light design

Deep Anti Glare Design Of LED In Ground Lights

The deep design structure blocks part of the direct light, and the light is reflected multiple times inside the lamp before being emitted.
Significantly reduce the intensity of glare to meet the anti-glare standard of URG≤16. Combined with a special face cover design and high-quality optical components, it can optimize the light distribution.

RGBW Effect Of LED In Ground Lights

It offers monochrome /RGB three-in-one/RGBW four-in-one light source options, which can meet the diverse scene requirements such as static monochrome lighting, multi-color mixed light and warm white light.
Color expression suitable for different scenarios such as landscape atmosphere creation and commercial space lighting.
Deep cup hidden light design

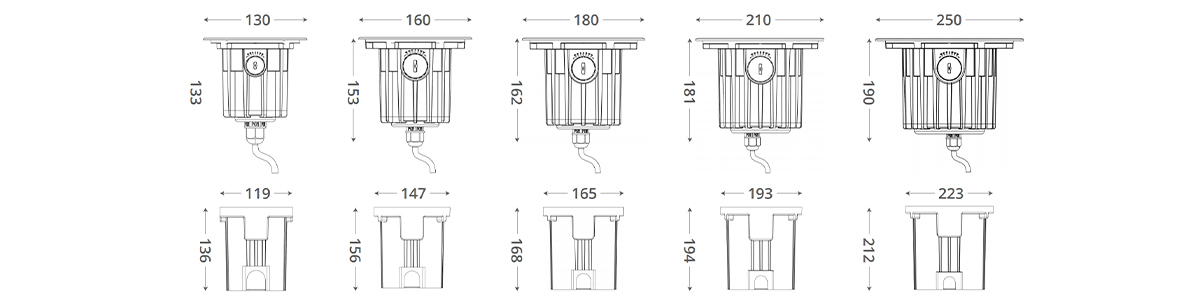

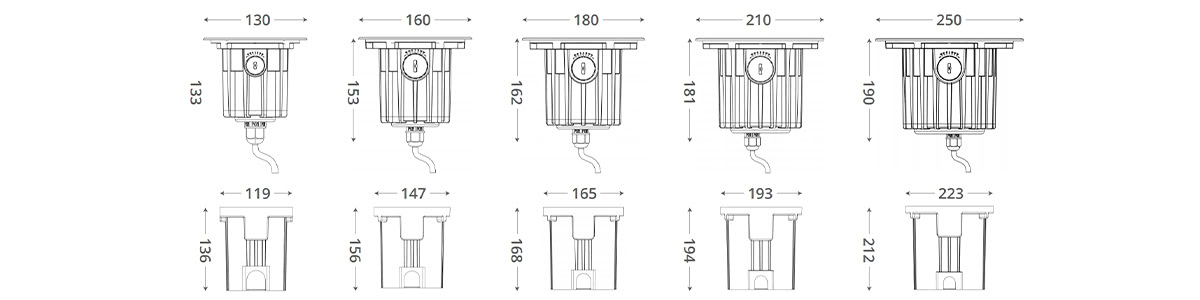

Size Of LED In Ground Lights

It can be flexibly arranged according to demand to adapt to different lighting designs.
different sizes of led inground light

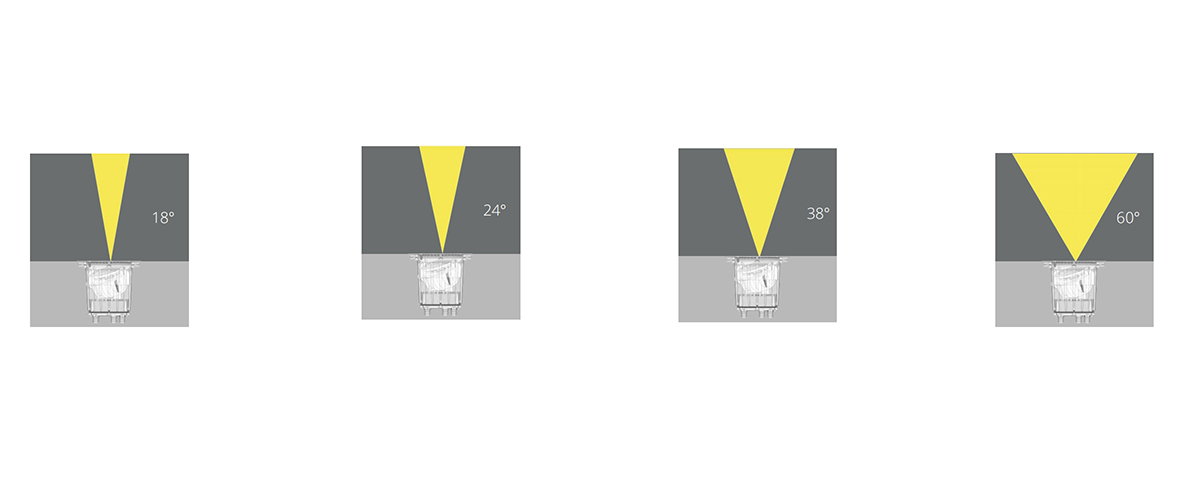

LED In Ground Lights Beam Angles

It offers beam Angle options of 18°, 24°, 38°, and 60°, covering the range from medium and narrow beams to wide beams.
beam angle of inground

LED In Ground Lights Parts Addition

surface light of led light inground
Surface light
polarization of inground light
Polarized design
Stretch Film of led light inground
Stretch film of LED light
honecomb of inground light
Honeycomb

Datasheet Of LED In Ground Lights

Model No.
DC130-6W
DC160-12W
DC210-20W
DC210-25W
DC250-36W
Power
6W
12W
20W
25W
36W
Beam Angle
18°/24°/38°/60°
Light efficiency
418lm
1120lm
1245lm
2030lm
2030lm
Material
316 Stainless steel+Aluminum
Voltage
DC24V/AC220V
Light Source
CREE
LEDs
COB
PF
>0.95
LED Lifespan
>50000 hours
IP
IP67
CRI
>80/90
CCT
RGB/RGBW/DMX/2700K/3000K/3500K/4000K
Size
Φ130*H133
Φ160*H153
Φ180*H162
Φ210*H181
Φ250*H190
Warranty
5 Years

Durable Underground Lights Applications

Outdoor scenarios: hotels, villas, building facades, gardens, residential areas, especially suitable for environments that require landscape lighting or functional underground lighting Special environments: Seaside, areas with high humidity or high corrosiveness (due to the strong weather resistance of the material)
led inground landscape usage by GS LED
led inground lighting usage
led inground lights application

Related Products

6w-underground-lamp-768x768
Underground Lamp Adjustable Series
20w-cob-asymmetric-led-inground-light-768x768
LED Inground COB Asymmetric Series

COB Depth Anti Glare LED In Ground FAQs

These Inground Lights combine COB LED technology with a deep recessed anti-glare structure, helping deliver comfortable illumination while reducing direct light exposure.

The recessed light chamber shields the LED source from direct view, making the fixture more comfortable when observed from multiple angles.

Yes. The anti-glare design helps maintain comfortable lighting conditions in areas where people frequently gather or spend time.

COB LEDs create a more continuous light-emitting surface, producing smoother light distribution and reducing visible LED points.

Yes. The combination of COB technology and glare control helps create a balanced and visually comfortable lighting effect.

Pedestrian walkways, hospitality projects, plazas, parks and residential landscapes often benefit from glare-controlled lighting solutions.

Yes. The recessed structure reduces direct visibility of the LED source, contributing to a cleaner visual appearance.

Absolutely. Its minimalist appearance and refined lighting performance align well with contemporary architectural design trends.

They offer smooth illumination, refined aesthetics and enhanced visual comfort, which are important considerations in premium environments.

The combination delivers both smooth light quality and improved visual comfort, creating professional lighting results in architectural and landscape applications.
