SMD Depth Anti Glare LED Light Ground – DS Series

led light ground, depth anti glare design, UGR<16, Die-cast aluminum, 304 stainless steel cover, 8mm tempered glass, china manufacturer.

bolt (1)

Wattage

3W/6W/13W/20W/25W/36W
battery-eco

Light efficiency

90lm/W
circuit-voltmeter

Input Voltage

DC24V/AC220V
brightness (1)

Dimming Options

DALI/0-10V
keyframes

Materials

6063 Aluminum alloy+8mm tempered glass+stainless steel face ring
bulb (2)

LED Type

CREE/OSRAM
cloud-rain

IP Rating

IP67
sparkles

Color Temperature

RGB/RGBW/DMX/2700K/3000K/3500K/4000K
clock-2

Lifespan

>50000hours
replace

Warranty

5 Years

High Quality LED Light Ground

The lamp body adopts a high-density aluminum alloy shell, which is both sturdy and durable as well as lightweight, making it easy to install and transport.
The surface ring and screws are made of high-quality stainless steel and have undergone fine anodizing and polishing treatment, featuring excellent corrosion resistance.
It adopts waterproof and explosion-proof tempered glass, which is highly hard and has a light transmittance of over 90%.
led light ground high quality

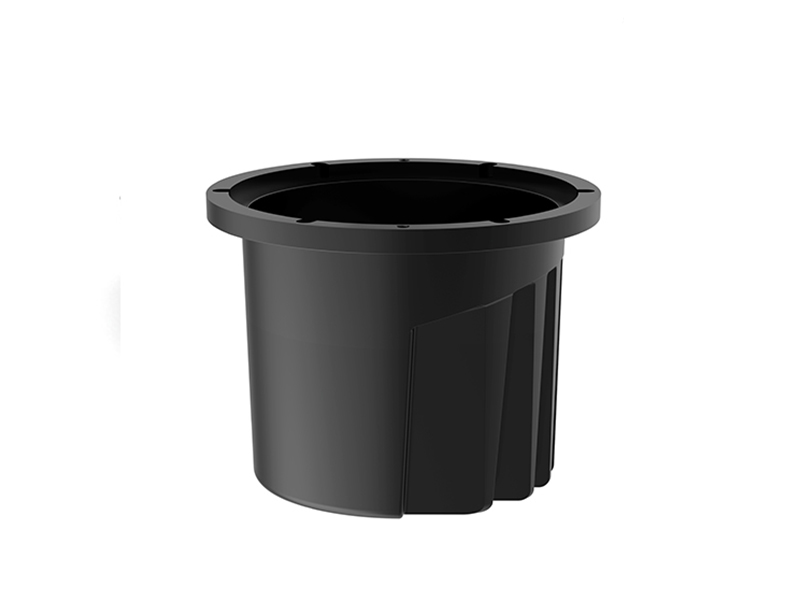

Easy Installation For LED Lights In Ground

Equipped with special embedded parts, the installation only needs to be fixed in the ground or wall embedded parts, the construction is simple and fast.

Inground adopts a modular structure, the LED module, the drive power and other components can be replaced separately, so it can reducing the maintenance cost.
pre embedded part of ground lights
led inground deep anti glare design

High Quality LED Light Ground Deep Anti Glare Design

Deep anti-glare design, by blocking part of the direct light, makes the light reflect multiple times inside the lamp and then exit, significantly reducing the intensity of glare.
It achieves an anti-glare effect with URG≤16 and is suitable for scenarios with high requirements for the light environment.

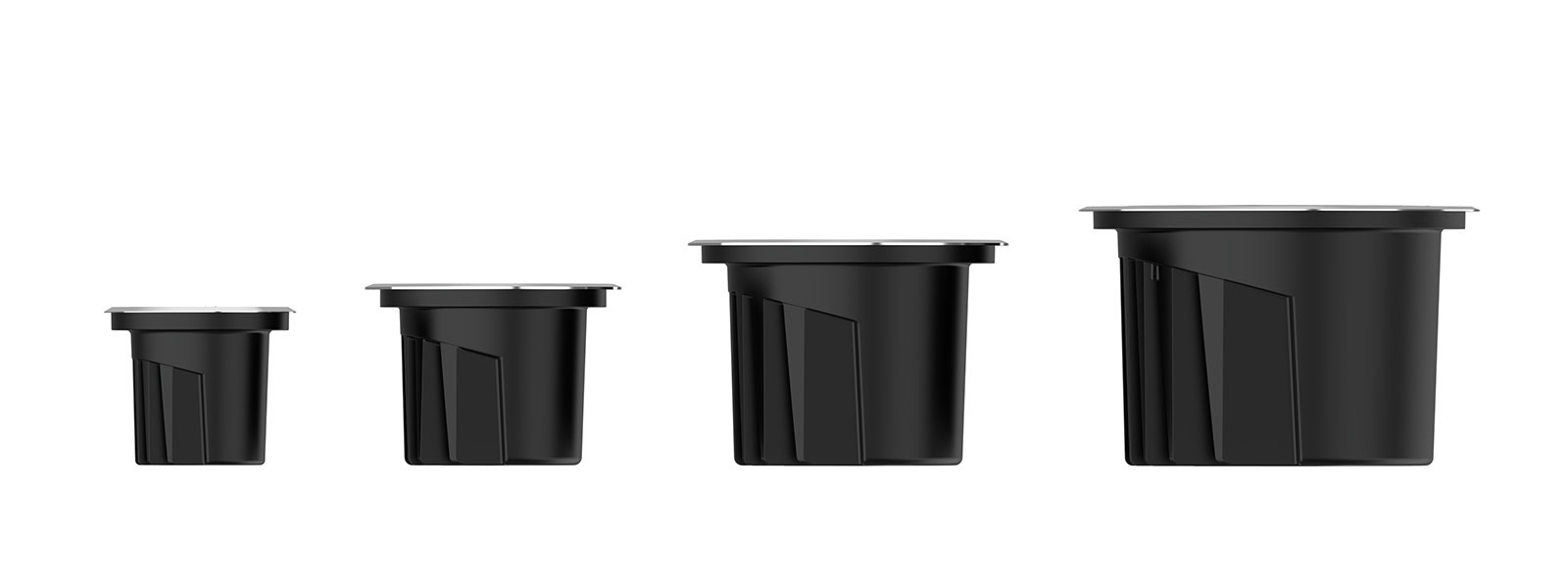

Multiple Options Of LED Light Ground

It offers multiple power options ranging from 3W to 36W, flexibly matching the lighting intensity requirements of different Spaces.
Users can choose the appropriate power according to their actual needs to achieve a balance between energy consumption and cost while meeting the brightness requirements.
led lights in ground sized

Drivers Of LED Light Ground

Equipped with a dedicated power supply of KGP brand, it has IP67-level water resistance and is suitable for outdoor damp environments.
The PF index is greater than 0.95, with a high power factor and stable current without loss.
Ensure the long-term and reliable operation of lamps from the source and reduce the risk of circuit failures.
outdoor led inground drivers
RGBW effect of inground light

RGBW Effect Of Landscape Underground LED Lights

It offers monochrome /RGB three-in-one/RGBW four-in-one light source options, which can meet the diverse scene requirements such as static monochrome lighting, multi-color mixed light and warm white light.
Color expression suitable for different scenarios such as landscape atmosphere creation and commercial space lighting.

Intelligent Control Of LED Light Ground

underground light dali controlunderground light changing color
It can support DALI/0-10V Control dimmable.
DALI Dimming: Suitable for scenarios that require precise control and intelligent management.
0-10V dimming: Suitable for simple, low-cost dimming needs.
Changing colors from 2700K to 4000K, RGB/RGBW/DMX control for option.
According to the changing needs of your scene, choose the right color temperature to create a different atmosphere.

Datasheet Of LED Light Ground

Model No.
DS95-3W
DS130-6W
DS160-13W
DS180-20W
DS210-24W
DS250-36W
Power
3W
6W
13W
20W
24W
36W
Light Efficiency
90lm/W
LED Brand
OSRAM/CREE
Materials
6063 Aluminum alloy+8mm tempered glass+stainless steel face ring
Beam angle
5°/10°/12°/20°/24°/30°/40°/60°/15*40°/20*40°/25*45°
PF
>0.95
LED Lifespan
>50000 hours
IP
IP67
Dimmable ways
DALI/0-10V
Impact resistance
IK08
Working temperature
-30℃ -+55℃
CRI
>80
CCT
RGB/RGBW/DMX/2700K/3000K/3500K/4000K
Warranty
5 Years

LED Light Ground Distribution

Beam angles can choose from 10°/15°/30°/45°/60°/20*45°/10*60°. It has unique optical design and efficient light control capabilities.

Compact design, easy installation, and usually with embedded parts, so easy to fix in the ground or wall.
led light ground beam angles

Underground LED Lights Ground Parts Addition

surface light of led light inground
Surface Light
polarization of inground light
Polarized design
Stretch Film of led light inground
Stretch flim of LED light
honecomb of inground light
Honeycomb

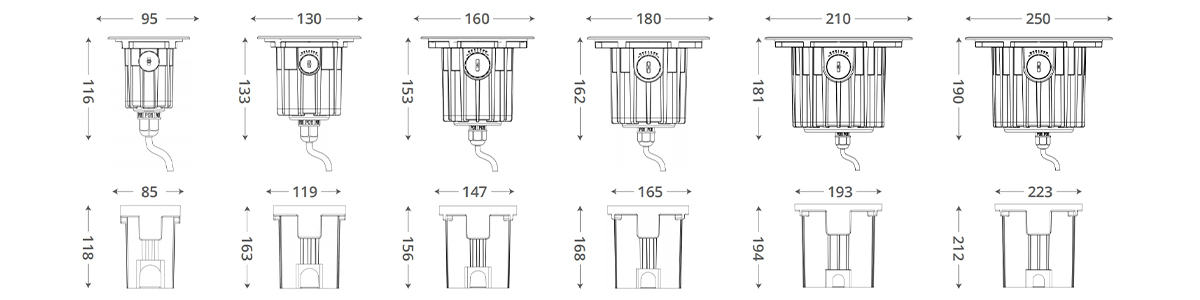

Size Of LED Light Ground

The embedded parts adopt customized metal frames, and their dimensions are exactly matched with those of the lamps.
When the lamp needs maintenance, simply unscrew the hidden quick-release screw on the top of the embedded part, and the lamp module can be removed as a whole.
size of led inground asymmetric cob lights

Application Of LED Lights Ground Series

It is suitable for outdoor landscape lighting, commercial plazas, pedestrian paths, parking lots and other scenarios that require anti-glare and have high requirements for the durability of lamps.
led inground landscape usage by GS LED
led inground lighting usage
led inground lights application

Related Products

led-in-ground-768x768
LED In Ground COB Depth Anti Glare Series
Classical-Asymmetric-Inground-Lights-9w-768x768
LED Lights In Ground Asymmetric Series

SMD Depth Anti Glare LED Light Ground FAQs

The recessed structure helps shield the light source from direct view, reducing glare and improving visual comfort for pedestrians and visitors.

The anti-glare design minimizes visual discomfort while providing effective illumination, making them ideal for walkways, plazas and public spaces.

By controlling the viewing angle of the light source, the fixture delivers illumination where needed while reducing excessive brightness in direct sightlines.

Yes. Their glare-controlled design makes them particularly suitable for areas with high pedestrian traffic.

They provide targeted illumination to pathways, landscape elements and architectural features without creating excessive brightness.

The recessed optical design helps reduce direct glare while effectively illuminating trunks, branches and landscape features.

SMD LEDs offer stable performance, good light consistency and efficient illumination within controlled optical systems.

The optical system focuses light toward the intended target area and limits unnecessary light distribution beyond the application zone.

Yes. These fixtures are commonly selected for commercial landscapes where visual comfort and aesthetic lighting are priorities.

Yes. The controlled light distribution allows designers to create refined and understated lighting scenes.

Designers increasingly prioritize visual comfort. Anti-glare Inground Lights help create attractive nighttime environments while reducing unnecessary brightness and glare.
