GS Light logo

Bollard Light Replacement – BW-Round head Series

BW-Round Head Series round-head LED bollard light, classic round-head design, available in φ120/φ160 diameters, 10W-30W power, 700-2070lm luminous flux, equipped with Lumileds high CRI LEDs, IP65 dustproof & waterproof, IK08 impact resistance, CRI>80, 2700K-6500K customizable CCT, an excellent choice for bollard light replacement.

bolt (1)

Wattage

10W/14W/20W/24W/30W
circuit-voltmeter

Input Voltage

AC200-240V
keyframes

Materials

Die-casting aluminum alloy with Extruded aluminum alloy
bulb (2)

LED Type

Lumileds 2835
cloud-rain

IP Rating

IP65
sparkles

Color Temperature

2700K-6500K
clock-2

Lifespan

>50000hours
replace

Warranty

5 Years

Bollard Light Replacement – BW Series

Designed as a reliable bollard light replacement, this product combines robust construction with efficient performance. The anti-UV PC diffuser with anti-glare plate ensures high light efficiency and reduces glare, while the removable lamp head design simplifies installation and maintenance. Suitable for both residential and commercial outdoor spaces requiring long-term stable operation.

IP65 & IK08 High Protection Rating

Achieves IP65 water and dustproof rating and IK08 impact resistance rating, capable of withstanding heavy rain, dust, and physical impacts. This ensures the light operates stably in various harsh outdoor conditions, such as coastal areas, industrial zones, or high-traffic public spaces.

IP65 bollard light replacement BW-Round head

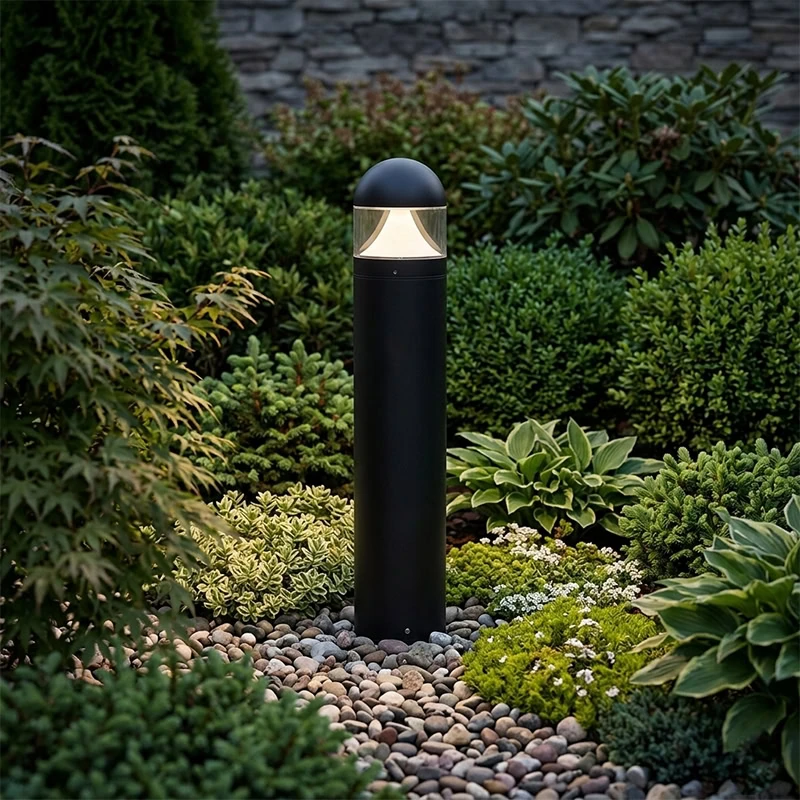

Landscape Garden Lighting bollard light replacement

Wide Range Color Temperature Selectable

Supports a color temperature range of 2700K (warm white) to 6500K (cool white). Whether for creating a cozy atmosphere in gardens or bright illumination in car parks, it adapts to diverse lighting scenarios and design requirements.

Equipped with Lumileds 2835/3030 LEDs, the light delivers high lumen output (700Lm-2070Lm) and CRI >80, ensuring accurate color rendering and uniform light distribution.

Bollard Light Replacement Heads

Available in Φ160 (A Series) and Φ120 (B/C Series) diameters, suitable for different installation spaces and aesthetic preferences.

bollard light replacement Diameter 160 – A160 M1 head
GS-BW-A160-M1
Diameter: Φ160
Head: M1
bollard light replacement Diameter 120 – A120 M1 head
GS-BW-B120-M1
Diameter: Φ120
Head: M1
bollard light replacement Diameter 120 – A120 N1 head
GS-BW-C120-N1
Diameter: Φ120
Head: N1

dimension of Bollard Light Replacement

Diameter 160 bollard light replacementbollard landscape lighting 120 diameter
bollard light replacement Diameter 160
GS-BW-A160-M1
Diameter: Φ160
Head: M1
bollard light replacement Diameter 120 M1 head
GS-BW-B120-M1
Diameter: Φ120
Head: M1
Diameter 120 N1 head bollard light replacement
GS-BW-C120-N1
Diameter: Φ120
Head: N1

Bollard Light Replacement optional accessory

ncludes die-casting heatsink, clear/opal PC diffuser, anti-glare board, and breathing apparatus for enhanced heat dissipation and performance.

bollard light replacement Die Casting Heatsink
Die Casting Heatsink
bollard light replacement Die Casting Heatsink GS LIGHT
Die Casting Heatsink
Breating Apparatus bollard light replacement
Breating Apparatus
Anti-glare Board bollard light replacement
Anti-glare Board
bollard landscape lighting Clear Injection Pc Diffuser
Clear Injection Pc Diffuser
Opal Pmma Diffuser bollard landscape lighting
Opal Pmma Diffuser
bollard landscape lighting Die Casting Reflector
Die Casting Reflector
Injection Pc Diffuser outdoor bollard lights
Injection Pc Diffuser
outdoor bollard lights Die Casting Reflector GS LIGHT
Die Casting Reflector
outdoor bollard lights Injection Pc Diffuser GS LIGHT
Injection Pc Diffuser
Die Casting Reflector Diameter 120 N1 HEAD outdoor bollard lights
Die Casting Reflector

Selectable Dimension and Wattages

Model No.
GS-BW-A160-10W
GS-BW-A160-14W
GS-BW-A160-20W
GS-BW-A160-24W
GS-BW-A160-30W
Power
10W
14W
20W
24W
30W
Voltage
AC200-240V
Lumens
750Lm
1055Lm
1463Lm
1672Lm
2070Lm
LED
Lumileds 2835
Lumileds 2835
Lumileds 2835
Lumileds 2835
Lumileds 3030
IP
IP65
IK
IK08
CRI
>80
CCT
2700-6500K
Model No.
GS-BW-B120-10W
GS-BW-B120-15W
Power
10W
15W
Voltage
AC200-240V
Lumens
700Lm
1050Lm
LED
Lumileds 2835
Lumileds 2835
IP
IP65
IK
IK08
CRI
>80
CCT
2700-6500K
Model No.
GS-BW-C120-10W
GS-BW-C120-15W
Power
10W
15W
Voltage
AC200-240V
Lumens
700Lm
1050Lm
LED
Lumileds 2835
Lumileds 2835
IP
IP65
IK
IK08
CRI
>80
CCT
2700-6500K

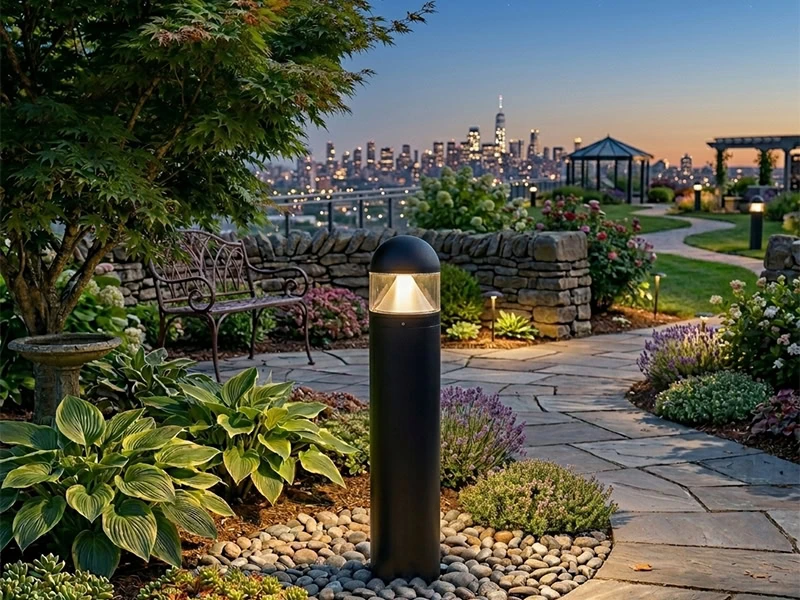

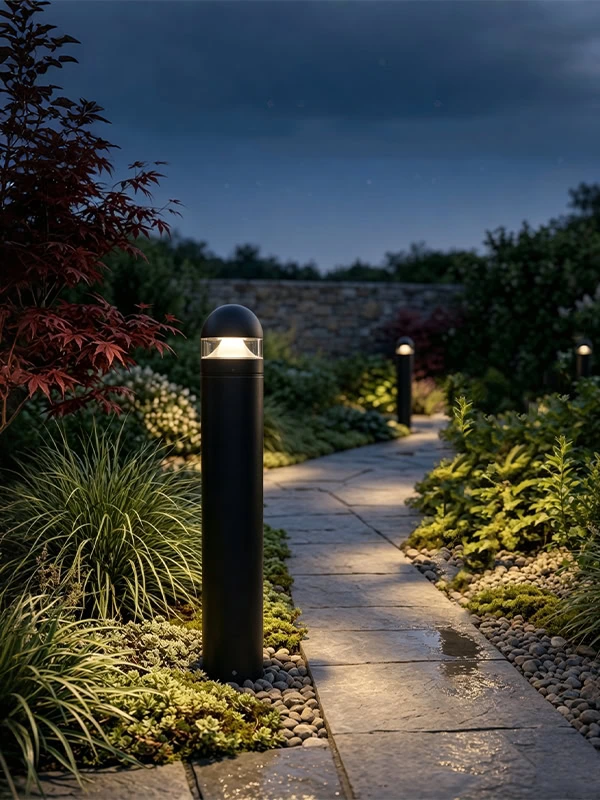

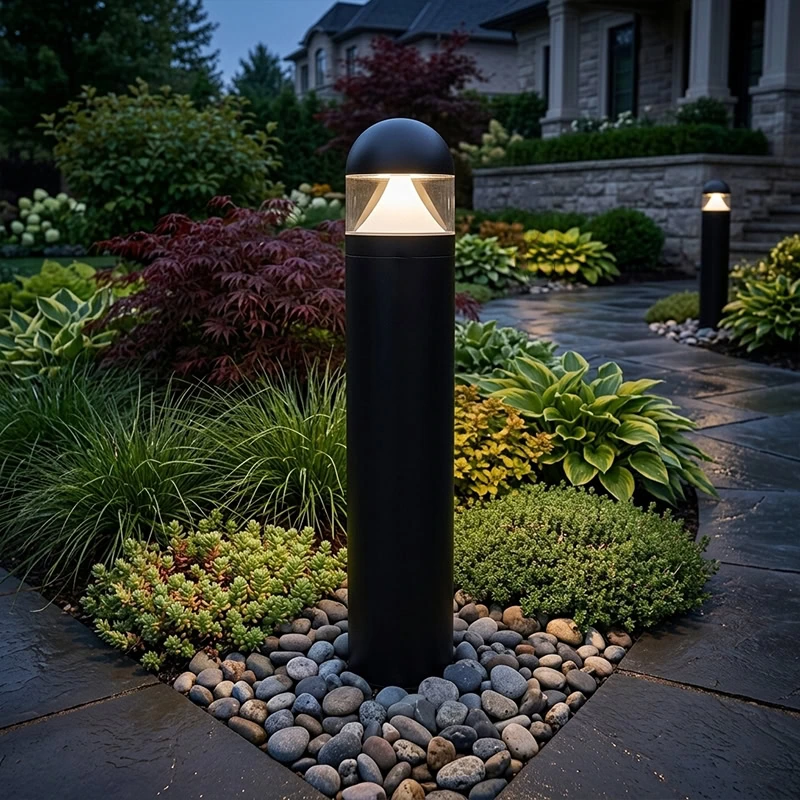

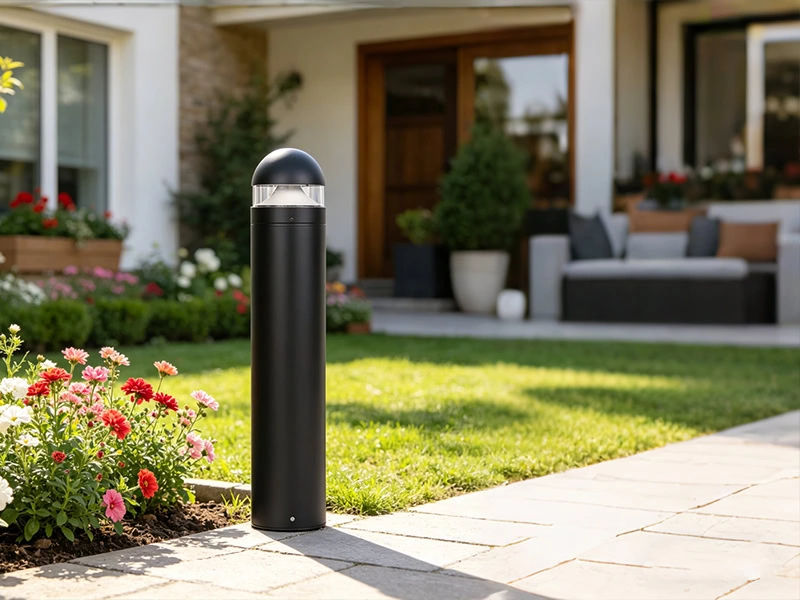

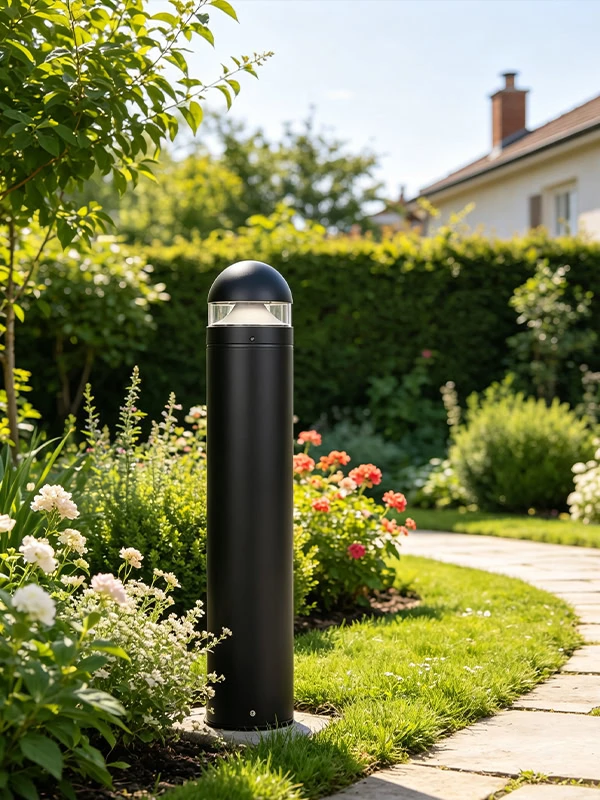

Bollard Light Replacement Applications In Different Scenarios

Perfect for walkways, parks, gardens, car parks, and prestigious retail areas. Its sleek design and durable construction blend seamlessly with outdoor landscapes while providing reliable illumination. Whether for path lighting, security lighting, or decorative purposes, this bollard light replacement meets both functional and aesthetic needs.

LED Bollard Light Replacement Light FAQs

Bollard Light Replacement is suitable for walkways, parks/gardens, car parks, and prestigious retail areas. With IP65 dust and water resistance and IK08 impact resistance, it can handle various outdoor environments.

The main body combines die-casting aluminum alloy and extruded aluminum alloy, finished with anti-UV electrostatic powder coating. It offers durability and anti-aging properties, with standard colors in Black and Silver.

Equipped with a clear anti-UV polycarbonate diffuser and anti-glare plate, it ensures high light efficiency while reducing glare for comfortable nighttime illumination.

It supports a wide color temperature range of 2700K-6500K with 3-step fixed CCT versions.

With high-quality LED sources (e.g., Lumileds 2835/3030) and heat dissipation design, the service life exceeds 50,000 hours under normal use, ideal for long-term outdoor applications.

Made of anti-UV injection polycarbonate, it offers high light transmittance and weather resistance, preventing yellowing or cracking for long-term stable light output.

It complies with international standards such as CE and RoHS, ensuring compliance in major global markets. Contact GS Light for certification documents.

The integrated die-casting aluminum heat sink design with fins efficiently dissipates heat, preventing LED degradation from high temperatures and ensuring stable performance.

The anti-UV electrostatic powder coating provides salt spray resistance.

It offers higher efficiency (e.g., 750Lm at 10W), longer lifespan, lower energy consumption, superior impact/water resistance, and better overall cost-effectiveness.

Frequently Asked Questions

Most frequent questions and answers

Our high bay lights mainly fall into two categories: the UFO type and the linear type.
The UFO type includes series U6, U7, U8, U10, U12, U14, and U15; the linear type includes series L2, L3, and L4. Different series have their own focuses in terms of power, luminous efficiency, functions, and application scenarios. For example, the Food Grade LED High Bay Light - U14 Series is mainly used in food factories, livestock farms, and other scenarios.

Most of the series have an IP65 protection rating. Some, such as the linear series, reach IP66, offering excellent dust and water resistance. They are suitable for indoor and outdoor environments in warehouses, industrial facilities, retail centers, manufacturing plants, etc. Some models can also withstand harsh conditions.

The light effect has a wide coverage. For example, the U6 series adopts high-efficiency light sources, the U7 series offers 150lm/W (standard) and 190lm/W options, and the U8, U15 and other series can reach up to 200lm/W, which can meet the diverse brightness requirements of different places, from ordinary lighting to high-brightness scenarios.

The UFO-shaped industrial miner's lamp has a circular appearance and is designed compactly. It is suitable for uniform lighting over a large area, such as warehouses, stadiums, and factories. The linear-shaped industrial miner's lamp is in the form of a long strip, with a more directional light distribution, which can reduce shadows and glare. It is suitable for large areas with high ceilings and shelf passages, etc.

Supports 0-10V dimming, DALI dimming, etc. Some series such as U7, U10, L2, etc. can also be equipped with intelligent functions like microwave sensing, infrared sensing, Zigbee wireless control, etc., enabling automatic on/off and dimming, achieving energy-saving effects.

Supports both suspension installation and surface installation. Among them, suspension installation can be achieved through accessories such as stainless steel chains and U-shaped brackets. For some series, such as L3, the installation hole positions can be adjusted, making it convenient for on-site flexible installation according to the requirements.

Each series has a wide range of power coverage. In the UFO type, the U6 series ranges from 100W to 300W, the U7 series from 100W to 320W, the U8 series from 100W to 240W, the U10 series from 60W to 240W, the U12 series from 100W to 240W, the U14 series from 60W to 200W, and the U15 series from 100W to 200W. In the linear type, the L2 series ranges from 50W to 240W, the L3 series from 50W to 250W, and the L4 series from 50W to 320W. These can be selected according to the lighting area and height of different places.

The lamp bodies are mostly made of ADC12 die-cast aluminum shells, which have excellent heat dissipation performance and durability. The lenses are usually made of PC material. Some are high-transparency and anti-yellowing PC lenses, and some are equipped with 5mm tempered glass lamp covers (such as the L2 series), which can resist aging and provide soft light.

The service life is 50,000 hours. The installation is quite convenient. The bottom of the light strip is equipped with 3M adhesive, allowing for direct sticking and installation.

Its operating temperature range is from -20 ℃ to 45 ℃.

The LED strip of the Free-cut Series has a cutting length of 8.33mm and 1 LED per unit. It can be cut in units of 1 LED, offering high flexibility.

The Multi-Color Series includes color types such as RGB, RGBW, and RGBCW, which can meet various color requirements.

The types of LEDs used in the product include SMD3528, SMD2835, SMD2216, SMD5050, etc. The LED density (the number of LEDs per meter) ranges from 60 LEDs/M to 288 LEDs/M, and some models in the Pixel Series can even reach 288 LEDs/M, meeting the requirements for different brightness and uniformity.

The edges are rounded. You can choose the option of a custom silicone sleeve, or have the corners hidden by embedding them into a slot.

Check the power supply (voltage / power matching), the positive and negative terminal connections, and whether the cutting of each unit is correct.

For short-distance and low-power applications (such as in cabinet lighting), choose 12V. For long-distance applications (such as in living room ceiling), choose 24V to reduce brightness attenuation.
