Outdoor Light Post – TY4 Series
The GS-TY4 series top post light has a power range of 30W to 100W. The system luminous efficiency is 120lm/W. It features a wide voltage design of 90-295VAC and a working temperature range of -25℃ to +55℃. It has an IP66 protection level and a lifespan of 50,000 hours. It provides stable and efficient lighting support for urban roads, residential areas, and parks, etc.
High-quality Die-cast Aluminum Housing
The lamp adopts a die-cast aluminum material housing. The structure is compact and the strength is high. It has excellent heat conduction performance, which can quickly discharge the heat and extend the lifespan of the LED light source and power supply. Even in high-temperature environments, it can still maintain a low light attenuation rate, ensuring a stable and long-lasting lighting effect.
Outdoor Light Post High Luminous Efficiency
The GS-TY4 series top post light system has an luminous efficacy of up to 120lm/W and a power efficiency of 89%. This significantly reduces energy consumption and operating costs. The LED light source has a lifespan of up to 50,000 hours, reducing the frequency of replacements and maintenance costs, thereby bringing long-term economic benefits to urban lighting projects.
Environmentally Friendly &
Recyclable & Easy To Maintain
The optical system, power supply and control module can all be replaced independently, supporting later upgrades and maintenance, thereby reducing the total life cycle cost. The main materials are recyclable, and the packaging is 100% recyclable cardboard, which is environmentally friendly.
Wide Voltage Range & Strong Resistance To Weathering
90 - 295VAC wide voltage range, suitable for various global power grid environments; -25℃ to +55℃ wide temperature design, capable of stable operation in cold, hot and other climatic conditions. IP66 protection level and IK09 impact resistance level ensure long-term reliable use outdoors.
Outdoor Light Post Datasheet
Model No.
GS-TY4-30W
GS-TY4-60W
GS-TY4-80W
GS-TY4-100W
Power
30W
60W
80W
100W
Material
Die-cast Aluminum+PC lens
Light efficiency
120lm/W
Beam Angle
Class II
Voltage
90-295VAC
PF
>0.90
LED Lifespan
50000Hours
IP
IP66
Impact Resistance
IK09
CCT
3000K,4500K,6000K
Working Temp
-25°C / +55°C
Mounting
Dameter
Dameter
Φ76
Mounting
Height
Height
3-5M
Warranty
5 Years
Excellent Optical Performance Of Outdoor Light Post
The lens is made of imported PC material, with a light transmittance of ≥ 92% and excellent weather resistance. The light distribution curve has been optimally designed, achieving an illuminance uniformity of over 0.6, effectively avoiding glare.
Dimension Of Outdoor Light Post
Luminaire diameter Φ60–Φ76mm, mounting height 3–5 meters. Supports various installation methods such as top mounting and side mounting, and is compatible with standard lamp posts.
The installation angle can be adjusted within the range of ±15°, making it convenient for debugging.Standard bracket installation, suitable for most lamp posts. Installation is simple and the wind resistance is strong.
The installation angle can be adjusted within the range of ±15°, making it convenient for debugging.Standard bracket installation, suitable for most lamp posts. Installation is simple and the wind resistance is strong.

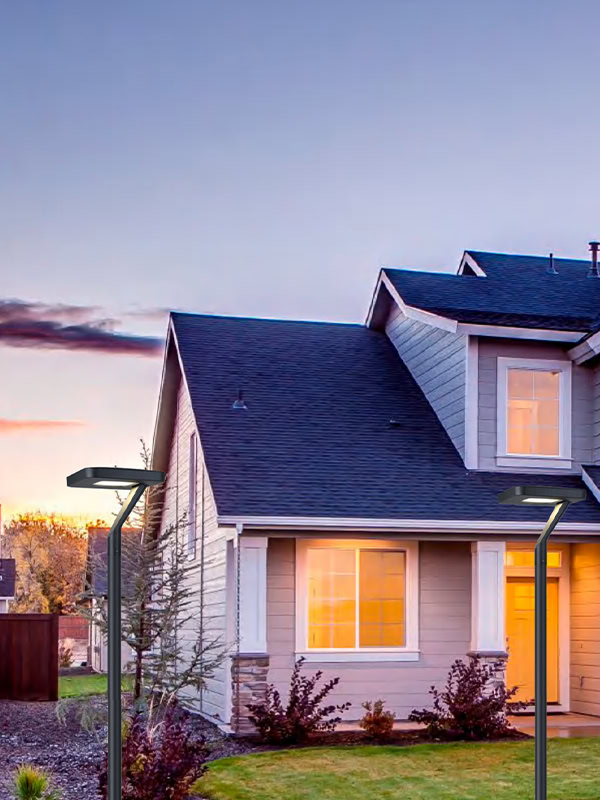

Applications In Different Scenarios
The TY3 series is widely used in outdoor areas such as urban main roads, suburban highways, parks, squares, residential street areas, and parking lots. Its high protection level (IP66) and excellent heat dissipation performance ensure excellent lighting effect and safety reliability even in various harsh weather conditions.
Outdoor Light Post FAQs
Yes, it fits standard pole structures and is commonly used in retrofit projects without changing existing infrastructure.
We prioritize aluminum housing and thermal optimization to ensure stable performance in continuous outdoor exposure.
Poor heat control accelerates LED degradation; TY4 keeps junction temperature stable to extend operational life.
It reduces glare, dark zones, and inconsistent brightness issues commonly seen in older lighting systems.
It is designed to balance both—energy efficiency and improved visual clarity for outdoor environments.
No, its modular structure allows direct replacement of key components without full fixture replacement.
