Post Top LED Lights Urban Light
Post top LED lights, with the core design concept of “high efficiency + sustainability + diverse appearance adaptation”, it integrates the advantages of high system energy efficiency and high power efficiency, and features repairability, durability and recyclability. It also offers two appearance versions to meet the aesthetic needs of different scenarios, fully adapting to the modern urban lighting requirements.
Post Top LED Lights Sturdy And Durable
The optical system, screen and power supply control unit of the street lamp can all be replaced separately. This not only facilitates daily maintenance but also extends the product's service life by upgrading the components.
The product is made of components, materials and surface treatment processes with excellent weather resistance, which can resist corrosion, voltage surges and external force impacts for a long time. Even in complex urban outdoor environments (such as damp, dusty and vehicle scratch risk sections), it can operate stably, reduce the probability of failure and shutdown, and ensure the continuity of lighting.
The product is made of components, materials and surface treatment processes with excellent weather resistance, which can resist corrosion, voltage surges and external force impacts for a long time. Even in complex urban outdoor environments (such as damp, dusty and vehicle scratch risk sections), it can operate stably, reduce the probability of failure and shutdown, and ensure the continuity of lighting.
Post Top Lights Power Flexibility
The power coverage ranges from 30W to 100W throughout the entire area, allowing for flexible selection based on the lighting requirements of the scene: for instance, 30W energy-saving lighting is chosen for sidewalks, while 100W high-brightness lighting is selected for main roads. This precisely matches the light intensity requirements of different sections and locations, avoiding energy waste.
Four Types Of Lampshades Optional
Two appearance versions are provided to precisely meet the aesthetic and functional requirements of different scenarios:
The Transparent version adopts a transparent optical cover design, allowing light to pass through more directly, with a prominent sense of technology and transparency. It is suitable for scenarios such as science and technology parks and modern-style commercial streets that pursue "clear lighting vision + technological atmosphere".
The Sanded finish version has its surface treated with a sanded process. The light is softer and more uniform after diffuse reflection, creating a warm and non-dazzling lighting atmosphere. It is suitable for places such as residential areas and parks that emphasize a "comfortable lighting environment". Both versions continue the series' square and simple design language, and have a high degree of integration with various street scene styles in the city.
The Transparent version adopts a transparent optical cover design, allowing light to pass through more directly, with a prominent sense of technology and transparency. It is suitable for scenarios such as science and technology parks and modern-style commercial streets that pursue "clear lighting vision + technological atmosphere".
The Sanded finish version has its surface treated with a sanded process. The light is softer and more uniform after diffuse reflection, creating a warm and non-dazzling lighting atmosphere. It is suitable for places such as residential areas and parks that emphasize a "comfortable lighting environment". Both versions continue the series' square and simple design language, and have a high degree of integration with various street scene styles in the city.
Transparent version
Sanded finish version
High Power Efficiency
The power efficiency exceeds 90%, which means that the conversion loss from electrical energy to light energy is extremely low. The vast majority of the input electrical energy can be converted into effective lighting, which not only improves the energy utilization efficiency but also reduces the electricity cost of urban lighting in the long term.
High System Energy Efficiency
The system has an energy efficiency of 120lm/W. Under the same power, it can output more abundant and brighter light, effectively improving the lighting quality (such as expanding the coverage of light and enhancing the uniformity of brightness), while reducing power consumption and contributing to energy conservation and consumption reduction in urban lighting.
Top Post Lights Datasheet
Model No.
GS-S2-30W
GS-S2-60W
GS-S2-80W
GS-S2-100W
Power
30W
60W
80W
100W
Materials
Die casting aluminum
Light efficiency
120lm/W
Beam angle
Class II
Voltage
90-295VAC
PF
>0.90
LED Lifespan
50000 hours
IP
IP66
Impact resistance
IK09
CCT
3000K,4500K,6000K
Working Temp
-25°C / +55°C
Mounting dameter
Φ76mm
Mounting Height
3-5m
Warranty
5 Years
Beam Angle Of Top Post Light
The PC lens light guiding system is adopted, combined with scientific optical design. The light distribution curve is uniform and has a wide coverage range (refer to the light distribution curve), which can effectively reduce dark areas and glare, and improve the comfort and safety of lighting. Supports multiple color temperature options including 3000K (warm light), 4500K (natural light), and 6000K (cool light). The lighting atmosphere can be flexibly adjusted according to the scene (for example, warm light can be chosen for commercial streets to create an atmosphere, and cool light for traffic arteries to enhance recognition).
Dimension Of Top Post Light
The dimensions are 460mm (length) ×460mm (width) ×323mm (height). The square shape is simple and elegant, and it is highly compatible with various urban street scene styles.

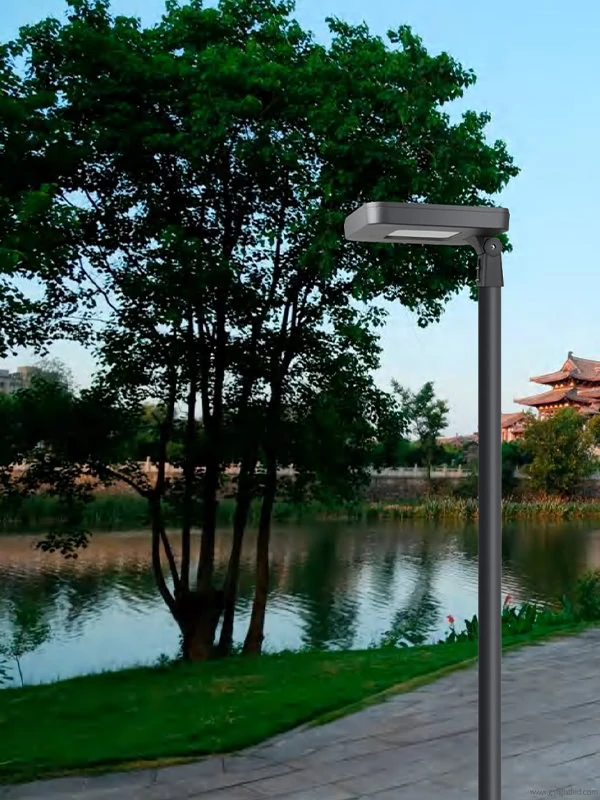

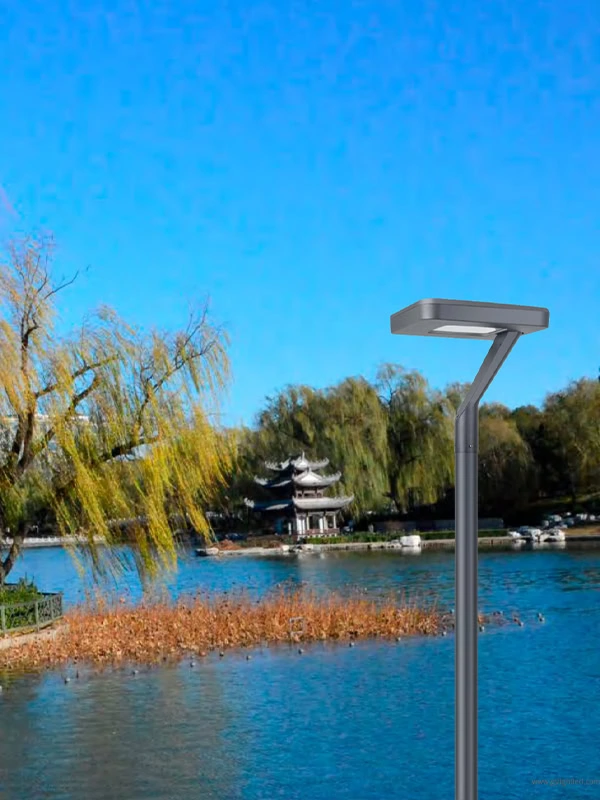

Applications In Different Scenarios
Suitable for all types of urban lighting scenarios: 100W high-power models are selected for main urban roads to ensure high-brightness and safe lighting for traffic flow. For secondary roads and branch roads, 60W/80W is selected to balance lighting effect and energy conservation. 30W is selected for sidewalks and park paths to create a comfortable walking lighting environment. In addition, the transparent version can be selected for science and technology parks to enhance the technological atmosphere, while the matte version can be chosen for residential areas to create a warm feeling. Areas such as squares, campus roads, and commercial streets can also achieve the triple satisfaction of "efficient lighting + scene atmosphere + appearance adaptation" through this series, helping to build a smart, green, and textured urban lighting ecosystem.
Post Top LED Lights FAQs
Because they combine functional road lighting with a clean architectural appearance, making them suitable for both infrastructure and landscape design projects.
It integrates a modular structure with replaceable optical and power components, reducing long-term maintenance dependency.
It improves pedestrian safety by reducing visual contrast between bright and dark areas.
It improves heat dissipation and ensures long-term structural stability in outdoor environments.
It ensures controlled light distribution, minimizing glare and improving visual comfort.
