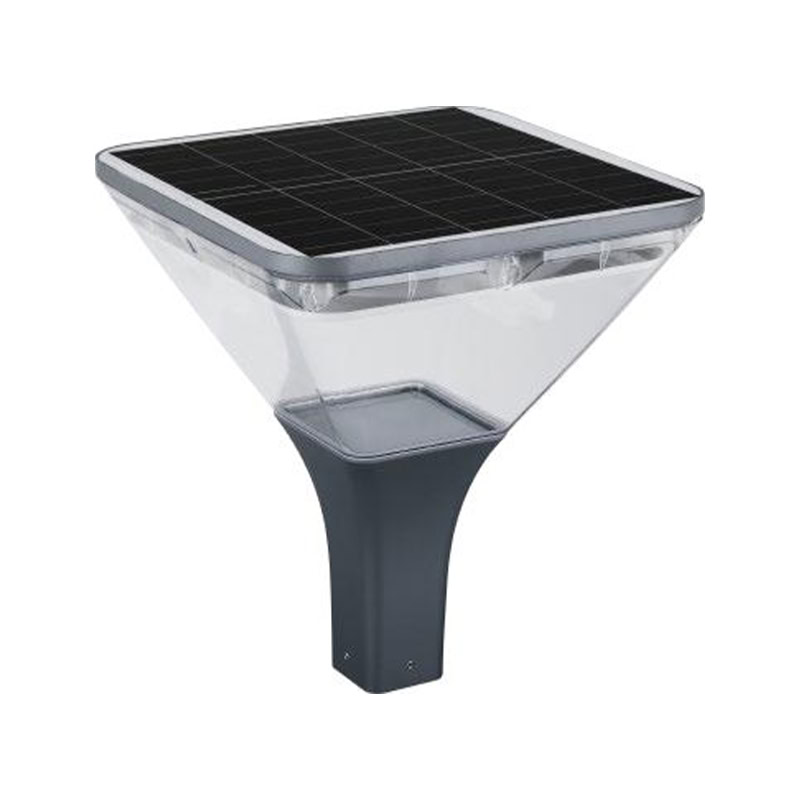

Solar Lamp Post
Light Top – Square1 Series
The solar lamp post light top integrates a retro appearance with modern LED technology, featuring high protection, impact resistance, and efficient heat dissipation. It also focuses on sustainability, supporting maintenance, upgrade, and environmental-friendly recycling, providing a long-lasting, safe and comprehensive solution for outdoor lighting.

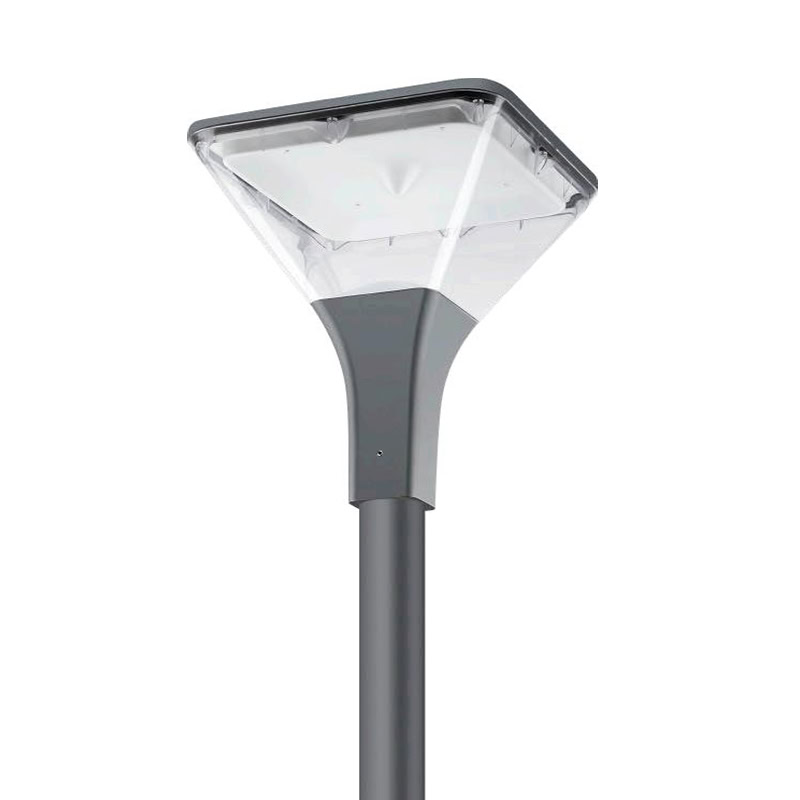

Sturdy And Durable Solar Lamp Post Light Top
The solar lamp post light top housing is made of die-cast aluminum, which not only provides the lamp with a sturdy structure that can withstand various physical impacts in the outdoor environment, but also thanks to the excellent heat conductivity of die-cast aluminum,
it avoids the impact on the lifespan and lighting effect of the light source due to high temperatures, ensuring the system can operate stably for a long time and helping to achieve a service life of ≥ 50,000 hours.
it avoids the impact on the lifespan and lighting effect of the light source due to high temperatures, ensuring the system can operate stably for a long time and helping to achieve a service life of ≥ 50,000 hours.
Two Types Of Lampshades Optional
We offer four types of lampshades: Sanded finish version and transparent version.
Users can choose flexibly according to the installation environment, style requirements and optical needs, easily matching modern, classic or special landscape designs, and enhancing the overall project's coordination and aesthetics.
Users can choose flexibly according to the installation environment, style requirements and optical needs, easily matching modern, classic or special landscape designs, and enhancing the overall project's coordination and aesthetics.
Sanded finish version
Transparent version
Sustainable Design, Repairable And Recyclable
Starting from the entire product life cycle, the Borden1 series boasts excellent repairability - the optical system, lamp cover, and power supply control unit can all be replaced separately, facilitating daily maintenance. It can also be upgraded as needed to extend its service life.
At the same time, the main components of the product are easily separable due to the absence of adhesives, allowing for classification and recycling. The packaging is made of 100% recyclable cardboard, fully implementing the concept of environmental protection and reducing the impact on the environment.
At the same time, the main components of the product are easily separable due to the absence of adhesives, allowing for classification and recycling. The packaging is made of 100% recyclable cardboard, fully implementing the concept of environmental protection and reducing the impact on the environment.
High protection and safety performance
The protection level reaches IP66, which can effectively prevent dust from entering and water from penetrating, ensuring the stable operation of the lamp in dusty and humid outdoor environments.
It complies with the Class II anti-electrocution protection level, building an electrical safety barrier for users and avoiding the risk of electric shock.
In addition, the lamp has passed the Class I impact protection certification and meets the relevant impact resistance standards. Even in the event of possible outdoor collisions, it can still maintain stable performance and enhance durability in use.
It complies with the Class II anti-electrocution protection level, building an electrical safety barrier for users and avoiding the risk of electric shock.
In addition, the lamp has passed the Class I impact protection certification and meets the relevant impact resistance standards. Even in the event of possible outdoor collisions, it can still maintain stable performance and enhance durability in use.
Lamp Post Light Top Datasheet
Model No.
GS-S1-S-(Transparent Version)
GS-S1-S-(Sanded Finish Version)
Power
30/40W
Material
Die-cast Aluminum+PC lens
Light efficiency
120lm/W
Beam Angle
Class II
Voltage
90-295VAC
PF
>0.90
LED Lifespan
50000Hours
IP
IP66
Impact Resistance
IK09
CCT
3000K,4500K,6000K
Working Temp
-25°C / +55°C
Mounting
Dameter
Dameter
Φ76mm
Mounting
Height
Height
3-5M
Warranty
5 Years
Beam Angle Of Lamp Post Light Top
solar lamp post light top Using PC lenses and a light guiding system, the light distribution is uniform, effectively avoiding glare. It supports multiple light distribution curves for selection, meeting the optical requirements of various road lighting applications.

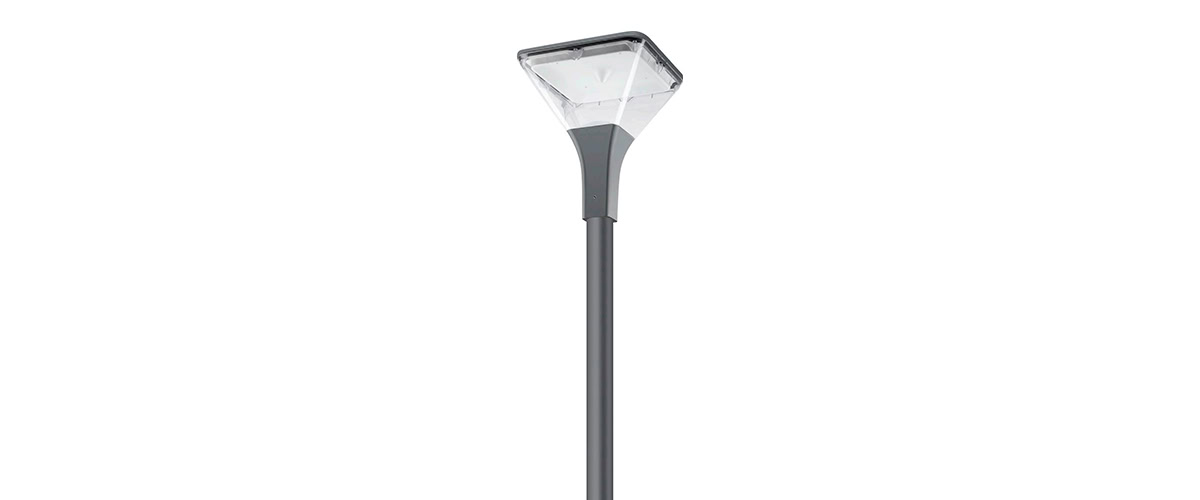

Dimension Of Lamp Post Light Top
The main size of the solar lamp post light top is 425×425×816mm (length × width × height). The installation arm size has been designed for compatibility. The retro style and proportion combine both aesthetics and installation adaptability.
Applications In Different Scenarios
On the main roads of the city, adequate and uniform lighting can be provided to ensure the safety of traffic; in historical and cultural districts, pedestrian streets, retro designs can be in harmony with the architectural style to create an atmosphere-filled nighttime scene; in addition, it can also be applied in residential courtyards, park scenic areas, squares and other places, meeting the functional lighting needs while also serving as a landscape element to enhance the aesthetic appeal of the space, creating a comfortable and safe light environment for people's nighttime activities.
Solar Lamp Post Light Top FAQs
Because they combine energy efficiency, uniform light distribution, and architectural compatibility, making them suitable for large-scale municipal projects.
Its Class II optical system reduces glare and provides soft, uniform illumination, improving nighttime visual comfort for pedestrians and drivers.
Yes, with IP66 protection, they are fully resistant to dust and strong water ingress, ensuring stable outdoor performance.
The recommended mounting height is 3–5 meters for optimal lighting coverage and uniformity.
It supports DALI and 0–10V dimming, allowing smart control for energy-saving lighting systems.
It uses die-cast aluminum combined with PC optical lenses for durability, heat dissipation, and light efficiency.
It combines high efficiency, durable structure, dimming flexibility, and long lifespan, offering a more stable and professional lighting solution.
