Solar Lamp Post Top Round1 Series

The LED Urban Light Solar Round1 series focuses on urban lighting scenarios, integrating solar technology with high-efficiency LED light sources. With durable materials, wide-range adaptability and optimized optical design at its core, it combines energy conservation and stable performance, providing long-lasting and efficient lighting support for different areas of the city.

Integrated Optical Guide System Solar Lamp Post Top

The PC lens is adopted as the core component of the light guide system. The PC material has a high light transmittance, which can efficiently guide the transmission of light, reduce light loss, allow more light to be projected outward, and improve the effective utilization rate of lighting. Meanwhile, the light guide system has been optimally designed to further sort out the light distribution, making the lighting effect more uniform and more in line with the scene requirements.

Solar Lamp Post Top Durable Shell Material

The lamp housing is made of die-cast aluminum material, which not only enhances the structural strength of the product but also ensures that the street lamp remains structurally stable in complex outdoor environments such as strong winds and collisions. It also has excellent corrosion resistance, effectively resisting the erosion of rainwater, humid air, acidic and alkaline substances, etc. on the lamps, significantly extending the outdoor service life and laying a solid foundation for long-term stable lighting.

Solar Lamp Post Top Datasheet

Model No.

GS-S5-S-20W

GS-S5-S-30W

Power

20W

30W

Materials

Die casting aluminum

Light efficiency

120lm/W

Beam angle

Class II

Voltage

90-295VAC

>0.90

LED Lifespan

50000 hours

IP66

Impact resistance

IK09

CCT

3000K,4500K,6000K

Working Temp

-25°C / +55°C

Mounting dameter

Φ76mm

Mounting Height

3-5m

Warranty

5 Years

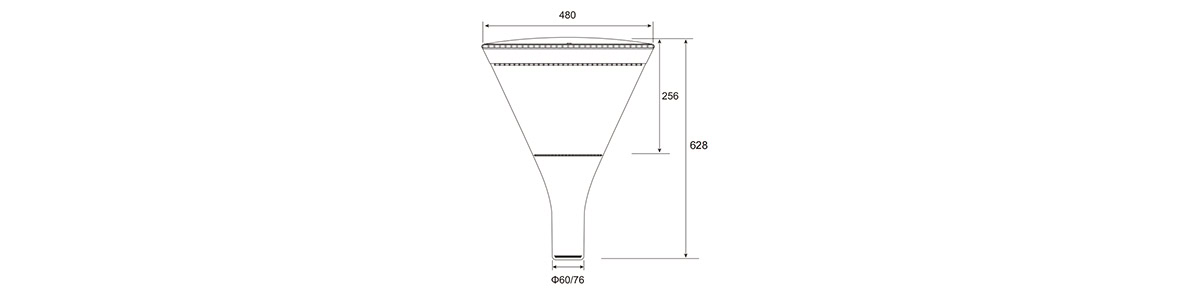

Dimensions of Solar Lamp Post Top

The top diameter of the lamp body is 490mm, and the total height is 628mm (with the lampshade part being 256mm high). The installation diameter is Φ76mm. The design is simple and the size adaptability is strong, which can be integrated into various outdoor installation environments.

Beam Angle Of Solar Lamp Post Top

Optically, it adopts a symmetrical light distribution design, with a uniform light distribution curve and a reasonable coverage range (as shown by the light distribution curve), which can achieve symmetrical and uniform light projection and avoid the appearance of "dark areas" or "overly bright areas" in the illuminated area. Meanwhile, the system efficacy reaches 120lm/W, with excellent luminous efficacy. While providing sufficient brightness, it also takes into account energy utilization efficiency, making lighting more energy-efficient.

Applications In Different Scenarios

It is applicable to a wide range of urban and outdoor scenarios: In the field of urban roads, main roads, secondary roads, and back alleys can all achieve stable lighting through it, ensuring the safety of traffic and pedestrians. In leisure areas such as parks and squares, its uniform and soft light can create a comfortable night environment, facilitating citizens' leisure activities. In addition, industrial parks, campuses, scenic spots and other places can also take advantage of its durability, energy efficiency and high-quality lighting effects to create outdoor lighting solutions that are both practical and in line with the scene atmosphere.

Solar Lamp Post Top FAQs

This Solar Lamp Post Top adopts solar self-power supply, requiring no complex wiring or trenching construction. It cuts grid electricity costs and features green energy-saving performance, ideal for zero-consumption outdoor lighting projects.

The high-transmission PC lens of Solar Lamp Post Top optimizes symmetrical light distribution, reduces light loss and eliminates dark zones. It delivers uniform brightness while maximizing solar energy utilization efficiency.

With a wide working temperature of -25℃ to +55℃ and IP66 waterproof and dustproof rating, these Post Top Lights adapt to high-temperature, freezing, rainy and dusty outdoor environments all year round.

The die-cast aluminum structure enhances wind resistance and impact resistance of Solar Lamp Post Top. It resists rain corrosion and acid-base erosion, ensuring long-term structural stability in open outdoor spaces.

Solar Lamp Post Top adopts a universal Φ76mm mounting diameter, compatible with most standard outdoor lamp poles, enabling fast and convenient installation and replacement.

Daily maintenance is simple. Only regular cleaning of the solar panel and lamp surface dust is needed, with no frequent component replacement required, saving operation costs.

Solar Lamp Post Top – Round1 Series
