Lamp Post Top – Wetar
Series

The GS Wetar series of LED street lights are specially designed to cope with complex environments. It consists of two sub-series, WE1 and WE2, with power ranging from 30W to 100W. It supports a wide voltage input of 90-295VAC and has an luminous efficiency of up to 120lm/W. The product features an IP66 ultra-high protection level, IK09 anti-shock capability, a working temperature range of -25℃ to +55℃, and is equipped with a die-cast aluminum housing and a PC lens light guiding system to ensure stable operation in various harsh climatic conditions.

Modular Maintenance Design

The optical system, power module and control unit all adopt modular design, enabling quick replacement and significantly reducing maintenance difficulty and cost.
The IP66 protection rating ensures that the product is completely dust-proof and resistant to strong water jets, enabling it to operate normally in extreme weather conditions such as heavy rain and sandstorms, providing reliable lighting support.

Dual-design Style Lamp Post Top

[With Shading Cover Option - Directional Lighting]: A professional shading cover is added to the top, effectively controlling glare. The light is precisely projected onto the road surface, achieving extremely high utilization rate.
[360-degree illuminated model - panoramic lighting]: With a full-angle lighting design, the light is evenly and abundantly distributed, without any dark areas. The lighting effect has a stronger sense of envelopment and layering, making it highly suitable for urban squares, large parks, landscape nodes, sculptures and greenery.

Lamps Post Top Outdoor Datasheet

Model No.

GS-WA1

GS-WA2

Power

30/60/80/100W

Material

Die-cast Aluminum+PC lens

Light efficiency

120lm/W

Beam Angle

Class II

Voltage

90-295VAC

>0.90

LED Lifespan

50000Hours

IP66

Impact Resistance

IK09

CCT

3000K,4500K,6000K

Working Temp

-25°C / +55°C

Mounting
Dameter

Φ76mm

Mounting
Height

3-5M

Warranty

5 Years

Excellent Optical Performance Of Lamp Post Top

Using PC lenses and advanced light guiding systems, with scientific light distribution, the illumination is uniform and effectively avoids glare.
Supports standard lamp post installation, with standardized installation interfaces and simple construction.
Offers a variety of installation brackets and intelligent control module options to meet the needs of different projects.

Dimension Of Lamp Post Top

The diameter of the lamp body is 76mm (standard size), with an installation height of 3 to 5 meters. The structure is compact and the installation is convenient.

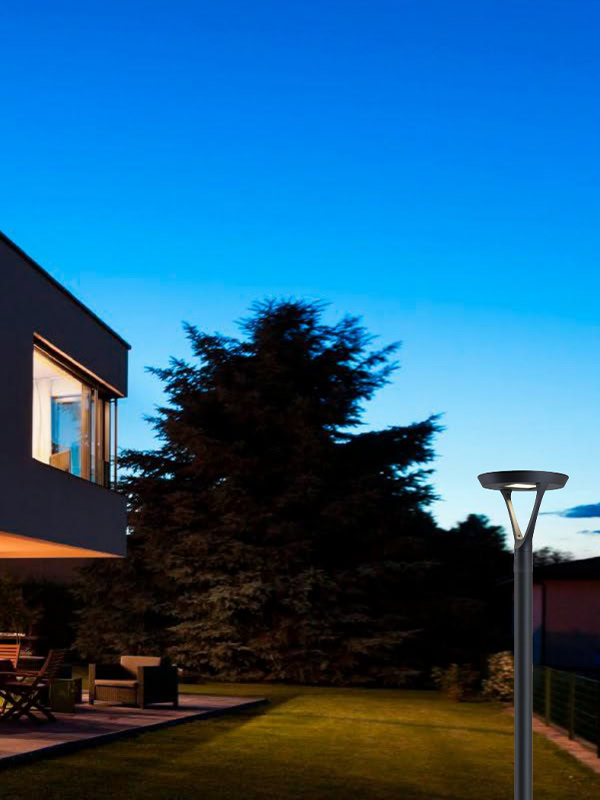

Applications In Different Scenarios

The Wetar series of LED street lights are particularly suitable for lighting areas with harsh environmental conditions, such as coastal regions, rainy areas, industrial zones, mining areas, ports, tunnels, etc.
Their high protection level and wide temperature operating range ensure that they can provide stable and reliable lighting services in these special environments. They are the preferred products for municipal roads, factory area roads, port docks, tunnel lighting and other projects.
They can also be used in ordinary roads, parks, squares and other places, providing users with more durable and reliable lighting solutions.

Lamp Post Top FAQs

Our GS Light Wetar series Lamp Post Top fits harsh and complex outdoor environments. Featuring IP66 waterproof/dustproof, IK09 impact resistance and a -25℃ to +55℃ wide temperature range, these Post Top Lights deliver stable lighting for coasts, industrial zones, ports, tunnels and regular urban outdoor areas.

Our Lamp Post Top offers two functional styles. The shaded version provides directional lighting with anti-glare performance to improve road light utilization, while the 360° full-angle Post Top Lights deliver uniform, dark-free panoramic lighting for landscapes and public spaces.

Our durable Lamp Post Top is made of die-cast aluminum housing and high-transmission PC lens. The anti-corrosion, anti-aging body and anti-glare lens ensure long-term stable outdoor operation for Post Top Lights.

Our Wetar series Post Top Lights reach a high luminous efficiency of 120lm/W. The scientific light distribution system boosts light utilization, delivering uniform outdoor illumination while saving more energy than ordinary street lights.

Our standard Lamp Post Top is designed for 3-5 meters installation height, matching mainstream specifications for municipal roads, parks and residential areas. The compact Post Top Lights ensure stable installation and complete lighting coverage.

Our outdoor Post Top Lights adopt a standard 76mm mounting diameter, compatible with global mainstream lamp posts. The standardized design enables fast installation without pole modification, saving project time and cost.

Our Lamp Post Top features an integrated modular design for optics, power and control units. Damaged modules can be replaced individually without full lamp disassembly, greatly reducing maintenance difficulty and operation costs of Post Top Lights.
