LED Street Lamp - M Series
The GS M series LED street lamps adopt an innovative external standard driver design, without an independent electrical cavity. The structure is compact and the appearance is integrated and self-contained. They have self-cleaning capabilities and extremely high luminous efficiency. They support wide voltage inputs of 100-277V/100-347V/200-240V, and can be optionally equipped with intelligent control systems such as NFC dimming, light control, Zigbee, and Cat1, suitable for different regions around the world and various smart city lighting scenarios. The working environment temperature ranges from -40°C to 50°C, ensuring stable and reliable performance.
External drive, flexible configuration
The separation design of lamps and drivers makes the lamp body thinner, lighter and more compact. The driver supports flexible selection, with power ranging from 50W to 240W, meeting the SKD (semi-disassembly) standard. It is convenient for transportation, assembly and on-site replacement, truly achieving "plug and play", significantly reducing maintenance costs and time.
Intelligent control Of LED Street Light
Supports NFC offline programming, can be easily adjusted for power through a mobile phone; optional light sensor for automatic on/off; also supports Zigbee, Cat1 and other wireless communication protocols, seamlessly integrated into the urban IoT platform, enabling remote monitoring, energy-saving strategy management and fault alarm. It is an ideal choice for the construction of smart street lamps.
Easy maintenance, long-lasting durability
The snap-on quick-disconnect structure design makes maintenance simple; the lamp body has an IP66 protection level, which is dustproof and waterproof, and is sturdy and durable; the self-cleaning surface design reduces dust accumulation and maintains long-term high luminous efficiency. 5-year warranty, guaranteeing long-term reliable operation.
Driver with different power
External standard driver, the lamp body and driver are separated, and the lamp body is smaller;
The lamp body and driver are assembled separately in accordance with SKD standards, and the driver can be configured
according to project requirements.
The lamp body and driver are assembled separately in accordance with SKD standards, and the driver can be configured
according to project requirements.
Datasheet Of LED Street lamp
Model No.
GSL-M50
GSL-M100
GSL-M150
GSL-M200
GSL-M240
Power
30W-50W
75W-100W
150W
200W
240W
LED Type
EMC5050/EMC3030
Materials
Die casting aluminum
Light efficiency
160Lm/W 180Lm/W
Beam angle
T2S/T2M/T3-S/T3M/T4-M/T5-S
PF
>0.95
LED Lifespan
>50000 hours
IP
IP66
Impact resistance
IK08
Working temperature
-30°℃- +55℃
CRI
>70
CCT
3000K/4000K/5000K/6000K
Net weight
1.7kg
2.3kg
2.7kg
3.3kg
3.3kg
Size(mm)
415*176*140
478*239*141
522*245*154
595*303*481
595*303*481
Warranty
5 Years
Multiple light distribution options
80°×150° asymmetric light distribution, multiple light types available (from Class I to Class V), suitable for various road lighting requirements - applicable from sidewalks, residential areas to highways, large parking lots.
For sidewalks, paths and shoulders lighting
For wider sidewalks, ramps, entrance roadways, etc.
Be applicable to residential areas, highways, bridges, etc.
For roadways, large parking areas and other
area lighting
area lighting
Be applicable to parking lots, center islands, intersections,
and large commercial parking lots, etc.
and large commercial parking lots, etc.
Easy Maintenance, NFC Offline Programming, Photocell & Zigbee/cat1 Support
Seamlessly integrating into the city's Internet of Things platform, it enables remote monitoring, energy-saving strategy management and fault alarm functions, making it an ideal choice for the construction of smart street lamps.
Adjustable angle
Buckle design for quick maintenance

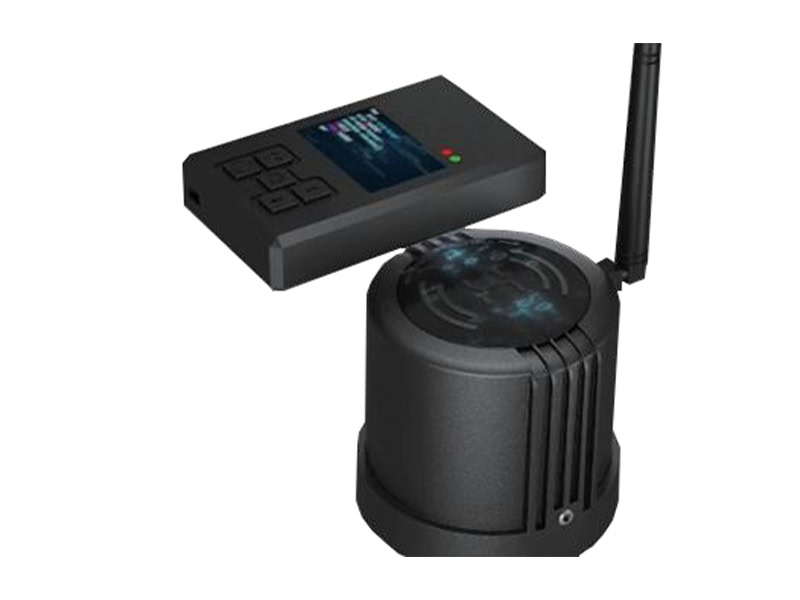

NFC offline programming
Support photocell function
Support Zigbee/cat1 control system
Precise light distribution, energy-efficient
Utilizing high-quality EMC5050/3030 LEDs, the luminous efficiency reaches up to 180lm/W. Multiple beam angles (30°/45°/60°/90°) and light distribution types (Type II, III, IV, V) are available, meeting the different illumination and uniformity requirements from branch roads to main roads, parking lots to highways, effectively controlling glare and enhancing road safety.
Sizes of LED street Lamp
Applications In Different Scenarios
Applicable to: highways, bridges, tunnels; main roads in cities, residential area roads; parking lots, commercial areas, intersections; Park walkways, sidewalks and public squares
Related Products
LED Street Light – Y Series
LED Street Light – G Series
LED Street Lamp FAQs
The LED Street Lamp improves energy efficiency, reduces maintenance frequency, and supports smart control systems, making it suitable for cities upgrading from traditional high-pressure sodium lighting.
Yes, the design is compatible with most standard poles, allowing direct replacement without major structural changes, which reduces project downtime.
Separating the driver from the LED module reduces heat stress, which improves stability and extends service life in outdoor environments.
With IP66 protection and corrosion-resistant aluminum housing, it performs reliably in humid, rainy, and coastal environments.
Yes, via Zigbee or Cat1 communication modules, it can integrate into centralized monitoring and energy management systems.
Different beam angles help optimize light coverage for highways, residential roads, intersections, and parking areas.
Yes, SKD-based design and external driver structure allow rapid assembly and installation.
Photocell automatically switches lights on at dusk and off at dawn, reducing manual operation.
