LED Street Lighting Features
The GS S series LED smart street lamps are an advanced road lighting solution that integrates efficient lighting and Internet of Things technology. It supports intelligent operations such as remote switching, dimming, power metering, fault alarm, and strategy storage. Equipped with LoRa wireless communication technology, the gateway has a coverage radius of 2 to 5 kilometers. The system has strong scalability and can flexibly connect various sensors, suitable for multiple scenarios such as smart cities and digital roads, achieving efficient energy saving and intelligent management.
Strong system expansion capability
The system design is highly open. Besides basic lighting control, it can be expanded to connect various IoT sensor devices such as environmental monitoring (PM2.5, temperature and humidity), security monitoring, public broadcasting, and information dissemination, making it a key node in building the perception layer of a smart city.
Intelligent IoT, Remote Efficient Management
With an internal LoRa communication module, it enables wide coverage by a single gateway and supports precise remote control and real-time status monitoring for each street lamp. Users can set dimming strategies, conduct power statistics, receive automatic fault alarms and perform maintenance management through the platform, significantly enhancing management efficiency and reducing maintenance costs.
Multiple light distribution options
Offer various light distribution options from Type I to Type V, precisely control the light range, effectively avoid glare and light pollution, ensure the uniformity and safety of road lighting, and be suitable for complex road structures and functional area divisions.
For sidewalks, paths and shoulders lighting
For wider sidewalks, ramps, entrance roadways, etc.
Be applicable to residential areas, highways, bridges, etc.
For roadways, large parking areas and other
area lighting
area lighting
Be applicable to parking lots, center islands, intersections,
and large commercial parking lots, etc.
and large commercial parking lots, etc.
Light distribution curve selection LED Street Lighting
Equipped with Philips SMD 3030/5050 LED chips, the luminous efficacy can reach up to 170lm/W, the color rendering index is greater than 70, and the lifespan exceeds 50,000 hours. The total harmonic distortion (THD) is less than 10%, energy-saving and efficient, and compatible with grid requirements.
LED Street Lighting Datasheet
Model No.
GSL-A30
GSL-A60
GSL-A100
GSL-A150
GSL-A200
GSL-A240
Power
30W
60W
100W
150W
200W
240W

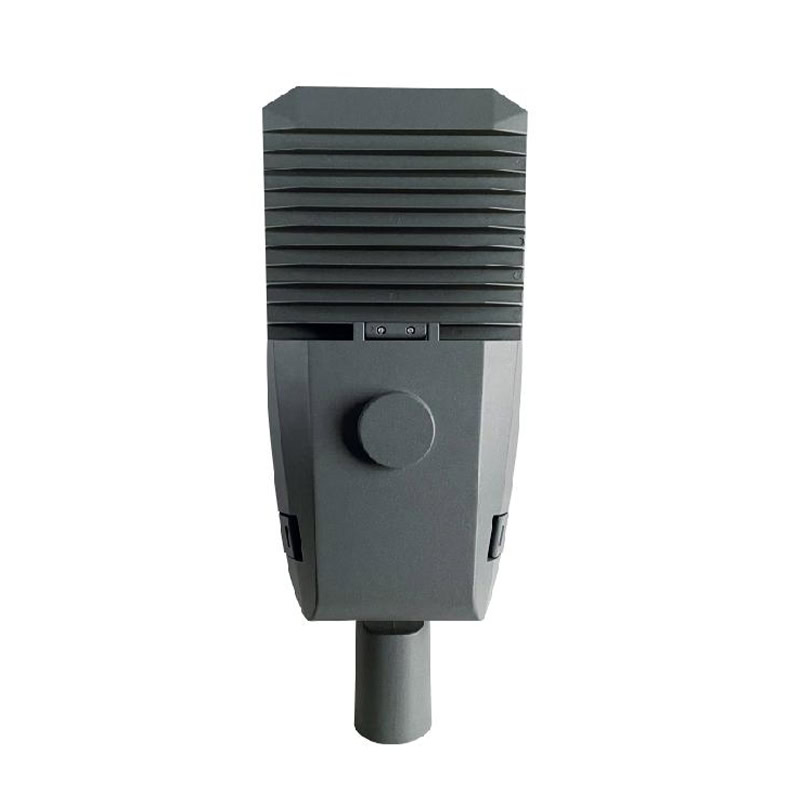

Material
Die casting aluminum
Heatsink
Die-cast aluminum housing
Protective Glass
Tempered glass
Light efficiency
130lm/w, 160lm/w
Lens
Type II, Type III, Type IV, Type V
Voltage
AC100–277V
LEDs
Lumileds 3030
Dimming
DALI / 1-10V / PWM / FIVE LEVELS DIMMING
Driver
Meanwell / Inventronics / SOSEN
PF
>0.95
LED Lifespan
50000H (at 25°C ambient temperature)
IP
IP66
Impact Resistance
IK08
CRI
>80
Power Efficiency
90%
CCT
3000K / 4000K / 5000K / 5700K
Working Temp
-30°C ~ +45°C
Surge Protection
10kV / 20kV for option
Dimensions (mm)
398×195×77
521×220×76
521×270×76
578×270×76
643×330×77
643×330×77

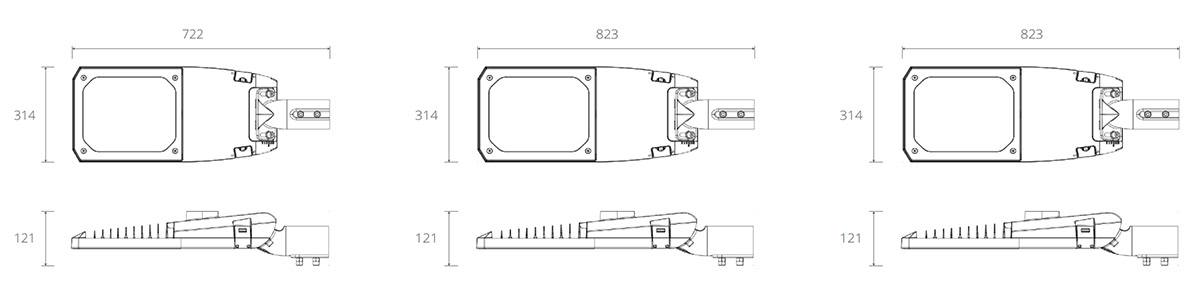

Sizes of LED Street Lighting
GSL-S40
GSL-S60
GSL-S100
GSL-S150
GSL-S200
GSL-S240
GSL-S300
Installation Way LED Street Lights
The product structure is sturdy and has a high level of protection. It can adapt to various harsh outdoor environments. The installation process is standardized and simple. It offers multiple power models ranging from 40W to 300W to meet different illumination requirements, and supports standard lamp pole installation methods.
Applications In Different Scenarios
Smart city main roads, highways and bridge lighting; Intelligent lighting systems for large parks, parking lots and squares; Digital roads requiring environmental data collection and intelligent interconnection; Public lighting areas that require efficient management, such as communities, campuses, and ports
Related Products
LED Street Lamp – M Series
LED Street Light – Y Series
LED Street Light – G Series
LED Street Lighting FAQs
The LED Street Lighting S Series integrates LoRa-based smart control, enabling remote management, dimming, and fault detection beyond basic lighting functions.
LoRa enables long-range (2–5km) communication, allowing centralized control of multiple LED Street Lights from a single gateway.
It reduces manual inspection, improves fault response speed, and optimizes energy usage through automated control.
It ensures precise lighting for different road types, reducing glare and light pollution.
Yes, different dimming strategies can be configured for highways, parks, and residential areas.
